CGH40035F
35 W, DC - 4 GHz, RF Power GaN HEMT
Description

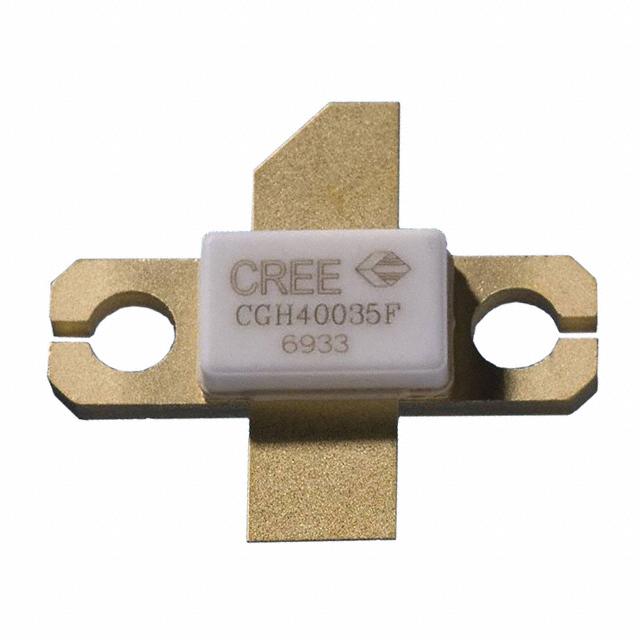

Wolfspeed's CGH40035F is an unmatched, gallium nitride
(GaN) high electron mobility transistor (HEMT). The
CGH40035F, operating from a 28 volt rail, offers a general
purpose, broadband solution to a variety of RF and microwave
applications. GaN HEMTs offer high efficiency, high gain and
wide bandwidth capabilities making the CGH40035F ideal
for linear and compressed amplifier circuits. The transistor is
available in a screw-down, flange package.
Package Type: 440193
PN: CGH40035F
Features
Applications
•
•
•
•
•
•
•
•
•
•
•
Up to 4 GHz Operation
15 dB Small Signal Gain at 2.0 GHz
13 dB Small Signal Gain at 4.0 GHz
45 W typical PSAT
60% Efficiency at PSAT
28 V Operation
2-Way Private Radio
Broadband Amplifiers
Cellular Infrastructure
Test Instrumentation
Class A, AB, Linear Amplifiers Suitable for OFDM,
W-CDMA, EDGE, CDMA waveforms
Large Signal Models Available for ADS and MWO
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
2
Absolute Maximum Ratings (not simultaneous) at 25˚C Case Temperature
Parameter
Symbol
Rating
Drain-Source Voltage
VDSS
120
Gate-to-Source Voltage
VGS
-10, +2
Storage Temperature
Units
V
TSTG
-65, +150
Operating Junction Temperature
TJ
225
Maximum Forward Gate Current
IGMAX
10.0
mA
Maximum Drain Current1
IDMAX
4.5
A
Soldering Temperature2
TS
245
ºC
Screw Torque
Thermal Resistance, Junction to Case3
Case Operating Temperature3, 4
Conditions
25ºC
ºC
τ
40
in-oz
RθJC
3.0
ºC/W
TC
-40, +100
ºC
25ºC
85ºC
Notes:
1 Current limit for long term, reliable operation
2 Refer to the Application Note on soldering at wolfspeed.com/rf/document-library
3 Measured for the CGH40035F at PDISS = 42 W
4 See also, the Power Dissipation De-rating Curve on Page 6
Electrical Characteristics (TC = 25˚C)
Characteristics
Symbol
Min.
Typ.
Max.
Gate Threshold Voltage
VGS(th)
Gate Quiescent Voltage
VGS(Q)
Saturated Drain Current
Drain-Source Breakdown Voltage
Units
Conditions
-3.8
-3.0
-2.3
—
-2.7
—
IDS
7.6
10.5
—
A
VDS = 6.0 V, VGS = 2.0 V
VBR
84
—
—
VDC
VGS = -8 V, ID = 10.8 mA
DC Characteristics1
VDC
VDS = 10 V, ID = 10.8 mA
VDS = 28 V, ID = 500 A
RF Characteristics2 (TC = 25˚C, F0 = 1.3 GHz unless otherwise noted)
Small Signal Gain
GSS
13
14
—
dB
Output Power3
PSAT
30
45
—
W
η
50
60
—
%
VDD = 28 V, IDQ = 500 mA, PSAT
VSWR
—
—
10 : 1
Y
No damage at all phase angles,
VDD = 28 V, IDQ = 500 mA, POUT = 35 W CW
CGS
—
14.7
—
Output Capacitance
CDS
—
4.9
—
pF
VDS = 28 V, VGS = -8 V, ƒ = 1 MHz
Feedback Capacitance
CGD
—
0.6
—
Drain Efficiency4
Output Mismatch Stress
VDD = 28 V, IDQ = 500 mA
Dynamic Characteristics
Input Capacitance
Notes:
1 Measured on wafer prior to packaging
2 Measured in CGH40035F-AMP
3P
SAT is defined as IG = 1.08 mA
4 Drain Efficiency = P
OUT/PDC
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
3
CGH40035 Page 3 Top
50
20
15
10
10
-0
5
-10
Input Return Loss (dB)
Gain (dB)
Typical Performance
DB(IS(2,1)I) (L)
CGH40035F
DB(IS(1,1)I) (R)
CGH40035F
0
3
3.2
3.4
3.6
3.8
4
-20
Frequency (GHz)
Figure 1. Simulated Small Signal Gain and Input Return Loss of
the CGH40035F-AMP vs Frequency
VDD = 28 V, IDQ = 500 mA
50
50
45
PSAT
40
45
35
40
30
35
Efficiency
25
30
20
25
15
20
10
10
Gain
Gain
5
0
3.30
Small Signal Gain
Psat
Psat
SAT
5
DrainEff
Eff
Drain
3.35
3.45
Drain Efficiency (%)
PSAT (W), Small Signal Gain (dB)
45
3.50
3.55
3.55
3.60
3.65
0
3.70
Frequency (GHz)
Figure 2. PSAT Small Signal Gain and Drain Efficiency vs Frequency of the
CGH40035F in the CGH40035F-AMP
VDD = 28 V, IDQ = 500 mA
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
4
16
16
80%
80%
14
14
14
70%
70%
70%
Gain
Gain (dB)
Gain
Gain (dB)
(dB)
10
10
10
60%
60%
60%
Drain Efficiency, PAE (%)
12
12
12
50%
50%
50%
Gain
Drain Efficiency
888
40%
40%
40%
PAE
30%
30%
30%
666
PAE
444
222
20%
20%
20%
10%
10%
10%
Efficiency
0
00
22
22
22
24
24
24
26
26
26
28
28
30
30
30
32
32
34
34
34
36
36
36
Drain
Efficiency,
PAE
Drain
Efficiency
(%),
PAE(%)
(%)
Typical Performance
38
38
38
Output Power (dBm)
40
40
40
42
42
42
44
44
44
46
46
46
0%
0
0%
4848
48
Output Power (dBm)
Output
Power (dBm)
25
1.13
20
0.75
15
0.375
DB(GMax())[X,1] (L)
CGH40035F
10
0.5
1.5
K Factor
MAG (dB)
Figure 3. Swept CW Data of CGH40035 vs. Output Power with Source
and Load Impedances Optimized for PSAT Power in CGH40035F-AMP
VDD = 28 V, IDQ = 500 mA, Freq = 3.5 GHz
K()[X,1] (R)
CGH40035F
2.5
3.5
4.5
5.5
6
0
Frequency (GHz)
Figure 4. Simulated Maximum Available Gain and K Factor of the CGH40035F
VDD = 28 V, IDQ = 500 mA
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
5
Typical Noise Performance
80
3
RN() (R)
CGH40035F
2.5
66.7
2
53.3
40
1.5
1
26.7
0.5
13.3
Noise Resistance (Ohms)
Minimum Noise Figure (dB)
DB(NFMin()) (L)
CGH40035F
0
0
0.5
2.5
4.5
6
Frequency (GHz)
Figure 5. Simulated Minimum Noise Figure and Noise Resistance vs Frequency of the CGH40035F
VDD = 28 V, IDQ = 500 mA
Electrostatic Discharge (ESD) Classifications
Parameter
Symbol
Class
Classification Level
Test Methodology
Human Body Model
HBM
TBD
ANSI/ESDA/JEDEC JS-001 Table 3
JEDEC JESD22 A114-D
Charge Device Model
CDM
TBD
ANSI/ESDA/JEDEC JS-002 Table 3
JEDEC JESD22 C101-C
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
6
Source and Load Impedances
D
Z Source
Frequency (MHz)
Z Source
Z Load
500
5.12 + j8.3
15.5 + j5.67
1000
2.97 + j1.38
11.29 + j7.27
1500
1.15 - j0.38
6.6 + j5.56
2500
0.91 - j5.13
6.17 - j0.4
3500
2.0 - j9.9
4.78 - j2.58
Z Load
G
S
Notes:
1V
DD = 28 V, IDQ = 500mA in the 440193 package
2 Optimized for power, gain, P
SAT and PAE
3 When using this device at low frequency, series resistors should be used to
maintain amplifier stability
CGH40035 Power Dissipation De-rating Curve
45
45
40
40
Power Dissipation (W)
Power Dissipation (W)
35
35
30
30
25
25
20
20
Note 1
15
15
10
10
55
00
00
25
25
50
50
75
75
100
100
125
125
150
150
175
175
200
200
225
225
250
250
Maximum Case Temperature (°C)
Note:
1 Area exceeds Maximum Case Operating Temperature (See Page 2).
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
7
CGH40035F-AMP Demonstration Amplifier Circuit Schematic
CGH40035F-AMP Demonstration Amplifier Circuit Outline
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
8
CGH40035F-AMP Demonstration Amplifier Circuit Bill of Materials
Designator
R1
R2
C6, C13, C19
C16, C22
C15, C21
C8
C1
C2
C10
C4, C11, C17
C5, C12, C18, C30, C31
C7, C14, C20
J2, J3
J1
—
Q1
Description
RES, 1/16W, 0603, ≤5%, 5.1 OHMS
RES, 1/16W, 0603, 1%, 100 OHMS
CAP, 470pF, 5%, 100V, 0603
CAP, 33µF, 20%, G CASE
CAP, 1.0µF, 100V, 10%, X7R, 1210
CAP 10µF 16V TANTALUM
CAP, 0.6pF, +/-0.05pF, 0603
CAP, 1.2pF, +/-0.1pF, 0603
CAP 4.7pF, +/- 0.25pF, ATC 100B
CAP, 7.5pF, +/-0.1pF, 0603
CAP, 47pF, +/-5%pF, 0603
CAP, 33000pF, 0805,100V, X7R
CONN SMA STR PANEL JACK RECP
HEADER RT>PLZ .1CEN LK 9POS
PCB, RO4350B, Er = 3.48, h = 20 mil
CGH40035F
Qty
1
1
3
2
2
1
1
1
1
3
5
3
2
1
1
1
CGH40035F-AMP Demonstration Amplifier Circuit
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
9
Typical Package S-Parameters for CGH40035F
(Small Signal, VDS = 28 V, IDQ = 250 mA, angle in degrees)
Frequency
Mag S11
Ang S11
Mag S21
Ang S21
Mag S12
Ang S12
Mag S22
Ang S22
500 MHz
0.921
-166.38
9.09
82.39
0.015
-1.84
0.555
-165.89
600 MHz
0.921
-169.49
7.57
78.16
0.015
-4.89
0.564
-166.40
700 MHz
0.922
-171.87
6.47
74.31
0.015
-7.54
0.574
-166.63
800 MHz
0.922
-173.79
5.65
70.73
0.015
-9.90
0.583
-166.74
900 MHz
0.923
-175.42
5.00
67.35
0.015
-12.05
0.593
-166.81
1.0 GHz
0.923
-176.84
4.49
64.12
0.014
-14.02
0.604
-166.89
1.1 GHz
0.924
-178.11
4.06
61.01
0.014
-15.84
0.614
-166.99
1.2 GHz
0.925
-179.29
3.71
58.01
0.014
-17.52
0.625
-167.14
1.3 GHz
0.925
179.62
3.41
55.10
0.014
-19.07
0.635
-167.34
1.4 GHz
0.926
178.57
3.16
52.28
0.014
-20.50
0.645
-167.59
1.5 GHz
0.927
177.57
2.94
49.54
0.014
-21.81
0.656
-167.90
1.6 GHz
0.927
176.59
2.75
46.86
0.013
-23.01
0.665
-168.25
1.7 GHz
0.928
175.62
2.58
44.26
0.013
-24.09
0.675
-168.65
1.8 GHz
0.928
174.67
2.43
41.71
0.013
-25.06
0.684
-169.08
1.9 GHz
0.928
173.72
2.30
39.21
0.013
-25.91
0.692
-169.56
2.0 GHz
0.929
172.76
2.19
36.77
0.013
-26.65
0.700
-170.07
2.1 GHz
0.929
171.80
2.09
34.37
0.012
-27.27
0.708
-170.61
2.2 GHz
0.929
170.83
2.00
32.01
0.012
-27.77
0.715
-171.18
2.3 GHz
0.928
169.84
1.92
29.69
0.012
-28.16
0.721
-171.77
2.4 GHz
0.928
168.83
1.85
27.40
0.012
-28.43
0.727
-172.38
2.5 GHz
0.928
167.80
1.78
25.14
0.012
-28.59
0.733
-173.02
2.6 GHz
0.927
166.74
1.73
22.89
0.012
-28.62
0.738
-173.67
2.7 GHz
0.926
165.64
1.68
20.66
0.012
-28.53
0.743
-174.33
2.8 GHz
0.925
164.51
1.63
18.45
0.012
-28.32
0.747
-175.02
2.9 GHz
0.924
163.34
1.59
16.24
0.012
-27.99
0.751
-175.72
3.0 GHz
0.923
162.12
1.56
14.03
0.012
-27.54
0.754
-176.43
3.2 GHz
0.919
159.52
1.51
9.58
0.012
-26.32
0.759
-177.91
3.4 GHz
0.914
156.66
1.48
5.07
0.012
-24.69
0.762
-179.44
3.6 GHz
0.908
153.49
1.46
0.42
0.012
-22.78
0.764
178.96
3.8 GHz
0.901
149.91
1.46
-4.42
0.013
-20.73
0.764
177.29
4.0 GHz
0.891
145.85
1.47
-9.52
0.014
-18.75
0.761
175.54
4.2 GHz
0.879
141.16
1.50
-14.99
0.015
-17.12
0.757
173.69
4.4 GHz
0.863
135.68
1.55
-20.92
0.017
-16.10
0.750
171.73
4.6 GHz
0.844
129.19
1.62
-27.45
0.020
-16.00
0.742
169.65
4.8 GHz
0.819
121.39
1.70
-34.74
0.023
-17.08
0.730
167.41
5.0 GHz
0.788
111.88
1.81
-42.97
0.027
-19.60
0.717
164.98
5.2 GHz
0.750
100.13
1.93
-52.34
0.032
-23.79
0.701
162.29
5.4 GHz
0.707
85.49
2.07
-63.07
0.039
-29.84
0.682
159.23
5.6 GHz
0.662
67.25
2.21
-75.29
0.046
-37.88
0.660
155.58
5.8 GHz
0.626
45.06
2.33
-89.03
0.054
-47.89
0.634
151.00
6.0 GHz
0.611
19.67
2.41
-104.14
0.063
-59.66
0.599
144.99
To download the s-parameters in s2p format, go to the CGH40035F Product page and click on the documentation tab.
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
10
Typical Package S-Parameters for CGH40035F
(Small Signal, VDS = 28 V, IDQ = 500 mA, angle in degrees)
Frequency
Mag S11
Ang S11
Mag S21
Ang S21
Mag S12
Ang S12
Mag S22
Ang S22
500 MHz
0.933
-168.22
9.15
83.17
0.012
0.59
0.599
-170.98
600 MHz
0.933
-171.13
7.63
79.30
0.012
-1.75
0.604
-171.44
700 MHz
0.933
-173.38
6.54
75.79
0.012
-3.72
0.610
-171.69
800 MHz
0.933
-175.22
5.72
72.50
0.012
-5.44
0.615
-171.82
900 MHz
0.933
-176.78
5.09
69.38
0.012
-6.98
0.621
-171.89
1.0 GHz
0.933
-178.16
4.57
66.38
0.012
-8.36
0.628
-171.96
1.1 GHz
0.934
-179.40
4.16
63.48
0.012
-9.61
0.634
-172.02
1.2 GHz
0.934
179.45
3.81
60.66
0.012
-10.74
0.641
-172.11
1.3 GHz
0.934
178.38
3.52
57.92
0.011
-11.75
0.647
-172.22
1.4 GHz
0.934
177.35
3.26
55.24
0.011
-12.67
0.654
-172.37
1.5 GHz
0.934
176.35
3.05
52.61
0.011
-13.47
0.661
-172.55
1.6 GHz
0.934
175.38
2.86
50.04
0.011
-14.18
0.667
-172.77
1.7 GHz
0.934
174.43
2.70
47.51
0.011
-14.78
0.673
-173.03
1.8 GHz
0.933
173.48
2.55
45.02
0.011
-15.29
0.679
-173.32
1.9 GHz
0.933
172.54
2.43
42.58
0.011
-15.69
0.685
-173.64
2.0 GHz
0.933
171.59
2.32
40.16
0.011
-15.99
0.691
-174.00
2.1 GHz
0.932
170.63
2.22
37.78
0.011
-16.19
0.696
-174.39
2.2 GHz
0.932
169.66
2.13
35.43
0.011
-16.29
0.701
-174.80
2.3 GHz
0.931
168.67
2.05
33.10
0.011
-16.30
0.706
-175.25
2.4 GHz
0.930
167.66
1.98
30.79
0.011
-16.21
0.710
-175.71
2.5 GHz
0.929
166.62
1.92
28.49
0.011
-16.02
0.714
-176.21
2.6 GHz
0.928
165.56
1.86
26.21
0.011
-15.75
0.718
-176.72
2.7 GHz
0.927
164.46
1.81
23.93
0.011
-15.40
0.721
-177.26
2.8 GHz
0.925
163.32
1.77
21.66
0.011
-14.96
0.724
-177.82
2.9 GHz
0.924
162.14
1.73
19.38
0.011
-14.46
0.727
-178.40
3.0 GHz
0.922
160.90
1.70
17.09
0.011
-13.89
0.729
-179.00
3.2 GHz
0.917
158.28
1.65
12.48
0.012
-12.64
0.732
179.75
3.4 GHz
0.912
155.38
1.62
7.77
0.012
-11.30
0.733
178.42
3.6 GHz
0.905
152.15
1.61
2.90
0.013
-10.03
0.733
177.01
3.8 GHz
0.896
148.51
1.61
-2.18
0.014
-8.98
0.731
175.53
4.0 GHz
0.885
144.37
1.63
-7.56
0.016
-8.34
0.726
173.97
4.2 GHz
0.871
139.58
1.67
-13.32
0.018
-8.28
0.720
172.31
4.4 GHz
0.853
133.98
1.73
-19.56
0.020
-8.99
0.712
170.56
4.6 GHz
0.831
127.34
1.80
-26.43
0.023
-10.65
0.701
168.71
4.8 GHz
0.804
119.36
1.89
-34.07
0.027
-13.45
0.688
166.73
5.0 GHz
0.770
109.64
2.01
-42.66
0.032
-17.57
0.673
164.60
5.2 GHz
0.729
97.64
2.14
-52.39
0.038
-23.19
0.656
162.24
5.4 GHz
0.684
82.72
2.28
-63.43
0.045
-30.48
0.637
159.52
5.6 GHz
0.638
64.19
2.41
-75.89
0.052
-39.52
0.615
156.18
5.8 GHz
0.603
41.77
2.53
-89.77
0.061
-50.28
0.587
151.85
6.0 GHz
0.592
16.41
2.59
-104.90
0.069
-62.57
0.551
146.03
To download the s-parameters in s2p format, go to the CGH40035F Product page and click on the documentation tab.
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
11
Typical Package S-Parameters for CGH40035F
(Small Signal, VDS = 28 V, IDQ = 750 mA, angle in degrees)
Frequency
Mag S11
Ang S11
Mag S21
Ang S21
Mag S12
Ang S12
Mag S22
Ang S22
500 MHz
0.938
-168.93
9.06
83.42
0.011
1.67
0.616
-172.64
600 MHz
0.938
-171.77
7.56
79.69
0.011
-0.35
0.620
-173.09
700 MHz
0.938
-173.96
6.49
76.30
0.011
-2.03
0.625
-173.35
800 MHz
0.938
-175.76
5.68
73.13
0.011
-3.46
0.629
-173.51
900 MHz
0.938
-177.30
5.05
70.10
0.011
-4.72
0.634
-173.61
1.0 GHz
0.938
-178.66
4.55
67.20
0.011
-5.83
0.639
-173.69
1.1 GHz
0.938
-179.89
4.14
64.38
0.011
-6.82
0.644
-173.77
1.2 GHz
0.938
178.97
3.80
61.63
0.011
-7.70
0.649
-173.86
1.3 GHz
0.938
177.90
3.51
58.96
0.011
-8.47
0.655
-173.98
1.4 GHz
0.938
176.88
3.26
56.33
0.011
-9.15
0.660
-174.12
1.5 GHz
0.937
175.89
3.05
53.76
0.011
-9.72
0.665
-174.28
1.6 GHz
0.937
174.92
2.87
51.23
0.010
-10.21
0.671
-174.48
1.7 GHz
0.937
173.96
2.71
48.74
0.010
-10.60
0.676
-174.71
1.8 GHz
0.936
173.02
2.57
46.28
0.010
-10.89
0.681
-174.97
1.9 GHz
0.936
172.07
2.44
43.86
0.010
-11.10
0.685
-175.26
2.0 GHz
0.935
171.12
2.33
41.47
0.010
-11.22
0.690
-175.58
2.1 GHz
0.935
170.16
2.24
39.10
0.010
-11.24
0.694
-175.93
2.2 GHz
0.934
169.18
2.15
36.76
0.010
-11.19
0.699
-176.30
2.3 GHz
0.933
168.19
2.07
34.43
0.010
-11.05
0.702
-176.70
2.4 GHz
0.932
167.18
2.00
32.12
0.011
-10.83
0.706
-177.13
2.5 GHz
0.931
166.14
1.94
29.81
0.011
-10.54
0.709
-177.58
2.6 GHz
0.930
165.06
1.89
27.52
0.011
-10.18
0.712
-178.06
2.7 GHz
0.928
163.96
1.84
25.23
0.011
-9.76
0.715
-178.55
2.8 GHz
0.927
162.81
1.80
22.94
0.011
-9.28
0.717
-179.07
2.9 GHz
0.925
161.62
1.77
20.64
0.011
-8.77
0.719
-179.61
3.0 GHz
0.923
160.39
1.74
18.33
0.011
-8.23
0.720
179.83
3.2 GHz
0.918
157.74
1.69
13.65
0.012
-7.10
0.722
178.65
3.4 GHz
0.912
154.81
1.66
8.87
0.013
-6.03
0.723
177.40
3.6 GHz
0.904
151.56
1.65
3.92
0.014
-5.15
0.721
176.07
3.8 GHz
0.895
147.88
1.66
-1.26
0.015
-4.59
0.718
174.66
4.0 GHz
0.883
143.69
1.68
-6.74
0.017
-4.52
0.713
173.17
4.2 GHz
0.869
138.85
1.72
-12.62
0.019
-5.08
0.706
171.60
4.4 GHz
0.851
133.18
1.78
-19.00
0.022
-6.42
0.697
169.94
4.6 GHz
0.828
126.46
1.86
-26.01
0.025
-8.72
0.685
168.18
4.8 GHz
0.799
118.38
1.95
-33.80
0.029
-12.12
0.671
166.32
5.0 GHz
0.764
108.54
2.07
-42.55
0.034
-16.81
0.655
164.31
5.2 GHz
0.723
96.40
2.20
-52.44
0.040
-22.96
0.638
162.10
5.4 GHz
0.677
81.32
2.34
-63.62
0.047
-30.70
0.618
159.52
5.6 GHz
0.631
62.63
2.47
-76.21
0.055
-40.13
0.596
156.31
5.8 GHz
0.597
40.10
2.58
-90.17
0.063
-51.20
0.568
152.08
6.0 GHz
0.588
14.75
2.64
-105.34
0.071
-63.71
0.531
146.31
To download the s-parameters in s2p format, go to the CGH40035F Product page and click on the documentation tab.
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
12
Product Dimensions CGH40035F (Package Type — 440193)
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
13
Product Ordering Information
Order Number
Description
Unit of Measure
CGH40035F
GaN HEMT
Each
CGH40035F-AMP
Test board with GaN HEMT
installed
Each
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
CGH40035F
14
For more information, please contact:
4600 Silicon Drive
Durham, NC 27703 USA
Tel: +1.919.313.5300
www.wolfspeed.com/RF
Sales Contact
RFSales@wolfspeed.com
RF Product Marketing Contact
RFMarketing@wolfspeed.com
Notes & Disclaimer
Specifications are subject to change without notice. “Typical” parameters are the average values expected
by Wolfspeed in large quantities and are provided for information purposes only. Wolfspeed products are not
warranted or authorized for use as critical components in medical, life-saving, or life-sustaining applications, or
other applications where a failure would reasonably be expected to cause severe personal injury or death. No
responsibility is assumed by Wolfspeed for any infringement of patents or other rights of third parties which may
result from use of the information contained herein. No license is granted by implication or otherwise under any
patent or patent rights of Wolfspeed.
© 2009-2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
PATENT: https://www.wolfspeed.com/legal/patents
The information in this document is subject to change without notice.
Rev. 4.2, 2022-11-17
4600 Silicon Drive | Durham, NC 27703 | Tel: +1.919.313.5300
© 2022 Wolfspeed, Inc. All rights reserved. Wolfspeed® and the Wolfstreak logo are registered trademarks and the Wolfspeed logo is a trademark of Wolfspeed, Inc.
The information in this document is subject to change without notice.
