2170484

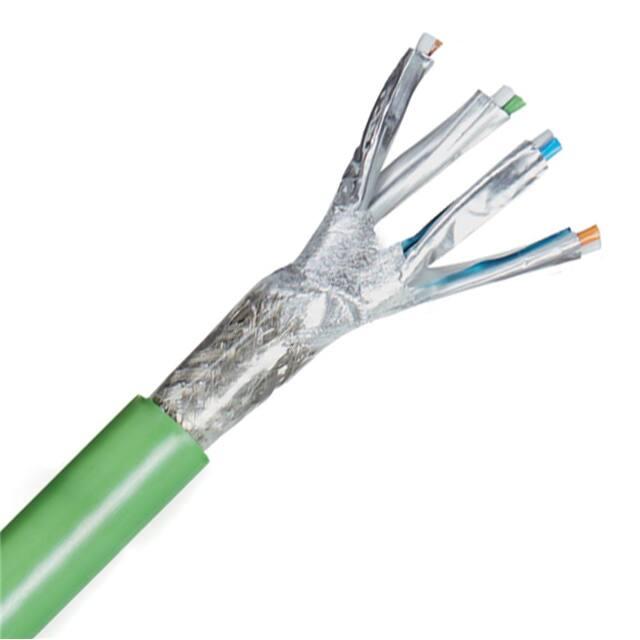

ETHERLINE® Ethernet Cable, Connectors & Tools CAT.6A/CAT.7 4 Pair Cable ETHERLINE® 4 Pair: CAT.6A; Continuous Flex Industrial Ethernet Cable for Continuous Flex Applications Construction LAPP KABEL ETHERLINE® CAT.6A Conductors: Stranded tinned copper Pairs: 4 pairs individually shielded with aluminum compound foil This ETHERLINE® 4 pair cable meets CAT.6A requirements and is suitable for continuous flex applications. Individually shielded pairs and an overall braid shield protect the cable from EMI and allow reliable, high-speed data transfer. The cable is available with a PVC or halogen-free polyurethane jacket. Insulation: Foam skin Shielding: Overall copper braid Jacket: PVC or polyurethane; green Recommended Applications Application Advantage Continuous flex applications; cable tracks; moving machine parts; harsh environments; qualified for CAT.6A = 10 Gbits/s • Qualified for 10 Gigabit Ethernet • Premium shielding against EMI • Oil-resistant jacket • Conforms to PROFINET® standard Approvals Cable Attributes Complete the Installation page 640 SKINTOP® MS-SC page 516 See attribute list by part number on page 230 ÖLFLEX® CONNECT Solution RJ45 CAT.6A Connectors page 252 Industrial Ethernet Cordsets page 612 Technical Data Minimum Bend Radius: - for continuous flexing: 15 x cable diameter Color Code: White & blue, white & orange, white & green, white & brown Temperature Range: - for stationary use: -40°C to +80°C - for continuous flexing: -10°C to +70°C Nominal Voltage: (not for power applications) - 2170484: 1000V - 2170485: 125V Approvals: UL: Canada: Additional: AWM 21576 (2170484) CMX per UL 444 (2170484) RU AWM 80°C 1000V (2170484) CMG per UL 444 (2170485) c(UL) CMX (2170484) cRU AWM I/II A/B FT2 (2170484) c(UL) CMG FT4 (2170485) RoHS Characteristic Impedance: 100Ω ± 15Ω Part Number CAT.6A Cable 2170484 2170485 Size / Pairs Stranding Jacket Material Jacket Color Approvals Fast Connect 24 AWG/4pr 24 AWG/4pr 7 wire 7 wire PUR PVC Green Green PROFINET®, UL/CSA AWM, CMX PROFINET®, UL/CSA CMG No No Nominal Outer Diameter (in) (mm) 0.355 0.355 9.0 9.0 Approx. Weight (lbs/mft) SKINTOP® MS-SC PG Thread 60 59 53112220 53112220 PROFINET® is a registered trademark of the PNO (PROFIBUS User Organization). Recommended SKINTOP® assumes minimal OD variance. Additional configurations are available; please see our SKINTOP® section. If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. For current information go to our website. 244 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com
