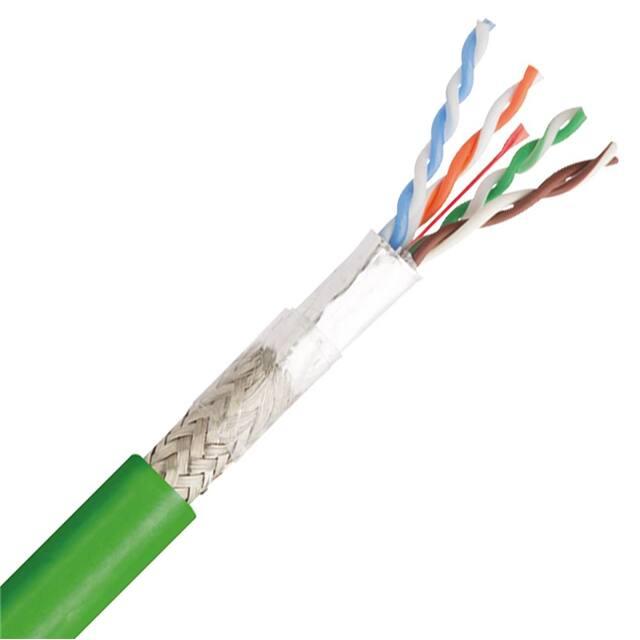

2170450

ETHERLINE® Industrial Ethernet Cable for Special Applications Ethernet Cable, Connectors & Tools ETHERLINE® TRAY CAT.5e; Flexible Tray-Rated Industrial Ethernet Cable for Flexible Applications Construction LAPP KABEL Conductors: Stranded bare copper ETHERLINE® TRAY CAT.5e Pairs: 4 pairs twisted together ETHERLINE® TRAY CAT.5e cables are designed for flexible applications. Designed with a foil and braid shield, the cable is protected against EMI and can be used in areas where reliable transmission is key. Insulation: Thermoplastic-based insulation Shielding: Foil and tinned copper braid Jacket: PVC; green Recommended Applications Application Advantage Flexible applications, cable trays, industrial machinery, plant infrastructure •W  ide application range due to multiple certifications •P  LTC (power limited tray cable) for protected use on cable trays • Suitable for EtherNet/IP applications Approvals Cable Attributes page 640 OIL OR-02 FLAME FR-05 MOTION FL-02 MECH. MP-01 Complete the Installation SKINTOP® MS-SC page 516 ÖLFLEX® CONNECT Solution 90° RJ45 Connectors page 253 ÖLFLEX® CONNECT CABLES page 597 Technical Data Minimum Bend Radius: - for stationary use: 10 x cable diameter - for flexible use: 15 x cable diameter Temperature Range: - for stationary use: -40°C to +80°C - for flexible use: -25°C to +80°C Color Code: White/blue & blue, white/orange & orange, white/green & green, white/brown & brown Nominal Voltage: 600V (not for power applications) Characteristic Impedance: 100Ω ± 15Ω (1 – 100 MHz) Part Number Size / Pairs CAT.5e Cable 2170450 22 AWG/4pr Approvals: UL: Canada: Additional: Stranding Jacket Material Jacket Color Approvals Fast Connect 7 wire PVC Green UL CMR, UL AWM, PLTC, 600V No CMR per UL 444 CMG per UL 444 PLTC per UL 13 AWM 2570 80°C 600V c(UL) CMG RoHS 2 Nominal Outer Diameter (in) (mm) 0.380 9.6 Approx. Weight (lbs/mft) SKINTOP® MS-SC PG Thread 77 53112230 Recommended SKINTOP® assumes minimal OD variance. Additional configurations are available; please see our SKINTOP® section. If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. For current information go to our website. 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com 247
