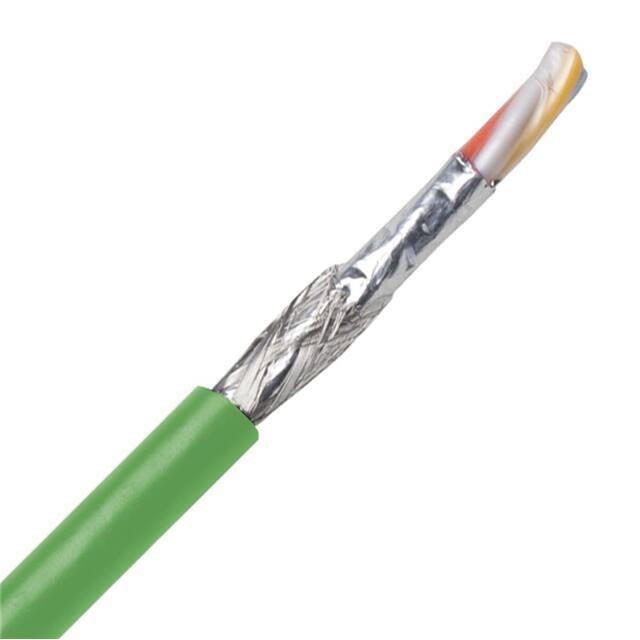

2170894

ETHERLINE® Ethernet Cable, Connectors & Tools CAT.5/CAT.5e 2 Pair Cable ETHERLINE® 2 Pair: CAT.5/CAT.5e; Continuous Flex Industrial Ethernet Cable for Continuous Flex Applications LAPP KABEL ETHERLINE® CAT.5 LAPP KABEL ETHERLINE® CAT.5e Construction Conductors: Stranded bare copper or tinned copper (2170894) Pairs: 2 twisted pairs or star quad ETHERLINE® CAT.5/5e cables are suitable for cable track applications and other moving machinery parts. The special cable design allows easy cable routing, yet provides excellent protection from EMI. The polyurethane outer jacket is halogen-free and resistant against oil, abrasion, and UV light. Insulation: Polyolefin or polyethylene (2170894) Shielding: Copper braid or foil and copper braid (2170894) Jacket: Polyurethane; green or teal Recommended Applications Application Advantage Continuous flex applications; cable tracks; cordsets; wiring of network devices; dry or damp environments • Easy cable routing • Protection from EMI • Fast connect style allows for quick installation Approvals Cable Attributes page 640 Complete the Installation Fast Connect Stripping Tool page 257 See attribute list by part number on page 228 ÖLFLEX® CONNECT Solution RJ45 Connectors page 251 Industrial Ethernet Cordsets page 612 Technical Data Minimum Bend Radius: - for stationary use: 8 x cable diameter - for continuous flexing: 15 x cable diameter Temperature Range: - 2170894 & 2170289: - for continuous flexing: - for stationary use: - 2170289NA: - for continuous flexing: - for stationary use: Characteristic Impedance: 100Ω ± 15Ω -20°C to +60°C -30°C to +70°C -5°C to +50°C -40°C to +70°C Approvals: UL: Canada: Nominal Voltage: (not for power applications) - 2170894: 100V - 2170289 & 2170289NA: 1000V Part Number Size / Pairs CAT.5 Cable 2170894 22 AWG/2pr CAT.5e Cable 2170289* 26 AWG/2pr 2170289NA* 26 AWG/2pr * Max cable run: 196 ft (60 m) Color Code: - 2170894: White, yellow, blue, orange - 2170289: White/orange & orange; white/green & green - 2170289NA: White/orange & orange; white/blue & blue CMX (2170894) AWM 21576 (2170289, 2170289NA) c(UL) CMX (2170894) cRU AWM I/II A/B FT2 (2170289, 2170289NA) Additional: RoHS Nominal Outer Diameter (in) (mm) Stranding Jacket Material Jacket Color Approvals Fast Connect 7 wire PUR Green PROFINET®, UL/CSA CMX Yes 0.256 19 wire 19 wire PUR PUR Teal Teal UL/CSA AWM, 1000V UL/CSA AWM, 1000V No No 0.240 0.228 Approx. Weight (lbs/mft) SKINTOP® MS-SC PG Thread 6.5 42 53112210 6.1 5.8 32 32 53112210 53112210 PROFINET® is a registered trademark of the PNO (PROFIBUS User Organization). Recommended SKINTOP® assumes minimal OD variance. Additional configurations are available; please see our SKINTOP® section. If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. For current information go to our website. 234 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com
