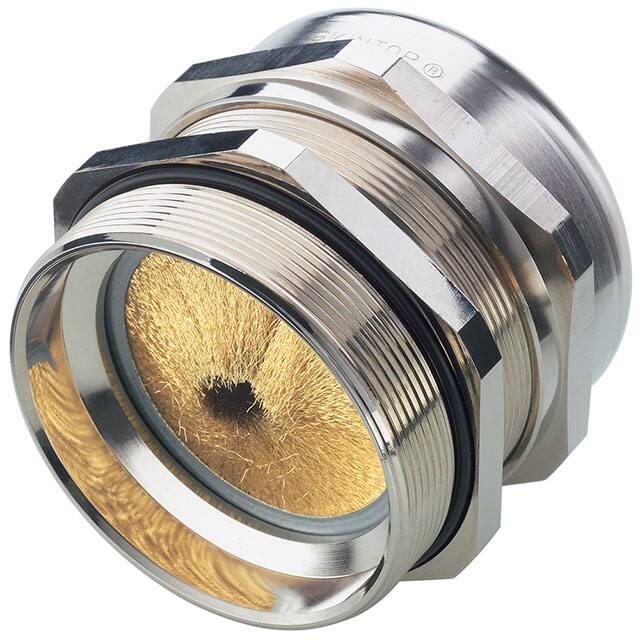

SKINTOP® Strain Relief Cable Glands EMC Cable Glands SKINTOP® MS-NPT BRUSH/MS-M BRUSH Nickel-Plated Brass Strain Relief for EMC Applications with NPT & Metric Thread The SKINTOP® MS-NPT/MS-M BRUSH provides centered, fixed strain relief with a liquid-tight and dust-proof seal, all in one step. Simply insert the cable, push the braid shield under the innovative EMC brush, tighten the cap, and the connection is made. The SKINTOP® MS-M BRUSH Plus sizes offers extra large clamping ranges. Approvals: NPT Application Advantage • Faster, easier, reliable cable shield contact • Maximum assembly and adjustment possibilities •3  60° contact area allows for optimal low-resistance current return ground path Special Features SKINTOP® sizes M75 x 1.5 to M110 x 2.0 feature the innovative double lamella gasket for easier assembling of cables with large diameters. Approvals: Metric Technical Data Material: - Body: - Brush: - Insert: - Bushing: - O-ring: Protection: - NPT: IP68, 5 bar (Exceeds NEMA 6/6P pressure rating) - Metric: - M25 - M63: IP69K - M63 plus and larger: IP68, 5 bar (Exceeds NEMA 6/6P pressure rating) Nickel-plated brass Brass Polyamide Special elastomer Special elastomer Locknuts: Add SM-PE-M locknuts for metric glands, page 535 Temperature Range: - Static: -40°C to +100°C - Dynamic: -25°C to +100°C Part Number Thread Type & Size SKINTOP® MS-NPT BRUSH: NPT 53112037 NPT ¾” 53112047 NPT 1” 53112057 NPT 1¼” 53112067 NPT 1½” 53112077 NPT 2” 53112087 NPT 2”, plus SKINTOP® MS-M BRUSH: Metric 53112676 M25 x 1.5 53112677 M32 x 1.5 53112678 M40 x 1.5 53112679 M50 x 1.5 53112680 M63 x 1.5 53112681 M63 x 1.5, plus 53112501 M75 x 1.5 53112500 M75 x 1.5, plus 53112503 M90 x 2.0 53112505 M110 x 2.0 53112504 M110 x 2.0, plus (in) øF Clamping Range (mm) SW Wrenching Flats (in) C Overall Length (in) D Thread Length (in) Min ø above braiding (in) Standard Pack Size 0.354 - 0.669 0.433 - 0.827 0.748 - 1.103 1.063 - 1.379 1.339 - 1.773 1.733 - 2.167 9.0 - 17.0 11.0 - 21.0 19.0 - 28.0 27.0 - 35.0 34.0 - 45.0 44.0 - 55.0 1.142 1.418 1.773 2.127 2.639 2.955 1.694 1.891 2.265 2.323 2.482 2.836 0.591 0.591 0.669 0.669 0.669 0.669 0.236 0.315 0.394 0.551 0.787 0.984 10 1 1 1 1 1 0.354 - 0.669 0.433 - 0.827 0.748 - 1.103 1.063 - 1.379 1.339 - 1.773 1.733 - 2.167 2.088 - 2.482 2.285 - 2.679 2.600 - 3.073 2.994 - 3.467 3.388 - 3.861 9.0 - 17.0 11.0 - 21.0 19.0 - 28.0 27.0 - 35.0 34.0 - 45.0 44.0 - 55.0 53.0 - 63.0 58.0 - 68.0 66.0 - 78.0 76.0 - 88.0 86.0 - 98.0 1.142 1.418 1.773 2.127 2.639 2.955 3.743 3.743 4.531 5.319 5.319 1.418 1.663 2.344 2.049 2.415 2.719 4.137 4.137 5.339 6.068 6.068 0.315 0.354 0.354 0.394 0.591 0.591 0.591 0.591 0.788 0.985 0.985 0.236 0.315 0.394 0.551 0.788 0.985 1.379 1.379 1.773 2.167 2.167 10 1 1 1 1 1 1 1 1 1 1 Photographs are not to scale and are not true representations of the products in question. If not otherwise specified, all values relating to the product are nominal values. For current information go to our website. 518 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com
