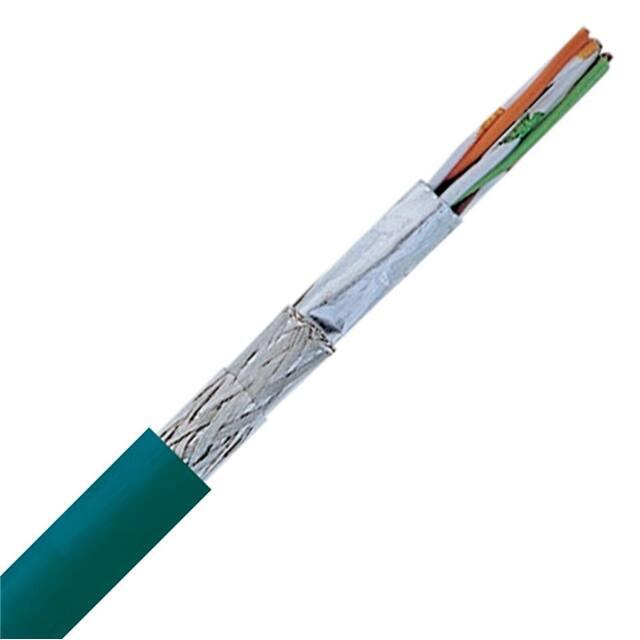

ETHERLINE® CAT.5/CAT.5e 2 Pair Cable Ethernet Cable, Connectors & Tools ETHERLINE® 2 Pair: CAT.5/CAT.5e; Flexible Industrial Ethernet Cable for Flexible Applications LAPP KABEL ETHERLINE® CAT.5 LAPP KABEL ETHERLINE® CAT.5e LAPP KABEL ETHERLINE® CAT.5e Construction Conductors: Stranded bare copper; stranded tinned copper (2170886) Pairs: 2 twisted pairs or star quad Insulation: Polyethylene or polyolefin (2170901) Flexible ETHERLINE® CAT.5/5e cables are constructed with a high-quality foil and copper braid shield for reliable data transfer in areas where EMI is pervasive. The different jacket materials provide excellent protection against oil, flame, or sunlight. A Low Smoke Zero Halogen (LSZH) jacketed cable is available for applications where human safety and damage to electronic components are a concern. Jacket: PVC; green or black — polyurethane or halogen-free; teal Application Advantage Recommended Applications Flexible applications; wiring of industrial network devices, sensors, actuators, and cordsets Approvals Cable Attributes Shielding: Foil and copper braid • Excellent EMI protection •O  il-, flame- & UV-resistant jacket • Conforms to PROFINET® standard • F ast connect style allows for quick installation Complete the Installation page 640 Fast Connect Stripping Tool page 257 See attribute list by part number on page 228 ÖLFLEX® CONNECT Solution RJ45 Connectors page 251 Industrial Ethernet Cordsets page 612 Technical Data Minimum Bend Radius: - for flexible use: 15 x cable diameter Temperature Range: - 2170886: -20°C to +60°C - 2170901: -10°C to +70°C - 2170283, 2170284: -5°C to +60°C Nominal Voltage: - 2170886: - 2170284: - all other P/Ns: (not for power applications) 600V (UL AWM) 1000V 125V Color Code: - 2170886, 2170901: White, yellow, blue, orange - 2170283, 2170284: White/orange & orange; white/green & green Approvals: UL: Canada: Additional: AWM 21576 (2170284) AWM 21694 (2170886) PLTC (2170886) CMG (2170886) c(UL) CMG (2170886) cRU AWM I/II A/B FT2 (2170284) ECOLAB (2170886) RoHS Characteristic Impedance: 100Ω ± 15Ω Part Number Stranding Jacket Material Jacket Color Approvals Fast Connect 22 AWG/2pr 7 wire PVC Green PROFINET®, UL/CSA CMG, UL AWM, 600V, ECOLAB Yes 0.256 7 wire 7 wire 7 wire PVC Halogen-free PUR Black Teal Teal PROFINET® — UL/CSA AWM, 1000V No No No 0.244 0.213 0.228 CAT.5 Cable 2170886 Nominal Outer Diameter (in) (mm) Size / Pairs CAT.5e Cable 2170901 22 AWG/2pr 2170283* 26 AWG/2pr 2170284* 26 AWG/2pr * Max cable run: 196 ft (60 m) Approx. Weight (lbs/mft) SKINTOP® MS-SC PG Thread 6.5 45 53112210 6.2 5.4 5.8 40 29 30 53112210 53112210 53112210 PROFINET® is a registered trademark of the PNO (PROFIBUS User Organization). Recommended SKINTOP® assumes minimal OD variance. Additional configurations are available; please see our SKINTOP® section. If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. For current information go to our website. 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com 233
