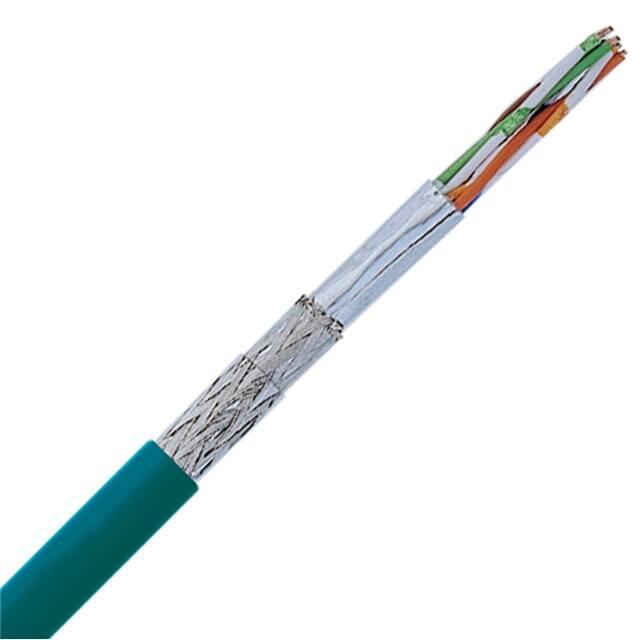

ETHERLINE® UNCONTROLLED COPY Data communication systems for Ethernet technology 4 pair cable ETHERLINE® 4 pair: CAT.5e; flexible Industrial Ethernet cable for flexible applications Construction LAPP KABEL Conductors: stranded bare copper ETHERLINE® CAT.5e Pairs: 4 pairs twisted together ETHERLINE® 4 pair CAT.5e cables designed for flexible applications come with a foil and braid shield for EMI protection. Jacket options include polyurethane and a Low Smoke Zero Halogen (LSZH) compound for applications where human safety and damage to electronic components are a concern. Insulation: polyethylene Shielding: foil and tinned copper braid Jacket: polyurethane or halogen-free; teal Recommended applications Application advantage Flexible applications; wiring of industrial network devices, sensors, actuators, and cordsets • Suitable for EtherCAT® & EtherNet/IP applications • High-quality foil and braid protect against EMI • Flame retardant • LSZH jacket available Approvals Cable attributes page 648 Complete the installation ÖLFLEX® CONNECT solution SKINTOP® MS-SC See attribute list by part number on page 234 RJ45 connectors page 522 Industrial Ethernet cordsets page 620 page 258 Technical data Minimum bend radius: - for stationary use: 8 x cable diameter - for flexible use: 15 x cable diameter Temperature range: - 2170299: - for stationary use: - for flexible use: - 2170300: - for stationary use: - for flexible use: Characteristic impedance: 100Ω ± 15Ω Color code: white/blue & blue, white/orange & orange, white/green & green, white/brown & brown, -20°C to +75°C -5°C to +50°C -40°C to +80°C -5°C to +60°C Nominal voltage: (not for power applications) - 2170299: 125V - 2170300: 1000V Part number Test voltage: - 2170299: 700V Construction Stranding 2170299 26 AWG/4pr 7 wire 2170300 26 AWG/4pr 7 wire CAT.5e cable Jacket material Jacket color halogen-free (LSZH) PUR Approvals: UL: AWM 21576 (2170300) Canada: cRU AWM I/II A/B FT2 (2170300) Additional: RoHS Nominal outer diameter in mm Approvals Fast connect PoE teal — no no 0.240 teal UL/CSA AWM, 1000V no no 0.240 Approx. weight lbs/mft SKINTOP® MS-SC PG thread 6.1 32 53112210 6.1 36 53112210 Max cable run: 196 ft (60 m) EtherCAT® is a registered trademark of Beckhoff Automation GmbH. Recommended SKINTOP® assumes minimal OD variance. Additional configurations are available; please see our SKINTOP® section. If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. 244 for current information see: www.lappusa.com • www.lappcanada.com
