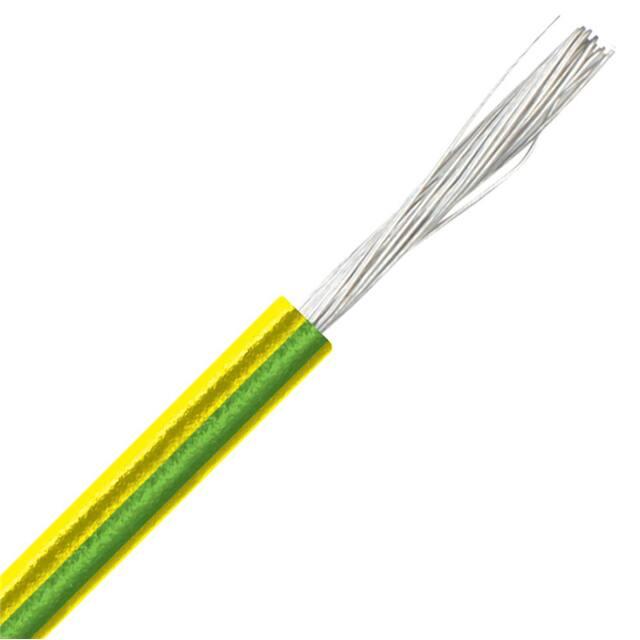

4160700

ÖLFLEX® Harmonized European Hook-up Wire & Cordage Harmonized Hook-up Wire Multi-Standard Hook-up Wire H05V-K: UL AWM Style 1007 & 1569, UL/CSA; H07V-K: UL AWM Style 1015, UL MTW 1063, CSA Construction Conductors: Finely stranded tinned copper Insulation: PVC This internationally approved hook-up wire was designed to meet North American and European market requirements. It passes H05V-K, H07V-K, UL AWM, UL MTW (16 AWG & larger), CSA TEW & CE. Application Advantage Recommended Applications Panel and machine wiring for domestic and export usage; internal wiring of devices, electrical, and medical equipment •O  nly one inventory vs. two for domestic and export consumption • 13 standard color options • UL MTW (16 AWG & larger) •A  vailable in large cardboard barrels for easy pull (16 AWG & larger) • Embossed cable marking available upon request Approvals Cable Attributes page 640 OIL OR-02 FLAME FR-02 MOTION FL-02 MECH. MP-01 Technical Data Temperature Range: - /IEC: -40°C to +70°C - UL/CSA: -40°C to +105°C Nominal Voltage: - H05V-K: - /IEC: - UL/CSA: - H07V-K: - /IEC: - UL/CSA: Color Code: * No for yellow or green wires ≥ 16 AWG 300/500V 300V Approvals: - H05V-K UL: AWM 1007 & 1569 Canada: CSA AWM I A/B Additional: H05V-K CE & RoHS - H07V-K: UL: MTW per UL 1063 AWM 1015 Canada: TEW Additional: H07V-K CE & RoHS 450/750V 600V Test Voltage: - H05V-K: 2000V - H07V-K: 2500V Conductor Stranding: Class 5 fine wire Part Number Nominal Outer Diameter (in) (mm) 00: Green/Yellow 07: Violet 01: Black 08: Pink 02: Blue 09: Orange 03: Brown 10: Yellow* 04: Red 11: Green* 05: White 14: Dark Blue 06: Gray Copper Weight (lbs/mft) Approx. Weight (lbs/mft) Part Number Nominal Outer Diameter (in) (mm) Copper Weight (lbs/mft) H05V-K 8 AWG (10 mm2) 41608.. 0.268 6.8 65 22 AWG (0.50 mm2) 41804.. 0.098 2.5 3 6 6 AWG (16 mm2) 20 AWG (0.75 mm2) 41609..* 0.354 9.0 103 41805.. 0.102 2.6 5 8 4 AWG (25 mm2) 2 18 AWG (1.00 mm ) 41610.. 0.402 10.2 161 41806.. 0.110 2.8 6 10 2 AWG (35 mm2) H07V-K 41611.. 0.461 11.7 226 16 AWG (1.50 mm2) 1 AWG (50 mm2) 41604.. 0.134 3.4 10 15 41612.. 0.547 13.9 323 14 AWG (2.50 mm2) 2/0 AWG (70 mm2) 41605.. 0.157 4.0 16 25 41613.. 0.630 16.0 452 12 AWG (4 mm2) 3/0 AWG (95 mm2) 41606.. 0.181 4.6 26 30 41614.. 0.717 18.2 613 10 AWG (6 mm2) 4/0 AWG (120 mm2) 41607.. 0.201 5.1 39 48 41615.. 0.780 19.8 774 * No approval available for 6 AWG (X07V-K) For Lapp part number, add the double digit color code (see above) to the part number prefix in the table; e.g.: 16 AWG H07V-K green/yellow = 4160400 Approx. Weight (lbs/mft) 81 126 195 268 376 521 693 864 If not otherwise specified, all values relating to the product are nominal values. Photographs are not to scale and are not true representations of the products in question. For current information go to our website. 120 800-774-3539 •  www.lappusa.com • www.lappcanada.com • www.lappmexico.com
