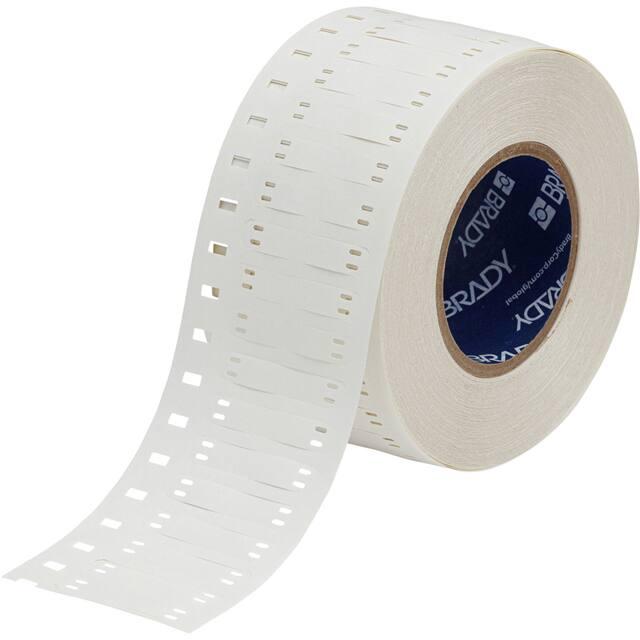

HSNX-400-2-WT

Technical Data Sheet BRADY B-508 BRADYTAG® COMPUTER PRINTABLE TAG TDS No. B-508 Effective Date: 3/25/2019 Description: GENERAL Print Technology: Dot Matrix or Thermal Transfer Materials Type: Nomex® Tag Available Colors: White and Yellow APPLICATIONS Designed as a high performance wire bundle and cable identification tag for use in harsh environments. RECOMMENDED RIBBONS Dot Matrix Brady Series R5000 Thermal Transfer Brady Series R4300 REGULATORY APPROVALS For information on the Weee-RoHS compliance status for a Brady Product go to one of the following websites: In Canada: www.bradycanada.ca/weee-rohs In Europe: www.bradyeurope.com/rohs In Japan: www.brady.co.jp/products/labelsuse/rohs All other regions: www.bradyid.com/weee-rohs SPECIAL FEATURES B-508 has excellent tear, solvent, and heat resistance properties. The service temperature range is -70℃ (-94℉) to +130℃ (266℉) B-508 can also be printed using laser marking method. Laser marking has very good environmental, abrasion, and chemical resistance. Details: PHYSICAL PROPERTIES TEST METHODS AVERAGE RESULTS Thickness ASTM D 1000 0.012 inch (0.305mm) Hole Tear Strength LTP 1412* - Machine -Cross 16 lb (7.3 kg) 21 lb (9.5 kg) ASTM D 1000 -Machine direction 191 lbs/inch (3.4 kg/mm), 22% Dielectric Strength ASTM D 1000 14,000 Volts Vacuum Outgassing ASTM E595 White/R4300: Tensile Strength and Elongation Tested at an outside laboratory Test samples printed with R4300 Series ribbon Specification Limits % Total Mass Loss (TML) - 1.0% maximum % Collected Volatile Condensable Material (CVCM) -0.10 maximum % Water Vapor Recovered - Report % TML - 1.53 % CVCM - 0.10 % WVR - 1.13 Yellow/R4300: % TML - 1.7 % CVCM - 0.10 % WVR - 1.45 Surface Flammability of Materials Using a Radiant Heat Energy Source Tested at an outside laboratory Test samples printed with R4300 Series ribbon ASTM E162 Common Maximum - 35 Flame Spread Index (Is) (rounded average result of 4 tests) White/R4300 - 15 Yellow/R4300 - 15 Specific Optical Density of Smoke (Ds) Tested at an outside laboratory Test samples printed with R4300 Series ribbon ASTM E662 Common Maximum Flaming Mode at 1.5 minutes - 100 Flaming Mode at 4.0 minutes - 200 Specific Optical Density (Ds) (average of 3 tests) White/R4300: Flaming Mode at 1.5 minutes - 14 Flaming Mode at 4.0 minutes - 54 Non-Flaming Mode at 1.5 minutes - 1 Non-Flaming Mode at 4.0 minutes - 3 Yellow/R4300: Flaming Mode at 1.5 minutes - 24 Flaming Mode at 4.0 minutes - 48 Non-Flaming Mode at 1.5 minutes - 6 Non-Flaming Mode at 4.0 minutes - 9 ∗ Brady Corporation Lab Test Procedure Performance properties tested on B-508 white and yellow printed with the Brady Series R5000 dot matrix ribbon and with the Brady Series R4300 thermal transfer ribbon. B-508 white samples were also laser marked with a 10 watt fiber laser. Unless noted, results are the same for both colors of topcoat and all printing processes and ribbons. PERFORMANCE PROPERTIES TEST METHODS TYPICAL RESULTS Long Term High Service Temperature 30 days at 266℉ (130℃) Slight discoloration on face and moderate discoloration on back of tag. No visible effect to print. Long Term High Service Temperature 30 days at 302℉ (150℃) White tag exhibits slight discoloration on face and back of tag. Yellow tag exhibits severe fade in that yellow color has almost disappeared. Tag exhibits slight fading of the yellow color after 14 days at 150℃. Print is legible on all tags. Short Term Service Temperature 7 days at 175℃ White tag exhibits moderate discoloration on the face and back of the tag. Yellow tag exhibits severe fade in that the yellow color has disappeared. Print is legible on all tags. Short Term Service Temperature 30 minutes at 356℉ (180℃) Slight discoloration and slight warping of tag. No visible effect to print. Low Service Temperature 30 days at -94℉ (-70℃) No visible effect Humidity Resistance 30 days at 100℉, 95% R.H. No visible effect UV Light Resistance 30 days in UV Sunlighter™ 100 or Fadeometer per ASTM G155, Cycle 1 Dry Very slight discoloration to white topcoat. No effect to yellow topcoat. Slight discoloration on back of tag. Slight R5000 print fade. No visible effect to R4300 print or to laser marking. Weatherability ASTM G155, Cycle 1 30 days in Xenon Arc Weatherometer Slight print fade with R5000. No visible effect to R4300 print or to laser marking. Salt Fog Resistance 30 days in 5% Salt Fog Chamber per ASTM B 117 No visible effect Print Adherence per SAE-AS81531 (Sec 3.4.2) SAE-AS81531 (Sec 4.6.2) 20 eraser rubs with hard hand pressure Pass - Print still legible with all ribbons and laser marking. Solvent Resistance per SAE-AS81531 (Sec 3.4.3) Solution A Solution C Solution D JP-8 Jet Fuel** MIL-STD-202, Method 215K 3 cycles of 3 minute immersions in specified fluids followed by toothbrush rub after each immersion Pass - Print still legible with all ribbons and laser marking in all test fluids Solution A: 1 part isopropyl alcohol, 3 parts mineral spirits Solution B: deleted from MIL-STD-202, Method 215K Solution C: BIOACT EC-7R terpene defluxer Solution D: 42 parts water, 1 part propylene glycol monomethyl ether, 1 part monoethanolamine at 70℃ ** JP-8 is an additional chemical tested; it is not specified in MIL-STD-202, Method 215K PERFORMANCE PROPERTY CHEMICAL RESISTANCE B-508 white and yellow samples printed with the Brady Series R5000 dot matrix ribbon and with the Brady Series R4300 thermal transfer ribbon. B-508 white samples were also laser marked with a 10 watt fiber laser. Samples were dwelled a minimum of 24 hours before testing. Test conducted at room temperature. Testing consisted of 30 minute fluid immersion. After immersion, the printed image was rubbed on 10 times with a cotton swab saturated with the test fluid. The rating scale below shows the effect to the quality of the print and topcoat, if applicable, for each sample. Unless noted, results are the same for the white and yellow topcoats. SUBJECTIVE OBSERVATION OF VISUAL CHANGE WITHOUT RUB DOT MATRIX WITH RUB R5000 THERMAL TRANSFER WITH RUB R4300 LASER MARKING WITH RUB 10 WATT FIBER LASER . White - 2 ribbon print, 1 laser marking, and 2 topcoat Yellow - 2 ribbon print, 3 topcoat 5 5 1 Propylene Glycol 1 1 1 1 5% Salt Solution 1 1 1 1 CHEMICAL REAGENT Methyl Ethyl Ketone Isopropyl Alcohol 1 1 2 1 JP-8 Jet Fuel 1 1 2 1 1, tag slightly stained red 1 2 1 Gasoline 1 1 3 1 Skydrol® 500B-4 1 2 3 1 BIOACT® EC-7R™ Terpene Cleaner 1 1 2 1 Deionized Water 1 1 1 1 3% Alconox® Detergent 1 1 1 1 10% Sodium Hydroxide Solution 1 1 1 1 10% Sulfuric Acid Solution 2 1 1 1 Mil 5606 Oil Rating scale: 1= no visible effect 2= slight smear, bleed or print removal 3= moderate smear, bleed or print removal (print still legible) 4= severe smear, bleed or print removal (print illegible or just barely legible) 5= complete print and/or topcoat removal NP= print removed prior to rub Shelf Life Shelf life is two years from the date of receipt​ for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH. It remains the responsibility of the user to assess the risk of using this product. We encourage customers to develop testing protocols that will qualify a product's fitness for use in their actual applications. Trademarks: Alconox® is a registered trademark of Alconox Co. BradyTag® is a registered trademark of Brady Worldwide, Inc. BIOACT® is a registered trademark of Petroferm, Inc. EC-7R™ is a trademark of Petroferm Inc. Nomex® is a registered trademark of Du Pont de Nemours, E.I. and Company Skydrol® is a registered trademark of the Monsanto Company Sunlighter™ is a trademark of the Monsanto Company Super Agitene® is a registered trademark of Graymills Company ASTM: American Society for Testing and Materials (U.S.A.) All S.I. Units (metric) are mathematically derived from the U.S. Conventional Units Note: All values shown are averages and should not be used for specification purposes. Test data and test results contained in this document are for general information only and shall not be relied upon by Brady customers for designs and specifications, or be relied on as meeting specified performance criteria. Customers desiring to develop specifications or performance criteria for specific product applications should contact Brady for further information. Product compliance information is based upon information provided by suppliers of the raw materials used by Brady to manufacture this product or based on results of testing using recognized analytical methods performed by a third party, independent laboratory. As such, Brady makes no independent representations or warranties, express or implied, and assumes no liability in connection with the use of this information. WARRANTY Brady products are sold with the understanding that the buyers will test them in actual use and determine for themselves their adaptability to their intended uses. Brady warrants to the buyers that its products are free from defects in material and workmanship, but limits its obligation under this warranty to replacement of the product shown to Brady’s satisfaction to have been defective at the time Brady sold it. This warranty does not extend to any persons obtaining the product from the buyers. This warranty is in lieu of any other warranty, express or implied, including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose, and of any other obligations or liability on Brady’s part. Under no circumstances will Brady be liable for any loss, damage, expense, or consequential damages of any kind arising in connection with the use, or inability to use, Brady’s products. Copyright 2019 Brady Worldwide, Inc. ⎥ All Rights Reserved Material may not be reproduced or distributed in any form without written permission _____________________________________________________________________________________________ Brady North America ⎥ 6555 W. Good Hope Road ⎥ MIlwaukee, WI 53223 ⎥ USA ⎥ Tel: 414-358-6600 ⎥ Fax: 800-292-2289
