3.14.001.001/0000

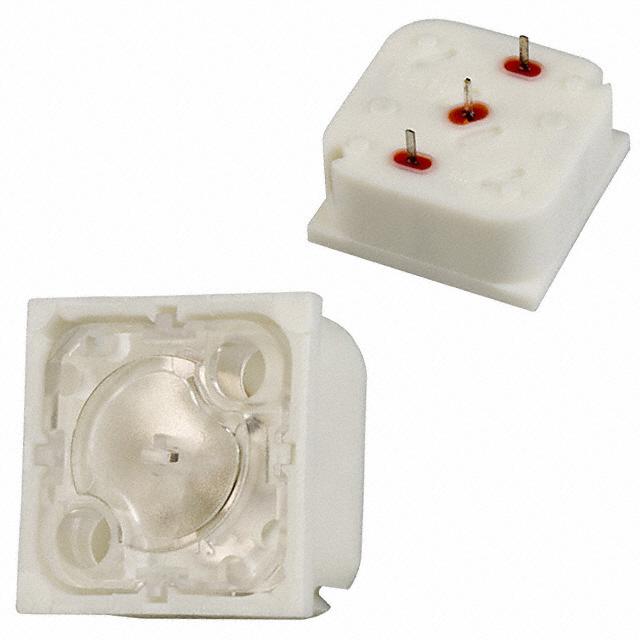

technical data sheet 3.14.001.001/0000 RF 19, gold, non-illuminated, 2,9±0,6 N, bezel transparent, 1 NO fields of application special features  Measurement-control-regulation  Mechanical and system engineering  Automotive  Electro-medical  Gold contacts, reliable switching with low currents  Optional: spot illumination or full illumination  Key grid 23 mm  Overall height: 9.7 mm  Terminal technology: THT description The RF 19 gold tactile switches have a 19 x 19 mm edge length, reliable gold contacts and a noticeable click. They are used in flat data entry keyboards under overlays or under keycaps, such as RAFI RK 90 keycaps. Flat data entry keyboards with RF 19 elements should be constructed in a 23 mm grid. With this grid, strips of glue remain between the individual keys on the front panel. The overlay, which we recommend embossing above the key switches, can be glued onto these strips of glue. technical data general Bezel color transparent direct links Operating temperature, min. -25 °C  RAFI eCatalog Storage temperature, min. -25 °C Operating temperature, max. 70 °C Storage temperature, max. 70 °C illuminated No Soldering time for manual soldering, max. 5 sec Soldering temperature for manual soldering 350 °C Soldering temperature for wave soldering 260 °C Soldering Manual / wave Solder heat resistance according to standard DIN EN 60068-2-20 Packaging Tube Packaging unit 25 pcs. net weight 4g Operating life 1,000,000 cycles The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and other information about our products are the mere results of individual technical testing. These descriptions and other product features are only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own purposes may infringe the rights of the respective entity holding those rights. date: Jul 26, 2021  page: 1/4 RAFI GmbH & Co. KG Ravensburger Str. 128-134 88276 Berg / Ravensburg Germany www.rafi-group.com, info.headquarters@rafi-group.com technical data sheet 3.14.001.001/0000 B10 1,300,000 cycles Environment resistance IEC 60068-2-14 IEC 60068-2-30 IEC 60068-2-33 IEC 60068-2-78 MOQ order 25 pcs. RoHS compliant Yes REACH compliant Yes Installation height 9.7 mm Grid, min. 23 mm Outside dimension, length 19.05 mm Outside dimension, width 19.05 mm Outside dimension, height 9.7 mm Actuation function momentary contact function Operating force, max. 100 N Operating force, min. 2,9±0,6 N Switching travel 0,5+0,2 mm Contact function 1 NO Contact system Snap-action contact Contact material Gold Fixing Soldering Terminal on the rear THT Solderability Yes Rated voltage, min. 0.02 V Rated voltage, max. 35 V Rated current, min. 0.00001 A Rated current, max. 0.1 A Rated power, max. 2W mounting diameters mechanical data electrical data The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and other information about our products are the mere results of individual technical testing. These descriptions and other product features are only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own purposes may infringe the rights of the respective entity holding those rights. date: Jul 26, 2021  page: 2/4 RAFI GmbH & Co. KG Ravensburger Str. 128-134 88276 Berg / Ravensburg Germany www.rafi-group.com, info.headquarters@rafi-group.com technical data sheet 3.14.001.001/0000 drawings Dimensioned drawing System drawing The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and other information about our products are the mere results of individual technical testing. These descriptions and other product features are only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own purposes may infringe the rights of the respective entity holding those rights. date: Jul 26, 2021  page: 3/4 RAFI GmbH & Co. KG Ravensburger Str. 128-134 88276 Berg / Ravensburg Germany www.rafi-group.com, info.headquarters@rafi-group.com technical data sheet 3.14.001.001/0000 front panel drawing Circuit diagram The information in this data sheet only contains general descriptions and / or performance features, which may not apply precisely as described to the respective application, and which my change due to further product enhancements. The technical data, illustrations and other information about our products are the mere results of individual technical testing. These descriptions and other product features are only binding if they expressly agreed upon at the time of the conclusion of a binding contract. In all other cases, we reserve the right to make technical changes as well as changes of availability. Pictures and other graphic illustrations are approximations only. All product names may be trademarks or brand names of the RAFI Group or any other sub-supplier of RAFI. The use of such by any third parties for their own purposes may infringe the rights of the respective entity holding those rights. date: Jul 26, 2021  page: 4/4 RAFI GmbH & Co. KG Ravensburger Str. 128-134 88276 Berg / Ravensburg Germany www.rafi-group.com, info.headquarters@rafi-group.com
