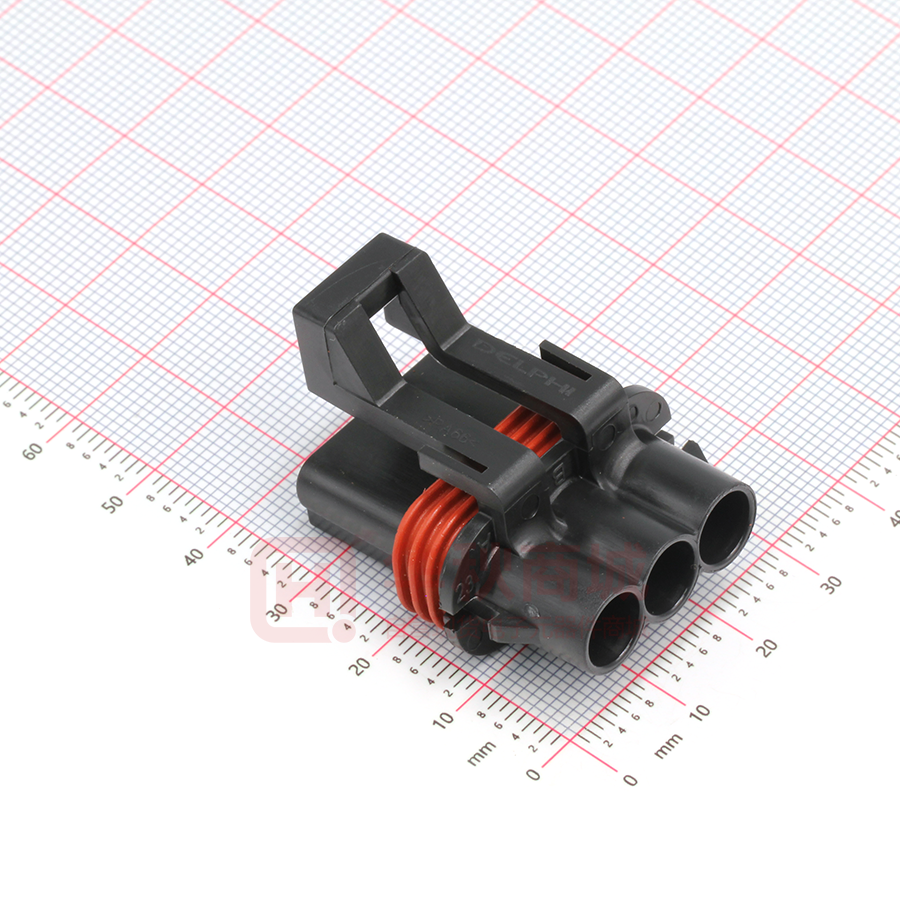

Metri-Pack Series METRI-PACK SERIES SE AL SE AL N E U D D U E U N Available in device and in-line connections for vehicle applications, Metri-Pack 280 Series connectors can meet or exceed the requirements for E AL E D S S S E AL E D 280 Available in device and in-line connections for underhood vehicle applications, Metri-Pack 280 Series sealed connectors can meet or exceed the most marine, appliance, and industrial control applications. requirements for most marine, appliance, and industrial control applications. Ideally suited for limited space applications that do not require environ- Utilizing triple-rib peripheral silicone rubber seals, Metri-Pack 280 Series mental protection, Metri-Pack 280 Series products are extremely versatile. sealed systems are ideally suited for critical, low-energy electronic applications that require protection from environmental hazards. 280 Metri-Pack Features • Connector Position Assurance (CPA) • Terminal Position Assurance (TPA) • 30 Amps continuous maximum current rating • Small overall dimensions • Low energy, low voltage capability • Excellent resistance to temperature, chemicals and abrasion • Standard ISO 2.8mm configuration • -40ºC to 125ºC temperature range 77 280 Metri-Pack Series A SE L N SE E U D D U E U N AL Cross Sectional View Terminal Terminal TPA Cable Cable TPA TANGLESS Female Connector Male Connector TPA (Terminal Position Assurance) CPA (Connector Position Assurance) Tangless Female Terminal TANGLESS 280 TANGLESS FEMALE TERMINALS UNSEALED Part # Cable Range (mm2) Material Plating 12129425 5.0 Tin Brass Tin 12129663 3.0 Tin Brass Tin 12129424 2.0-1.0 Tin Brass Tin 12110842* 3.0-2.0 Tin Brass Tin 12110844* 1.0-0.80 Tin Brass Tin 12110843* 0.50-0.35 Tin Brass Tin 12129061* 0.35 (2 Req’d.) Tin Brass Tin Female Connector *Thin Stock—Electrical current restrictions apply, contact your regional support representative at the number listed below. TANGLESS 280 FLEXLOCK FEMALE CONNECTORS UNSEALED 280 FEMALE TERMINALS UNSEALED Part # 2 Cable Range (mm ) Material Plating 12015858 5.0 Tin Brass Tin 12129494 3.0-2.0 Tin Brass Tin 12066214 2.0-1.0 Tin Brass Tin 12034046 1.0-0.80 Tin Brass Tin 12052217 0.50-0.35 Tin Brass # Cavities Connector Color Material TPA 2 12129081 Black PA66 HS IM 12129083 3 12129489 Black PA66 HS IM 12129491 4 12129136 Black PA66 HS IM 12129138 280 FEMALE CONNECTORS UNSEALED Tin # Cavities Connector Color Material TPA 12064752 Black PA66 HS IM 12064753 12064998 Black PBT 12064999 12162597* 3.0-2.0 Tin Brass Tin 6 12162595* 1.0-0.80 Tin Brass Tin 8 12162596* 0.50-0.35 Tin Brass Tin *Thin Stock—Electrical current restrictions apply, contact your regional support representative at the number listed below. http://delphi.com/products/connect 78 North American Region 1-800-PACKARD European Region 49-202-291-2000 Asia Pacific Region 65-730-9900 South American Region 55-12-378-2002 280 Metri-Pack Series SE AL SE AL N E U D D U E U N Unsealed System Application Information 280 SERIES TERMINALS – Tin Plated TEMPERATURE RISE ABOVE o AMBIENT (25 C) VS CURRENT* CURRENT RANGE (AMPS): TEMP RANGE OC: RESISTANCE: ........ 0-30 .......... -40 to 125 ......
