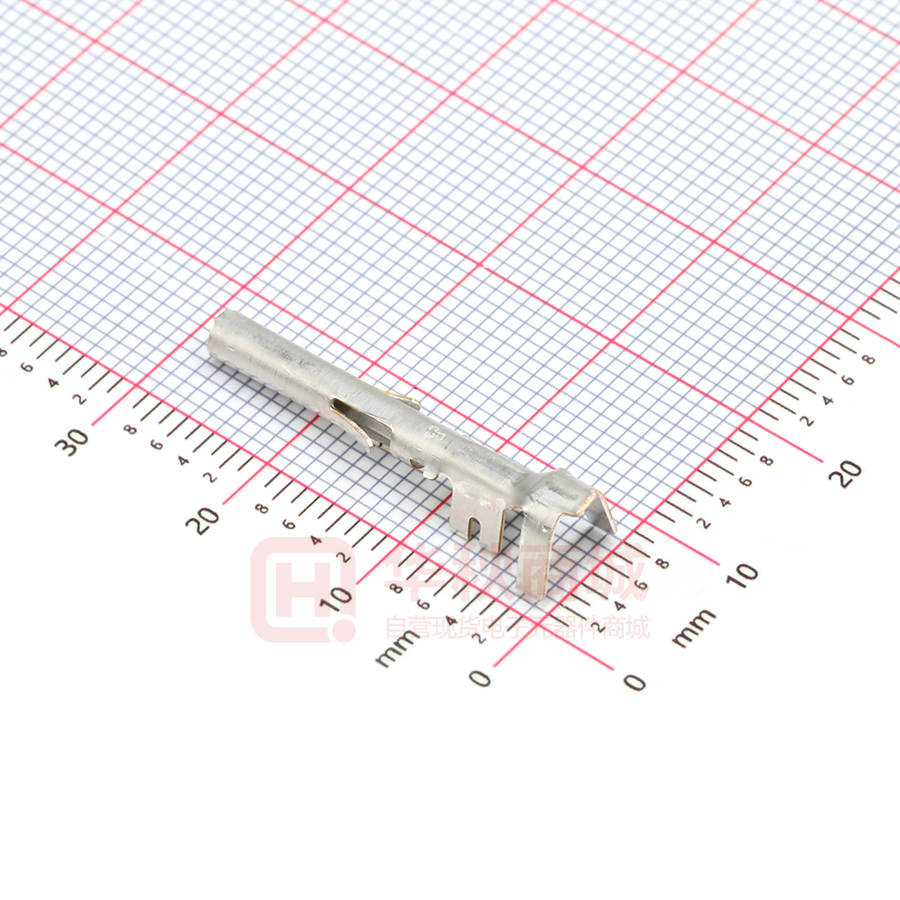

Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1005 Cable type / seal SN 0,32 3,00 (C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY 3,00 - 3,25 15324980 Arrangement 1005 3,00 / 15324980 Nominal Insul. diam [mm] 3,13 Cable type code legend: 1005: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 1 of 12 SAE COPPER NONE PVC, PVDF, XLPE THIN Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,80 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1005 Cable type / seal SN 0,32 3,00 (R) SOLDER - REFLOW [NON-SIR CIRCUIT] CORE IS DIP SOLD 3,00 - 3,25 15324980 Arrangement 1005 3,00 / 15324980 Nominal Insul. diam [mm] 3,13 Cable type code legend: 1005: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 2 of 12 SAE COPPER NONE PVC, PVDF, XLPE THIN Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,80 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1005 Cable type / seal SN 0,32 3,00 (T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED 3,00 - 3,25 15324980 Arrangement 1005 3,00 / 15324980 Nominal Insul. diam [mm] 3,13 Cable type code legend: 1005: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 3 of 12 SAE COPPER NONE PVC, PVDF, XLPE THIN Tear-out CCH force [N] [mm] 250 2,00 Tol CCH [mm] 0,05 CCW [mm] 3,00 Tol CCW [mm] 0,10 ICH [mm] 4,70 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1007 Cable type / seal SN 0,32 3,00 (C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY 3,45 - 3,81 15324981 Arrangement Nominal Insul. diam [mm] 1007 3,00 / 15324981 3,63 Cable type code legend: 1007: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 4 of 12 SAE COPPER NONE PVC, XLPA/PVDF, XLPE REGULAR Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,90 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1007 Cable type / seal SN 0,32 3,00 (R) SOLDER - REFLOW [NON-SIR CIRCUIT] CORE IS DIP SOLD 3,45 - 3,81 15324981 Arrangement Nominal Insul. diam [mm] 1007 3,00 / 15324981 3,63 Cable type code legend: 1007: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 5 of 12 SAE COPPER NONE PVC, XLPA/PVDF, XLPE REGULAR Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,90 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1007 Cable type / seal SN 0,32 3,00 (T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED 3,45 - 3,81 15324981 Arrangement Nominal Insul. diam [mm] 1007 3,00 / 15324981 3,63 Cable type code legend: 1007: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 6 of 12 SAE COPPER NONE PVC, XLPA/PVDF, XLPE REGULAR Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,90 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1007 Cable type / seal SN 0,32 3,00 (V) SOLDER - VARIAC - CORE IS BARE COPPER OR TINNED 3,45 - 3,81 15324981 Arrangement Nominal Insul. diam [mm] 1007 3,00 / 15324981 3,63 Cable type code legend: 1007: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 7 of 12 SAE COPPER NONE PVC, XLPA/PVDF, XLPE REGULAR Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 4,90 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1009 Cable type / seal SN 0,32 3,00 (C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY 4,00 - 4,25 15324981 Arrangement Nominal Insul. diam [mm] 1009 3,00 / 15324981 4,13 Cable type code legend: 1009: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 8 of 12 SAE COPPER NONE PVC, XLPE SPECIAL Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 5,20 Tol ICH [mm] 0,10 ICW [mm] 5,10 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1009 Cable type / seal SN 0,32 3,00 (R) SOLDER - REFLOW [NON-SIR CIRCUIT] CORE IS DIP SOLD 4,00 - 4,25 15324981 Arrangement Nominal Insul. diam [mm] 1009 3,00 / 15324981 4,13 Cable type code legend: 1009: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 9 of 12 SAE COPPER NONE PVC, XLPE SPECIAL Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 5,20 Tol ICH [mm] 0,10 ICW [mm] 5,10 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1009 Cable type / seal SN 0,32 3,00 (T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED 4,00 - 4,25 15324981 Arrangement Nominal Insul. diam [mm] 1009 3,00 / 15324981 4,13 Cable type code legend: 1009: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 10 of 12 SAE COPPER NONE PVC, XLPE SPECIAL Tear-out CCH force [N] [mm] 250 2,00 Tol CCH [mm] 0,05 CCW [mm] 3,00 Tol CCW [mm] 0,10 ICH [mm] 4,80 Tol ICH [mm] 0,10 ICW [mm] 5,00 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 1009 Cable type / seal SN 0,32 3,00 (V) SOLDER - VARIAC - CORE IS BARE COPPER OR TINNED 4,00 - 4,25 15324981 Arrangement Nominal Insul. diam [mm] 1009 3,00 / 15324981 4,13 Cable type code legend: 1009: Industry Designator: Conductor Material: Conductor Plating: Insul. Material: Insul. Wall Designator: File generated: 2013-10-30 Page 11 of 12 SAE COPPER NONE PVC, XLPE SPECIAL Tear-out CCH force [N] [mm] 250 1,95 Tol CCH [mm] 0,05 CCW [mm] 3,65 Tol CCW [mm] 0,10 ICH [mm] 5,20 Tol ICH [mm] 0,10 ICW [mm] 5,10 Tol ICW [mm] 0,10 Crimp Information Sheet Terminal Part Number: Surface Plating: Material Thickness [mm]: Cross Section [mm²]: 12124581 Cable Type codes: Crimp Process: Insulation Range Φ[mm]: Seal(s): 2010 Cable type / seal SN 0,32 2,50 | 4,00 (C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY 2,60 - 3,70 15324981 | 15363991 Arrangement 2010 2,50 / 15363991 2010 4,00 / 15324981 Nominal Insul. diam [mm] 2,80 3,45 Tear-out CCH force [N] [mm] 250 265 2,00 2,05 Tol CCH [mm] 0,05 0,05 CCW [mm] 2,90 3,60 Tol CCW [mm] 0,10 0,10 ICH [mm] 4,90 5,10 Tol ICH [mm] 0,10 0,10 ICW [mm] 5,00 5,10 Tol ICW [mm] 0,10 0,10 Cable type code legend: 2010: ACW0219, FIAT T2 FLRY, FL RENAULT R1, FL RENAULT R3, FLR (AGP0219), FLR2X-A, FLR4Y-A, FLR9Y, FLRX-B, FLRY-A, FLRYB, FLRY-B Industry Designator: Conductor Material: Conductor Plating: Insul. Material: DIN Insul. Wall Designator: THIN File generated: 2013-10-30 Page 12 of 12 COPPER NONE PA, POLYOLEFIN, PP, PVC, SYNTHRESIN, XLCOPOLY, XLPBT, XLPE, XLPE/PVDF, XLPVC
