Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:

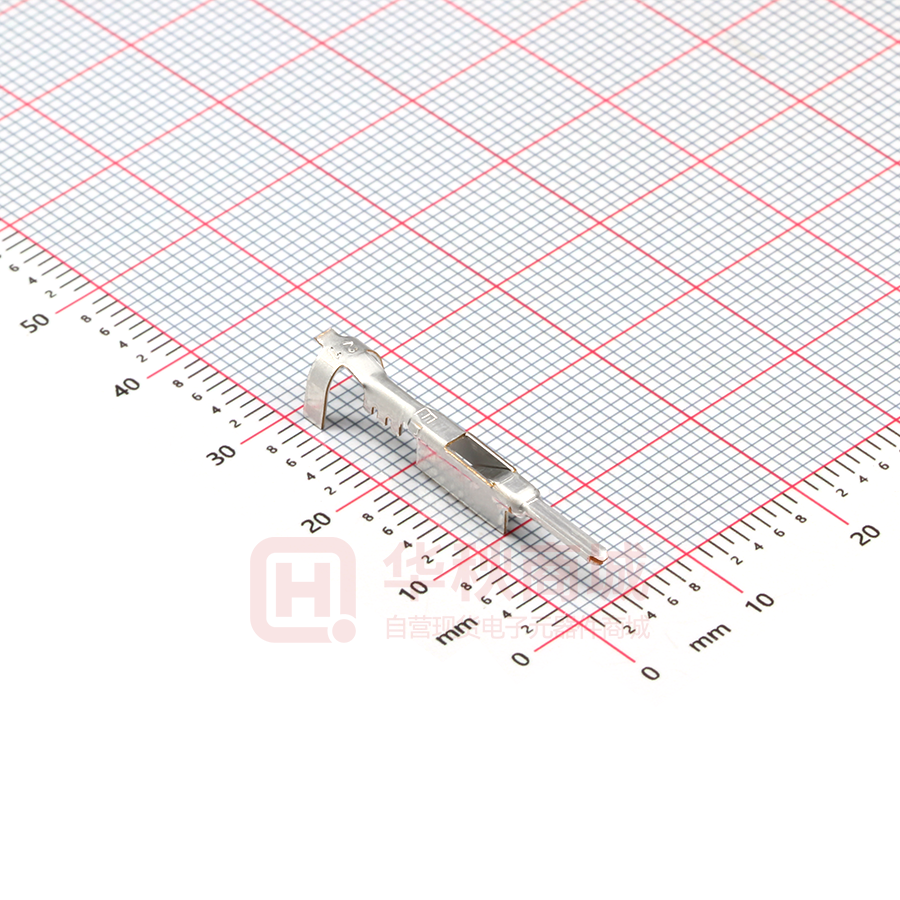

12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1005
Cable type / seal
SN
0,38
0,35 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,45 - 1,88
15324976 | 15324974
Arrangement
1005 0,35 / 15324974
1005 0,50 / 15324976
Nominal Insul. diam
[mm]
1,60
1,74
Cable type code legend:
1005:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 1 of 32
SAE
COPPER
NONE
PVC, PVDF, XLPE
THIN
Tear-out CCH
force [N] [mm]
55
80
1,10
1,15
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,05
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,00
4,00
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1005
Cable type / seal
SN
0,38
0,50
(SR) SOLDER - REFLOW [LOW IMPEDANCE (SIR) CIRCUIT]
1,60 - 1,88
15324976
Arrangement
1005 0,50 / 15324976
Nominal Insul. diam
[mm]
1,74
Cable type code legend:
1005:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 2 of 32
SAE
COPPER
NONE
PVC, PVDF, XLPE
THIN
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1005
Cable type / seal
SN
0,38
0,50
(T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED
1,60 - 1,88
15324976
Arrangement
1005 0,50 / 15324976
Nominal Insul. diam
[mm]
1,74
Cable type code legend:
1005:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 3 of 32
SAE
COPPER
NONE
PVC, PVDF, XLPE
THIN
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1007
Cable type / seal
SN
0,38
0,35 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,80 - 2,30
15324973 | 15324976
Arrangement
Nominal Insul. diam
[mm]
1007 0,35 / 15324976
1007 0,50 / 15324973
1,95
2,15
Cable type code legend:
1007:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 4 of 32
SAE
COPPER
NONE
PVC, XLPA/PVDF, XLPE
REGULAR
Tear-out CCH
force [N] [mm]
55
80
1,10
1,15
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,05
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,00
4,10
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1007
Cable type / seal
SN
0,38
0,50
(T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED
2,00 - 2,30
15324973
Arrangement
Nominal Insul. diam
[mm]
1007 0,50 / 15324973
2,15
Cable type code legend:
1007:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 5 of 32
SAE
COPPER
NONE
PVC, XLPA/PVDF, XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1009
Cable type / seal
SN
0,38
0,50 | 0,51
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,30 - 2,60
15324973
Arrangement
Nominal Insul. diam
[mm]
1009 0,50 / 15324973
1009 0,51 / 15324973
2,45
2,45
Cable type code legend:
1009:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 6 of 32
SAE
COPPER
NONE
PVC, XLPE
SPECIAL
Tear-out CCH
force [N] [mm]
80
80
1,15
1,15
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,00
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,10
4,10
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1009
Cable type / seal
SN
0,38
0,50 | 0,51
(T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED
2,30 - 2,60
15324973
Arrangement
Nominal Insul. diam
[mm]
1009 0,50 / 15324973
1009 0,51 / 15324973
2,45
2,45
Cable type code legend:
1009:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 7 of 32
SAE
COPPER
NONE
PVC, XLPE
SPECIAL
Tear-out CCH
force [N] [mm]
80
80
1,15
1,15
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,00
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,10
4,10
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1023
Cable type / seal
SN
0,38
0,35
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,05 - 1,35
15324974
Arrangement
Nominal Insul. diam
[mm]
1023 0,35 / 15324974
1,20
Tear-out CCH
force [N] [mm]
60
Cable type code legend:
1023:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 8 of 32
SAE
COPPER
SN
ECTFE, ETFE, PTFE, PUR, TFE
ULTRA THIN
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
3,70
Tol
ICH
[mm]
0,10
ICW
[mm]
4,00
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1025
Cable type / seal
SN
0,38
0,35 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,47 - 1,85
15324974 | 15324976
Arrangement
1025 0,35 / 15324974
1025 0,50 / 15324976
Nominal Insul. diam
[mm]
1,55
1,73
Tear-out CCH
force [N] [mm]
55
80
1,10
1,15
Tol
CCH
[mm]
0,05
0,05
Cable type code legend:
1025:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 9 of 32
SAE
COPPER
SN
FLUORPOLYM, HDPE, PBT, PE, PVC, XLPE
THIN
CCW
[mm]
2,00
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,00
4,10
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1026
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
15324973
Arrangement
Nominal Insul. diam
[mm]
1026 0,50 / 15324973
2,15
Cable type code legend:
1026:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 10 of 32
SAE
COPPER
SN
HDPE, PVC, XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1027
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,30 - 2,60
15324973
Arrangement
Nominal Insul. diam
[mm]
1027 0,50 / 15324973
2,45
Cable type code legend:
1027:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 11 of 32
SAE
COPPER
SN
PVC, XLPE
SPECIAL
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1035
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
15324979
Arrangement
Nominal Insul. diam
[mm]
1035 0,50 / 15324979
2,15
Cable type code legend:
1035:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 12 of 32
SAE
COPPER
NONE
XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,30
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1040
Cable type / seal
SN
0,38
0,35
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,40 - 1,75
15324974
Arrangement
1040 0,35 / 15324974
Nominal Insul. diam
[mm]
1,58
Tear-out CCH
force [N] [mm]
90
Cable type code legend:
1040:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 13 of 32
SAE
STAINLESS STEEL
NONE
ECTFE, ETFE, PTFE, PUR, TFE
THIN
1,10
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
3,80
Tol
ICH
[mm]
0,10
ICW
[mm]
4,00
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1047
Cable type / seal
SN
0,38
0,35
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,40 - 1,75
15324974
Arrangement
Nominal Insul. diam
[mm]
1047 0,35 / 15324974
1,58
Cable type code legend:
1047:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 14 of 32
SAE
COPPER
NONE
PVC, XLPE
THIN
Tear-out CCH
force [N] [mm]
70
1,10
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1048
Cable type / seal
SN
0,38
0,35
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,80 - 2,10
15324976
Arrangement
Nominal Insul. diam
[mm]
1048 0,35 / 15324976
1,95
Cable type code legend:
1048:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 15 of 32
SAE
COPPER
NONE
PVC, XLPE
REGULAR
Tear-out CCH
force [N] [mm]
70
1,10
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1055
Cable type / seal
SN
0,38
0,35
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,45 - 1,75
15324974
Arrangement
1055 0,35 / 15324974
Nominal Insul. diam
[mm]
1,60
Cable type code legend:
1055:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 16 of 32
SAE
COPPER
SN
HDPE, PVC, XLPE
THIN
Tear-out CCH
force [N] [mm]
70
1,10
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1056
Cable type / seal
SN
0,38
0,35 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,45 - 1,85
15324974 | 15324976
Arrangement
1056 0,35 / 15324974
1056 0,50 / 15324976
Nominal Insul. diam
[mm]
1,60
1,73
Cable type code legend:
1056:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 17 of 32
SAE
COPPER
NI
FLUORPOLYM, PTFE
THIN
Tear-out CCH
force [N] [mm]
70
80
1,10
1,15
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,05
2,05
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
4,00
4,10
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,10
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1057
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
15324973
Arrangement
Nominal Insul. diam
[mm]
1057 0,50 / 15324973
2,15
Cable type code legend:
1057:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 18 of 32
SAE
COPPER
NI
PTFE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1058
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,60 - 1,85
15324976
Arrangement
1058 0,50 / 15324976
1,73
Cable type code legend:
1058:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 19 of 32
Nominal Insul. diam
[mm]
SAE
COPPER
NI
XLPE
THIN
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1059
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
15324973
Arrangement
Nominal Insul. diam
[mm]
1059 0,50 / 15324973
2,15
Cable type code legend:
1059:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 20 of 32
SAE
COPPER
NI
XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1066
Cable type / seal
SN
0,38
0,80
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
0,00 - 0,00
12084193
Arrangement
1066 0,80 / 12084193
0,00
Cable type code legend:
1066:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 21 of 32
Nominal Insul. diam
[mm]
SAE
COPPER
SN
NONE
NONE
Tear-out CCH
force [N] [mm]
90
1,25
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,00
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1092
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
15324979
Arrangement
Nominal Insul. diam
[mm]
1092 0,50 / 15324979
2,15
Cable type code legend:
1092:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 22 of 32
SAE
ALLOY
NONE
XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,30
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1094
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,35 - 2,50
15324973
Arrangement
Nominal Insul. diam
[mm]
1094 0,50 / 15324973
2,43
Cable type code legend:
1094:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 23 of 32
SAE
COPPER
NONE
PVC, XLPE
HEAVY DUTY
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
1094
Cable type / seal
SN
0,38
0,50
(T) CRIMP ONLY - CORE IS DIP SOLDERED, THEN CRIMPED
2,35 - 2,50
15324973
Arrangement
Nominal Insul. diam
[mm]
1094 0,50 / 15324973
2,43
Cable type code legend:
1094:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 24 of 32
SAE
COPPER
NONE
PVC, XLPE
HEAVY DUTY
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
2005
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,40 - 1,95
15324976
Arrangement
2005 0,50 / 15324976
Nominal Insul. diam
[mm]
1,68
Cable type code legend:
2005:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 25 of 32
FLR2X (SAAB C)
ISO
COPPER
NONE
PVC, TPE, XLPE
THIN
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
2006
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,35
15324973
Arrangement
Nominal Insul. diam
[mm]
2006 0,50 / 15324973
2,18
Cable type code legend:
2006:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 26 of 32
ISO
COPPER
NONE
EPR, PVC, XLPE
REGULAR
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
2010
Cable type / seal
2010
2010
2010
2010
0,35
0,35
0,50
0,50
/
/
/
/
SN
0,38
0,35 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,20 - 1,70
12084193 | 15324974
Arrangement
12084193
15324974
12084193
15324974
Nominal Insul. diam
[mm]
1,34
1,34
1,50
1,50
Tear-out CCH
force [N] [mm]
50
50
80
80
1,20
1,20
1,30
1,30
Tol
CCH
[mm]
0,05
0,05
0,05
0,05
CCW
[mm]
1,90
1,90
1,90
1,90
Tol
CCW
[mm]
0,10
0,10
0,10
0,10
ICH
[mm]
3,95
3,95
4,05
4,05
Tol
ICH
[mm]
0,10
0,10
0,10
0,10
ICW
[mm]
4,15
4,15
4,20
4,20
Tol
ICW
[mm]
0,10
0,10
0,10
0,10
Cable type code legend:
2010:
ACW0219, FIAT T2 FLRY, FL RENAULT R1, FL RENAULT R3, FLR
(AGP0219), FLR2X-A, FLR4Y-A, FLR9Y, FLRX-B, FLRY-A, FLRYB, FLRY-B
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
DIN
Insul. Wall Designator:
THIN
File generated: 2014-01-09
Page 27 of 32
COPPER
NONE
PA, POLYOLEFIN, PP, PVC, SYNTHRESIN, XLCOPOLY, XLPBT, XLPE,
XLPE/PVDF, XLPVC
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
2011
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
2,00 - 2,30
12089442
Arrangement
Nominal Insul. diam
[mm]
2011 0,50 / 12089442
2,15
Tear-out CCH
force [N] [mm]
115
1,20
Cable type code legend:
2011:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 28 of 32
FL33X, FLK, FLY, FLYKW, IH WIRE
DIN
COPPER
NONE
P/EST, PE, PVC, XLPE
REGULAR
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Tol
CCW
[mm]
0,10
ICH
[mm]
4,20
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
2019
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,30 - 1,70
15324974
Arrangement
2019 0,50 / 15324974
Nominal Insul. diam
[mm]
1,50
Tear-out CCH
force [N] [mm]
60
1,20
Tol
CCH
[mm]
0,05
CCW
[mm]
2,05
Cable type code legend:
2019:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 29 of 32
FL7Y 179, FLR7Y, FLR7Y-A, FLR7Y-B, FLU7Y
DIN
COPPER
SN
ETFE
THIN
Tol
CCW
[mm]
0,10
ICH
[mm]
3,95
Tol
ICH
[mm]
0,10
ICW
[mm]
1,20
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
3004
Cable type / seal
SN
0,38
0,30 | 0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,30 - 1,70
15324974
Arrangement
3004 0,30 / 15324974
3004 0,50 / 15324974
Nominal Insul. diam
[mm]
1,40
1,60
Cable type code legend:
3004:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 30 of 32
AVSS
JIS/JA
COPPER
NONE
PVC, XLPE, X-PVC
THIN
Tear-out CCH
force [N] [mm]
50
75
1,05
1,10
Tol
CCH
[mm]
0,05
0,05
CCW
[mm]
2,00
2,00
Tol
CCW
[mm]
0,10
0,10
ICH
[mm]
3,70
3,90
Tol
ICH
[mm]
0,10
0,10
ICW
[mm]
4,00
4,10
Tol
ICW
[mm]
0,10
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
8000
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,40 - 1,60
15324976
Arrangement
Nominal Insul. diam
[mm]
8000 0,50 / 15324976
1,50
Cable type code legend:
8000:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 31 of 32
N/G
COPPER
NONE
SYNTHRESIN
THIN
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
3,90
Tol
ICH
[mm]
0,10
ICW
[mm]
4,00
Tol
ICW
[mm]
0,10
Crimp Information Sheet
Terminal Part Number:
Surface Plating:
Material Thickness [mm]:
Cross Section [mm²]:
12077628
Cable Type codes:
Crimp Process:
Insulation Range Φ[mm]:
Seal(s):
9003
Cable type / seal
SN
0,38
0,50
(C) CRIMP ONLY - TERMINAL IS APPLIED CRIMP ONLY
1,92 - 2,06
15324973
Arrangement
9003 0,50 / 15324973
1,99
Cable type code legend:
9003:
Industry Designator:
Conductor Material:
Conductor Plating:
Insul. Material:
Insul. Wall Designator:
File generated: 2014-01-09
Page 32 of 32
Nominal Insul. diam
[mm]
N/G
COPPER
SN
PVDF
MIX
Tear-out CCH
force [N] [mm]
80
1,15
Tol
CCH
[mm]
0,05
CCW
[mm]
2,00
Tol
CCW
[mm]
0,10
ICH
[mm]
4,10
Tol
ICH
[mm]
0,10
ICW
[mm]
4,10
Tol
ICW
[mm]
0,10
工商网监
湘ICP备2023018690号
