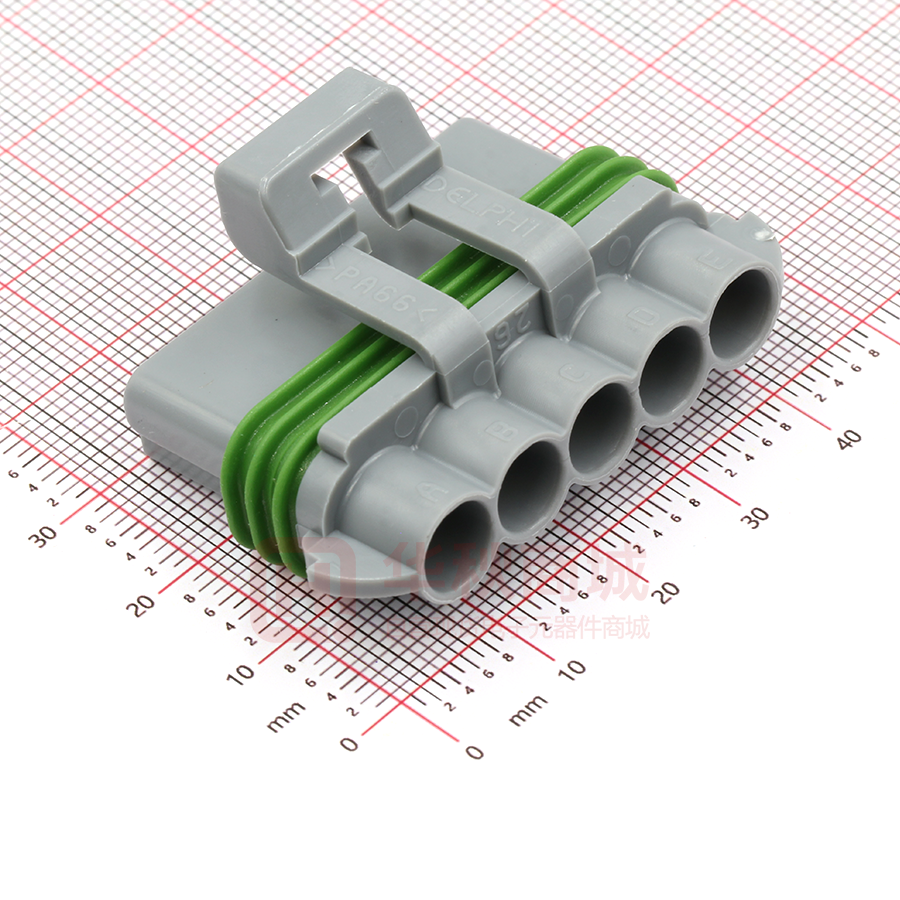

12084891

Metri-Pack Series L E A ED S S S E AL E 280 D Cross Sectional View Terminal Terminal Connector Seal TPA TPA Cable Cable TANGLESS Cable Seal Cable Seal Female Connector Assembly Male Connector TPA (Terminal Position Assurance) TANGLESS CPA (Connector Position Assurance) 280 TANGLESS FEMALE TERMINALS SEALED Part # 12110853 12129409 12110845* 12110847* 12110846* Cable Range (mm2) 5.0-3.0 2.0-1.0 3.0-2.0 1.0-0.80 0.50-0.35 Material Tin Brass Tin Brass Tin Brass Tin Brass Tin Brass Plating Tin Tin Tin Tin Tin Cable Seal *Thin Stock—Electrical current restrictions apply, contact your regional support representative at the number listed below. Female Terminal TANGLESS 280 FLEXLOCK FEMALE CONNECTOR ASSEMBLIES SEALED # Cavities 7 15 Conn. Asm. 12110751 12161186 Color Black Black Material PA66 HS IM PA66 HS IM TPA 12110754 12176865 280 FEMALE CONNECTOR ASSEMBLIES SEALED 280 FEMALE TERMINALS SEALED Part # 12077413 12129493 12077411 12084201 12176387 12176388 12176389 2 Cable Range (mm ) Material 5.0 Tin Brass 3.0-2.0 Tin Brass 1.0-0.80 Tin Brass 0.50-0.35 Tin Brass 5.0 Beryllium Copper 3.0-2.0 Beryllium Copper 1.0-0.80 Beryllium Copper Female Connector Assembly Plating Tin Tin Tin Tin Silver/Nickel Silver/Nickel Silver/Nickel # Cavities 1 2 2 3 4 5 Conn. Asm. 12065172 15300027 12124819 12040977 12129565 12084891 Color Black Black Black Black Md. Gray Md. Gray Material PA66 HS IM PA66 HS IM PBT PA66 HS IM PA66 HS IM PA66 HS IM TPA 12065249 15300014 12020807 12034145 15300016 15300017 280 METRI-PACK CABLE SEALS 280.1 FEMALE PULL-TO-SEAT TERMINALS SEALED Part # 12077939 12103360 Cable Range (mm2) 1.0-0.80 0.50-0.35 Material Silicon Bronze Silicon Bronze Plating Tin Tin Reel Part # 12015360 12015359 12015284 12041352 12089444 12034365 Loose Part # 12015193 12010293 12015323 12041351 12089679 12015899 Cable Diameter 4.30-3.45 3.49-2.81 2.85-2.03 2.42-2.03 2.15-1.60 1.70-1.29 Material Silicone Silicone Silicone Silicone Silicone Silicone Color Blue Lt. Gray Green Tan Purple Dk. Red http://delphi.com/products/connect 84 North American Region 1-800-PACKARD European Region 49-202-291-2000 Asia Pacific Region 65-730-9900 South American Region 55-12-378-2002
