C1 - SERIES
21.97 mm WIDE
SPECIFICATIONS AND ORDERING INFORMATION
0.25 AMP @ 28 VDC

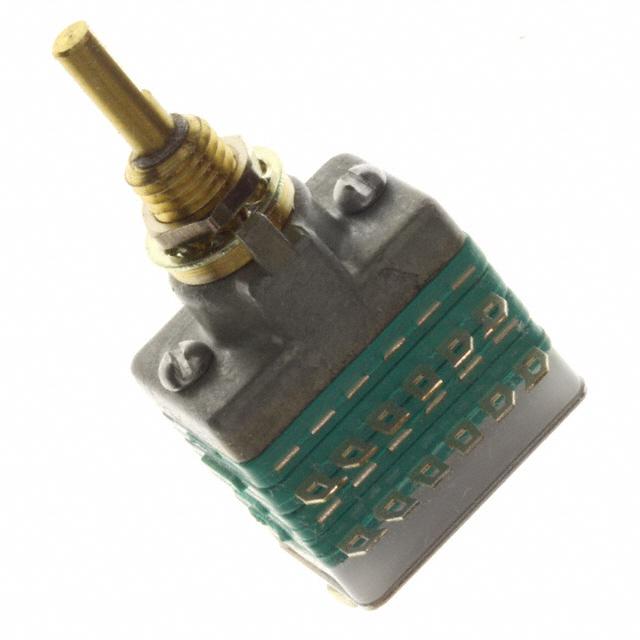

The C1 Series is our smallest enclosed rotary switch, offering index angles of
30°, 60°, and 90°. Standard designs utilize solder lug or vertical PC
terminals and diallyl phthalate insulation.
C
M
E
T
R
I
C
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating: Make and break resistive load
0.25 amp @ 28 VDC; 0.1 amp @ 125 VAC.
Current Carrying Capacity: 6 amps.
Dielectric Strength: 600 VAC between current carrying parts and
ground.
Contact Resistance: Average initial 5 milliohms.
Insulation Resistance: In excess of 10,000 megohms.
Hardware: Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes: All parts utilize non-corrosive materials
as standard.
Terminals and Contacts: Brass with silver plate as standard.
Insulation: Diallyl phthalate.
Index: Dual-ball, hill and valley.
Index Life: 25,000 cycles minimum.
Index Torque: Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles: 30° standard, 60°, and 90° available.
Index Stops: Fixed standard, adjustable, or continuous available.
Stop Strength: 0.9 Nm minimum.
STANDARD PART NUMBER
SOLDER LUG - ADJUSTABLE STOPS
VERTICAL P.C. TERMINALS - ADJUSTABLE STOPS
SWITCHES - 30° INDEXING - STOPS SET @ 2 POS.
SWITCHES - 30° INDEXING - STOPS SET @ 2 POS.
ACTIVE
POLES/
POLES POSITIONS DECK
01
02
02
03
03
04
06
06
02-12
02-12
02-06
02-12
02-04
02-06
02-04
02-06
1
1
2
1
3
2
3
2
NO. OF
DECKS
1
2
1
3
1
2
2
3
SHORTING
C1D0112S - A
C1D0212S - A
C1D0206S - A
C1D0312S - A
C1D0304S - A
C1D0406S - A
C1D0604S - A
C1D0606S - A
NONSHORTING
FIG.
C1D0112N - A
C1D0212N - A
C1D0206N - A
C1D0312N - A
C1D0304N - A
C1D0406N - A
C1D0604N - A
C1D0606N - A
CA
CA
CH
CA
CK
CH
CK
CH
*
ACTIVE
POLES/
POLES POSITIONS DECK
01
01
02
02
03
03
04
04
02-06
02-12
02-06
02-12
02-06
02-12
02-06
02-12
NO. OF
DECKS
1
1
1
1
1
1
1
1
1
1
2
2
3
3
4
4
SHORTING
C1D0106S - VA
C1D0112S - VA
C1D0206S - VA
C1D0212S - VA
C1D0306S - VA
C1D0312S - VA
C1D0406S - VA
C1D0412S - VA
NONSHORTING
FIG.
*
C1D0106N - VA
C1D0112N - VA
C1D0206N - VA
C1D0212N - VA
C1D0306N - VA
C1D0312N - VA
C1D0406N - VA
C1D0412N - VA
CB
CC
CB
CC
CB
CC
CB
CC
* FIGURES ARE SHOWN ON PAGE 55.
DIMENSIONS
C1D
C1D
V
SOLDER LUG CONSTRUCTION
VERTICAL P.C. CONSTRUCTION
NOTE:
1. ADD 5.08 FOR EACH ADDITIONAL DECK.
2. 12 FIXED POSITION USES ADJUSTABLE STOP DIMENSIONS.
• ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
6
2010 Yonkers Road, Raleigh, NC 27604
ADDITIONAL OPTIONS AND ORDERING INFORMATION
C1 - SERIES
How to Order Additional Options:
2 DIGIT
SERIES
INSULATION
TYPE
TOTAL
POLES
ACTIVE
POSITIONS
C1
D - DIALLYL
01 - MIN.
12 - MAX @ 30°
06 - MAX @ 60°
04 - MAX @ 90°
CONTACT
TYPE
N - NONSHORTING
S - SHORTING
TERMINAL
TYPE
INDEX
ANGLE
STOP
TYPE
L - SOLDER LUG
V - VERT. P.C.
30°
60°
90°
F - FIXED
C - CONT.
A - ADJ.
R - REAR P.C.
30°
60°
90°
F - FIXED
C - CONT.
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
C
1
SHAFT/
BUSHING
SHAFT
FLAT
C
SEE
CHART
"A"
SEE
CHART
"B"
(SPECIFY) (SPECIFY)
(SPECIFY)
M
E
T
R
I
C
ADDITIONAL OPTIONS
D
(SPECIFY)
ADJUSTABLE STOP
MECHANISM
(SPECIFY)
(SPECIFY)
(SPECIFY)
(SPECIFY)
SHAFT, BUSHING, AND FLAT OPTIONS
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION AND
STRUT BOLTS
ORIENTED VERTICALLY.
STOP
PINS
U
W
Y
Z
PRINTED CIRCUIT BOARD TERMINAL OPTIONS
R
REAR P.C. FIXED STOP CONSTRUCTION
P.C. BRD. PATTERN
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
• ELECTRONIC PRODUCTS
2010 Yonkers Road, Raleigh, NC 27604
UNIT OF ELECTRO SWITCH CORP.
7
