D9G0323N

D9G0323N

  • 厂商:

    ELECTROSWITCH

  • 封装:

  • 描述:

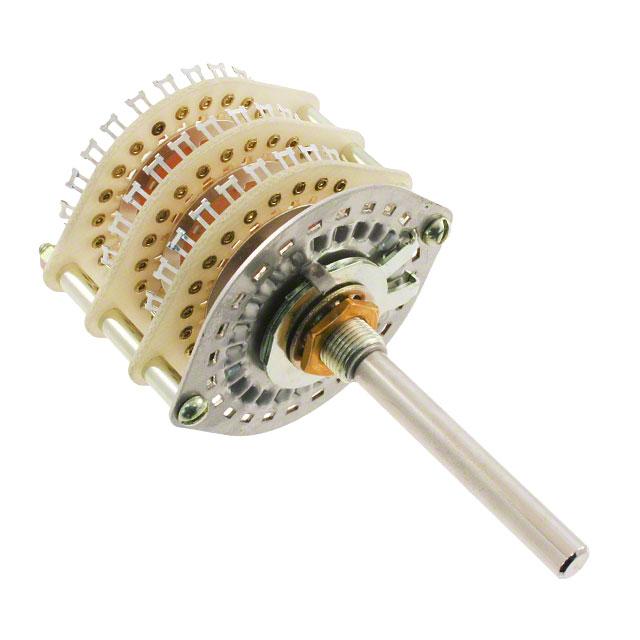

    SWITCH ROTARY 3P-23POS OPEN FRM

  • 数据手册
  • 价格&库存
D9G0323N 数据手册
D9 - SERIES 2 5/16" DIAMETER SPECIFICATIONS AND ORDERING INFORMATION 1.5 AMPS @ 28 VDC The D9 Series has a 15° index with a maximum of 24 positions. Indexing is provided by a dual-ball hill and valley design. Standard features include solder lug terminals, adjustable stops and glass epoxy insulation. SPECIFICATIONS ELECTRICAL MECHANICAL Current and Voltage Rating: Make and break resistive load 1.5 amps @ 28 VDC; 0.25 amp @ 115 VAC. Current Carrying Capacity: 9 amps. Dielectric Strength: 1,000 VAC between current carrying parts and ground. Contact Resistance: Average initial 5 milliohms. Insulation Resistance: In excess of 750,000 megohms. Materials and Finishes: All parts utilize non-corrosive materials as standard. Clips and Rotors: Brass with silver plate as standard. Insulation: Glass epoxy. Index: Dual-ball, hill and valley design. Index Life: 25,000 cycles minimum. Index Torque: Switches have lowest practical torque consistent with crisp detenting and smooth, reliable operation. Index Angles: Positive 15° standard. Index Stops: Adjustable standard, fixed or continuous. Stop Strength: 25 in. lbs. minimum. Hardware: Mounting nut and lockwasher are shipped assembled. D STANDARD PART NUMBER GLASS EPOXY INSULATION SWITCHES - 15° INDEXING ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS. ACTIVE POLES/ NO. OF POLES POSITIONS SECTION SECTIONS 01 02 03 04 05 06 07 08 02-23 02-23 02-23 02-23 02-23 02-23 02-23 02-23 1 1 1 1 1 1 1 1 SHORTING 1 2 3 4 5 6 7 8 D9G0123S D9G0223S D9G0323S D9G0423S D9G0523S D9G0623S D9G0723S D9G0823S NONSHORTING D9G0123N D9G0223N D9G0323N D9G0423N D9G0523N D9G0623N D9G0723N D9G0823N FIG. * DU DU DU DU DU DU DU DU * FIGURES ARE SHOWN ON PAGE 57. DIMENSIONS STANDARD CONSTRUCTION D9G - GLASS EPOXY CONSTRUCTION • ELECTRONIC PRODUCTS UNIT OF ELECTRO SWITCH CORP. 34 2010 Yonkers Road Raleigh, NC 27604 Telephone: (888) ROTARYS or (919) 833-0707 Fax: (800) 909-9171 or (919) 833-8016 D9 - SERIES ADDITIONAL OPTIONS AND ORDERING INFORMATION How to Order Additional Options: 2 DIGIT SERIES INSULATION TYPE D9 G - GLASS TOTAL POLES ACTIVE POSITIONS 01 - MIN. 24 - MAX @ 15° CONTACT TYPE S - SHORTING N - NON SHORTING TERMINAL TYPE INDEX ANGLE L - SOLDER LUG R - REAR P.C. 9 SHAFT/ BUSHING SHAFT FLAT SEE CHART “A” SEE CHART “B” (SPECIFY) (SPECIFY) (SPECIFY) A - ADJ. F - FIXED C - CONT. CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS D STOP TYPE ADDITIONAL OPTIONS G (SPECIFY) (SPECIFY) (SPECIFY) (SPECIFY) SHAFT, BUSHING, AND FLAT OPTIONS D SHAFT AS VIEWED WITH NON-TURN LUG AT 9 O'CLOCK AND SHAFT IN EXTREME CCW POSITION AND STRUT BOLTS ORIENTED VERTICALLY. U W Y Z PRINTED CIRCUIT BOARD OPTIONS P.C. BOARD MOUNTING PATTERN R CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS. • ELECTRONIC PRODUCTS UNIT OF ELECTRO SWITCH CORP. 2010 Yonkers Road Raleigh, NC 27604 Telephone: (888) ROTARYS or (919) 833-0707 Fax: (800) 909-9171 or (919) 833-8016 35
