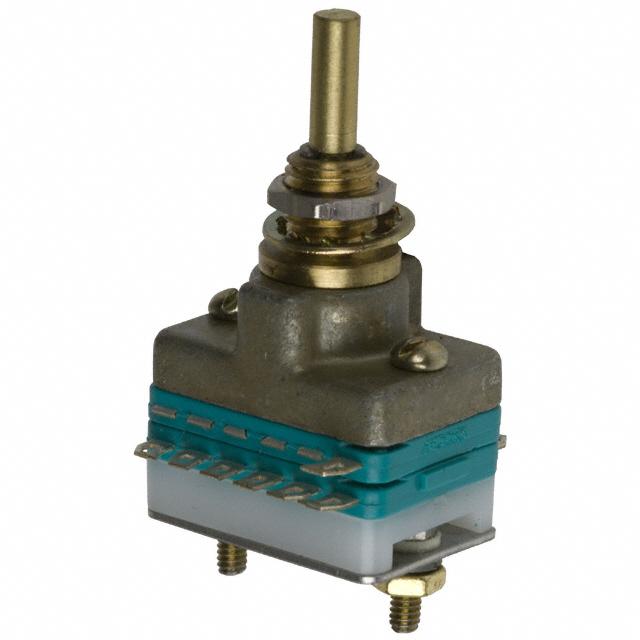

C1D0206N-A

C1D0206N-A

  • 厂商:

    ELECTROSWITCH

  • 封装:

  • 描述:

    SWITCH ROTARY 2-6POS 100MA 125V

  • 数据手册
  • 价格&库存
C1D0206N-A 数据手册
C1 - SERIES 0.865" WIDE SPECIFICATIONS AND ORDERING INFORMATION 0.25 AMP @ 28 VDC The C1 Series is our smallest enclosed rotary switch, offering index angles of 30°, 60°, and 90°. Standard designs utilize solder lug or vertical PC terminals and diallyl phthalate insulation. C SPECIFICATIONS ELECTRICAL MECHANICAL Current and Voltage Rating: Make and break resistive load 0.25 amp @ 28 VDC; 0.1 amp @ 125 VAC. Current Carrying Capacity: 6 amps. Dielectric Strength: 600 VAC between current carrying parts and ground. Contact Resistance: Average initial 5 milliohms. Insulation Resistance: In excess of 10,000 megohms. Materials and Finishes: All parts utilize non-corrosive materials as standard. Terminals and Contacts: Brass with silver plate as standard. Insulation: Diallyl phthalate. Index: Dual-ball, hill and valley. Index Life: 25,000 cycles minimum. Index Torque: Switches have lowest practical torque consistent with crisp detenting and smooth, reliable operation. Index Angles: 30° standard, 60°, and 90° available. Index Stops: Fixed standard, adjustable, or continuous available. Stop Strength: 8 in. lbs. minimum. Hardware: Mounting nut and lockwasher are shipped assembled. STANDARD PART NUMBER SOLDER LUG - ADJUSTABLE STOPS VERTICAL P.C. TERMINALS - ADJUSTABLE STOPS SWITCHES - 30° INDEXING - STOPS SET @ 2 POS. SWITCHES - 30° INDEXING - STOPS SET @ 2 POS. ACTIVE POLES/ POLES POSITIONS DECK 01 02 02 03 03 04 06 06 02-12 02-12 02-06 02-12 02-04 02-06 02-04 02-06 1 1 2 1 3 2 3 2 NO. OF DECKS 1 2 1 3 1 2 2 3 SHORTING C1D0112S - A C1D0212S - A C1D0206S - A C1D0312S - A C1D0304S - A C1D0406S - A C1D0604S - A C1D0606S - A NONSHORTING FIG. C1D0112N - A C1D0212N - A C1D0206N - A C1D0312N - A C1D0304N - A C1D0406N - A C1D0604N - A C1D0606N - A CA CA CH CA CK CH CK CH * ACTIVE POLES/ POLES POSITIONS DECK 01 01 02 02 03 03 04 04 02-06 02-12 02-06 02-12 02-06 02-12 02-06 02-12 NO. OF DECKS 1 1 1 1 1 1 1 1 1 1 2 2 3 3 4 4 SHORTING C1D0106S - VA C1D0112S - VA C1D0206S - VA C1D0212S - VA C1D0306S - VA C1D0312S - VA C1D0406S - VA C1D0412S - VA NONSHORTING FIG. * C1D0106N - VA C1D0112N - VA C1D0206N - VA C1D0212N - VA C1D0306N - VA C1D0312N - VA C1D0406N - VA C1D0412N - VA CB CC CB CC CB CC CB CC * FIGURES ARE SHOWN ON PAGE 55. DIMENSIONS C1D C1D V SOLDER LUG CONSTRUCTION VERTICAL P.C. CONSTRUCTION NOTE: 1. ADD .200 FOR EACH ADDITIONAL DECK. 2. 12 FIXED POSITION USES ADJUSTABLE STOP DIMENSIONS. • ELECTRONIC PRODUCTS UNIT OF ELECTRO SWITCH CORP. 6 2010 Yonkers Road Raleigh, NC 27604 Telephone: (888) ROTARYS or (919) 833-0707 Fax: (800) 909-9171 or (919) 833-8016 ADDITIONAL OPTIONS AND ORDERING INFORMATION C1 - SERIES How to Order Additional Options: 2 DIGIT SERIES INSULATION TYPE TOTAL POLES ACTIVE POSITIONS C1 D - DIALLYL 01 - MIN. 12 - MAX @ 30° 06 - MAX @ 60° 04 - MAX @ 90° CONTACT TYPE N - NONSHORTING S - SHORTING TERMINAL TYPE INDEX ANGLE STOP TYPE L - SOLDER LUG V - VERT. P.C. 30° 60° 90° F - FIXED C - CONT. A - ADJ. R - REAR P.C. 30° 60° 90° F - FIXED C - CONT. CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS C 1 SHAFT/ BUSHING SHAFT FLAT SEE CHART "A" SEE CHART "B" (SPECIFY) (SPECIFY) (SPECIFY) C ADDITIONAL OPTIONS D (SPECIFY) ADJUSTABLE STOP MECHANISM (SPECIFY) (SPECIFY) (SPECIFY) (SPECIFY) SHAFT, BUSHING, AND FLAT OPTIONS SHAFT AS VIEWED WITH NON-TURN LUG AT 9 O'CLOCK AND SHAFT IN EXTREME CCW POSITION AND STRUT BOLTS ORIENTED VERTICALLY. STOP PINS U W Y Z PRINTED CIRCUIT BOARD TERMINAL OPTIONS R REAR P.C. FIXED STOP CONSTRUCTION P.C. BRD. PATTERN CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS. • ELECTRONIC PRODUCTS UNIT OF ELECTRO SWITCH CORP. 2010 Yonkers Road Raleigh, NC 27604 Telephone: (888) ROTARYS or (919) 833-0707 Fax: (800) 909-9171 or (919) 833-8016 7
