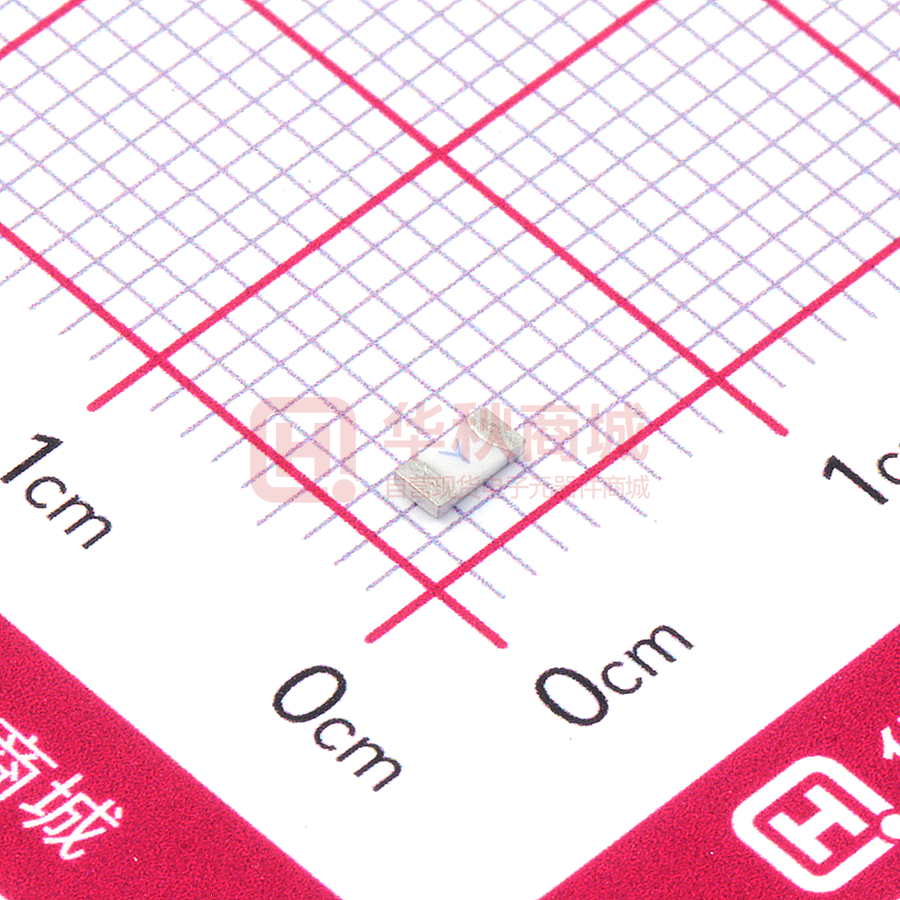

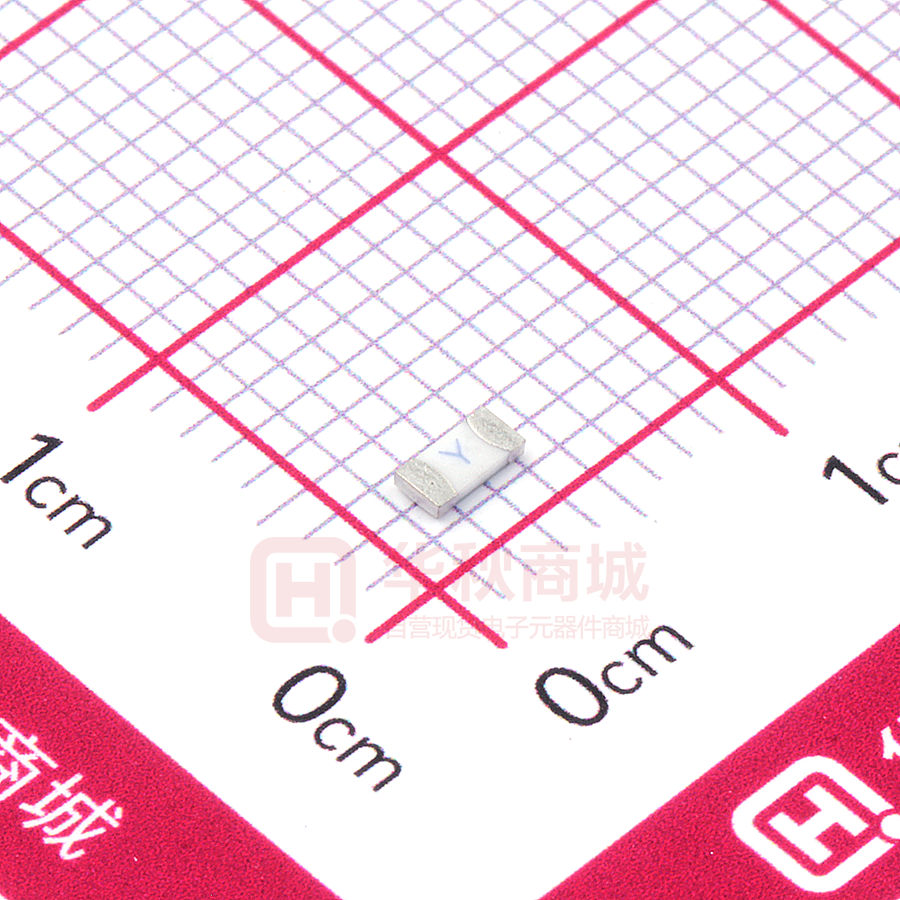

1206TD-15AS

Circuit Protection 1206TD AS Time Delay | 0.126x0.064 inch Thick Film Chip Fuses 1206TD Series are the fuses set the industry standard for performance, reliability and quality. The solder-free design provides excellent on-off and temperature cycling characteristics during use and also makes our SMD fuses more heat and shock tolerant than typical subminiature fuses. RoHS 2015/863/EC Features High inrush current withstanding capability Q AEC-Q200 Automotive Grade Certified L Compatible with reflow and wave solder Ceramic and glass construction Excellent environmental integrity One time positive disconnect Lead Free and Halogen free material Electrical Characteristics Appications Flat panel displays and televisions Automotive infotainment and ECU Computer servers Portable electronics Mobile device chargers Power Battery Packs Amp Rating % of Amp Rating Opening Time 4.5~40A 4.5~5A 4.5~5A 6~40A 4.5~5A 6~40A 100% 250% 300% 350% 4 Hours Min. 5 Seconds Max. 0.1sec~3sec 5 Seconds Max. 0.2ms~20ms 0.2ms~20ms 1000% Specifications Part Number Ampere Rating (A) 1206TD-4.5AS 1206TD-5AS 1206TD-6AS 1206TD-7AS 1206TD-8AS 1206TD-10AS 1206TD-12AS 1206TD-15AS 1206TD-20AS 1206TD-25AS 1206TD-30AS 1206TD-40AS 4.50 5.00 6.00 7.00 8.00 10.0 12.0 15.0 20.0 25.0 30.0 40.0 Voltage Rating Interrupting Rating 72Vdc @ 50A 63Vdc @ 50A 32Vdc @ 50A 48Vdc @ 150A 32Vdc @ 150A 36Vdc @ 200A 32Vdc @ 200A Typical Cold Resistance (Ohms) Typical Melting I 2 t (A 2 Sec) Typical Voltage Drop (V) Marking Code 0.027 0.022 0.0145 0.0105 0.0070 0.0050 0.0043 0.0035 0.0022 0.00155 0.00132 0.00085 2.65 4 12 14 16 22 40 45 50 58 95 240 0.164 0.145 0.140 0.130 0.123 0.110 0.080 0.085 0.080 0.090 0.090 0.095 X T F 7 V U W Y Q L Z XL DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) DC Cold Resistance are measured at
