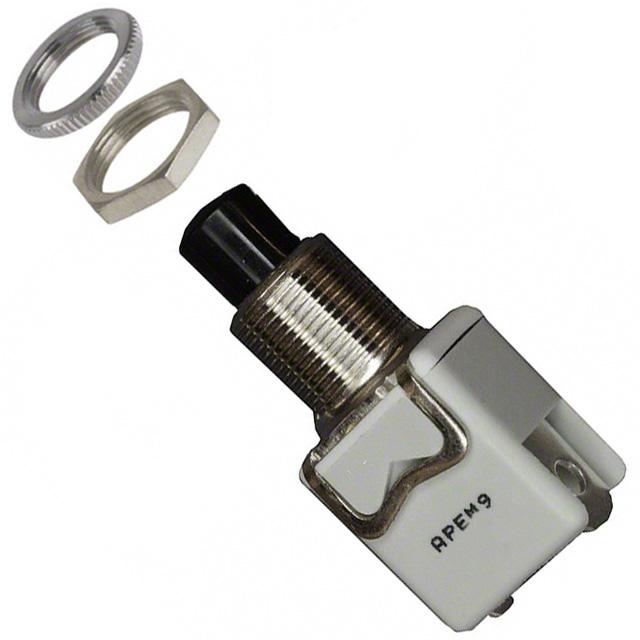

15-Serie 1200-A_20-Serie 1200-A 21/11/12 16:41 Page107
1200 series
Momentary pushbutton switches - round plunger
Distinctive features and specifications
❑ Butt action contacts, double break
❑ NF (EN 61058-1), UL and CSA approved
B2
ELECTRICAL SPECIFICATIONS
MATERIALS
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 4A 250VAC - 8A 125VAC - 4A 24VDC - 8A 12VDC
- silver plated copper contacts. (C) : 2A 250VAC - 3A 125VAC
2A 24VDC - 3A 12VDC
• Initial contact resistance : 10 mΩ
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. between terminals
3.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
GENERAL SPECIFICATIONS
• Torque : 1,50 Nm (1.10 Ft.lb)
max. applied to nut
• Panel thickness :
5 mm (.196) max.
• Total travel :
NO : 4,5 (.177) +/- 0,3 (.011)
NC : 3,5 (.137) +/- 0,3 (.011)
• Operating temperature :
-20°C to +55°C
• Case : polyamide
• Plunger : polyamide
• Bushing : brass, nickel plated
• Contacts :
A : silver
C : copper, silver plated
AGENCY APPROVALS
EN 61058-1
2A 250VAC or 4A 250VAC, T55/125°C
All models
4A 250VAC - 8A 125VAC
All models function 3 (NO)
Models 1233X209 and 1233X209L are standard marked NF.
To order switches marked NF, UL or CSA, complete appropriate box of
ordering format.
ABOUT THIS SERIES
Dimensions : first dimensions are in mm while inches are shown as bracketed numbers.
Sealing boots are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories : standard hardware supplied :
- silver contact models : 1 hex nut U166 and 1 knurled nut U411
- copper contact models : 1 hex nut U42 and 1 knurled nut U411
Standard and special hardware are presented in section I.
Packaging unit : 40 pieces, except model 1200.L (50 pieces).
APEM
www.apem.com
B2-107
15-Serie 1200-A_20-Serie 1200-A 21/11/12 16:41 Page108
1200 series
Momentary pushbutton switches - round plunger
Solder lug/quick-connect terminals - screw terminals
• Single pole configurations
• Approved models : see following pages
• Panel cut-out : Ø 12,2 (.480)
NC
(function 2)
6.35x0.80
(.25x.031)
4.50
(.177)
NO
(function 3)
121.
9.20
(.362)
9.20
(.362)
0.80
(.031)
6.35
(.25)
122.
Ø3.00x0.50
(.118DIAx0.50)
6.35x0.80
(.25x.031)
0.80
(.031)
6.35
(.25)
120.
123.
MODEL
STRUCTURE
Plunger height : NO model : 7,50 mm, NC model : 5,80 mm
➞ Keyway
Solder lug/quick-connect terminals
Ø8.00
(.315DIA)
Normally Open
12.00
(.472)
1213
9.20
(.362)
Normally Closed
1.00
(.039)
1212
10.50
(.413)
7.50
(.295)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
17.00
(.669)
13.20
(.519)
6.35x0.80
(.25x0.031)
14.00
(.551)
➞ Keyway
Screw terminals
Ø8.00
(.315DIA)
Normally Closed
1223
Normally Open
8.00
(.315)
1.00
(.039)
12.00
(.472)
10.50
(.413)
1222
7.50
(.295)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
13.20
(.519)
17.00
(.669)
14.00
(.551)
➞ Keyway
ø8.00
(.315DIA)
ø12.00x0.75 SI
(.472DIAx0.75 IS)
Normally Open
10.50
(.413)
1233
12.00
(.472)
Normally Closed
1.00
(.039)
1232
17.00
(.669)
13.20
(.519)
9.20
(.362)
Normalized quick-connect terminals
7.50
(.295)
B2
Ø.50
(.059DIA)
Ø3.00x0.50
(.118DIAx0.50)
7.20
(.283)
9.20
(.362)
Ø3.10
(.122DIA)
4.50
(.177)
➞ Keyway
ø1.50
(.059DIA)
6.35x0.80
(.25x0.031)
14.00
(.551)
B2-108
www.apem.com
APEM
15-Serie 1200-A_20-Serie 1200-A 21/11/12 16:41 Page109
1200 series
Momentary pushbutton switches - round plunger
Plunger height : NO model : 7,50 mm, NC model : 5,80 mm
➞ Keyway
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
10.50
(.413)
Normally Open
12.00
(.472)
1203
7.50
(.295)
Normally Closed
1.00
(.039)
1202
Ø8.00
(.315DIA)
6.35x0.80
(.25x.031)
13.20
(.519)
17.00
(.669)
➞ Keyway
14.00
(.551)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
Ø8.00
(.315DIA)
7.50
(.295)
Right angle screw terminals + clamp
7.20
(.283)
Straight screw terminals + clamp
12.00
(.472)
10.50
(.413)
Normally Open
1.00
(.039)
1203-7
21.00
(.826)
6.35x0.80
(.25x.031)
7.00
(.275)
90˚
14.00
(.551)
CONTACT MATERIALS
A
C
Silver
Copper, silver plated
FINISH
LUXE
Chrome plated cap nut U117 instead of knurled nut U411
PLUNGER COLOURS
2 : Black - 3 : Green - 6 : Red - 7/1 : White
APEM
www.apem.com
B2-109
B2
15-Serie 1200-A_20-Serie 1200-A 21/11/12 16:41 Page110
1200 series
Momentary pushbutton switches - round plunger
SPECIAL MODELS
X209
NF standard marked - Silver contacts
➞ Keyway
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
1233AX209
Normally open
9.20
(.362)
1.00
(.039)
B2
12.00
(.472)
10.50
(.413)
7.50
(.295)
Ø8.00
(.315DIA)
13.20
(.519)
6.35x0.80
(.25x0.031)
17.00
(.669)
X209L
14.00
(.551)
NF standard marked - Silver contacts
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
Ø8.00
(.315DIA)
12.00
(.472)
Normally open
13.20
(.519)
17.00
(.669)
9.20
(.362)
1.00
(.039)
1233AX209L
10.50
(.413)
13.00
(.511)
➞ Keyway
6.35x0.80
(.25x0.031)
14.00
(.551)
NOTE : Ground connector U187 compulsory on models X209 and X209L if the panel is not metallic or not connected
to ground. Order separately : see section I.
AGENCY APPROVALS
NF
All models
UL-CSA
All models function 3 (NO), including X209 and X209L
Marking : to order switches marked NF, UL or CSA, complete above box with desired approvals.
B2-110
www.apem.com
APEM
16-Serie 1200M-MR-A_21-Serie 1200M-MR-A 21/11/12 16:41 Page111
1200M/MR series
Robust momentary pushbutton switches - metal plunger
Distinctive features and specifications
❑ Butt action contacts, double break
❑ UL and CSA approved
B2
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A) : 4A 250VAC - 8A 125VAC - 4A 24VDC - 8A 12VDC
- silver plated copper contacts (C) : 2A 250VAC - 3A 125VAC - 2A 14VDC - 3A 12VDC
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. between terminals
3.000 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10.000 cycles at full load
MATERIALS
• Case : polyamide
• Plunger : top chrome plated
brass on polyamide base
• Bushing : brass, nickel plated
• Cap nut : brass, chrome plated
• Contacts : A : silver
C : copper, silver plated
GENERAL SPECIFICATIONS
• Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 4,5 mm (.177) max.
• Total travel :
NO : 4,5 mm (.177) +/- 0,3 (.011)
NC : 3,5 mm (.137) +/- 0,3 (.011)
• Operating temperature : -20°C to +55°C
AGENCY APPROVALS
4A 250VAC - 8A 125VAC
Availability : approved models are 1213A and 1203A (M or MR)
(model 1223A is only UL approved).
Marking : to order switches marked UL or CSA, complete appropriate box of
ordering format.
ABOUT THIS SERIES
Dimensions : first dimensions are in mm while inches are shown as bracketed numbers.
Mounting accessories : standard hardware supplied with all models : 1 hex nut U166 and 1 conic cap nut U1866-6.
Special cap nut U1874 is presented on the following pages.
Packaging unit : 40 pieces
APEM
www.apem.com
B2-111
16-Serie 1200M-MR-A_21-Serie 1200M-MR-A 21/11/12 16:41 Page112
1200M/MR series
Robust momentary pushbutton switches - metal plunger
Solder lug/quick-connect terminals - screw terminals
• Flat or curved plunger
• Panel cut-out Ø 12,2 (.480)
• Single pole
121.
➞ Keyway
Ø3.00x0.50
(.118DIAx0.50)
9.20
(.362)
Ø3.00x0.50
(.118DIAx0.50)
7.20
(.283)
9.20
(.362)
6.35x0.80
(.25x.031)
0.80
(.031)
6.35
(.25)
0.80
(.031)
6.35
(.25)
MODEL
STRUCTURE
Keyway
Solder lug/quick-connect terminals 6,35 x 0,8 (.250 x .031) ➞
Ø8.00
(.315DIA)
5.00
(.196)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
5.00
(.196)
1213MR
1213M
NO
12.00
(.472)
NC
9.20
(.362)
1212M
1.00
(.039)
1212MR
7.50
(.295)
Curved plunger Flat plunger
17.00
(.669)
13.20
(.519)
6.35x0.80
(.25x0.031)
14.00
(.551)
➞ Keyway
1223MR
1223M
NO
12.00
(.472)
NC
8.00
(.315)
1222M
1.00
(.039)
1222MR
7.50
(.295)
Curved plunger Flat plunger
Ø8.00
(.315DIA)
5.00
(.196)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
5.00
(.196)
Screw terminals
13.20
(.519)
17.00
(.669)
14.00
(.551)
➞ Keyway
5.00
(.196)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
Ø8.00
(.315DIA)
5.00
(.196)
Screw terminals + clamp
NC
1203MR
1203M
NO
13.20
(.519)
17.00
(.669)
B2-112
www.apem.com
12.00
(.472)
1202M
6.35x0.80
(.25x.031)
7.00
(.275)
1202MR
7.50
(.295)
Curved plunger Flat plunger
1.00
(.039)
B2
NC
(function 2)
4.50
(.177)
NO
(function 3)
120.
122.
Ø3.10
(.122DIA)
14.00
(.551)
APEM
16-Serie 1200M-MR-A_21-Serie 1200M-MR-A 21/11/12 16:41 Page113
1200M/MR series
Robust momentary pushbutton switches - metal plunger
CONTACT MATERIALS
A
C
Silver
Copper, silver plated
AGENCY APPROVALS
B2
UL - CSA
Availability : approved models are 1213A and 1203A (M or MR) - model 1223A is only UL approved.
Marking : to order switches marked UL or CSA, complete above box with desired approvals.
SPECIAL CAP NUT
3.50
(.137)
Chrome plated cap nut Ø 16 (.629), flat and plain.
Can be supplied instead of standard cap nut U1866-6.
Order separately.
Ø16.00
(.629DIA)
U1874
APEM
www.apem.com
B2-113
