PANEL SWITCHES
80
-1
H
600H-600NH series
Toggle switches • high amperage
DISTINCTIVE FEATURES
Robust mechanism
High current/voltage rating
Insulated or metal lever
UL, CSA and NF-VDE (EN 61058-1) approved
ELECTRICAL SPECIFICATIONS
• Max. current/voltage ratings : see tables below
• Peak current : 30 A max. during 1/2 sine, 250 VAC
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1,000 MΩ min. at 500 VDC
• Dielectric strength :
2,000 Vrms 50 Hz min. between terminals
2,500 Vrms 50 Hz min. between terminals and frame
• Electrical life : 10,000 cycles at full load
APPROVED RATINGS
600H - 600NH
Models
Functions
UL
CSA
NF-VDE
UL 1054
CSA 22-2
EN 61058-1
ON - OFF (1)
Single and
double pole
Three pole
15 A 1/2 HP
125-250 VAC
ON - ON (6)
Other
(4-5-7-8-9)
10 A 1/2 HP
125-250 VAC
ON - OFF (1)
& ON - ON (6)
15 A 1/2 HP
125-250 VAC
Other
(4-5-7-8-9)
10
A 1/2 HP
125-250 VAC
10(4) A
400 VAC
T 85/55 (600H)
T 125/55
(600NH)
FOR INFORMATION
Max. current/voltage rating w. resistive load
Functions
Ratings
Electrical life
ON - OFF
ON - ON
15 A 250 VAC
10 A 24 VDC
15 A 12 VDC
10,000 cycles
ON OFF ON
15 A 250 VAC
5 A 24 VDC
6,000 cycles
10,000 cycles
Other
15 A 125 VAC
12 A 250 VAC
5 A 24 VDC
10,000 cycles
The company reserves the right to change specifications without notice.
1
PANEL SWITCHES
600H-600NH series
Toggle switches • high amperage
GENERAL SPECIFICATIONS
TERMINALS
• Torque : 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness : 4.5 mm (.177) max. between 2 nuts
• Operating temperature : -20 °C to +55 °C (-4 °F to +131 °F)
MATERIALS
600H/2 & 600NH/2
600H & 600NH
• Case : polyester UL94-V0
• Actuator :
- 600H : brass, nickel plated
- 600NH : black polyamide
ELECTRICAL FUNCTIONS
• Bushing : brass, nickel plated
KEYWAY
• Contacts : silver/nickel alloy
APEM products may be recycled at end-of-life for the re-claiming of valuable metal
components.
AGENCY APPROVALS
EN 61058-1
EN 61058-1
Availability : see chart on previous page.
Marking : approved models are standard marked.
2
PANEL CUT-OUT
Toggle switches • high amperage
BUILD YOUR PART NUMBER
BASIC PART NUMBER
6
NUMBER OF POLES
SERIES
3
Single pole
ACTUATOR AND TERMINALS
ELECTRICAL FUNCTIONS
1
ON
-
OFF
MOMENTARY
H
Metal lever, screw terminals
H/2
Metal lever, solder lug/quickconnect terminals *
H/3
Metal lever, normalized
quick-connect terminals
NH
Insulated lever, screw
terminals
4
Double pole
5
MOM
-
ON
5
Three pole
6
ON
-
ON
7
MOM
OFF
MOM
8
ON
OFF
MOM
9
ON
OFF
ON
NH/2
4
ON
ON
MOM
ON
ON
ON
ON
MOM
MOM
Insulated lever, solder lug/
quick-connect terminals
NH/3
Insulated lever, normalized
quick-connect terminals *
For 4 pole, see 660
series.
-1R
ON
ON
MOM
-2R
MOM
ON
MOM
* On request.
Must not have blank in
"momentary" box.
OPTIONS
FOR 600H SERIES ONLY
LOCKING LEVERS
OPTIONS
For models with metal lever only
ACTUATOR OPTIONS
-1V
1 locked position
-4
30 mm (1.181) long actuator
T
Tropicalized case
-2V
2 locked positions
-5
40 mm (1.574) long actuator
K
Front panel sealing
-3V
3 locked positions
-6
Retro style actuator
L
Bushing 16 mm (.629)
LUXE
TKLUXE
G
Chrome finish
X2595
Ergonomic flat plastic
actuator
Front panel sealing + T and LUXE
Black finish
GK
Black finish + front panel sealing
G-038
Black finish + uminous tip on lever
ABOUT THIS SERIES
On the following pages, you will find successively basic part numbers of switches and options in the same order as in above chart.
Notice : please note that not all combinations of above numbers are available. Refer to following pages for further information.
Switch guards are available to prevent inadvertent lever operation. See "Switch Guards" section on website.
Sealing boots are available on 600H series to protect the switches against dust and water. See "Sealing Boots" section of website.
Mounting accessories : standard hardware supplied with all models :
- 600H and series : 1 hex nut U166 and 1 knurled nut U411
- 600NH series : 1 hex nut U166 and 1 knurled nut U522
3
PANEL SWITCHES
600H-600NH series
Toggle switches • high amperage
A = Angle of throw
KEYWAY
Screw

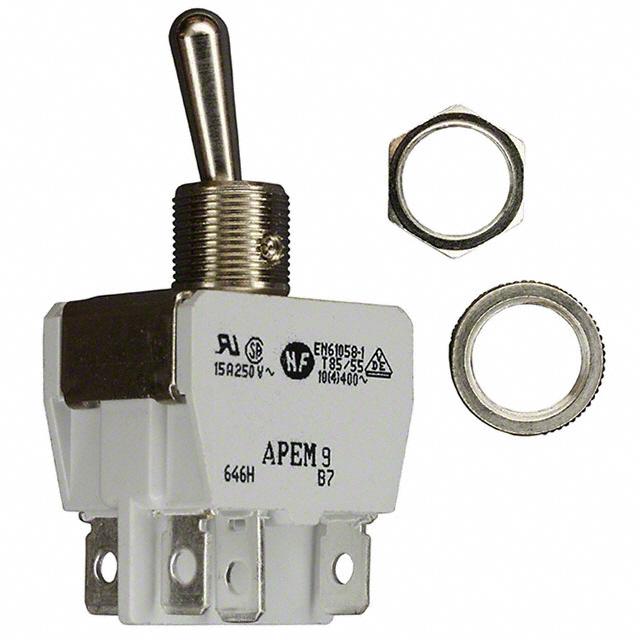

631H/2
631H
30° ON
-
OFF
635H/2
635H
26° MOM
-
ON
636H/2
636H
30° ON
-
ON
637H/2
637H
30° MOM OFF MOM
638H/2
638H
36° ON
OFF MOM
639H/2
639H
36° ON
OFF
10.50
(.413)
15.00
(.59)
11.00
(.433)
1
2
3
14.90
(.586)
Solder lug
17.50
(.689)
14.00
(.551)
A
III
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
7.10
(.279)
I
2-3
29.50
(1.161)
II
II
A
III
2-1
0.80
(.031)
METAL LEVER - SINGLE POLE
I
ON
Angle of throw with K sealing option :
functions 1, 5, 6, 7 : 26° - functions 8, 9 : 32°
-
OFF
644H/2
644H*
33° ON
ON
ON
644H/2-1R
644H-1R*
33° ON
ON MOM
644H/2-2R
644H-2R*
33° MOM ON MOM
645H/2
645H
26° MOM
-
ON
646H/2
646H
26° ON
-
ON
647H/2
647H
26° MOM OFF MOM
648H/2
648H
26° ON
OFF MOM
649H/2
649H
32° ON
OFF
ON
B5
A3
B6
11.00
(.433)
A
III
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
* Function 4 : SP in DP case - see "Technical information" on website
KEYWAY
1
4
7
2
5
8
651H
24° ON
-
OFF
655H/2
655H
15° MOM
-
ON
656H/2
656H
24° ON
-
ON
657H/2
657H
24° MOM OFF MOM
658H/2
658H
24° ON
OFF MOM
659H/2
659H
28° ON
OFF
10.50
(.413)
24.00
(.949)
11.00
(.433)
9
A
III
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
12.00
(.472)
ON
12.00
(.472)
KEYWAY
I
2-3
Solder lug
Screw
631NH/2
631NH
28° ON
-
OFF
635NH/2
635NH
24° MOM
-
ON
636NH/2
636NH
28° ON
-
ON
637NH/2
637NH
33° MOM OFF MOM
638NH/2
638NH
33° ON
OFF MOM
639NH/2
639NH
33° ON
OFF
ON
14.00
(.551)
1
2
3
13.50
(.531)
11.50
(.453)
15.00
(.59)
11.00
(.433)
I
II
III
15.00
(.59)
II
A
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
7.10
(.279)
III
2-1
29.50
(1.161)
A
6
3
17.50
(.689)
14.90
(.586)
651H/2
34.50
(1.358)
7.10
(.279)
I
2-3
5-6
8-9
0.80
(.031)
II
0.80x6.35
(.031x.25)
A
III
2-1
5-4
8-7
INSULATED LEVER - SINGLE POLE
4
A2
31.80
(1.252)
Screw
B4
11.00
(.433)
METAL LEVER - THREE POLE
Solder lug
A1
21.40
(.846)
14.65
(.578)
26° ON
10.50
(.413)
6.80
(.267)
641H
17.50
(.689)
0.80
(.031)
641H/2
21.50
(.846)
29.70
(1.169)
A
KEYWAY
I
2-3
5-6
II
Screw
II
I
Solder lug
III
2-1
5-4
II
METAL LEVER - DOUBLE POLE
I
PANEL SWITCHES
600H-600NH series
Toggle switches • high amperage
KEYWAY
21.50
(.846)
13.50
(.531)
Screw
641NH/2
641NH
26° ON
-
OFF
644NH/2
644NH*
30° ON
ON
ON
A1
B4
644NH/2-1R
644NH-1R*
26° ON
ON MOM
A2
B5
644NH/2-2R
644NH-2R*
26° MOM ON MOM
645NH/2
645NH
26° MOM
-
ON
A3
B6
646NH/2
646NH
26° ON
-
ON
647NH/2
647NH
26° MOM OFF MOM
648NH/2
648NH
30° ON
OFF MOM
649NH/2
649NH
30° ON
OFF
ON
29.70
(1.169)
Solder lug
21.50
(.846)
11.00
(.433)
I
II
A
III
11.00
(.433)
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
* Function 4 : SP in DP case - see "Technical information" on website
KEYWAY
INSULATED LEVER - THREE POLE
Screw
651NH/2
651NH
24° ON
-
OFF
655NH/2
655NH
15° MOM
-
ON
656NH/2
656NH
24° ON
-
ON
657NH/2
657NH
24° MOM OFF MOM
658NH/2
658NH
24° ON
OFF MOM
659NH/2
659NH
28° ON
OFF
24.00
(.949)
11.00
(.433)
7
4
1
11.20
(.44)
I
8
5
2
14.90
(.586)
Solder lug
13.50
(.531)
34.50
(1.358)
I
2-3
5-6
8-9
II A
III
3
12.00
(.472)
6
12.00
(.472)
9
Ø12.00x0.75 SI
(.472DIAx0.75 IS)
ON
7.10
(.279)
II
0.80x6.35
(.031x0.25)
III
2-1
5-4
8-7
31.80
(1.252)
A
11.50
(.452)
14.70
(.579)
I
2-3
5-6
6.80
(.267)
A
II
III
2-1
5-4
0.80x6.35
(.031x.25)
INSULATED LEVER - DOUBLE POLE
All models also available with normalized quick-connect terminals H/3 or NH/3.
OPTIONS
BASIC P/N
For 600H series only
T
Tropicalized diallylphthalate case (-40 °C to +85 °C)
(-40 °F to +185 °F)
K
1
Front panel sealing by 1 O-ring and sealing washer.
Protects the switch against water and dust. Panel
seal withstands 1 bar pressure and remains sealed
even when switch is operated
L
Special threaded bushing, length 16 mm (.629)
LUXE
Chrome plated lever and cap nut U117
TK LUXE Options T, K and LUXE.
G
Black finish on bushing, lever and nuts. Includes
tropicalization (option T) and locking ring U12.
GK
Option G + front panel sealing by O-ring and sealing
washer (as described in option K)
G-038
Option G + fluorescent tip on lever. White fluorescent
tip becomes luminous when submitted to ultra violet
rays.
1
O-ring
2
Sealing washer
2
GK
G-38
5
PANEL SWITCHES
600H-600NH series
Toggle switches • high amperage
LOCKING LEVERS
BASIC P/N
For 600H series only
For 1 and 2 pole models.
For 3-pole models, refer to 6000 series.
-1V
1 locked position
20.40
(.811)
Ø11.90-32NS
(15/32''32NS)
-2V
2 locked positions
11.90
(.468)
Ø11.90-32NS
(15/32''32NS)
11.90
(.468)
Ø11.90-32NS
(15/32''32NS)
19.40
(.763)
19.40
(.763)
KEYWAY
11.90
(.468)
-3V
3 locked positions
ACTUATOR OPTIONS
BASIC P/N
For 600H series only
For 1 and 2 pole models.
Ø6.00
(.236DIA)
Ø6.30
(.248DIA)
40.00
(1.574)
15.00
(.590)
-4
30 mm (1.181) long actuator
-5
40 mm ( 1.574) long actuator
-6 Retro style actuator (gold plated or chrome plated : on
request)
X2595 Ergonomic flat plastic actuator
Ø6.00
(.236DIA)
30.00
(1.181)
-4
10.50
(.413)
-5
2.80
(.110)
26.30
(1.035)
PANEL SWITCHES
600H-600NH series
FICHIER C60LX2033
7/02/02
ECH 0.6
X2595
6
-6
