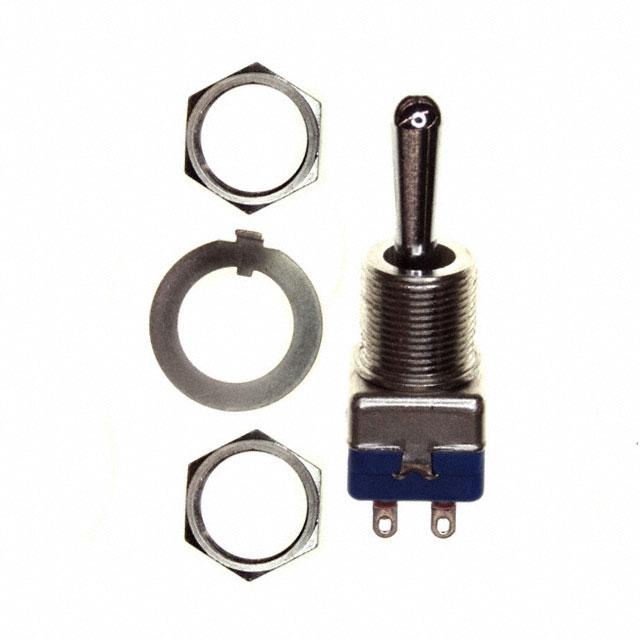

11000 and 12000 series Professional toggle switches Distinctive features UG1410A-R1 ❑ Applications These switches are specially manufactured for defence, telecommunications and other professional applications. A ❑ Approvals CECC 96201-005 CECC 96201-008 • Meeting the requirements of MIL standard (MIL 3950) ❑ Robust switches for high specification environments ❑ Toggle action on 2-position models giving smooth mechanical operation ❑ Plastic material with high insulation resistance ❑ Several front panel sealing options ❑ Several locking lever options (12000 series) ❑ Bright chrome, satin chrome or black finish The company reserves the right to change specifications without notice. APEM www.apem.com A-57 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) Specifications ELECTRICAL SPECIFICATIONS A • Max. current/voltage rating with resistive load : - silver contacts (A-AD2-X780) : 4A 30VDC - gold contacts (D) : 100mA 30VDC • Minimum load : AD2-X780-D contacts : 10mA 50mV, 10µA 5V min. • Initial contact resistance : 10 mΩ max. • Insulation resistance : 1.000 MΩ min. at 500VDC • Dielectric strength : 1.000 Vrms 50 Hz min. between terminals 2.000 Vrms 50 Hz min. between poles and between terminals and frame • Contact bounce : 2 ms max. • Electrical life at full load : Peak currents, refer to “Special options”. Number of cycles Contacts Max. current/voltage rating 2 positions 3 positions A 4A 30VDC 50.000 50.000 AD2 X780 4A 30VDC (Gold plating : 100mA 30VDC max.) 20.000 20.000 D 100mA 30VDC 80.000 50.000 150.000 100.000 Low level or mechanical life MATERIALS • Case : diallylphthalate (DAP) • Actuator : brass, nickel plated • Bushing : brass, nickel plated • Housing : brass, nickel plated • Contacts A : silver AD2 : gold plated silver (2 microns gold) X780 : solid rivet - gold plated silver/nickel alloy D : solid gold rivet X910 : silver/nickel alloy (for peak currents, see “Special options”) • Terminal seal : epoxy Note : AD2 and X780 contacts can be used for high level applications. In this case, the gold layer is considered only as a protection against oxidation during storage. GENERAL SPECIFICATIONS • Torque :1,25 Nm (.92 Ft.lb) max. applied between the 2 nuts • Standard panel thickness : 2,5 mm (.098) max. • Operating temperature : -40°C to +85°C RELIABILITY - RUN-IN TEST Upon request, each individual switch can be submitted to a low level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, etc.). AGENCY APPROVALS CECC 96201-005 CECC 96201-008 Availability : consult factory for details of approved models. Marking : to order switches marked CECC, complete appropriate box of ordering format. Dimensions : first dimensions are in mm while inches are shown as bracketed numbers. Packaging unit : 25 pieces or 50 pieces depending on models. A-58 www.apem.com APEM 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) Overview 11 SERIES Terminals and bushings Solder lug or right angle Straight PC terminals 1 2 All models with Ø 6,35 (1/4) threaded bushing. Number of poles 3 4 5 6 Single pole Double pole Three pole Four pole Electrical functions 6 9 7 8 Finish A AD2 D Silver Gold plated silver (2 microns) Solid gold rivet See "Special options" for X780 (solid silver/nickel rivet) and X910 (for peak currents). OFF OFF OFF ON ON MOM MOM Blank Solder lug or straight PC Right angle, W horizontal mounting (function 6, SP only) Levers Blank Nickel plated G Black finish on bushing, actuator and hardware. Contact materials ON ON MOM ON Terminals Approval CECC Blank Standard -26 Cylindrical Sealing Blank Epoxy sealed terminals standard K Front panel sealing by one O-ring and sealing washer Availability : Consult factory for details of approved models. Special options Blank No special requirement X408 Front panel sealing by two O-rings Other : see following pages. Sealing by two O-rings, see X408, "Special options" box. NOTICE : please note that not all combinations of above numbers are available. Refer to the following pages for further information. ABOUT THIS SERIES On the following pages, you will find successively : - model structure of switches - options in the same order as in above chart Sealing boots are available to protect the switches against dust and water. They are presented in section H. Mounting accessories : standard hardware supplied with all models : 2 hex nuts 8 (.314) across flats, 1 locking ring and 1 lockwasher. Standard and special hardware available are presented in section I. APEM www.apem.com A-59 A 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) • Solder lug, straight PC or right angle terminals • Epoxy sealed terminals standard 3 Function 6 1 2 1.20 (.047) 3 2.50 (.098) Other functions 1.00 (.039) 9.50 (.374) 2 MODEL STRUCTURE Shown with standard lever 11.30 6.30 (.444) (.248) III III ON ON ON OFF ON MOM OFF MOM ON OFF MOM 0.70 (.027) Ø3.00 (.118 DIA) 11136 11139 11137 11138 I 14.00 (.551) II 26˚ 1 Ø6.35-40UNS (1/4-40UNS) 2.50 (.098) 3 2 8.00 (.314) 13.40 (.527) 0.50 (.019) II 1 2 3 I 4.00 (.157) ➞ Solder lug terminals - single pole Keyway 5.00 (.196) EPOXY ➞ Keyway 26˚ 3 Ø .00 (.118 )AID ON ON ON OFF ON MOM OFF MOM ON OFF MOM 14.00 (.551) I 0.70 (.027) 6 Ø .35-40UNS (1/4-40U)NS 5.00 (.196) 4 5 6 ON ON ON OFF ON MOM OFF MOM ON OFF MOM 9 I I I 20˚ 4.30 (.169) Ø6.35-40UNS (1/4-40UNS) 1 Ø 2.00 (.472 )AID 11156 11159 11157 11158 7 8 A-60 www.apem.com 14.00 (.551) III 20.00 (.787) 4.00 (.157) II 17.00 (.669) 3 2 1 I 11.30 5.70 (.444) (.224) OXYEP 0.50 (.019) ➞ Keyway Solder lug terminals - three pole 6.00 (.236) I 6 14.00 (.551) 2.50 (.098) 3 11146 11149 11147 11148 I 4 5 13.40 (.527) 5.00 (.196) 6.00 (.236) 1 2 11.30 6.30 (.444) (.248) 4.00 (.157) III 2.50 (.098) II 3 2 1 I 0.50 (.019) Solder lug terminals - double pole 3 Ø .00 (.118 )AID A 1 5.00 (.196) 1.70 (.066) ➞ Keyway XYEPO APEM 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) 4.30 (.169) A 5.00 (.196) 1 Ø 2.00 (.472 )AID - 4.00 (.157) I 0.70 (.027) ON 3 Ø .00 (.118 )AID ON 26˚ I 8.00 (.314) 13.40 (.527) 14.00 (.551) I 3 2 1 11236 11.30 6.30 (.444) (.248) 0.50 (.019) III Ø6.35-40UNS (1/4-40U)NS Ø1.60 (.062 IA)D 1.00 (.039) II 1 2 3 II EPOXY 9.50 (.374) ➞ Keyway 0.70 (.027) ON Ø6.35-40USN (1/4-40UNS) 14.00 (.551) 9.50 (.374) - I 20˚ ON 4.30 (.169) Ø6.35-40UNS (1/4-40UNS) Ø1.60 (.062 IA)D 1 Ø 2.00 (.472 )AID 6.00 (.236) 3 Ø .00 (.118 )AID ON I 9 14.00 (.551) 6 I 7 8 4.00 (.157) 4 5 20.00 (.787) 17.00 (.669) 0.50 (.019) III YEPOX 1.00 (.039) II APEM www.apem.com 4.00 (.157) 3 2 1 II 11256 11.30 5.70 (.444) (.224) ➞ Keyway Straight PC terminals - three pole ▲ Ø1.60 (.062 )IAD 6.00 (.236) I 3 Ø .00 (.118 )AID - 26˚ I 6 6.00 (.236) 3 ON I 4 5 14.00 (.551) 13.40 (.527) 4.00 (.157) 1 2 11246 11.30 6.30 (.444) (.248) III 0.50 (.019) II 1.00 (.039) II EPOXY 3 2 1 Straight PC terminals - double pole ▲ 4.00 (.157) 6.00 (.236) ➞ Keyway Straight PC terminals - single pole ▲ 14.00 (.551) Ø6.35-40UNS (1/4-40UNS) 6.00 (.236) I 3 Ø .00 (.118 )AID ON ON ON OFF ON MOM OFF MOM ON OFF MOM 20˚ I 12 9 4.00 (.157) I 10 11 7 8 2.50 (.098) III 26.00 (1.023) 3 2 1 II 17.00 (.669) 0.50 (.019) II 11166 11169 11167 11168 11.30 5.70 (.444) (.224) ➞ Keyway Solder lug terminals - four pole 9.50 (.374) XYEPO 4.00 (.157) A-61 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) ON 11266 20˚ ON 14.00 (.551) I I 4.30 (.169) Ø6.35-40UNS (1/4-40UNS) 1 Ø .60 (.062 IA)D 1 Ø 2.00 (.472 )AID 6.00 (.236) 3 Ø .00 (.118 )AID - 12 I 6.00 (.236) 9 10 11 4.00 (.157) 7 8 0.50 (.019) III 26.00 (1.023) 1.00 (.039) II 17.00 (.669) 3 2 1 II A 11.30 5.70 (.444) (.224) ➞ Keyway Straight PC terminals - four pole ▲ III ON - ON ▲ 3,5 mm (.138) short terminals available for function 6, as well as for functions 9, 7 and 8. On request. 5.20 (.204) Standard 2 Ø .20 (.086 )AID 6 Ø .50 6 Ø .50 (.255 )IAD (.255 IA)D 6 Ø .50 6 Ø .50 (.255 )IAD (.255 DIA) 6 Ø .50 (.255 A)ID 2.70 2.70 (.106)(.106) 2.70 (.106) With K sealing option 6 Ø .50 (.255 A)ID 2.70 2.70 (.106)(.106) 2.70 (.106) With X408 sealing option 5.00 (.196) II 1.10 (.043) 5.20 5.20 (.204)(.204) 2 Ø .20 2 Ø .20 (.086 IA)D (.086 IA)D 1.10 (.043) 1.10 (.043) 6 Ø .50 (.255 IA)D XYEPO 3.50 (.137) I PANEL CUT-OUT 6 Ø .50 6 Ø .50 (.255 )AID (.255 )AID 4.00 (.157) ➞ Keyway Right angle terminals - horizontal - single pole 11136W 9.50 (.374) 1.00 (.039) C11COSpicotAC A-62 www.apem.com APEM 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) CONTACT MATERIALS Silver Gold plated silver (2 micron gold) Solid gold rivet A AD2 D A See "Special options" for contacts X780 (solid silver/nickel rivet) and contacts X910 (for peak currents). FINISH Nickel plated Black finish on bushing, lever and hardware. Blank G Other finish, consult factory. Ø10.60 (.417 IA)D Ø11.80 (.464 IA)D 2 5.80 (.228) 6 Ø .40 (.251 )AID Not available on 11000W model. 1 1.5Mixa (.104 )XAM Epoxy sealed terminals are standard. Blank No sealing except standard K Front panel sealing by O-ring and sealing washer. Protects the switch against water and dust. Panel seal withstands 1 bar pressure and remains sealed even when switch is operated. 2.30 (.090) SEALING ➀ O-ring ➁ Sealing washer Sealing by two O-rings, see X408 under "Special options". Sealing boots : see section H. LEVERS Blank Standard APEM 9.00 (.354) 2 Ø .00 (.078 A)ID 7.00 (.275) 11.30 (.444) 7.00 (.275) 3 Ø .00 (.118 )AID -26 Cylindrical www.apem.com A-63 11000 series Professional toggle switches - threaded bushing Ø 6,35 (1/4) SPECIAL OPTIONS 5.50 (.216) A 1 Front panel sealing by two O-rings. Flatted bushing for precise orientation. Protects the switch against water and dust. Panel seal withstands 1 bar pressure and remains sealed even when switch is operated. 4.00 ixaM (.157 )XAM X408 Not available on 11000W model. X408 X780 Solid rivet, gold plated silver/nickel alloy X910 Switches for peak currents ➞ Flat ➀ O-rings Peak current up to 80A (1 ms) 60VDC - single/double pole Single pole 11136 X910 ON - ON Double pole 11146 X910 • Contacts : solid rivet - silver/nickel alloy (AgNi) • Max. current/voltage rating : 3/80A (1 ms) 60VDC - 10.000 cycles ON - ON • Further specifications and dimensions : see previous pages • General information on peak currents : see end of catalogue. AGENCY APPROVALS CECC CECC 96201-005 (high level - contacts X780) CECC 96201-008 (low level - contacts AD2 or D) Availability : consult factory for details of approved models. Marking : to order switches marked CECC , complete above box with ”CECC”. Blank : no agency approval required. A-64 www.apem.com APEM 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) Specifications ELECTRICAL SPECIFICATIONS • Max. current/voltage rating with resistive load : - silver contacts (A-AD2-X780) : 4A 30VDC - gold contacts (D) : 100mA 30VDC • Minimum load : AD2-X780-D contacts : 10mA 50mV, 10µA 5V min. • Initial contact resistance : 10 mΩ max. • Insulation resistance : 1.000 MΩ min. at 500VDC • Dielectric strength : 1.000 Vrms 50 Hz min. between terminals 2.000 Vrms 50 Hz min. between poles and between terminals and frame • Contact bounce : 2 ms max. • Electrical life at full load : Peak currents, refer to “Special options”. A Number of cycles Contacts Max. current/voltage rating 2 positions 3 positions A 4A 30VDC 50.000 50.000 AD2 X780 4A 30VDC (Gold plating : 100mA 30VDC max.) 20.000 20.000 D 100mA 30VDC 80.000 50.000 150.000 100.000 Low level or mechanical life MATERIALS • Case : diallylphthalate (DAP) • Actuator : brass, chrome plated • Bushing : brass, nickel plated • Housing : brass, nickel plated • Contacts A : silver AD2 : gold plated silver (2 microns gold) X780 : solid rivet - gold plated silver/nickel alloy D : solid gold rivet X910 : silver/nickel alloy (for peak currents, see “Special options”) • Terminal seal : epoxy Note : AD2 and X780 contacts can be used for high level applications. In this case, the gold layer is considered only as a protection against oxidation during storage. Tin dipped terminals available, see "Special options". GENERAL SPECIFICATIONS • Torque :1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts • Standard panel thickness : 4,5 mm (.177) max. • Operating temperature : -40°C to +85°C RELIABILITY - RUN-IN TEST Upon request, each individual switch can be submitted to a low level run-in test of 50 or 250 cycles to ensure suitability for special applications requiring a very high level of reliability (military, space, etc.). AGENCY APPROVALS CECC 96201-005 CECC 96201-008 Designed to MIL specifications Availability : consult factory for details of approved models. Marking : to order switches marked CECC, complete appropriate box of ordering format. Dimensions : first dimensions are in mm while inches are shown as bracketed numbers. Packaging unit : 2 pole models : 25 pieces - 3 & 4 pole models : 20 pieces. APEM www.apem.com A-65 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) Overview 12 SERIES Terminals and bushings 1 2 A Solder lug terminals Straight PC terminals All models with threaded bushing Ø 11,9 (15/32). Bushing Ø 15 (.590), see X822 under "Special options". Number of poles 4 5 6 Momentary for function 4 Electrical functions Double pole Three pole Four pole 6 9 7 8 5 ON ON MOM ON - OFF OFF OFF ON ON ON MOM MOM MOM 4 ON ON ON ON ON MOM ▲ MOM ON MOM ▲ 1R ON ON MOM 2R MOM ON MOM Leave blank for other functions. Function 4 . ▲ Must not have blank in "momentary" box. Finish Fluorescent tip Blank Bright chrome finish on actuator G Black finish on bushing, actuator and hardware. Blank None -038 White fluorescent tip to lever A AD2 D Silver Silver, gold plated (2 micron gold)) Solid gold rivet See "Special options" for X780 (solid silver/nickel rivet) and X910 (for peak currents). Blank No special requirement X408 Front panel sealing by two O-rings X822 Bushing Ø 15 (.590) Available with matt black finish (G) only. Satin chrome finish, see "Special options". Contact materials Special options Other : see foll. pages. Sealing Blank Epoxy sealed terminals standard K Front panel sealing by one O-ring and sealing washer Sealing by two O-rings, see X408, "Special options" box. Levers Blank Standard lever -12 Short lever Locking levers Approvals CECC Availability : Consult factory for details of approved models. -1V 1 locked position -2V 2 locked positions -3V 3 locked positions Other : see foll. pages. NOTICE : please note that not all combinations of above numbers are available. Refer to the following pages for further information. ABOUT THIS SERIES On the following pages, you will find successively : - model structure of switches - options in the same order as in above chart Sealing boots are available to protect the switches against dust and water. They are presented in section H. Mounting accessories : standard hardware supplied with all models : 2 hex nuts 14 (.551) across flats and 1 locking ring. Standard and special hardware available are presented in section I. Security caps are available to prevent inadvertent lever operation. They are presented in section I. A-66 www.apem.com APEM 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) Solder lug terminals : 12100 1 2 3 Function 6 1 2 3 Other functions Function 6 26° Functions 9, 7, 8, 4 20° Function 5 12° 1.20 (.047) 9.50 (.374) Typical angle of throw (A) 5.00 (.196) 1.70 (.066) • Epoxy sealed terminals standard ➞ Keyway 2.50 (.098) 1.00 (.039) A MODEL STRUCTURE Shown with standard lever III 14.00 (.551) 1.00 (.039) Ø18.20 (.716 DIA) 5.00 (.196) 6.00 (.236) ON ON MOM MOM ON MOM MOM MOM II A 4.00 (.157) 6 1 3 I 2 4 5 2.50 (.098) OFF OFF OFF ON ON ON ON 1 2 13.70 (.539) 0.50 (.019) ON ON MOM ON ON ON MOM - III 10.90 (.429) Ø6.00 (.236 DIA) 12146 12149 12147 12148 12144* 12144 1R* 12144 2R* 12145 II Ø11.90-32UNS (15/32-32UNS) I 17.30 (.681) 3 ➞ Solder lug terminals - double pole Keyway EPOXY * Function 4 : SP in DP case - connections, see end of catalogue. ➞ Keyway Solder lug terminals - three pole 13.70 (.539) III 14.00 (.551) II A 12 II A III OFF OFF OFF ON ON ON ON ON MOM MOM ON MOM MOM Ø6.00 (.236 DIA) ON ON MOM ON ON ON MOM Ø11.90-32UNS (15/32-32UNS) 1.00 (.039) 12166 12169 12167 12168 12164* 12164 1R* 12164 2R* * Function 4 : DP in 4P case - connections, see end of catalogue. APEM www.apem.com 14.00 (.551) 9 I 5.00 (.196) Ø18.20 (.716 DIA) 6.00 (.236) 10 11 26.00 (1.023) 2.50 (.098) 7 8 13.70 (.539) 1 III 10.90 (.429) 2 II 17.30 (.681) EPOXY 3 I 5.00 (.196) 0.50 (.019) ➞ Keyway Solder lug terminals - four pole Ø18.20 (.716 DIA) 6.00 (.236) Ø6.00 (.236 DIA) Ø11.90-32UNS (15/32-32UNS) ON ON ON OFF ON MOM OFF MOM ON OFF MOM 2.50 (.098) III 4.00 (.157) 9 4.00 (.157) 6 I 1 7 8 2 4 5 1.00 (.039) 12156 12159 12157 12158 20.00 (.787) 3 II 10.90 (.429) 0.50 (.019) I 17.30 (.681) EPOXY A-67 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) Straight PC terminals : 12200 6 II A 14.00 (.551) 3 I III ON 1.00 (.039) 6 9 I II A 14.00 (.551) 7 8 20.00 (.787) III ON 1.00 (.039) Ø18.20 (.716 DIA) Ø1.60 (.062 DIA) 9 12 I II A III ON 6.00 (.236) 14.00 (.551) 10 11 26.00 (1.023) 1.00 (.039) Ø18.20 (.716 DIA) PANEL CUT-OUT Standard 5.10 (.200) 6.00 (.236) 6.00 (.236) 4.00 (.157) EPOXY 1.70 (.066) ▲ 3,5 mm (.138) short terminals available on request for function 6. Standard for functions 9, 7, 8, 4 and 5. 5.10 (.200) 5.10 5.10 (.200) (.200) With K sealing option 5.10 5.10 (.200) (.200) With X408 sealing option 5.00 (.196) 9.60 9.60 (.377) (.377) 9.50 (.374) 3.50 (.137) 9.60 (.377) Ø1.60 (.062 DIA) 1.70 (.066) Ø 2.00 1 Ø 2.00 1 Ø 2.00 1 (.472 IA)D (.472 A)ID (.472 A)ID 1.70 (.066) 1 Ø 2.50 1 Ø 2.50 1 Ø 2.50 3 1 Ø 2.00 1 Ø 2.00 1 Ø 2.00 Ø .50 3 Ø .50 3 Ø .50 (.492 IA)D (.492 IA)D (.492 IA)D (.137 IA)D (.137 A)ID (.137 (.472 A)DI (.472 A)ID (.472 A)DI )AID Ø6.00 (.236 DIA) Ø11.90-32UNS (15/32-32UNS) 1.00 (.039) - 7 8 13.70 (.539) 4.00 (.157) ON 12266 III 10.90 (.429) 2 1 II 17.30 (.681) 4.00 (.157) EPOXY 3 I 9.50 (.374) 0.50 (.019) ➞ Keyway Straight PC terminals - four pole ▲ 6.00 (.236) Ø6.00 (.236 DIA) Ø11.90-32UNS (15/32-32UNS) 1.00 (.039) - 4 5 13.70 (.539) 4.00 (.157) ON III 10.90 (.429) 4.00 (.157) EPOXY 2 1 II 17.30 (.681) Ø1.60 (.062 DIA) 3 I 9.50 (.374) 0.50 (.019) ➞ Keyway Straight PC terminals - three pole ▲ 12256 Ø6.00 (.236 DIA) Ø11.90-32UNS (15/32-32UNS) 1.00 (.039) A Ø18.20 (.716 DIA) 6.00 (.236) 4 5 6.00 (.236) - 1 2 0.50 (.019) ON 12246 III 13.70 (.539) 2 1 II 10.90 (.429) 3 I 17.30 (.681) 4.00 (.157) ➞ Keyway Straight PC terminals - double pole ▲ 1.00 (.039) C11COSpicotAC A-68 www.apem.com APEM 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) CONTACT MATERIALS A AD2 D Silver Silver, gold plated (2 micron gold) Solid gold rivet (except functions 4 and 5) A See "Special options" for contacts X780 (solid silver/nickel rivet) and contacts X910 (for peak currents). FINISH Blank G Bright chrome finish on actuator Black finish on bushing, lever and hardware. For satin chrome finish, see "Special options". 4 ixaM (.157 )xam Epoxy sealed terminals are standard. 3.00 (.118) SEALING Blank No sealing except standard. K Front panel sealing by one O-ring and sealing washer. Protects the switch against water and dust. Panel seal withstands 1 bar pressure and remains sealed even when switch is operated. 2 ➀ O-ring Sealing by two O-rings, see X408 under "Special options". Sealing boots : see section H. 1 2 1 ➁ Sealing washer FLUORESCENT TIP Standard lever Blank None -038 White fluorescent tip. Becomes luminous when submitted to ultra-violet rays. Locking lever Available with matt black finish (option G) only. 1 C 2E-TK 1 eL 29-09-92 APEM www.apem.com :chE 1 A-69 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) ACTUATORS Levers Dash compulsory before lever code. 6 Ø .00 (.236 )AID 5 Ø .00 (.196 IA)D Security caps : see section I. 11.90 (.468) 11.90 (.468) 11.80 (.464) 17.30 (.681) A Blank Standard -12 Short lever Locking levers ➞ Keyway 19.40 (.763) 19.40 (.763) 11.90 (.468) 11.90 (.468) 11.90 (.468) 7 Ø .00 (.275) 20.60 (.811) 7 Ø .0 (.275 0 )AID 7 Ø .0 (.275 0 )AID -1V -2V -3V 1 locked position (function 6) Typical angle of throw : 26° 2 locked positions (function 6) Typical angle of throw : 26° 3 locked positions (functions 9 and 4) Typical angle of throw : 20° -4V -4V Functions 9 & 4 -5V -5V Functions 7 & 442R -12V -12V Functions 8 & 441R -7V -7V Functions 8 & 441R -13V -13V Funct. 8, 5 & 441R -8V -8V -9V -9V Functions 8, 9, 44 & 441R Functions 8 & 441R -15V -15V Functions 8 & 441R -16V -16V Functions 4 & 9 -11V -11V Functons 8, 9, 44 & 441R -17V -17V Functions 7 & 442R -20V -20V Functions 9 & 44 Note : -5V and -12V are not true locking levers : no pulling is required before actuation. SPECIAL OPTIONS 1 Blank No special requirement. X408 Front panel sealing by two O-rings. Flatted bushing for precise 17-02-2010 orientation. Panel thickness : 8 mm (.314) max., 3 mmLe (.118) min. Le 17-02-2010 Protects the switch against water and dust. ECH:1 ECH:1 Panel seal withstands 1 bar pressure and remains sealed even when switch is operated. X545 Lever, bushing, housing, nuts and washers with satin chrome finish. A-70 www.apem.com 10.40 (.409) C12LV C12LV ➞ Flat ➀ O-rings APEM 12000 series Professional toggle switches - threaded bushing Ø 11,9 (15/32) SPECIAL OPTIONS 1 Ø 5 X 100 SI (.590 AID X 100 S)I Threaded bushing Ø 15 (.590), with double flat Not available with function 5 or locking levers. Includes front panel sealing and X780 contact material. 1 12.70 (.500) 10.40 (.409) X822 (continued) Solid rivet - gold plated silver/nickel alloy contacts Not available with function 5. X822 ➞ Flat ➀ O-rings X910 Ø15.20 (.598 IA)D 13.00 (.511) X780 6.5 ixaM (.255 )xaM A Switches for peak currents Peak current up to 80A (1 ms) 60VDC - double pole 12146 X910 ON - ON • Contacts : solid rivet - silver/nickel alloy (AgNi) • Max. current/voltage rating : 3/80A (1 ms) 60VDC - 10.000 cycles • Further specifications and dimensions : see previous pages • General information on peak currents : see end of catalogue. AGENCY APPROVAL CECC CECC 96201-005 (high level - contacts X780) CECC 96201-008 (low level - contacts AD2 or D) Availability : consult factory for details of approved models. Marking : to order switches marked CECC, complete above box with ”CECC”. Blank : no agency approval required. APEM www.apem.com A-71
