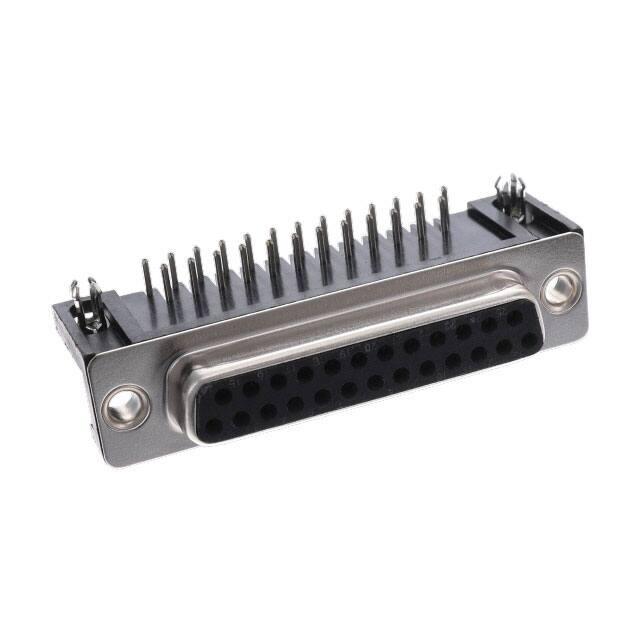

630-025-640-541

TOLERANCE UNLESS OTHERWISE SPECIFIED .X .XX .XXX 12.55 ±0.38 53.04 ±0.38 ISSUE NUMBER THIS IS A C.A.D. GENERATED DRAWING DO NOT MAKE MANUAL REVISIONS TO MASTER. 1 ORIGINAL ±0.25 ±0.13 ±0.10 38.38 2.84 7.90 6.3 1.42 5.8 10° 3.18 ±0.38 47.04 ±0.25 11.62 ±0.25 11.62 ±0.25 1.385 2.77 2.84 ±0.25 NOTES: MATERIAL: HOUSING: SHELL: CONTACT: THERMOPLASTIC POLYESTER, UL94V-0 STEEL, NICKEL PLATED COPPER ALLOY, 30μ GOLD PLATING OPERATING TEMPERATURE: -55°C TO +125°C CURRENT RATING: CONTACT RESISTANCE: INSULATOR RESISTANCE:. DIELECTRIC WITHSTANDING VOLTAGE: 3A PER CONTACT 25mΩ MAX. 5000MΩ min. 1000V AC rms 630 ASSEMBLY SW REFERENCE NO.: 630 SERIES D-SUB CONNECTOR C.B DRAWN: DATE: DATE: CHECKED: COMPLIANT THIS SERIES FULLY CONFORMS TO EDAC INC THE EUROPEAN UNION DIRECTIVES TORONTO, ONTARIO CANADA 2011/65/EU FOR RoHS COMPLIANCY. YOUR CONNECTION TO QUALITY & SERVICE THESE DRAWINGS AND SPECIFICATIONS ARE THE PROPERTY OF EDAC INC.,AND SHALL NOT BE REPRODUCED,OR COPIED OR USED AS THE BASIS FOR THE MANUFACTURE OR SALE OF APPARATUS WITHOUT WRITTEN PERMISSION. SCALE: AUG. 01/2018 (IN C.A.D. 1:1) SHEET 1 OF 1 DRAWING NUMBER: 630-025-640-541 ISSUE PART NUMBER: 630-025-640-541 1
