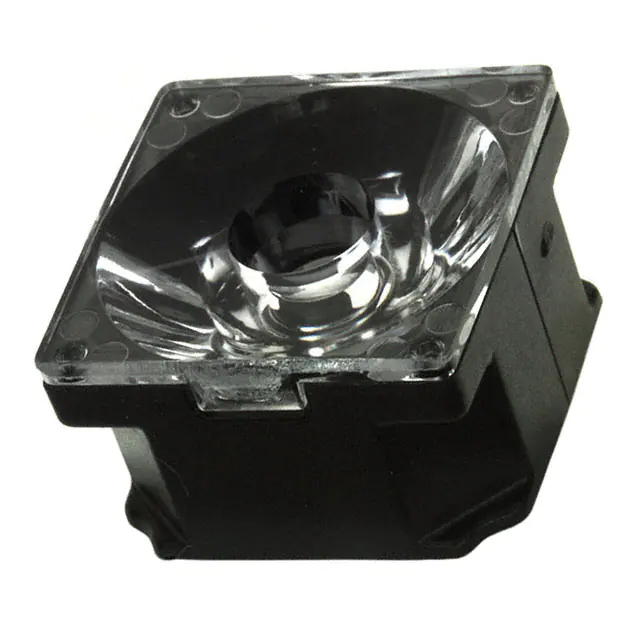

LEDIL F’FORM OPTICS CXP SQUARE lenses for CREE XP-E LEDs (UPDATED 20100308) - - Designed & optimized for Cree XP-E series of LEDs Lens material optical grade PC with high UV and temperature resistance (130°C/220°F). Allows use of high current and temperature conditions Best available optical efficiency, up to 90%, with an extremely good cutoff of light Integrated holder. Fastening to heat sink with a PU foam adhesive tape of automotive grade Compact dimensions 21.6 x 21.6 mm. Square form enables easy build of matrix without any gaps between lenses. LENS TYPES NAME ORDERING CODE CXP SQUARE REAL SPOT CXP SQUARE SMOOTH SPOT CXP SQUARE DIFFUSER CXP SQUARE MEDIUM CXP SQUARE OVAL CXP SQUARE OVAL TURNED 90° CXP SQUARE WIDE FA10668_CXP-RS FA10667_CXP-SS FA10666_CXP-D FA10665_CXP-M FA10669_CXP-O 4FA11153_CXP-O-90 FA10708_CXP-W FWHM Angle ±3° ±5° ±6° ±15° ±7° x ±23° ±7° x ±23° ±17° © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS MEASUREMENTS Relative Intensity of FA10668_CXP-RS 100 % 75 % 50 % 25 % 0% 20 15 10 5 0 -5 -10 -15 -20 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS Relative Intensity of FA10667_CXP-SS 100 % 75 % 50 % 25 % 0% 20 10 0 -10 -20 -30 -40 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS Relative Intensity of FA10666_CXP-D 100 % 75 % 50 % 25 % 0% 40 30 20 10 0 -10 -20 -30 -40 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS Relative Intensity of FA10665_CXP-M 100 % 75 % 50 % 25 % 0% 40 30 20 10 0 -10 -20 -30 -40 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS Relative Intensity of FA10669_CXP-O 100 % 75 % 50 % 25 % 0% 40 30 20 10 0 -10 -20 -30 -40 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS Relative Intensity of FA10708_CXP-W 100 % 75 % 50 % 25 % 0% 60 50 40 30 20 10 0 -10 -20 -30 -40 -50 -60 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08 LEDIL F’FORM OPTICS DRAWINGS © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-03-08
