CS15158_STRADA-IP-2X6-T4-B

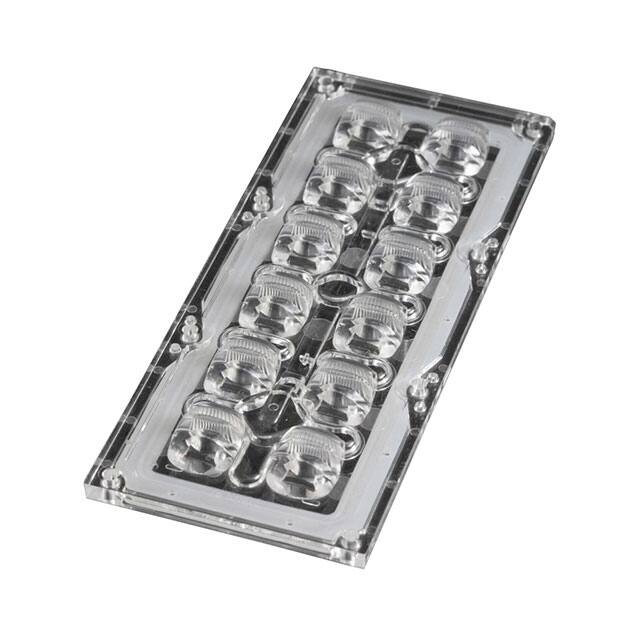

PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B STRADA-IP-2X6-T4-B Wide IESNA Type IV beam with forward-throw beam for wide area lighting like car parks SPECIFICATION: Dimensions Height Fastening 71.4 x 173.0 mm 10.6 mm screw Ingress protection classes ROHS compliant IP67 yes MATERIALS: Component Type Material Colour STRADA-IP-2X6-T4-B Multi-lens PMMA clear 2X6-SEAL25 Seal Silicone white Finish ORDERING INFORMATION: Component CS15158_STRADA-IP-2X6-T4-B » Box size: 476 x 273 x 247 mm Qty in box Multi-lens 120 MOQ MPQ 40 40 Box weight (kg) 7.8 Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 1/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B See also our general installation guide: www.ledil.com/installation_guide Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED Bridgelux SMD 5050 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX 2x6 LED XG xxx G7+ FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX 2x6 LED XT xxx G5 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED XP-L HD FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XT-E FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XT-E HE FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED LUXEON 5050 Round LES FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON T FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON V FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON V2 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED RecLED 146x45mm 2900lm 730 2x6 IP G1 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219F FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW319B FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED NVSW519A FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxx19B/NVSxx19C FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED Fortimo FastFlex LED 2x6 DP G4 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x6 DP G5 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH12 (LH351C) FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM12 ZP (LH502C) FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED ROY-S26XPL2 (XP-L2) FWHM / FWTM Asymmetric Efficiency 91 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XLE-S22C4XTEHE (XT-E HE) FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XLE-S26XHP35 (XHP35 HD) FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED SMJQ-D36W12Mx FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED SMJQ-D36W12Px FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22P FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (MEASURED): LED RLE 2x6 3000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x6 4500lm HP HE EXC3 OTD Z19 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED J Series 5050 Round LES FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED J Series 5050B 6V K Class FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XHP35 HD FWHM / FWTM Asymmetric Efficiency 73 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XHP35 HD FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED XHP35 HI FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L2 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 HE FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM Asymmetric Efficiency 87 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED XP-L HI FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON C FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.4 cd/lm LEDs/each optic 4 Light colour RGBW Required components: LED NCSxx19B FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 14/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED NV4WB35AM FWHM / FWTM Asymmetric Efficiency 77 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219D FWHM / FWTM Asymmetric Efficiency % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 15/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED PrevaLED Brick HP IP 2x6 FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ P 3737 (3W version) FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ P 3737 (3W version) FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square PC FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 16/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED Fortimo FastFlex LED 2x6 DPX G4 FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH181B FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH231B FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351B FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 17/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED LH351D FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH502D FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED SEOUL DC 5050 6V FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M1/Z5M2 FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 18/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B OPTICAL RESULTS (SIMULATED): LED Z5M4 FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22T FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 19/20 PRODUCT DATASHEET CS15158_STRADA-IP-2X6-T4-B GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 08/11/2023 Subject to change without prior notice Published: 29/07/2019 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 20/20
