C15217_STRADA-2X2-CAT-B

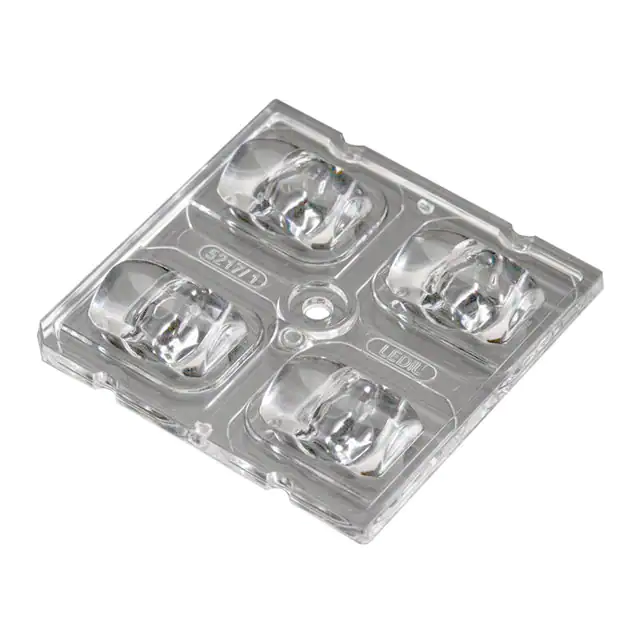

PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B STRADA-2X2-CAT-B Narrow catenary street light beam, optimized for EN13201 M-classes and tilted poles SPECIFICATION: Dimensions Height Fastening ROHS compliant 50.0 x 50.0 mm 7.7 mm pin, screw yes MATERIALS: Component Type Material Colour STRADA-2X2-CAT-B Multi-lens PMMA clear Finish ORDERING INFORMATION: Component C15217_STRADA-2X2-CAT-B » Box size: 480 x 280 x 300 mm Qty in box 800 MOQ MPQ 160 160 Box weight (kg) 7.0 Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 1/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B See also our general installation guide: www.ledil.com/installation_guide Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED XD16 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 4 Light colour White Required components: LED XD16 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L3 FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED XP-G3 FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED XP-G3 FWHM / FWTM Asymmetric Efficiency 95 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM Asymmetric Efficiency 67 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK LED LUXEON 5050 Round LES FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED LUXEON V FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED RecLED 122x50mm 1900lm 730 2x4 Opt G1 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219D FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219F FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED NVSW319B FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED OSLON Square PC FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RC12 Z (LH181B) FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED HiLOM RH12 Z (LH351C) FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH16 (LH351C) FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM12 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM16 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 98 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED HiLOM RM8 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x4 2000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (MEASURED): LED RLE 2x8 4000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED J Series 5050 Round LES FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 HE FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-G3 FWHM / FWTM Asymmetric Efficiency 74 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED XP-L2 FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XT-E FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 3030 2D (Square LES) FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 3030 2D (Square LES) FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED LUXEON 5050 HE FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LUXEON 5050 Round LES FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED LUXEON V2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM 144.0 + 64.0° / 154.0 + 92.0° Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM 142.0 + 65.0° / 154.0 + 94.0° Efficiency 85 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED RecLED 122x50mm 1900lm 730 2x4 Opt G1 FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 14/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED NF2x757G FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NFMW48xA FWHM / FWTM Asymmetric Efficiency 99 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NV4WB35AM FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 15/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED NVSW519A FWHM / FWTM 146.0 + 70.0° / 156.0 + 105.0° Efficiency 91 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxE21A FWHM / FWTM 132.0 + 63.0° / 150.0 + 106.0° Efficiency 83 % Peak intensity 0.5 cd/lm LEDs/each optic 4 Light colour White Required components: Protective plate, glass LED NVSxx19B/NVSxx19C FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 16/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED OSCONIQ P 3737 (3W version) FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 140.0 + 35.0° Efficiency 84 % LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 17/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 67 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 62 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED Fortimo FastFlex LED 2x8 DAX G4 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351B FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 18/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B OPTICAL RESULTS (SIMULATED): LED LH351B FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED MJT 5050 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M3 FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED Z8Y22 FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 19/20 PRODUCT DATASHEET C15217_STRADA-2X2-CAT-B GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 20/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 20/20
