C12361_HB-2X2-W

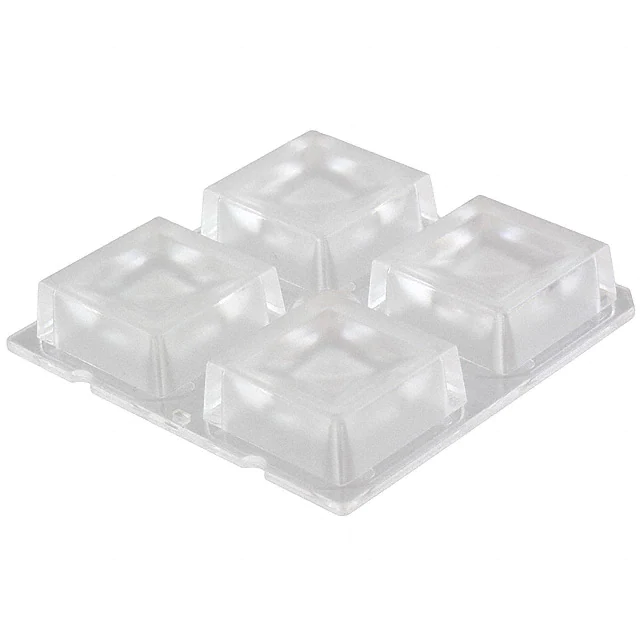

PRODUCT DATASHEET C12361_HB-2X2-W HB-2X2-W ~50° wide beam SPECIFICATION: Dimensions Height Fastening ROHS compliant 50.0 x 50.0 mm 8.5 mm glue, pin, screw yes MATERIALS: Component Type Material Colour HB-2X2-W Multi-lens PMMA clear Finish ORDERING INFORMATION: Component C12361_HB-2X2-W » Box size: 480 x 280 x 300 mm Qty in box 800 MOQ MPQ 160 160 Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. Box weight (kg) 9.1 1/37 PRODUCT DATASHEET C12361_HB-2X2-W See also our general installation guide: www.ledil.com/installation_guide Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED Bridgelux SMD 5050 FWHM / FWTM 55.0° / 93.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX XTP 2x4 xxx LS G5 FWHM / FWTM 52.0° / 85.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX XTP 2x6 xxx LS G5 FWHM / FWTM 52.0° / 86.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED J Series 5050C 6V E Class FWHM / FWTM 54.0° / 86.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED XB-D FWHM / FWTM 48.0° / 85.0° Efficiency 86 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XD16 FWHM / FWTM 48.0° / 89.0° Efficiency 91 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XD16 FWHM / FWTM 54.0° / 94.0° Efficiency 91 % Peak intensity 0.9 cd/lm LEDs/each optic 4 Light colour White Required components: LED XHP35 HD FWHM / FWTM 57.0° / 92.0° Efficiency 85 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED XM-L FWHM / FWTM 57.0° / 90.0° Efficiency 89 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L2 FWHM / FWTM 56.0° / 85.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L3 FWHM / FWTM 56.0° / 87.0° Efficiency 95 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G FWHM / FWTM 52.0° Efficiency 88 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED XP-G2 FWHM / FWTM 51.0° / 84.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L HD FWHM / FWTM 56.0° / 90.0° Efficiency 87 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L HI FWHM / FWTM 50.0° / 83.0° Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L2 FWHM / FWTM 56.0° / 96.0° Efficiency 92 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED XT-E FWHM / FWTM 50.0° / 88.0° Efficiency 87 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Round LES FWHM / FWTM 55.0° / 91.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Square LES FWHM / FWTM 55.0° / 91.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON MZ FWHM / FWTM 53.0° / 86.0° Efficiency 92 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED LUXEON Q FWHM / FWTM 50.0° / 86.0° Efficiency 86 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON Rebel ES FWHM / FWTM 51.0° / 82.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON T FWHM / FWTM 55.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON TX FWHM / FWTM 50.0° / 80.0° Efficiency 88 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED LUXEON V FWHM / FWTM 55.0° / 91.0° Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON V2 FWHM / FWTM 51.0° / 86.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON Z ES FWHM / FWTM 46.0° / 76.0° Efficiency 87 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED SST-10-B130 FWHM / FWTM 51.0° / 80.0° Efficiency 99 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour Deep Red Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED RecLED 122x50mm 1900lm 730 2x4 Opt G1 FWHM / FWTM 50.0° / 75.0° Efficiency 98 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NCSxx19A FWHM / FWTM 48.0° / 77.0° Efficiency 85 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NCSxx19B FWHM / FWTM 50.0° / 83.0° Efficiency 85 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NS9x383 FWHM / FWTM 54.0° / 93.0° Efficiency 86 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED NVSW219D FWHM / FWTM 53.0° / 83.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219F FWHM / FWTM 54.0° / 81.0° Efficiency 97 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW319B FWHM / FWTM 56.0° / 93.0° Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM 53.0° / 88.0° Efficiency 92 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED NVSxE21A FWHM / FWTM 43.0° / 80.0° Efficiency 86 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxx19B/NVSxx19C FWHM / FWTM 51.0° / 82.0° Efficiency 85 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NWSx229A FWHM / FWTM 57.0° / 90.0° Efficiency 86 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED OLP-5065F6L-06A FWHM / FWTM 56.0° / 90.0° Efficiency 88 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED PL-BRICK HP 3800 2x8 SSG FWHM / FWTM 52.0° / 75.0° Efficiency 98 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM 55.0° / 91.0° Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ C 3030 FWHM / FWTM 47.0° / 76.0° Efficiency 96 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ C 3030 FWHM / FWTM 47.0° / 76.0° Efficiency 96 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED OSLON Square PC FWHM / FWTM 54.0° / 85.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON SSL 80 FWHM / FWTM 43.0° / 70.0° Efficiency 89 % Peak intensity 1.3 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4 FWHM / FWTM 52.0° / 82.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM 55.0° / 88.0° Efficiency 97 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 14/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED Fortimo FastFlex LED 2x8 DA G5 FWHM / FWTM 50.0° / 77.0° Efficiency 97 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA HE FWHM / FWTM 54.0° / 87.0° Efficiency 97 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RC12 Z (LH181B) FWHM / FWTM 46.0° / 84.0° Efficiency 97 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH12 Z (LH351C) FWHM / FWTM 54.0° / 84.0° Efficiency 96 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 15/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED HiLOM RH16 (LH351C) FWHM / FWTM 53.0° / 83.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM12 Z (LH502C) FWHM / FWTM 55.0° / 94.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM16 Z (LH502C) FWHM / FWTM 55.0° / 95.0° Efficiency 96 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM8 Z (LH502C) FWHM / FWTM 56.0° / 95.0° Efficiency 96 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 16/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED LH351A FWHM / FWTM 49.0° / 81.0° Efficiency 89 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351B FWHM / FWTM 55.0° / 85.0° Efficiency 86 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351C FWHM / FWTM 53.0° / 85.0° Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351D FWHM / FWTM 56.0° / 90.0° Efficiency 91 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 17/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED LH351Z FWHM / FWTM 50.0° / 77.0° Efficiency 87 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH508A FWHM / FWTM 56.0° / 92.0° Efficiency 93 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED LED-Pa-L15c2W11c2-xxx-C050-01 FWHM / FWTM 50.0° / 78.0° Efficiency 96 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED 2x2 Y22 module - SMJQ-D48W16AA-XX FWHM / FWTM 54.0° / 102.0° Efficiency 92 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 18/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED Z5 FWHM / FWTM 48.0° / 80.0° Efficiency 88 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M1/Z5M2 FWHM / FWTM 51.0° / 82.0° Efficiency 85 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M3 FWHM / FWTM 53.0° / 93.0° Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M4 FWHM / FWTM 54.0° / 80.0° Efficiency 97 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 19/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED Z8Y15 FWHM / FWTM 45.0° / 89.0° Efficiency 79 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y19 FWHM / FWTM 46.0° / 89.0° Efficiency 79 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y19 FWHM / FWTM 54.0° / 102.0° Efficiency 92 % Peak intensity 0.8 cd/lm LEDs/each optic 4 Light colour White Required components: LED Z8Y22 FWHM / FWTM 48.0° / 94.0° Efficiency 92 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 20/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED Z8Y22P FWHM / FWTM 51.0° / 93.0° Efficiency 92 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED TL1L4 FWHM / FWTM 48.0° / 78.0° Efficiency 81 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x4 2000lm HP EXC2 OTD FWHM / FWTM 51.0° / 84.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x8 4000lm HP EXC2 OTD FWHM / FWTM 51.0° / 84.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 21/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED RLE 2x8 6000lm HP HE EXC3 OTD FWHM / FWTM 54.0° / 92.0° Efficiency 95 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x121mm 2000lm xxx EXC OTD FWHM / FWTM 52.0° / 83.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x133mm 2000lm xxx EXC OTD FWHM / FWTM 52.0° / 83.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x223mm 4000lm xxx EXC OTD FWHM / FWTM 52.0° / 83.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 22/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (MEASURED): LED RLE G1 49x245mm 4000lm xxx EXC OTD FWHM / FWTM 52.0° / 83.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 23/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED J Series 5050 Round LES FWHM / FWTM 57.0° / 84.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED J Series 5050B 6V K Class FWHM / FWTM 56.0° / 85.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED J Series 5050B 6V K Class FWHM / FWTM 56.0° / 86.0° Efficiency 89 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED MHB-A/B FWHM / FWTM 58.0° / 93.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 24/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED XHP35 HI FWHM / FWTM 52.0° / 73.0° Efficiency 93 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L RGBW (XMLDCL HI) FWHM / FWTM 52.0° / 78.0° Efficiency 95 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour RGBW Required components: LED XP-E FWHM / FWTM 50.0° / 68.0° Efficiency 94 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-E2 FWHM / FWTM 48.0° / 70.0° Efficiency 96 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 25/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED XP-G2 HE FWHM / FWTM 57.0° / 82.0° Efficiency 95 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM 54.0° / 79.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM 55.0° / 81.0° Efficiency 88 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-G4 FWHM / FWTM 52.0° / 69.0° Efficiency 96 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 26/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED XP-G4 FWHM / FWTM 54.0° / 70.0° Efficiency 88 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-L HD FWHM / FWTM 58.0° / 80.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-L HI FWHM / FWTM 52.0° / 72.0° Efficiency 88 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-L2 FWHM / FWTM 58.0° / 86.0° Efficiency 89 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 27/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED XQ-E HI FWHM / FWTM 42.0° / 68.0° Efficiency 93 % Peak intensity 1.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 3030 2D (Round LES) FWHM / FWTM 49.0° / 73.0° Efficiency 94 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 3535L FWHM / FWTM 49.0° / 73.0° Efficiency 94 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 HE FWHM / FWTM 56.0° / 84.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 28/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED LUXEON 5050 HE FWHM / FWTM 54.0° / 84.0° Efficiency 89 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LUXEON 5050 Square LES FWHM / FWTM 54.0° / 84.0° Efficiency 89 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LUXEON A FWHM / FWTM 52.0° Efficiency % LEDs/each optic 1 Light colour White Required components: LED LUXEON C FWHM / FWTM 50.0° / 75.0° Efficiency 94 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 29/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED LUXEON H50-2 FWHM / FWTM 52.0° / 68.0° Efficiency 91 % Peak intensity 4.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON HL2X FWHM / FWTM 56.0° / 76.0° Efficiency 93 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON HL2X-D FWHM / FWTM 58.0° / 78.0° Efficiency 96 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON HL2X-D FWHM / FWTM 58.0° / 80.0° Efficiency 88 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 30/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED LUXEON HL2X-P FWHM / FWTM 56.0° / 80.0° Efficiency 95 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON Rebel FWHM / FWTM 52.0° Efficiency % LEDs/each optic 1 Light colour White Required components: LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM 56.0° / 77.0° Efficiency 96 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM 57.0 + 56.0° / 78.0° Efficiency 87 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 31/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED NFMW48xA FWHM / FWTM 57.0° / 86.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED NV4WB35AM FWHM / FWTM 54.0° / 78.0° Efficiency 95 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxx19A FWHM / FWTM 50.0° Efficiency % LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM 57.0° / 88.0° Efficiency 90 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 32/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED OSCONIQ C 2424 FWHM / FWTM 48.0° / 70.0° Efficiency 96 % Peak intensity 1.3 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ C 3030 FWHM / FWTM 50.0° / 72.0° Efficiency 88 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSCONIQ P 3737 (2W version) FWHM / FWTM 48.0° / 70.0° Efficiency 93 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ P 3737 (3W version) FWHM / FWTM 54.0° / 77.0° Efficiency 94 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 33/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED OSCONIQ P 3737 Flat FWHM / FWTM 50.0° / 73.0° Efficiency 96 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ S 5050 FWHM / FWTM 56.0° / 83.0° Efficiency 95 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ S 5050 FWHM / FWTM 56.0° / 84.0° Efficiency 87 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 54.0° / 76.0° Efficiency 87 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 34/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 52.0° / 74.0° Efficiency 96 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DAX G4 FWHM / FWTM 54.0° / 79.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Acrich MJT 4040 FWHM / FWTM 52.0° / 77.0° Efficiency 94 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED MJT 5050 FWHM / FWTM 57.0° / 88.0° Efficiency 94 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 35/37 PRODUCT DATASHEET C12361_HB-2X2-W OPTICAL RESULTS (SIMULATED): LED SEOUL DC 5050 6V FWHM / FWTM 54.0° / 84.0° Efficiency 94 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M5 FWHM / FWTM 54.0° / 80.0° Efficiency 87 % Peak intensity 1 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED Z5M5 FWHM / FWTM 54.0° / 78.0° Efficiency 95 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22T FWHM / FWTM 50.0° / 76.0° Efficiency 94 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 36/37 PRODUCT DATASHEET C12361_HB-2X2-W GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 31/01/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 37/37
