C12362_STRADA-2X2-DWC

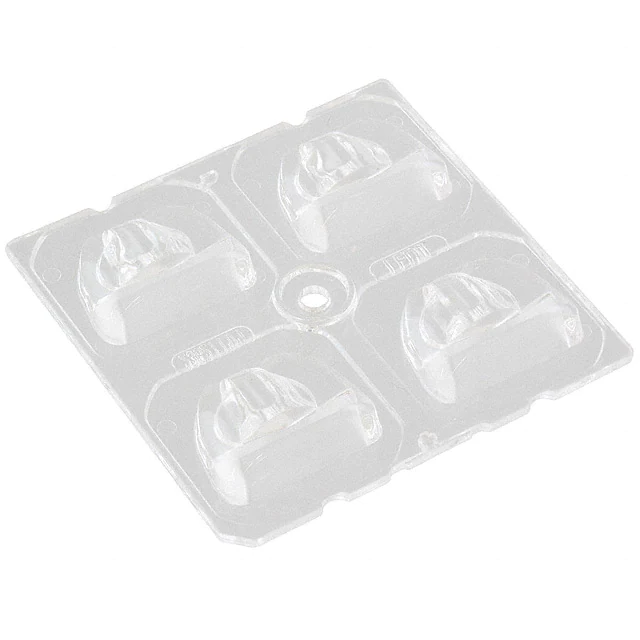

PRODUCT DATASHEET C12362_STRADA-2X2-DWC STRADA-2X2-DWC Universal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type III (medium). SPECIFICATION: Dimensions Height Fastening ROHS compliant 50.0 x 50.0 mm 6 mm glue, pin, screw yes MATERIALS: Component Type Material Colour STRADA-2X2-DWC Multi-lens PMMA clear Finish ORDERING INFORMATION: Component C12362_STRADA-2X2-DWC » Box size: 480 x 280 x 300 mm Qty in box 800 MOQ MPQ 160 160 Box weight (kg) 5.8 Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 1/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC See also our general installation guide: www.ledil.com/installation_guide Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED Bridgelux SMD 5050 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX XTP 2x4 xxx LS G5 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX XTP 2x6 xxx LS G5 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED QUICK FLUX XTP 2x8 xxx LS G5 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED XD16 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 4 Light colour White Required components: LED XD16 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.8 cd/lm LEDs/each optic 1 Light colour White Required components: LED XHP35 HD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED XM-L3 FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM Asymmetric Efficiency 91 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED XP-G3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-G3 FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK LED XP-L HD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XP-L HI FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED XP-L2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XT-E FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XT-E HVW FWHM / FWTM Asymmetric Efficiency % LEDs/each optic 1 Light colour White Required components: LED EHP-2x8-3535 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED EHP-2x8-5050 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Round LES FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON MZ FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON Q FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED LUXEON Rebel ES FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON T FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON TX FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON V FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED LUXEON V2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED RecLED 122x50mm 1900lm 730 2x4 Opt G1 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NS9x383 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219D FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED NVSW219D FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW319B FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW3x9A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.9 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED NVSxx19B/NVSxx19C FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED NWSx229A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED PL-BRICK HP 3800 2x8 SSG FWHM / FWTM Asymmetric Efficiency 95 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED PrevaLED Brick HP 2x8 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED Duris S8 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED Duris S8 FWHM / FWTM Asymmetric Efficiency 88 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square PC FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED OSLON Square PC FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED Fortimo FastFlex LED 2x8 DA G5 FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 14/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED Fortimo FastFlex LED 2x8 DAX G4 FWHM / FWTM Asymmetric Efficiency 94 % LEDs/each optic 1 Light colour White Required components: LED HiLOM RC12 Z (LH181B) FWHM / FWTM Asymmetric Efficiency 99 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH12 Z (LH351C) FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH16 (LH351C) FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 15/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED HiLOM RM12 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM16 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 98 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RM8 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351B FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 16/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED LH351C FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351D FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH351Z FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LH508A FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 17/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED LED-Pa-L15c2W11c2-xxx-C050-01 FWHM / FWTM Asymmetric Efficiency 97 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Acrich MJT 4040 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5 FWHM / FWTM Asymmetric Efficiency 93 % LEDs/each optic 1 Light colour White Required components: LED Z5M1/Z5M2 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 18/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED Z5M3 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M4 FWHM / FWTM Asymmetric Efficiency 96 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z8Y22P FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 19/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED TL1L4 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x4 2000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE 2x8 4000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x121mm 2000lm xxx EXC OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 20/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (MEASURED): LED RLE G1 49x133mm 2000lm xxx EXC OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x223mm 4000lm xxx EXC OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED RLE G1 49x245mm 4000lm xxx EXC OTD FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 21/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED J Series 5050 Round LES FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED J Series 5050 Round LES FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XHP35 HI FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED XM-L2 FWHM / FWTM Asymmetric Efficiency % LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 22/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED XP-G2 FWHM / FWTM Asymmetric Efficiency 86 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED XP-G2 FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-G2 HE FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED XP-G2 HE FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 23/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED XP-G3 FWHM / FWTM Asymmetric Efficiency 71 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED XP-G3 FWHM / FWTM Asymmetric Efficiency 79 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-G3 FWHM / FWTM Asymmetric Efficiency 76 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Protective plate, glass LED XP-G4 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 24/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED XP-G4 FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XP-L2 FWHM / FWTM Asymmetric Efficiency 79 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED XQ-E HD FWHM / FWTM Asymmetric Efficiency 89 % LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Round LES FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 25/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 89 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 72 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 26/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON 5050 Square LES FWHM / FWTM Asymmetric Efficiency 76 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Protective plate, glass LED LUXEON H50-2 FWHM / FWTM Asymmetric Efficiency % LEDs/each optic 1 Light colour White Required components: LED LUXEON HL2X FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 27/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED LUXEON HL2Z FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.7 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON HL2Z FWHM / FWTM Asymmetric Efficiency 79 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED LUXEON XR-HL2X (L2H2-xxxxxxxMLU010) FWHM / FWTM Asymmetric Efficiency 78 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 28/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED RecLED 122x50mm 1900lm 730 2x4 Opt G1 FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NF2x757G FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NV4WB35AM FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW219F FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 29/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED NVSW219F FWHM / FWTM Asymmetric Efficiency 75 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NVSW519A FWHM / FWTM Asymmetric Efficiency 91 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED NVSW519A FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 95 % Peak intensity 0.5 cd/lm LEDs/each optic 4 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 30/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED NVSxE21A FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.4 cd/lm LEDs/each optic 4 Light colour White Required components: Protective plate, glass LED NVSxx19A FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NVSxx19B/NVSxx19C FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED NVSxx19B/NVSxx19C FWHM / FWTM Asymmetric Efficiency 78 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 31/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED OSCONIQ P 3737 (2W version) FWHM / FWTM Asymmetric Efficiency 90 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSCONIQ P 3737 (2W version) FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSCONIQ P 3737 (3W version) FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 2.1 cd/lm LEDs/each optic 1 Light colour White Required components: LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 74 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 32/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 71 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 85 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 33/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 65 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK LED Fortimo FastFlex LED 2x8 DA G4+ FWHM / FWTM Asymmetric Efficiency 69 % Peak intensity 0.3 cd/lm LEDs/each optic 1 Light colour White Required components: C17580_STRADA-2X2-SHD-WHT LED Fortimo FastFlex LED 2x8 DA G5 FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 34/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED Fortimo FastFlex LED 2x8 DA HE FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED Fortimo FastFlex LED 2x8 DA HE FWHM / FWTM Asymmetric Efficiency 95 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED HiLOM RH12 Z (LH351C) FWHM / FWTM Asymmetric Efficiency 82 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED HiLOM RM8 Z (LH502C) FWHM / FWTM Asymmetric Efficiency 84 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 35/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED LH181B FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.4 cd/lm LEDs/each optic 4 Light colour White Required components: LED LH351B FWHM / FWTM Asymmetric Efficiency 69 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: C17677_STRADA-2X2-SHD-BLK Protective plate, glass LED LH351B FWHM / FWTM Asymmetric Efficiency 77 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED LH351C FWHM / FWTM Asymmetric Efficiency 79 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 36/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED LM301B FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.4 cd/lm LEDs/each optic 4 Light colour White Required components: Protective plate, glass LED LM301B FWHM / FWTM Asymmetric Efficiency 91 % Peak intensity 0.4 cd/lm LEDs/each optic 4 Light colour White Required components: LED MJT 5050 FWHM / FWTM Asymmetric Efficiency 92 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: LED SEOUL DC 5050 6V FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 37/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED Z5M3 FWHM / FWTM Asymmetric Efficiency 81 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED Z5M4 FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass LED Z5M5 FWHM / FWTM Asymmetric Efficiency 94 % Peak intensity 0.6 cd/lm LEDs/each optic 1 Light colour White Required components: LED Z5M5 FWHM / FWTM Asymmetric Efficiency 80 % Peak intensity 0.4 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 38/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC OPTICAL RESULTS (SIMULATED): LED Z8Y19 FWHM / FWTM Asymmetric Efficiency 93 % Peak intensity 0.5 cd/lm LEDs/each optic 4 Light colour White Required components: LED RLE 2x8 4000lm HP EXC2 OTD FWHM / FWTM Asymmetric Efficiency 83 % Peak intensity 0.5 cd/lm LEDs/each optic 1 Light colour White Required components: Protective plate, glass Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 39/40 PRODUCT DATASHEET C12362_STRADA-2X2-DWC GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 08/11/2023 Subject to change without prior notice Published: 28/04/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 40/40
