C15183_STRADELLA-8-HB-S

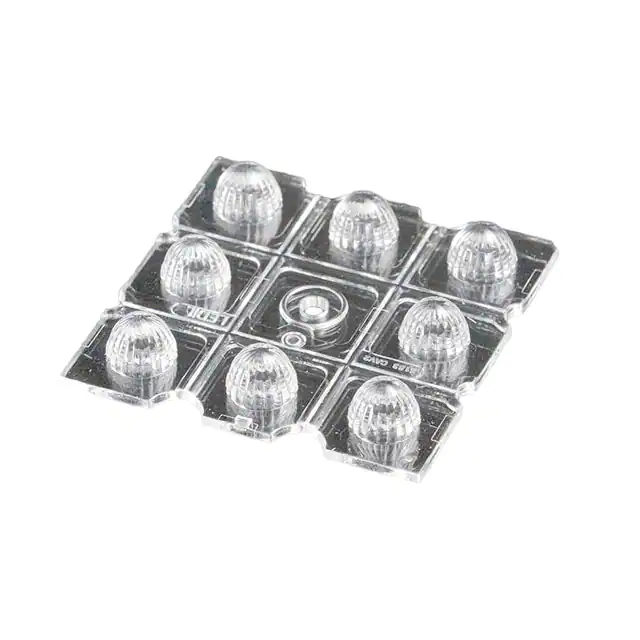

PRODUCT DATASHEET C15183_STRADELLA-8-HB-S STRADELLA-8-HB-S ~25° spot beam for industrial applications SPECIFICATION: Dimensions Height 49.5 x 49.5 7.5 mm Fastening screw ROHS compliant yes MATERIALS: Component Type Material Colour STRADELLA-8-HB-S Multi-lens PMMA clear Finish Length 49.5 ORDERING INFORMATION: Component C15183_STRADELLA-8-HB-S » Box size: Qty in box MOQ MPQ 160 160 Box weight (kg) 5.0 Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 1/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S See also our general installation guide: www.ledil.com/installation_guide Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (MEASURED): LED QUICK FLUX XT 2x8 xxx STRDLL G5 FWHM / FWTM 31.0° / 81.0° Efficiency 93 % Peak intensity 1.5 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED J Series 3030 FWHM / FWTM 28.0° / 76.0° Efficiency 96 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED XP-G3 FWHM / FWTM 34.0° / 93.0° Efficiency 94 % Peak intensity 1.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (MEASURED): LED XT-E FWHM / FWTM 28.0° / 83.0° Efficiency 94 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON 3030 2D (Round LES) FWHM / FWTM 23.0° / 66.0° Efficiency 94 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON 3030 2D (Round LES) FWHM / FWTM 23.0° / 64.0° Efficiency 88 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: Protective plate, glass Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (MEASURED): LED LUXEON 3535L FWHM / FWTM 24.0° / 66.0° Efficiency 94 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON TX FWHM / FWTM 29.0° / 75.0° Efficiency 94 % Peak intensity 1.9 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON V2 FWHM / FWTM 31.0° / 81.0° Efficiency 94 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (MEASURED): LED NVSW219D FWHM / FWTM 33.0° / 80.0° Efficiency 94 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED Duris S5 (2 chip) FWHM / FWTM 23.0° / 64.0° Efficiency 93 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 27.0° / 78.0° Efficiency 94 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (MEASURED): LED Z8Y22P FWHM / FWTM 31.0° / 99.0° Efficiency 93 % Peak intensity 1.4 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED J Series 5050C 6V E Class FWHM / FWTM 45.0° / 99.0° Efficiency 90 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED XHP35.2 HI FWHM / FWTM 40.0° / 94.0° Efficiency 93 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED XP-P FWHM / FWTM 20.0° / 62.0° Efficiency 95 % Peak intensity 2.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED LUXEON 3535L HE FWHM / FWTM 20.0° / 65.0° Efficiency 90 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON HR30 FWHM / FWTM 26.0° / 72.0° Efficiency 91 % Peak intensity 2.1 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED NCSxE17A FWHM / FWTM 19.0° / 59.0° Efficiency 94 % Peak intensity 2.9 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED NF2x757G FWHM / FWTM 29.0° / 76.0° Efficiency 94 % Peak intensity 2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED NVSW219D FWHM / FWTM 34.0° / 78.0° Efficiency 93 % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED NVSxE21A FWHM / FWTM 22.0° / 67.0° Efficiency 94 % Peak intensity 2.4 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 10/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED NVSxx19B/NVSxx19C FWHM / FWTM 30.0° / 86.0° Efficiency 88 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED OSCONIQ C 2424 FWHM / FWTM 24.0° / 68.0° Efficiency 94 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED OSCONIQ P 3030 FWHM / FWTM 21.0° / 58.0° Efficiency 95 % Peak intensity 3 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 11/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED OSCONIQ P 3737 (2W version) FWHM / FWTM 28.0° / 76.0° Efficiency 94 % Peak intensity 2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LH181B FWHM / FWTM 27.0° / 75.0° Efficiency 94 % Peak intensity 2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LH351B FWHM / FWTM 33.0° / 83.0° Efficiency 94 % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 12/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED LH351B FWHM / FWTM 33.0° / 82.0° Efficiency 88 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: Protective plate, glass LED LH351C FWHM / FWTM 35.0° / 86.0° Efficiency 93 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LH351D FWHM / FWTM 44.0° / 93.0° Efficiency 93 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 13/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED Z5M4 FWHM / FWTM 31.0° / 80.0° Efficiency 94 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED Z5M5 FWHM / FWTM 34.0° / 92.0° Efficiency 93 % Peak intensity 1.4 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED Z5M5 FWHM / FWTM 34.0° / 92.0° Efficiency 84 % Peak intensity 1.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: Protective plate, glass Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 14/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S OPTICAL RESULTS (SIMULATED): LED Z8Y19 FWHM / FWTM 23.0° / 81.0° Efficiency 92 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 15/16 PRODUCT DATASHEET C15183_STRADELLA-8-HB-S GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Salo, Finland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 08/04/2024 Subject to change without prior notice Published: 21/02/2020 LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 16/16
