CA15359_EMILY-WW

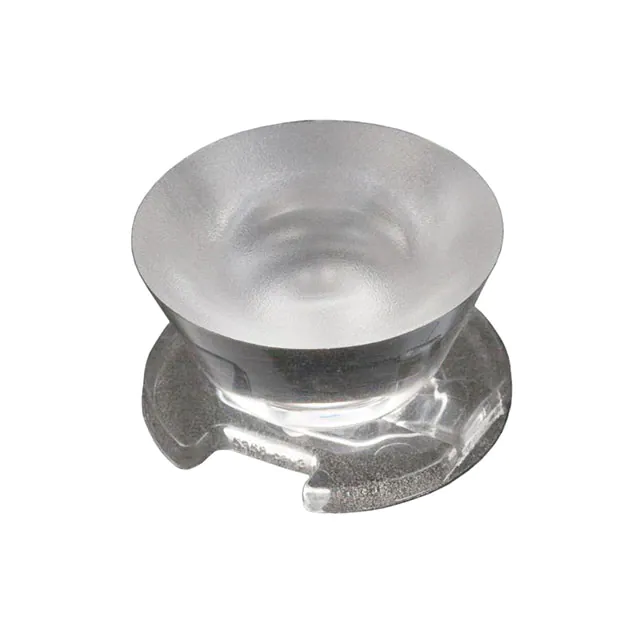

PRODUCT DATASHEET CA15359_EMILY-WW EMILY-WW ~45° wide beam. 14.74 mm high lens. SPECIFICATION: Dimensions Ø 26.0 mm Height 14.7 mm Fastening tape, pin ROHS compliant yes MATERIALS: Component Type Material Colour Finish Length EMILY-WW Single lens PMMA clear 26.0 SPUTNIK-TAPE Tape Acrylic foam black 25.0 ORDERING INFORMATION: Component CA15359_EMILY-WW » Box size: 480 x 280 x 300 mm Single lens Qty in box MOQ MPQ 1690 260 130 Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. Box weight (kg) 11.3 1/9 PRODUCT DATASHEET CA15359_EMILY-WW See also our general installation guide: www.ledil.com/installation_guide Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 2/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (MEASURED): LED XP-L HI FWHM / FWTM 42.0° / 65.0° Efficiency 93 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED NVSW219F FWHM / FWTM 44.0° / 69.0° Efficiency 92 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED OSLON Black Flat (LUW HWQP) FWHM / FWTM 35.0° / 57.0° Efficiency 92 % Peak intensity 2.3 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 3/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (MEASURED): LED OSLON Square CSSRM2/CSSRM3 FWHM / FWTM 44.0° / 67.0° Efficiency 93 % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LH181B FWHM / FWTM 35.0° / 59.0° Efficiency 93 % Peak intensity 2.2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED nPola FWHM / FWTM 50.0° / 85.0° Efficiency 92 % Peak intensity 1.1 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 4/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (SIMULATED): LED XHP35 HD FWHM / FWTM 55.0° / 80.0° Efficiency 96 % Peak intensity 1.2 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED XP-E2 FWHM / FWTM 46.0° / 64.0° Efficiency 97 % Peak intensity 1.7 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED XP-G2 HE FWHM / FWTM 50.0° / 72.0° Efficiency 96 % Peak intensity 1.4 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 5/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (SIMULATED): LED XP-L2 FWHM / FWTM 46.0° / 73.0° Efficiency 94 % Peak intensity 1.6 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON HL2X FWHM / FWTM 49.0° / 72.0° Efficiency 96 % Peak intensity 1.5 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED LUXEON MZ FWHM / FWTM 39.0° / 64.0° Efficiency 96 % Peak intensity 2.1 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 6/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (SIMULATED): LED NCSxE17A FWHM / FWTM 37.0° / 62.0° Efficiency 90 % Peak intensity 1.9 cd/lm LEDs/each optic 4 Light colour/type White Required components: LED NVSW219D FWHM / FWTM 52.0° / 70.0° Efficiency 95 % Peak intensity 1.4 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED OSLON SSL 150 FWHM / FWTM 44.0° / 64.0° Efficiency 97 % Peak intensity 1.9 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 7/9 PRODUCT DATASHEET CA15359_EMILY-WW OPTICAL RESULTS (SIMULATED): LED OSLON SSL 80 FWHM / FWTM 44.0° / 62.0° Efficiency 97 % Peak intensity 1.8 cd/lm LEDs/each optic 1 Light colour/type White Required components: LED SFH 4716AS FWHM / FWTM 35.0° / 58.0° Efficiency 97 % LEDs/each optic 1 Light colour/type IR Required components: LED Z5M4 FWHM / FWTM 39.0° / 62.0° Efficiency 97 % Peak intensity 2.2 cd/lm LEDs/each optic 1 Light colour/type White Required components: Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 8/9 PRODUCT DATASHEET CA15359_EMILY-WW GENERAL INFORMATION: NOTE: The typical beam angle will be changed by different color, chip size and chip position tolerance. The typical total beam angle is the full angle measured where the luminous intensity is half of the peak value. MATERIALS: As part of our continuous research and improvement processes, and to ensure the best possible quality and availability of our products, LEDiL reserves the right to change material grades without notice. PRODUCT DATA USER AGREEMENT AND DISCLAIMER: The measured data in the provided downloadable LEDiL Product Datasheets and Mechanical 2D-Drawings is rounded and provided as reference for planning. LEDiL Oy's optical specifications have been verified by conducting performance testing of the products in accordance with the company's quality system. The reported data are averaged results of multiple measurements with typical variation. LEDiL Oy reserves the right to without prior notification make changes and improvements to its products. LEDiL Oy assumes neither warranty, nor guarantee nor any other liability of any kind for the contents and correctness of the provided data. The provided data has been generated with highest diligence but the provided data may in reality not represent the complete possible variation range of all intrinsic parameters. Therefore, in certain cases a deviation from the provided data could occur. LEDiL Oy Joensuunkatu 13 FI-24240 SALO Finland LEDiL Inc. 228 West Page Street Suite D Sycamore IL 60178 USA Ledil Optics Technology (Shenzhen) Co., Ltd. # 405 , Block B Casic Motor Building Shenzhen 518057 P.R.CHINA Local sales and technical support www.ledil.com/ where_to_buy Shipping locations Poznan, Poland Hong Kong, China Distribution Partners www.ledil.com/ where_to_buy LEDiL Oy reserves the right to undertake technical changes of its products without further notification which could lead to changes in the provided data. LEDiL Oy assumes no liability of any kind for the possible deviation from any provided data or any other damage resulting from the usage of the provided data. The user agrees to this disclaimer and user agreement with the download or usage of the provided files. Last update: 13/05/2024 Subject to change without prior notice LEDiL is a registered trademark of LEDiL Oy in the European Union, USA, and certain other countries. 9/9
