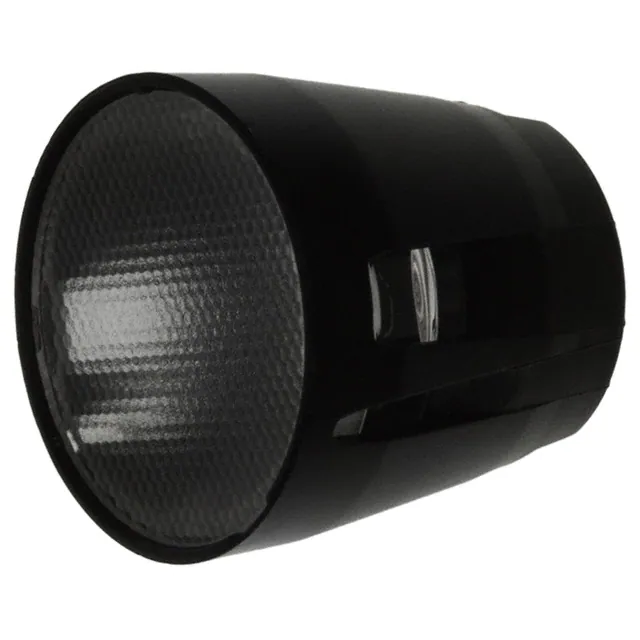

LEDIL F’FORM OPTICS RGBX lenses for Cree’s MC-E series of LEDs - Specially designed for Cree’s MC-E series of LEDs. Special care taken to make a uniform RGB, white or warm white illumination. Lens material optical grade PMMA. Allows use of high current and temperature conditions Best available optical efficiency, up to 90%. LENS TYPES NAME RGBX-MC Smooth Spot RGBX-MC Medium RGBX-MC Oval ORDERING CODE CA10961_RGBX-MC-SS CA10944_RGBX-MC-M CA10945_RGBX-MC-O FWHM Angle ±10° ±13° ±24 x ±16° SMOOTH SPOT lens is a pure collimator lens with no good color mixing properties. SMOOTH SPOT lens is recommended for white light applications or color applications where maximum light intensity is needed. MEDIUM lens is optimal for cases where a pleasant, medium-type spotlight distribution with uniform color mixing is wished. OVAL lens is optimal for cases where an oval beam with good color mixing is wished. © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-12 LEDIL F’FORM OPTICS MEASUREMENT DATA Relative Intensity of CA10961_RGBX-MC-SS 100 % 75 % 50 % 25 % 0% 40 30 20 10 0 -10 -20 -30 -40 Relative Intensity of FA10944_RGBX-M 100% 75% 50% 25% 0% 50 40 30 20 10 0 -10 -20 -30 -40 -50 Relative Intensity of FA10945_RGBX-O 100% 75% 50% 25% 0% 60 50 40 30 20 10 0 -10 -20 -30 -40 -50 -60 © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-12 LEDIL F’FORM OPTICS DRAWINGS © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-12
