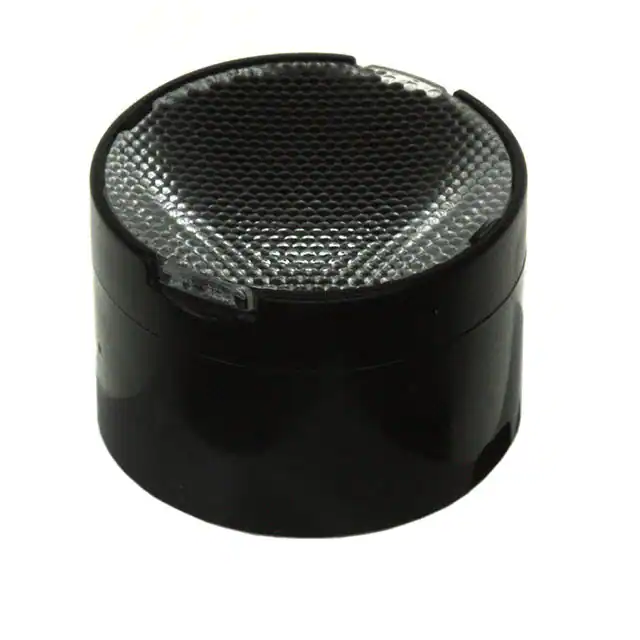

LEDIL F’FORM OPTICS LXP LENSES FOR CREE XP-E LEDs - Specially designed for Cree XLAMP XP-E series of LEDs. Special care taken to make a uniform white or warm white illumination. Lenses work well with other colors, too. Lens material optical grade PMMA. Allows use of high current and temperature conditions Best available optical efficiency, more than 90%, with an extremely good cutoff of light Fastening to heat sink with a PU foam adhesive tape of automotive grade LENS TYPES NAME LXP REAL SPOT LXP DIFFUSER LXP MEDIUM LXP OVAL LXP RECTANGULAR LXP WIDE ORDERING CODE FA10661_LXP-RS FA10663_LXP-D FA10660_LXP-M FA11116_LXP-O-90 FA10662_LXP-REC FA10832_LXP-W FWHM Angle ±3° ±6° ±11° ±5° x ±21° ±20° x ±11° ±23° EULUMDAT & IES FILES AVAILABLE BY REQUEST © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS MEASUREMENT DATA Relative Intensity of LXP-RS 100 % 75 % 50 % 25 % 0% 30 20 10 0 -10 -20 -30 Angle © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS Relative Intensity of LXP-D 100 % 75 % 50 % 25 % 0% 30 20 10 0 -10 -20 -30 Angle © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS Relative Intensity of LXP-M 100 % 75 % 50 % 25 % 0% 40 20 0 -20 -40 Angle © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS Relative Intensity of FA11116_LXP-O-90 100 % 75 % 50 % 25 % 0% 50 40 30 20 10 0 -10 -20 Relative Intensity of FA11116_LXP-O-90 -30 -40 -50 Vertical © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS Relative Intensity of FA10662_LXP-REC 100% 75% 50% 25% 0% 50 40 30 20 10 0 -10 -20 -30 -40 -50 Angle LXP-REC (horizontal) LXP-REC (vertical) © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS Relative Intensity of FA10832_LXP-W 100% 75% 50% 25% 0% 40 20 0 -20 -40 Angle © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20 LEDIL F’FORM OPTICS DRAWINGS © Ledil Oy – PRELIMINARY - Subject to change without prior notice Ledil Oy Tehdaskatu 13 FIN-24100 SALO, Finland www.ledil.com email: ledil@ledil.com FAX: +358-2-733 8001 2010-01-20
