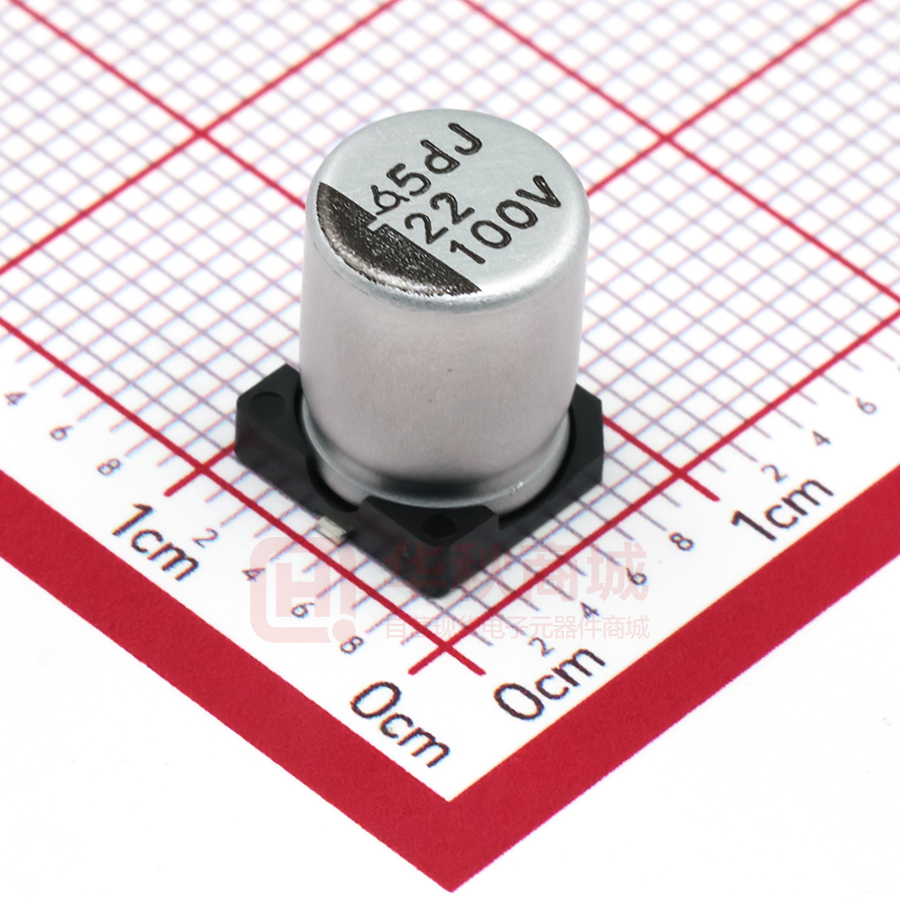

BXJ100V22UF8*10

SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS BXJ Series Solventproof •105℃ 2,000~5,000Hrs assured. •Vertical SMD type. •Very low Impedance, Long Life. •For STB, Tuner. •RoHS compliant. BXE •Halogen-free capacitors are also available. •AEC-Q200 compliant : Please contact us for more details, test data, information. SPECIFICATIONS WV ≦ 63VDC BXJ Long Life Item Characteristics Rated Voltage Range Operating Temperature Range Capacitance Tolerance Leakage Current 63 ~ 100V DC -40 ~ +105℃ 6.3 ~ 50V DC -55 ~ +105℃ ±20%(M) (at 20℃, 120Hz) I=0.01CV(μA) or 3 μA, whichever is greater. Where, I:Max. Leakage current(μA), C:Nominal capacitance(μ F), V:Rated voltage(VDC) (at 20℃, 2 minutes) Rated Voltage(VDC) 6.3 10 16 25 35 50 63 100 Tanδ(Max.) 0.26 0.19 0.16 0.14 0.12 0.12 0.12 0.12 Dissipation Factor(Tan δ) (at 20℃, 120Hz) Temperature Characteristics (Max. Impedance ratio) Rated voltage(VDC) 6.3 10 16 25 35 50 63 100 Z(-25℃)/Z(+20℃) Z(-55℃)/Z(+20℃) 3 5 2 4 2 4 2 3 2 3 2 3 3 ※4 3 ※4 ※Z(-40℃)/Z(+20℃) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied with the following conditions. D56~H63, J85 : 105℃, 2,000 hours, H10 ~ K14 : 105℃, 5,000 hours. Load Life Capacitance change D56~H63, J85 H10~K14 ≦ ±30% of the initial value ≦ ±35% of the initial value Tanδ ≦ 300% of the initial specified value Leakage current ≦ The initial specified value Others Capacitance change D56~H63, J85 H10~K14 ≦ ±30% of the initial value ≦ ±35% of the initial value Tanδ ≦ 300% of the initial specified value Leakage current ≦ The initial specified value Satisfied characteristics KS C IEC 60384-4 PART NUMBERING SYSTEM RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers BXJ 6.3 VC 220 M F60 TP Size code Cap.(㎌) With tape Case code D56~J10 Capacitance tolerance(±20%) Nominal capacitance code (ex. 0.1㎌:R1, 1.0㎌:1, 4.7㎌:4R7, 10㎌:10) Lead type K14 Freq.(㎐) 4.7 10 ~ 100 220 ~ 470 1,000 ~ 1,500 47 ~ 100 330 ~ 470 680 ~ 2,000 120 1K 10K 100K 0.35 0.40 0.50 0.60 0.40 0.50 0.60 0.70 0.75 0.85 0.87 0.75 0.85 0.87 0.90 0.90 0.94 0.95 0.90 0.94 0.95 1.00 1.00 1.00 1.00 1.00 1.00 1.00 Rated voltage Series name 63 Series Shelf Life BXJ The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the measurements. SURFACE MOUNT ALUMINUM ELECTROLYTIC CAPACITORS DIMENSIONS OF BXJ Series Unit(mm) DIMENSIONS MARKING ●Vibration Resistance Note 1 : L±0.5 for 8×6.3(H63)~12.5×13.5(K14) Note 2 : 4×5.3(D56), 4×5.8(D61), 5×5.3(E56), 5×5.8(E61) is excluded symbol mark. Note 3 : 6.3WV is marked by 6V. Case code D56 D61 E56 : Dummy terminals E61 F55 Recommended solder land on PC board F60 F80 H63 H10 J85 J10 K14 ØD 4 4 5 5 6.3 6.3 6.3 8 8 10 10 12.5 L A B C 5.3 4.3 4.3 5.1 5.8 4.3 4.3 5.1 5.3 5.3 5.3 5.9 5.8 5.3 5.3 5.9 5.2 6.6 6.6 7.2 5.7 6.6 6.6 7.2 7.7 6.6 6.6 7.2 6.3 8.3 8.3 9.0 10 8.3 8.3 9.0 8.5 10.3 10.3 11.0 10 10.3 10.3 11.0 13.5 13.0 13.0 13.7 : Solder land on PC board W 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.5~0.8 0.7~1.1 0.7~1.1 0.7~1.1 1.0~1.3 P 1.0 1.0 1.4 1.4 1.9 1.9 1.9 2.3 3.1 4.5 4.5 4.2 a 1.0 1.0 1.4 1.4 1.9 1.9 1.9 2.3 3.1 4.5 4.5 4.0 b 2.6 2.6 3.0 3.0 3.5 3.5 3.5 4.5 4.2 4.4 4.4 5.7 ●Vibration Resistance c 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 2.2 2.2 2.2 2.5 a b c 3.1 4.2 3.5 4.5 4.4 3.5 3.4 6.3 9.3 ▲ RATINGS OF BXJ Series ㎌ VDC 6.3 10 16 25 4.7 22 D56 1.80 D61 E56 D61 1.35 90 E61 47 E56 0.80 155 F60 E61 0.70 160 E61 68 F60 0.36 240 F60 E61 0.70 160 100 F60 F60 0.36 240 33 D56 1.80 85 220 F60 0.36 240 330 F80 0.34 280 H10 J85 H10 1,000 1,500 J10 2,200 K14 0.16 0.15 0.16 0.08 0.06 600 620 600 850 1,100 1.35 0.80 0.70 0.36 0.70 0.36 D56 D56 E56 85 E61 90 F60 155 E61 160 F60 240 160 F60 240 1.80 1.80 0.80 0.70 0.36 0.70 85 85 155 160 240 160 D61 E56 1.80 85 E61 0.80 155 F60 0.70 160 F60 0.55 220 5.50 3.00 2.00 1.20 E56 E61 F60 F55 63 100 45 55 50 H63 1.80 85 F60 4.50 48 120 J85 1.35 100 H63 1.50 100 H10 1.50 160 1.20 120 H10 1.00 200 D56 E56 0.80 155 E61 0.70 160 F55 0.36 240 F60 0.36 240 F80 0.90 150 J85 0.95 205 J10 0.60 330 0.55 220 D56 1.80 85 0.36 240 F60 0.36 240 F60 0.36 240 H63 0.75 200 H10 1.00 200 K14 0.40 400 F60 0.36 240 F80 F80 0.34 280 H63 H63 0.26 300 H10 J85 0.36 240 F60 0.36 240 H10 0.16 600 J10 F80 0.34 280 J85 0.15 620 F80 0.34 280 H10 0.16 600 H10 0.16 600 H10 J85 0.15 620 J10 0.08 850 J10 H10 0.16 600 H10 0.16 600 H10 0.16 600 J10 0.08 850 J10 0.08 850 K14 J85 0.15 620 J10 0.08 850 K14 0.06 1,100 K14 0.06 1,100 K14 0.06 1,100 K14 0.06 1,100 0.36 240 Rated Ripple Current (mArms/105℃, 100kHz) Impedance (Ωmax./20℃, 100kHz) Case code 64 50 D56 1.80 85 10 470 35 0.34 0.26 0.16 0.15 0.08 280 300 600 620 850 H10 0.44 300 J10 0.50 350 K14 0.40 400 H10 0.44 300 J85 0.40 315 J10 0.50 350 K14 0.40 400 J10 0.25 500 0.16 600 J10 0.25 500 0.08 850 K14 0.11 650 0.06 1,100
