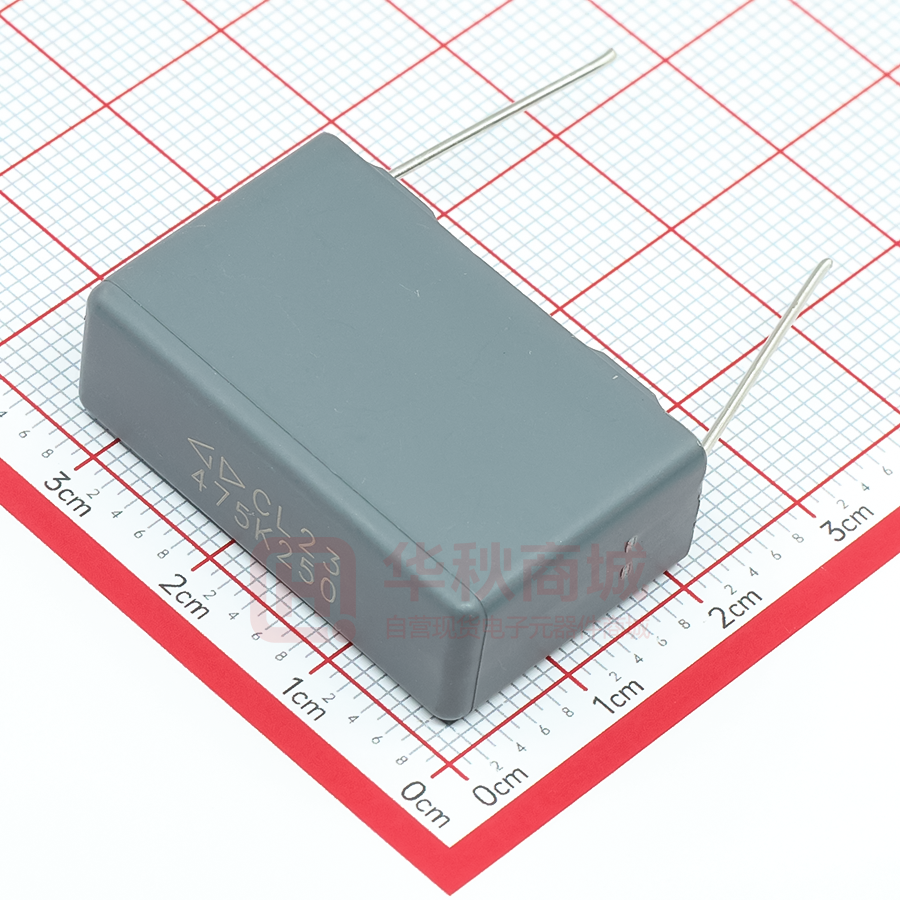

C232E475KBSC000

RoHS Compliant SPECIFICATION FOR APPROVAL File No.: Q/FRK 0.GS.E.C23-C12 Product Name Box-type metallized polyester film capacitor Product Type: C23(CL23 Series) Product Code Customer Customer Code Issue Date 2020-03 Xiamen Faratronic Co. Ltd. Drafted Checked Approved by Customer Approved  Xiamen Faratronic Co. Ltd. Add: 99 Xinyuan Road, Haicang District, Xiamen, China Marketing/Sales center TEL: 0086-592-6208620 6208505 6208586 FAX: 0086-592-6208777 Mail: Vitawang@faratronic.com.cn Donny@faratronic.com.cn James@faratronic.com.cn Http: www.faratronic.com.cn *.The specification are the property of Xiamen Faratronic Co.Ltd and shall not be copied or used as commercial purposes without permission. Page 1 of 12  C23 CL23 Series Version history Current version Date Author Change description Page 2 of 12  C23 CL23 Series Metallized polyester film capacitor (Box-type) ■ Outline Drawing W±0.4, H±0.4, T±0.4 ■ Features ● High reliability ● Metallized polyester film, non-inductive wound construction ● Plastic case(UL94 V-0), epoxy resin sealing ■ Typical application ● by-passing, blocking, coupling, decoupling, ● pulse, logic, timing, oscillator circuits. ■ Specifications Reference Standard Climatic Category GB 7332 (IEC 60384-2) 55/105/56 Rated temperature Rated Voltage 85℃ -55℃~105℃ (+85℃ to +105℃: decreasing factor 1.25% per ℃ for UR ) 63V, 100V, 250V, 400V, 630V, 1 000V Capacitance Range 0.0010μF~47.0μF Capacitance Tolerance ±5%(J), ±10%(K), ±20%(M) Voltage Proof 1.6UR(5s) Dissipation Factor ≤1.0% (20℃,1kHz) Operating temperature UR>100V Insulation Resistance UR≤100V UR(V) Maximum Pulse Rise Time(dV/dt) If the working voltage(U) is lower than the rated voltage(UR),the capacitor can be worked at a higher dV/dt. In this case, the maximum allowed dV/dt is obtain by multiplying the right value with UR/U. 63 100 250 400 630 1 000 P=7.5 7.5 15 30 40 50 70 Page 3 of 12 R ≥30 000MΩ, CR≤0.33μF (20℃,100V,1min) RCN ≥10 000 s, CR>0.33μF R ≥3 750M, CN≤0.33F (20℃,10V,1min) RCN ≥1 250s, CN 0.33F dV/dt (V/μs) P=10.0 P=15.0 P=22.5 P=27.5 6 3 2 1 9 5 3 2 20 12 8 5 30 20 10 7 40 25 12 10 60 30 15 12  C23 CL23 Series ■ Part number system The 15 digits part number is formed as follow: 1 2 3 C 2 3 Digit 1 to 3 4 5 6 7 8 9 10 11 12 13 14 15 Series code C23=CL23 Digit 4 to 5 DC rated voltage 1J=63V 2A=100V 2C=160V 2E=250V Digit 6 to 8 2G=400V 2J=630V 3A=1 000V Rated capacitance value For example: 103=10×103 pF= 0.01μF Digit 9 Capacitance tolerance J=±5%,K=±10%, M=±20% Digit 10 Lead pitch 3=7.5mm 4=10.0mm 6=15.0mm 9=22.5mm B=27.5mm Digit 11 Internal use Digit 12 to 15 Lead form and packaging code Table 1 Lead form and packaging code Digit 12 Digit 13 Digit 14 code explanation code explanation code explanation A ammo-pack 3 4 6 F=7.5mm F=10.0mm F=15.0mm 0 straight C straight lead “C” in the figure above code 00 45 explanation standard lead length (18mm~26mm) lead length 4.5mm Note: Recommend short lead due to long lead could deform easily. Page 4 of 12 Digit 15 code explanation 1 each cap. among two consecutive holes P3=12.7mm,H=18.5mm (For pitch=7.5mm) 5 P3=25.4mm;H=18.5mm (For pitch=10/15mm) 0 Length tolerance ±0.5mm Or standard length  C23 CL23 Series ■ Dimensions (mm) Pattern II (Reduced sizes) 63Vdc (40Vac) 100Vdc (63Vac) CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number 0.47 10.5 8.5 3.5 7.5 0.5 C231J474-3S**** 0.22 10.5 8.5 3.5 7.5 0.5 C232A224-3S**** 0.68 10.5 9.0 4.0 7.5 0.6 C231J684-3S**** 0.33 10.5 9.0 4.0 7.5 0.6 C232A334-3S**** 1.0 10.5 11.0 5.0 7.5 0.6 C231J105-3S**** 0.39 10.5 9.0 4.0 7.5 0.6 C232A394-3S**** 1.5 10.5 12.0 6.0 7.5 0.6 C231J155-3S**** 0.47 10.5 9.0 4.0 7.5 0.6 C232A474-3S**** 1.8 10.5 12.0 6.0 7.5 0.6 C231J185-3S**** 0.68 10.5 11.0 5.0 7.5 0.6 C232A684-3S**** 0.10 13.0 9.0 4.0 10.0 0.6 C231J104-4S**** 1.0 10.5 12.0 6.0 7.5 0.6 C232A105-3S**** 0.15 13.0 9.0 4.0 10.0 0.6 C231J154-4S**** 0.10 13.0 9.0 4.0 10.0 0.6 C232A104-4S**** 0.22 13.0 9.0 4.0 10.0 0.6 C231J224-4S**** 0.15 13.0 9.0 4.0 10.0 0.6 C232A154-4S**** 0.33 13.0 9.0 4.0 10.0 0.6 C231J334-4S**** 0.22 13.0 9.0 4.0 10.0 0.6 C232A224-4S**** 0.47 13.0 9.0 4.0 10.0 0.6 C231J474-4S**** 0.33 13.0 9.0 4.0 10.0 0.6 C232A334-4S**** 0.68 13.0 9.0 4.0 10.0 0.6 C231J684-4S**** 0.47 13.0 9.0 4.0 10.0 0.6 C232A474-4S**** 1.0 13.0 9.0 4.0 10.0 0.6 C231J105-4S**** 0.68 13.0 9.0 4.0 10.0 0.6 C232A684-4S**** 1.5 13.0 11.0 5.0 10.0 0.6 C231J155-4S**** 1.0 13.0 11.0 5.0 10.0 0.6 C232A105-4S**** 1.8 13.0 12.0 6.0 10.0 0.6 C231J185-4S**** 1.5 13.0 12.0 6.0 10.0 0.6 C232A155-4S**** 2.2 13.0 12.0 6.0 10.0 0.6 C231J225-4S**** 0.33 17.5 11.0 5.0 15.0 0.8 C232A334-6S**** 0.68 17.5 11.0 5.0 15.0 0.8 C231J684-6S**** 0.47 17.5 11.0 5.0 15.0 0.8 C232A474-6S**** 1.0 17.5 11.0 5.0 15.0 0.8 C231J105-6S**** 0.68 17.5 11.0 5.0 15.0 0.8 C232A684-6S**** 1.5 17.5 11.0 5.0 15.0 0.8 C231J155-6S**** 1.0 17.5 11.0 5.0 15.0 0.8 C232A105-6S**** 1.8 17.5 11.0 5.0 15.0 0.8 C231J185-6S**** 1.5 17.5 12.0 6.0 15.0 0.8 C232A155-6S**** 2.2 17.5 11.0 5.0 15.0 0.8 C231J225-6S**** 1.8 17.5 12.0 6.0 15.0 0.8 C232A185-6S**** 3.3 17.5 12.0 6.0 15.0 0.8 C231J335-6S**** 2.2 17.5 12.0 6.0 15.0 0.8 C232A225-6S**** 4.7 17.5 13.5 7.5 15.0 0.8 C231J475-6S**** 3.3 17.5 13.5 7.5 15.0 0.8 C232A335-6S**** 6.8 17.5 14.5 8.5 15.0 0.8 C231J685-6S**** 4.7 17.5 14.5 8.5 15.0 0.8 C232A475-6S**** 10.0 17.5 19.0 11.0 15.0 0.8 C231J106-6S**** 1.5 26.5 15.0 6.0 22.5 0.8 C232A155-9S**** 3.3 26.5 16.0 7.0 22.5 0.8 C231J335-9S**** 1.8 26.5 15.0 6.0 22.5 0.8 C232A185-9S**** 4.7 26.5 16.0 7.0 22.5 0.8 C231J475-9S**** 2.2 26.5 15.0 6.0 22.5 0.8 C232A225-9S**** 6.8 26.5 16.0 7.0 22.5 0.8 C231J685-9S**** 3.3 26.5 15.0 6.0 22.5 0.8 C232A335-9S**** 10.0 26.5 17.0 8.5 22.5 0.8 C231J106-9S**** 4.7 26.5 16.0 7.0 22.5 0.8 C232A475-9S**** 15.0 26.5 20.0 11.0 22.5 0.8 C231J156-9S**** 6.8 26.5 18.5 10.0 22.5 0.8 C232A685-9S**** 4.7 32.0 18.0 9.0 27.5 0.8 C231J475-BS**** 10.0 26.5 22.0 12.0 22.5 0.8 C232A106-9S**** 6.8 32.0 18.0 9.0 27.5 0.8 C231J685-BS**** 4.7 32.0 18.0 9.0 27.5 0.8 C232A475-BS**** 10.0 32.0 18.0 9.0 27.5 0.8 C231J106-BS**** 6.8 32.0 18.0 9.0 27.5 0.8 C232A685-BS**** 15.0 32.0 18.0 9.0 27.5 0.8 C231J156-BS**** 10.0 32.0 20.0 11.0 27.5 0.8 C232A106-BS**** 22.0 32.0 22.0 13.0 27.5 0.8 C231J226-BS**** 15.0 32.0 20.0 11.0 27.5 0.8 C232A156-BS**** 33.0 32.0 24.5 15.0 27.5 0.8 C231J336-BS**** 22.0 32.0 25.0 13.0 27.5 0.8 C232A226-BS**** 47.0 32.0 30.0 16.0 27.5 0.8 C231J476-BS**** 33.0 32.0 30.0 16.0 27.5 0.8 C232A336-BS**** Note: 1. “-”=capacitance tolerance code, M=±20%,K=±10%,J=±5% 2. “****”=lead form and packing code (refer to table 1). Page 5 of 12  C23 CL23 Series ■ Dimensions (mm) Pattern II (Reduced sizes) 250Vdc (160Vac) 400Vdc (200Vac) CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number 0.068 10.5 8.5 3.5 7.5 0.5 C232E683-3S**** 0.022 10.5 8.5 3.5 7.5 0.5 C232G223-3S**** 0.10 10.5 8.5 3.5 7.5 0.5 C232E104-3S**** 0.033 10.5 8.5 3.5 7.5 0.5 C232G333-3S**** 0.15 10.5 9.0 4.0 7.5 0.6 C232E154-3S**** 0.047 10.5 9.0 4.0 7.5 0.6 C232G473-3S**** 0.18 10.5 11.0 5.0 7.5 0.6 C232E184-3S**** 0.068 10.5 11.0 5.0 7.5 0.6 C232G683-3S**** 0.22 10.5 11.0 5.0 7.5 0.6 C232E224-3S**** 0.082 10.5 12.0 6.0 7.5 0.6 C232G823-3S**** 0.27 10.5 12.0 6.0 7.5 0.6 C232E274-3S**** 0.10 10.5 12.0 6.0 7.5 0.6 C232G104-3S**** 0.33 10.5 12.0 6.0 7.5 0.6 C232E334-3S**** 0.010 13.0 9.0 4.0 10.0 0.6 C232G103-4S**** 0.033 13.0 9.0 4.0 10.0 0.6 C232E333-4S**** 0.015 13.0 9.0 4.0 10.0 0.6 C232G153-4S**** 0.047 13.0 9.0 4.0 10.0 0.6 C232E473-4S**** 0.022 13.0 9.0 4.0 10.0 0.6 C232G223-4S**** 0.068 13.0 9.0 4.0 10.0 0.6 C232E683-4S**** 0.033 13.0 9.0 4.0 10.0 0.6 C232G333-4S**** 0.10 13.0 9.0 4.0 10.0 0.6 C232E104-4S**** 0.047 13.0 9.0 4.0 10.0 0.6 C232G473-4S**** 0.15 13.0 9.0 4.0 10.0 0.6 C232E154-4S**** 0.056 13.0 9.0 4.0 10.0 0.6 C232G563-4S**** 0.22 13.0 11.0 5.0 10.0 0.6 C232E224-4S**** 0.068 13.0 11.0 5.0 10.0 0.6 C232G683-4S**** 0.33 13.0 11.0 5.0 10.0 0.6 C232E334-4S**** 0.10 13.0 11.0 5.0 10.0 0.6 C232G104-4S**** 0.39 13.0 12.0 6.0 10.0 0.6 C232E394-4S**** 0.15 13.0 12.0 6.0 10.0 0.6 C232G154-4S**** 0.47 13.0 12.0 6.0 10.0 0.6 C232E474-4S**** 0.047 17.5 11.0 5.0 15.0 0.8 C232G473-6S**** 0.10 17.5 11.0 5.0 15.0 0.8 C232E104-6S**** 0.068 17.5 11.0 5.0 15.0 0.8 C232G683-6S**** 0.15 17.5 11.0 5.0 15.0 0.8 C232E154-6S**** 0.10 17.5 11.0 5.0 15.0 0.8 C232G104-6S**** 0.22 17.5 11.0 5.0 15.0 0.8 C232E224-6S**** 0.15 17.5 11.0 5.0 15.0 0.8 C232G154-6S**** 0.33 17.5 11.0 5.0 15.0 0.8 C232E334-6S**** 0.22 17.5 12.0 6.0 15.0 0.8 C232G224-6S**** 0.47 17.5 11.0 5.0 15.0 0.8 C232E474-6S**** 0.33 17.5 13.5 7.5 15.0 0.8 C232G334-6S**** 0.68 17.5 12.0 6.0 15.0 0.8 C232E684-6S**** 0.47 17.5 14.5 8.5 15.0 0.8 C232G474-6S**** 1.0 17.5 13.5 7.5 15.0 0.8 C232E105-6S**** 0.56 17.5 16.0 10.0 15.0 0.8 C232G564-6S**** 1.5 17.5 14.5 8.5 15.0 0.8 C232E155-6S**** 0.68 17.5 16.0 10.0 15.0 0.8 C232G684-6S**** 0.22 26.5 15.0 6.0 22.5 0.8 C232E224-9S**** 0.22 26.5 15.0 6.0 22.5 0.8 C232G224-9S**** 0.47 26.5 15.0 6.0 22.5 0.8 C232E474-9S**** 0.33 26.5 15.0 6.0 22.5 0.8 C232G334-9S**** 0.68 26.5 15.0 6.0 0.47 26.5 15.0 6.0 22.5 0.8 C232G474-9S**** 1.0 26.5 15.0 6.0 22.5 0.8 C232E105-9S**** 0.68 26.5 16.0 7.0 22.5 0.8 C232G684-9S**** 1.5 26.5 16.0 7.0 22.5 0.8 C232E155-9S**** 1.0 26.5 18.50 10.0 22.5 0.8 C232G105-9S**** 1.8 26.5 16.0 7.0 22.5 0.8 C232E185-9S**** 1.5 26.5 22.0 12.0 22.5 0.8 C232G155-9S**** 2.2 26.5 17.0 8.5 22.5 0.8 C232E225-9S**** 0.68 32.0 18.0 9.0 27.5 0.8 C232G684-BS**** 3.3 26.5 20.0 11.0 22.5 0.8 C232E335-9S**** 1.0 32.0 18.0 9.0 27.5 0.8 C232G105-BS**** 1.5 32.0 18.0 9.0 27.5 0.8 C232E155-BS**** 1.5 32.0 20.0 11.0 27.5 0.8 C232G155-BS**** 1.8 32.0 18.0 9.0 27.5 0.8 C232E185-BS**** 1.8 32.0 20.0 11.0 27.5 0.8 C232G185-BS**** 2.2 32.0 18.0 9.0 27.5 0.8 C232E225-BS**** 2.2 32.0 22.0 13.0 27.5 0.8 C232G225-BS**** 3.3 32.0 18.0 9.0 27.5 0.8 C232E335-BS**** 3.3 32.0 24.5 15.0 27.5 0.8 C232G335-BS**** 4.7 32.0 20.0 11.0 27.5 0.8 C232E475-BS**** 4.7 32.0 30.0 16.0 27.5 0.8 C232G475-BS**** 6.8 32.0 22.0 13.0 27.5 0.8 C232E685-BS**** 6.8 32.0 33.0 18.0 27.5 0.8 C232G685-BS**** 10.0 32.0 24.5 15.0 27.5 0.8 C232E106-BS**** Note: 22.5 0.8 C232E684-9S**** 1. “-”=capacitance tolerance code, M=±20%,K=±10%,J=±5% 2. “****”=lead form and packing code (refer to table 1). Page 6 of 12  C23 CL23 Series ■ Dimensions (mm) Pattern II (Reduced sizes) 630Vdc (220Vac)@ 1 000Vdc (300Vac) CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number CN (F) W ±0.4 H ±0.4 T ±0.4 P ±0.4 d Part number 0.0022 10.5 8.5 3.5 7.5 0.5 C232J222-3S**** 0.0010 10.5 8.5 3.5 7.5 0.5 C233A102-3S**** 0.0047 10.5 8.5 3.5 7.5 0.5 C232J472-3S**** 0.0015 10.5 8.5 3.5 7.5 0.5 C233A152-3S**** 0.0068 10.5 8.5 3.5 7.5 0.5 C232J682-3S**** 0.0022 10.5 8.5 3.5 7.5 0.5 C233A222-3S**** 0.010 10.5 8.5 3.5 7.5 0.5 C232J103-3S**** 0.0033 10.5 8.5 3.5 7.5 0.5 C233A332-3S**** 0.015 10.5 9.0 4.0 7.5 0.6 C232J153-3S**** 0.0047 10.5 8.5 3.5 7.5 0.5 C233A472-3S**** 0.022 10.5 11.0 5.0 7.5 0.6 C232J223-3S**** 0.0068 10.5 9.0 4.0 7.5 0.6 C233A682-3S**** 0.033 10.5 12.0 6.0 7.5 0.6 C232J333-3S**** 0.010 10.5 11.0 5.0 7.5 0.6 C233A103-3S**** 0.047 10.5 12.0 6.0 7.5 0.6 C232J473-3S**** 0.015 10.5 12.0 6.0 7.5 0.6 C233A153-3S**** 0.0047 13.0 9.0 4.0 10.0 0.6 C232J472-4S**** 0.0010 13.0 9.0 4.0 10.0 0.6 C233A102-4S**** 0.0068 13.0 9.0 4.0 10.0 0.6 C232J682-4S**** 0.0015 13.0 9.0 4.0 10.0 0.6 C233A152-4S**** 0.010 13.0 9.0 4.0 10.0 0.6 C232J103-4S**** 0.0022 13.0 9.0 4.0 10.0 0.6 C233A222-4S**** 0.015 13.0 9.0 4.0 10.0 0.6 C232J153-4S**** 0.0033 13.0 9.0 4.0 10.0 0.6 C233A332-4S**** 0.022 13.0 9.0 4.0 10.0 0.6 C232J223-4S**** 0.0047 13.0 9.0 4.0 10.0 0.6 C233A472-4S**** 0.033 13.0 11.0 5.0 10.0 0.6 C232J333-4S**** 0.0056 13.0 9.0 4.0 10.0 0.6 C233A562-4S**** 0.047 13.0 11.0 5.0 10.0 0.6 C232J473-4S**** 0.0068 13.0 9.0 4.0 10.0 0.6 C233A682-4S**** 0.068 13.0 12.0 6.0 10.0 0.6 C232J683-4S**** 0.010 13.0 9.0 4.0 10.0 0.6 C233A103-4S**** 0.033 17.5 11.0 5.0 15.0 0.8 C232J333-6S**** 0.015 13.0 11.0 5.0 10.0 0.6 C233A153-4S**** 0.047 17.5 11.0 5.0 15.0 0.8 C232J473-6S**** 0.022 13.0 11.0 5.0 10.0 0.6 C233A223-4S**** 0.068 17.5 11.0 5.0 15.0 0.8 C232J683-6S**** 0.010 17.5 11.0 5.0 15.0 0.8 C233A103-6S**** 0.10 17.5 12.0 6.0 15.0 0.8 C232J104-6S**** 0.015 17.5 11.0 5.0 15.0 0.8 C233A153-6S**** 0.15 17.5 13.5 7.5 15.0 0.8 C232J154-6S**** 0.022 17.5 11.0 5.0 15.0 0.8 C233A223-6S**** 0.22 17.5 16.0 10.0 15.0 0.8 C232J224-6S**** 0.033 17.5 12.0 6.0 15.0 0.8 C233A333-6S**** 0.33 17.5 19.0 11.0 15.0 0.8 C232J334-6S**** 0.047 17.5 12.0 6.0 15.0 0.8 C233A473-6S**** 0.10 26.5 15.0 6.0 22.5 0.8 C232J104-9S**** 0.068 17.5 13.5 7.5 15.0 0.8 C233A683-6S**** 0.15 26.5 15.0 6.0 22.5 0.8 C232J154-9S**** 0.10 17.5 14.5 8.5 15.0 0.8 C233A104-6S**** 0.22 26.5 16.0 7.0 22.5 0.8 C232J224-9S**** 0.033 26.5 15.0 6.0 22.5 0.8 C233A333-9S**** 0.33 26.5 16.0 7.0 22.5 0.8 C232J334-9S**** 0.047 26.5 15.0 6.0 22.5 0.8 C233A473-9S**** 0.47 26.5 17.0 8.5 22.5 0.8 C232J474-9S**** 0.068 26.5 15.0 6.0 22.5 0.8 C233A683-9S**** 0.68 26.5 22.0 12.0 22.5 0.8 C232J684-9S**** 0.10 26.5 15.0 6.0 22.5 0.8 C233A104-9S**** 0.33 32.0 18.0 9.0 27.5 0.8 C232J334-BS**** 0.15 26.5 16.0 7.0 22.5 0.8 C233A154-9S**** 0.47 32.0 18.0 9.0 27.5 0.8 C232J474-BS**** 0.22 26.5 17.0 8.5 22.5 0.8 C233A224-9S**** 0.68 32.0 20.0 11.0 27.5 0.8 C232J684-BS**** 0.33 26.5 20.0 11.0 22.5 0.8 C233A334-9S**** 1.0 32.0 20.0 11.0 27.5 0.8 C232J105-BS**** 0.15 32.0 18.0 9.0 27.5 0.8 C233A154-BS**** 0.22 32.0 18.0 9.0 27.5 0.8 C233A224-BS**** 0.33 32.0 20.0 11.0 27.5 0.8 C233A334-BS**** 0.47 32.0 20.0 11.0 27.5 0.8 C233A474-BS**** 0.68 32.0 28.0 14.0 27.5 0.8 C233A684-BS**** 1.0 32.0 30.0 16.0 27.5 0.8 C233A105-BS**** 1.5 32.0 37.0 22.0 27.5 0.8 C233A155-BS**** Note: 1. “-”=capacitance tolerance code, M=±20%,K=±10%,J=±5% 2. “****”=lead form and packing code (refer to table 1). 3. “@” Not suitable for across-the-line applications. Pls refer to the Interference Suppression Capacitors. Page 7 of 12  C23 CL23 Series ■ MAX. VOLTAGE(Vr.m.s) VERSUS FREQUENCY Note: sinusoidal wave-form,environment temperature≤85℃,internal temperature rise △ T=15℃, p (pitch) in mm.. Page 8 of 12  C23 CL23 Series ■ Test Method And Performance No. Item 1 Solderability Test method (GB 7332(IEC 60384-2)) Solder temperature:245˚C5˚C Immersion time: 2.0s0.5s Performance Initial measurement Good quality of tinning Capacitance, Tg Tension Ua1: Pull: d=0.5mm,5N d0.6mm, 10N Bend Ub: The pull of bend: d=0.5mm, 2.5N d0.6mm, 5N The terminals shall be bent 2 times in each direction. There shall be no visible damage Terminal strength (straight lead) 2 Resistance to solder heat Final measurement Initial measurement Rapid change of temperature There shall be no visible damage, legible marking C/C 2(relative to the initial value) Increase of tg: 0.003 (C1.0μF) 0.002 (C>1.0μF) Capacitance, Tg There shall deterioration. There shall deterioration. be no evidence of be no evidence of be no evidence of Vibration(straight lead) 3 Bump(straight lead) There shall deterioration. Final measurement C/C 5(relative to the initial value) Increase of tg: 0.003 (C1.0μF) 0.002 (C>1.0μF) IR:  50 of the rated value Initial measurement +105℃, 16h Test Db, Severity: b, the first cycle Damp heat, Cyclic climate sequence A=-55˚C, B =+105˚C 5 cycles Duration: t=30min Amplitude 0.75mm or acceleration 98m/s2 (whichever is the smaller severity), f: 10Hz to 500Hz.Three directions, 2h for each direction, total 6h. 4 000 times, Acceleration: 390m/s2,Pulse duration, 6ms Capacitance, Tg Dry heat 4 Solder temperature:260˚C5˚C Immersion time: 10s1s -55℃, 2h Cold 15℃~ 35℃, 8.5kPa, 1h, Low air pressure There shall be no permanent breakdo wn,flashover or other harmful deform ation when applying UR at the last 1 minute. Damp heat, cyclic other Test Db, Severity b, the other cycles, Applying UR for 1 minute after the test finished. Page 9 of 12  C23 CL23 Series No. 4 5 6 7 8 Item climate sequence (continue) Final mea surement Damp heat steady state Endurance Temperature characteristic Charging and discharging Performance There shall be no evidence of deterioration and the marking shall be legible. C/C 5(relative to the initial value) Increase of tg: 0.005 (C1.0μF) 0.003 (C>1.0μF) IR: 50 of the rated value There shall be no evidence of deterioration and the marking shall be legible. C/C  5(relative to the initial value) Increase of tg 0.005 IR: 50 of the rated value There shall be no evidence of deterioration and the marking shall be legible. C/C  5(relative to the initial value) Increase of tg: 0.003 (C1.0μF) 0.002 (C>1.0μF) IR: 50 of the rated value Measuring capacitance at test point b, d, f: Characteristic at lower category temperature -55˚C: -10%(Cb-Cd)/Cd0% Characteristic at upper category temperature +100˚C: 0%(Cf-Cd)/Cd +10% I.R. (test at point f ): UR100V: 75 M (C0.33μF) 25s (C>0.33μF) UR>100V: 150 M (C0.33μF) 50s (C>0.33μF) C/C  5(relative to the initial value) Increase of tg: 0.003 (C1.0μF) 0.002 (C>1.0μF) IR: 50 of the rated value Page 10 of 12 Test method (GB 7332(IEC 60384-2)) Temperature:40˚C 2˚C 2 Humidity: 93  3 %RH Duration: 56days Temperature: +85℃/+100℃ Voltage: 1.25 UR /1.25×Uc (Uc=0.8UR) Duration: 2 000h Static method:The Capacitors should be kept at the following temperature in turn: a(20±2) ˚C, b(–55±3) ˚C, d(20±2) ˚C, f(100±2) ˚C, g(20±2) ˚C Times: 10 000 Duration of charging: 0.5s Duration of discharging: 0.5s Charging voltage: rated voltage Charging resistance: 220/CN() Discharging resistance: R=10/CN () or 20(whichever is the greater) CN: rated capacitance (μF)  C23 CL23 Series ■ Marking: For example： ■ Taping specification for box-type capacitors ▲ Outline Drawing Fig.2 P=10.0, 15.0mm Fig.1 P=5.0, 7.5mm ▲ Taping Dimensions(mm) Technology index title Code Taping type — Part number AmmoDigit12-15 pack Taping pitch P3 Feed hole pitch P0 Dimensions P=5.0 P=7.5 P=10.0 P=15.0 Tolerance Fig 1 Fig 1 Fig2 Fig 2 A201 A301 A405 A605 12.7 12.7 12.7 12.7 25.4 12.7 25.4 12.7 ±1.0 ±0.3 —— Center of wire P1 3.85 2.6 7.7 5.2 ±0.7 Center of body Pitch of taping wire Component alignment Height of component from tape center P2 6.35 6.35 12.7 12.7 F** 5.0 7.5 10.0 15.0 ±1.3 +0.6 -0.1 △S 0 0 0 0 ±2.0 H*** 18.5 18.5 18.5 18.5 ±0.5 W 18.0 18.0 18.0 18.0 +1.0 -0.5 W0 6min 10min 10min 10min —— W1 9.0 9.0 9.0 9.0 ±0.5 W2 3max 3max 3max 3max —— D0 t 4.0 0.7 4.0 0.7 4.0 0.7 4.0 0.7 ±0.2 ±0.2 Carrier tape width Hold down tape width Hole position Hold down tape sition Feed hole dia. Tape thickness Note: * P0=15mm is also available; **F can be other lead spacing; ***H=16.5mm is available; Page 11 of 12  C23 CL23 Series ■ Packing box sizes(mm)(example) 1. Out packing box for bulk 2. Inner packing box for bulk 3. Box sizes for Ammo-pack Page 12 of 12
