CFM1002S

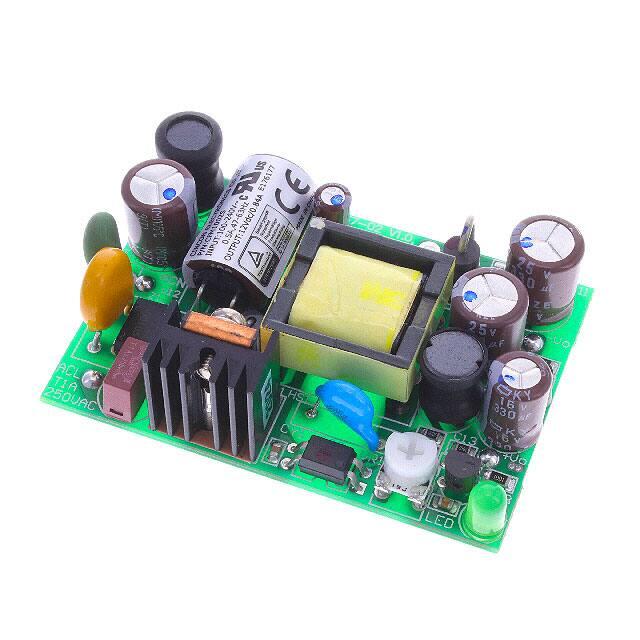

V13 ︳ CFM10/15 SERIES 10/15 WATT OPEN FRAME AC-DC MODULES Features * Universal Input Range 85~264VAC * Efficiency to 83% * Meets EN55032 Class B * Approved IEC/EN/UL62368-1 * Continuous Short Circuit Protection * Leakage Current 0.25mA Max. * PCB Mountable CFM10 Series MODEL OUTPUT OUTPUT VOLTAGE CURRENT RIPPLE & NOISE VOLTAGE ACCURACY NOTE 1 LINE LOAD % EFF. REGULATION REGULATION (Typ.) NOET 2 NOTE 3 NOTE 4 CFM1001S 5V 2000mA 1% ±1% ±0.5% ±1% 73% CFM1002S 12V 840mA 1% ±1% ±0.5% ±1% 76% CFM1003S 15V 670mA 1% ±1% ±0.5% ±1% 76% CFM1005S 24V 420mA 1% ±1% ±0.5% ±1% 77% CFM1007S 3.3V 2500mA 50mV ±1% ±0.5% ±1% 67% CFM1009S 9V 1120mA 1% ±1% ±0.5% ±1% 72% OUTPUT OUTPUT LINE LOAD %EFF. VOLTAGE CURRENT REGULATION REGULATION (Typ.) NOTE 2 NOTE 3 NOTE 4 CFM15 SERIES MODEL RIPPLE & NOISE VOLTAGE ACCURACY NOET 1 CFM1501S 5V 3000mA 1% ±1% ±0.5% ±1% 74% CFM1502S 12V 1250mA 1% ±1% ±0.5% ±1% 80% CFM1503S 15V 1000mA 1% ±1% ±0.5% ±1% 81% CFM1505S 24V 630mA 1% ±1% ±0.5% ±1% 83% CFM1507S 3.3V 3000mA 50mV ±1% ±0.5% ±1% 69% CFM1509S 9V 1670mA 1% ±1% ±0.5% ±1% 76% Specifications are subject to change without notice 1 V13 Specifications CFM10/15 Series Derating Curve INPUT SPECIFICATIONS: 100% Rated Load(%) Voltage …....………........…......................................................... 85~264Vac 120~370Vdc Frequency ………………………………………….……………...... 47 to 63Hz Input Current ……………….…..... 100Vac/0.5A max., 240Vac/0.25A max. Inrush Current ……….. Cold Start@25℃ ……….…… 20A max. @115Vac 40A max. @230Vac 75% 50% 20LFM(Natural Convection) 25% 0% Leakage Current …………………………………………………. 0.25mA max. 0 10 OUTPUT SPECIFICATIONS: 20 30 40 50 Ambient Temperature(oC) 60 70 Holdup Time ………………………………………….… 16ms typ. @115Vac Short Circuit Protection ……………………. Hiccup Mode (Auto Recovery) Over Voltage Protection ……………................... TVS Component to Clamp SAFETY AND EMC: Temperature Coefficient …………………...............................… 0.05%/℃ Emission and Immunity ……………....… EN55032 Class B, EN61000-6-3 GENERAL SPECIFICATIONS: EN61000-3-2, EN61000-3-3, EN55024 Isolation ……………………………………..……. Input to output = 3000VAC Operating Temperature .................................. 0 ~ 70℃ (see derating curve) EN61204-3, EN61000-6-1 Safety ……………………………... IEC/EN/UL62368-1, IEC/EN/UL60950-1 Storage Temperature ……………………………...….......……........ -20~85℃ NOTE: Humidity ...................................................... 93% RH max. Non condensing Cooling …………………………………..……………….. Natural Convection Switching Frequency …………………………...... CFM10: 100KHz Typical CFM15: 67KHz Typical MTBF …..…… MIL-HDBK-217F, GB, at 25℃/115VAC …… 200Khrs min. Altitude ……………………..………………...………………………….. 2000m Dimensions … CFM10: 2.599x1.772x0.906Inches (65.00x45.00x23.00mm) 1. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for Ripple & noise measuring @20MHz BW. 2. Line regulation is measured from high line to low line with full load. 3. Load regulation is measured from full to 10% load. 4. Typical efficiency with 230VAC and max. load 25℃. CFM15: 2.752x1.890x0.906Inches (69.90x48.00x23.00mm) Weight …………………………………………...... CFM10: 60g (0.13Pounds) CFM15: 80g (0.18Pounds) Mechanical Specification All Dimensions are in inches(mm) Tolerance:Inches:X.XXX±0.02 Millimeters:X.XX±0.5 VR 0.039 [1.00] 0.039 [1.00] 0.071 [1.80] 0.071 [1.80] 2.126 [54.00] 2.441 [62.00] Typical at 25˚C, nominal line and 75% load, unless otherwise Specified 2 0.906 [23.00]max 0.063 [1.60] 0.150 [3.80] 0.173 [4.40] 0.906 [23.00]max 0.063 [1.60] 2.752 [69.90] 0.079 [2.00]max 0.150 [3.80] 0.173 [4.40] 1.398 [35.50] 0.492 [12.50] 0.157 [4.00] 1.890 [48.00] 0.161 [4.10] VR 2.559 [65.00] 0.079 [2.00]max 0.220 [5.60] 0.945 [24.00] 0.492 [12.50] CFM15 Series 1.280 [32.50] 0.196 [4.97] 0.885 [22.47] 1.772 [45.00] CFM10 Series
