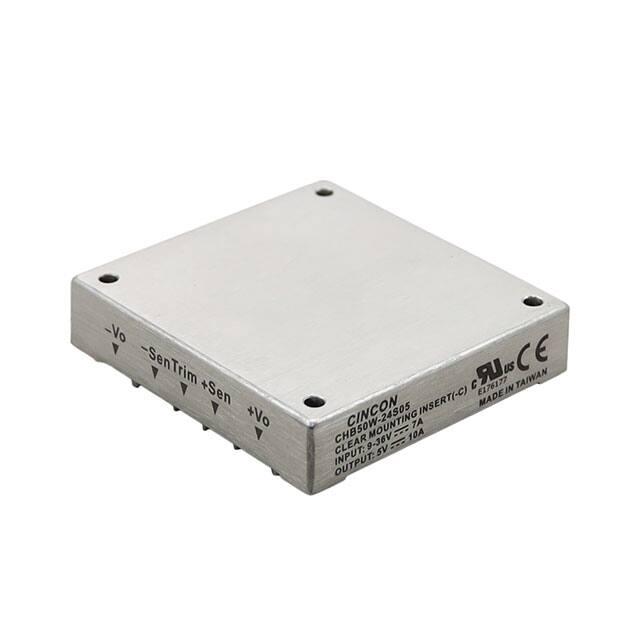

CHB50W-24S05-C

V27 CHB50W SERIES ︳ 33 TO 50 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT FEATURES * 33-50W Isolated Output * Efficiency to 87% * 300KHz Switching Frequency * 4:1 Input Range * Regulated Outputs * Continuous Short Circuit Protection * Five-Sided Shield Metal Case * Half-Brick Size Meet Industrial Standard * UL60950-1 Approval (Except 28 Vout) * Safety Meets IEC/EN/UL62368-1 MODEL NUMBER INPUT VOLTAGE OUTPUT VOLTAGE CHB50W-24S33 CHB50W-24S05 CHB50W-24S12 CHB50W-24S15 CHB50W-24S24 CHB50W-24S28 9-36 VDC 9-36 VDC 9-36 VDC 9-36 VDC 9-36 VDC 9-36 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC 24 VDC 28 VDC CHB50W-24S48 CHB50W-48S33 CHB50W-48S05 CHB50W-48S12 CHB50W-48S15 CHB50W-48S24 CHB50W-48S28 9-36 VDC 18-75 VDC 18-75 VDC 18-75 VDC 18-75 VDC 18-75 VDC 18-75 VDC 48 VDC 3.3 VDC 5 VDC 12 VDC 15 VDC 24 VDC 28 VDC CHB50W-48S48 18-75 VDC 48 VDC OUTPUT CURRENT MIN. 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA 0 mA NOTE: 1. Nominal Input Voltage 24, 48VDC 1 INPUT CURRENT % EFF. CAPACITOR LOAD MAX. MAX. 10 A 10 A 4.16 A 3.33 A 2.08 A 1.78 A NO LOAD 50 mA 50 mA 50 mA 50 mA 50 mA 50 mA FULL LOAD 1740 mA 2570 mA 2510 mA 2448 mA 2476 mA 2510 mA 79 81 83 85 84 83 10000uF 10000uF 4160uF 3330uF 2080uF 1780uF 1.04 A 10 A 10 A 4.16 A 3.33 A 2.08 A 1.78 A 50 mA 50 mA 50 mA 50 mA 50 mA 50 mA 50 mA 2506 mA 848 mA 1255 mA 1223 mA 1196 mA 1209 mA 1223 mA 83 81 83 85 87 86 85 1040uF 10000uF 10000uF 4160uF 3330uF 2080uF 1780uF 1.04 A 50 mA 1238 mA 84 1040uF V27 SPECIFICATIONS All Specifications Typical At Nominal Line, Full Load, and 25℃ Unless Otherwise Noted INPUT SPECIFICATIONS: GENRAL SPECIFICATIONS: Input Voltage Range....………………........ 24V ….............. 9 – 36V 48V .................. 18 – 75V Efficiency .................…....................................…..........…....... See Table Isolation Voltage ... Input/Output, Input/Case, Output/Case ... 1500VDC min. Isolation Resistance .............................…..…................…….... 107 ohm min. Isolation Capacitance …………………..………………...…..…… 1000pF typ. Switching Frequency ........…………..........................….……... 300KHz typ. Input Surge Voltage (100ms max.) ……....… 24V ……......... 50Vdc max. 48V .............. 100Vdc max. Under Voltage Lockout: 24Vin .……… power up ……... 8.8V, power down …….. 8V 48Vin ….…… power up …...…. 17V, power down …… 16V Positive Logic Remote On/Off (note3&4) Input Filter ………………………………………………..………... Pi Type Operating Case Temperature ..………......….....….…........ -40℃ to 100℃ Storage Temperature ………………....…....……............... -55℃ to +105℃ Thermal Shutdown Case Temp. .…………………..……...……. 100℃ typ. Humidity ...................................................... 95% RH max. Non Condensing OUTPUT SPECIFICATIONS: MTBF ………. MIL-HDBK-217F, GB, 25℃, Full Load …..…… 1000Khrs typ. Voltage Accuracy (note7) …............................……........... ±1.0% max. Transient Response: 25% Step Load Change .…………….…… 3.5VDC to 75VDC or open circuit Module off …………………….……………………..….. 0 to
