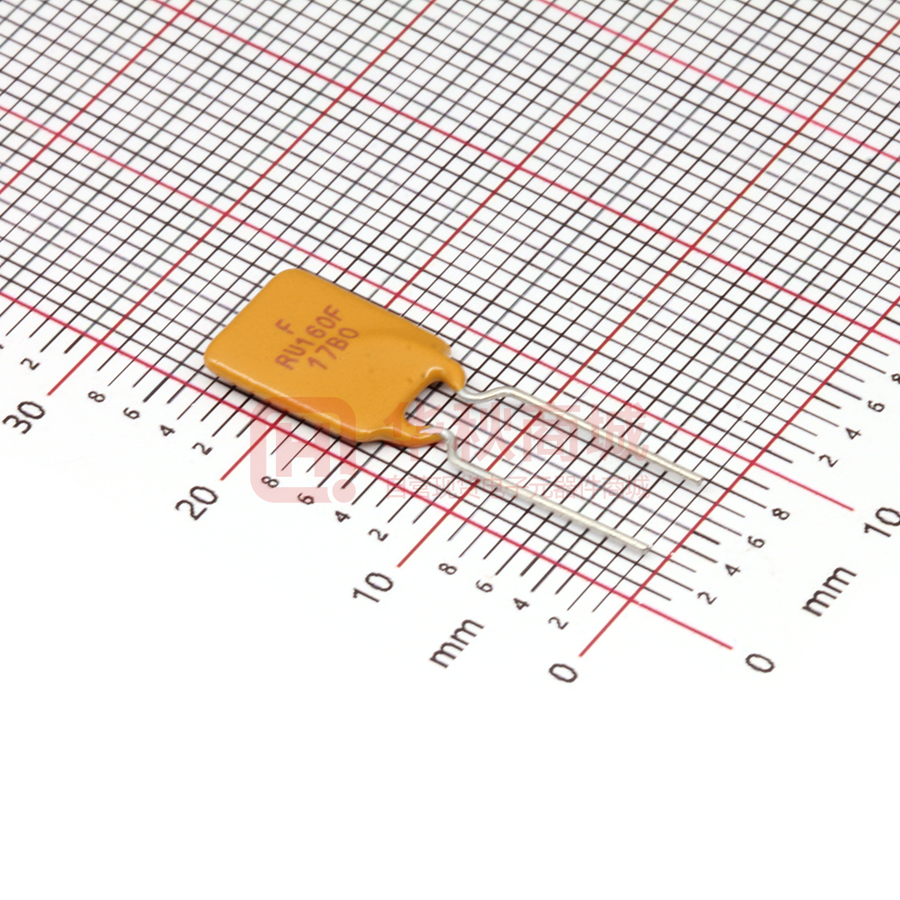

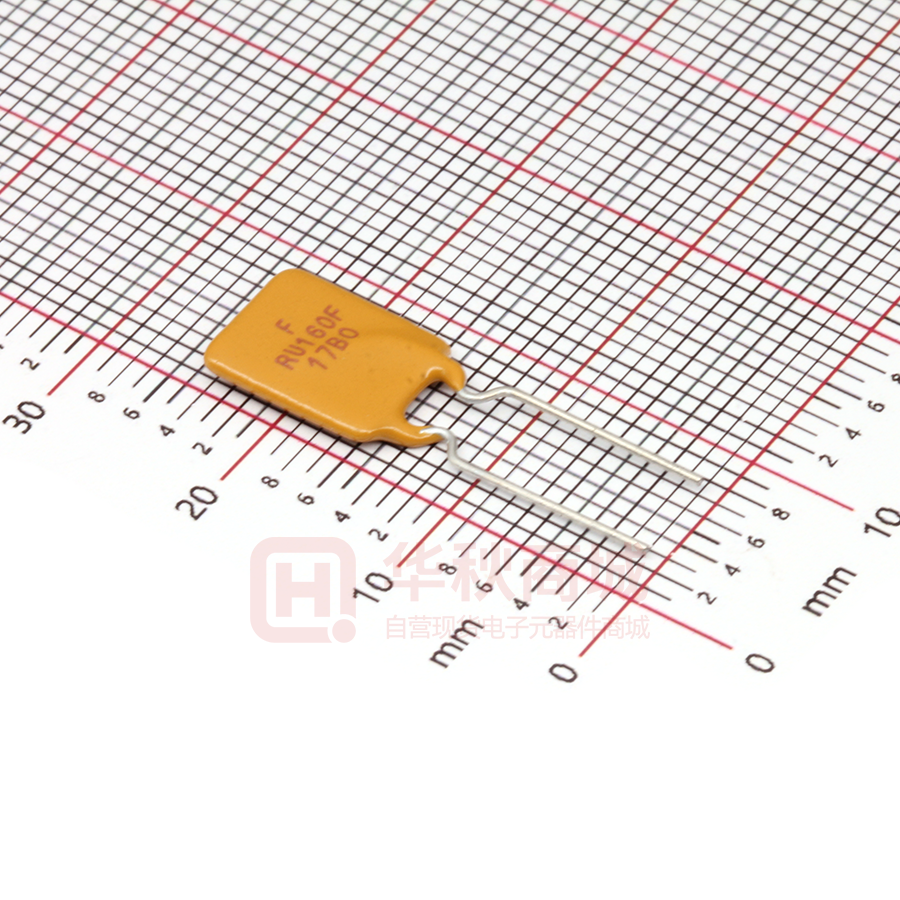

FRU160-30F

NO. FUZETEC TECHNOLOGY CO., LTD. PQ02-101E Product Specification and Approval Sheet Version A0 Page 1/3 Radial Leaded PTC Resettable Fuse: FRU Series 1. Summary (a) RoHs Compliant (Lead Free) Product (b) Applications: Wide variety of electronic equipment (c) Product Features: Low resistance, High hold current, Solid state, Radial leaded product ideal for up to 30VDC (d) Operation Current: 0.9A~9.0A (e) Maximum Voltage: 30VDC (f) Temperature Range : -40℃ to 85℃ 2. Agency Recognition UL: File No. E211981 C-UL: File No. E211981 TÜ V: File No. R50004084 3. Electrical Characteristics (23℃) Part Number FRU090-30F FRU110-30F FRU135-30F FRU160-30F FRU185-30F FRU250-30F FRU300-30F FRU400-30F FRU500-30F FRU600-30F FRU700-30F FRU800-30F FRU900-30F Hold Trip Max.Time Maximum Current Current To Trip Current Resistance Rated Voltage Typical Power RMIN R1MAX IH, A IT, A at 5XIH,s IMAX, A VMAX, VDC Pd, W Ohms Ohms 0.90 1.10 1.35 1.60 1.85 2.50 3.00 4.00 5.00 6.00 7.00 8.00 9.00 1.80 2.20 2.70 3.20 3.70 5.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 5.9 6.6 7.3 8.0 8.7 10.3 10.8 12.7 14.5 16.0 17.5 18.8 20.0 100 100 100 100 100 100 100 100 100 100 100 100 100 30 30 30 30 30 30 30 30 30 30 30 30 30 0.6 0.7 0.8 0.9 1.0 1.2 2.0 2.5 3.0 3.5 3.8 4.0 4.2 0.070 0.050 0.040 0.030 0.030 0.020 0.020 0.010 0.010 0.005 0.005 0.005 0.005 0.220 0.170 0.130 0.110 0.090 0.070 0.080 0.050 0.050 0.040 0.030 0.020 0.020 IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-minimum current at which the device will always trip at 23℃ still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated from device when in tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃, 1 hour after tripping. Physical specifications: Lead material: FRU090-30F~FRU250-30F Tin plated copper clad steel, 24 AWG. FRU300-30F~FRU900-30F Tin plated copper, 20 AWG. Soldering characteristics:MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. NOTE : Specification subject to change without notice. 2019/11/12 NO. FUZETEC TECHNOLOGY CO., LTD. PQ02-101E Product Specification and Approval Sheet Version A0 Page 2/3 4. Production Dimensions (millimeter) Fig.1 Lead Size: 24AWG Φ 0.51 mm Diameter Part Number FRU090-30F FRU110-30F FRU135-30F FRU160-30F FRU185-30F FRU250-30F FRU300-30F FRU400-30F FRU500-30F FRU600-30F FRU700-30F FRU800-30F FRU900-30F Fig Fig.2 Lead Size: 20AWG Φ 0.81 mm Diameter A B C D E F Maximum Maximum Typical Minimum Maximum Typical 7.4 7.4 8.9 8.9 10.2 11.4 11.4 14.0 14.0 16.5 19.1 21.6 24.1 12.2 14.2 13.5 15.2 15.7 18.3 17.3 20.1 24.9 24.9 26.7 29.2 29.7 5.1 5.1 5.1 5.1 5.1 5.1 5.1 5.1 10.2 10.2 10.2 10.2 10.2 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 7.6 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 3.0 0.9 0.9 0.9 0.9 0.9 0.9 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1 1 1 1 1 1 2 2 2 2 2 2 2 5. Thermal Derating Curve Precent of Rated Hold and Trip Current FRU Series 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Ambient Temperature (C) NOTE : Specification subject to change without notice. 2019/11/12 NO. FUZETEC TECHNOLOGY CO., LTD. PQ02-101E Product Specification and Approval Sheet Version A0 Page 3/3 6. Typical Time-To-Trip at 23℃ A =FRU090-30F B =FRU110-30F C =FRU135-30F D =FRU160-30F E =FRU185-30F F =FRU250-30F G =FRU300-30F H =FRU400-30F I = FRU500-30F J = FRU600-30F K =FRU700-30F L =FRU800-30F M =FRU900-30F FRU Series 7. Material Specification Lead material：FRU090-30F~FRU250-30F Tin plated copper clad steel, 24 AWG. FRU300-30F~FRU900-30F Tin plated copper, 20 AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. 8. Part Numbering and Marking System Part Numbering System Part Marking System FRU □ □ □ ─ □ □ F RoHS Compliant / Lead Free Voltage Rating F RU110F 91AB F RU □ □ □ F Current Rating Example □ □ □ □ Fuzetec Logo RoHS Compliant / Lead Free Part Identification Product Family Date Code/Lot Number Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. NOTE : Specification subject to change without notice. 2019/11/12
