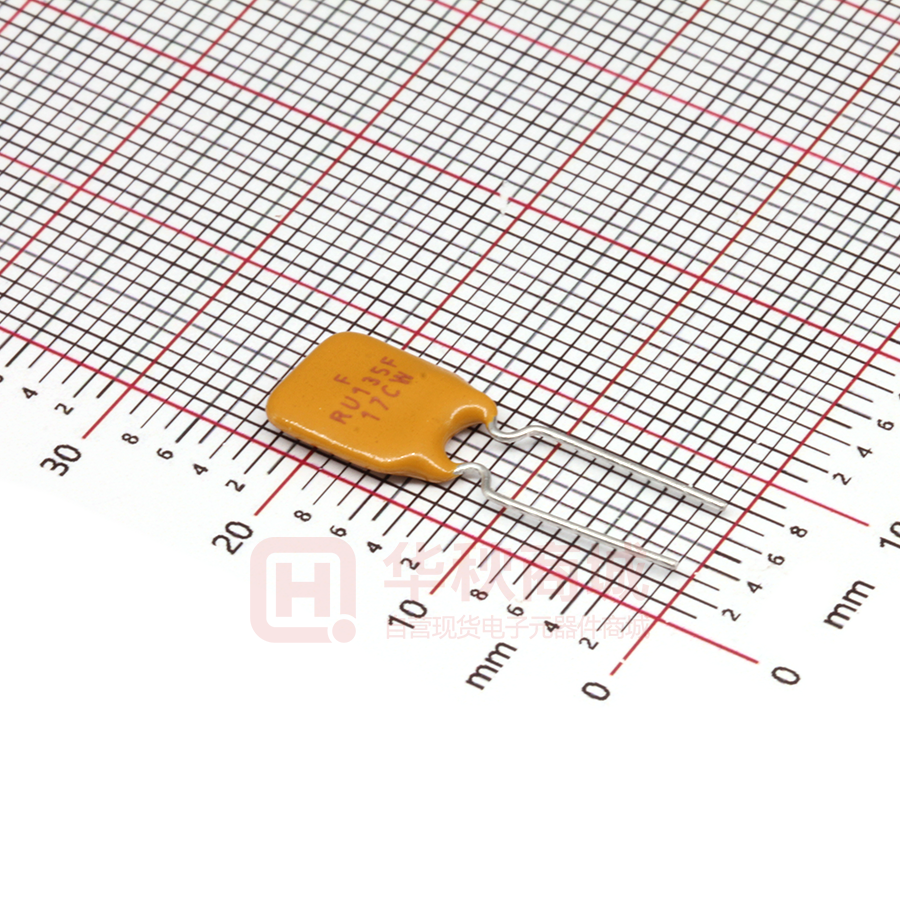

FRU135-30F

NO. FUZETEC TECHNOLOGY CO., LTD. PQ02-104E Product Specification and Approval Sheet Version 5 Page 1/3 Radial Leaded PTC Resettable Fuse: FRU135-30F 1. Summary (a) RoHs Compliant (Lead Free) Product (b) Applications: Wide variety of electronic equipment (c) Product Features: Low resistance, High hold current, Solid state, Radial leaded product ideal for up to 30V (d) Operation Current: 1.35A (e) Maximum Voltage: 30V (f) Temperature Range : -40℃ to 85℃ 2. Agency Recognition UL: File No. E211981 C-UL: File No. E211981 TÜ V: File No. R50004084 3. Electrical Characteristics (23℃) Part Resistance Hold Trip Max.Time Maximum Rated Typical Current Current To Trip Current Voltage Power RMIN R1MAX IH, A IT, A at 5XIH,S IMAX, A VMAX, VDC Pd, W Ohms Ohms 1.35 2.70 7.3 100 30 0.8 0.040 0.130 Number FRU135-30F IH=Hold current-maximum current at which the device will not trip at 23℃ still air. IT=Trip current-minimum current at which the device will always trip at 23℃ still air. V MAX=Maximum voltage device can withstand without damage at its rated current. I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Maximum power dissipated from device when in tripped state in 23℃ still air environment. RMIN=Minimum device resistance at 23℃. R1MAX=Maximum device resistance at 23℃, 1 hour after tripping. Physical specifications: Lead material: Tin plated copper, 24 AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. 4. Production Dimensions (millimeter) FRU 135-30F Lead Size: 24AWG Φ 0.51 mm Diameter Part A B C D E F Number Maximum Maximum Typical Minimum Maximum Typical FRU135-30F 8.9 13.5 5.1 7.6 3.0 0.9 NOTE : Specification subject to change without notice. NO. FUZETEC TECHNOLOGY CO., LTD. PQ02-104E Product Specification and Approval Sheet Version 5 Page 5. Thermal Derating Curve FRU135-30F Precent of Rated Hold and Trip Current 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Ambient Temperature (C) 6. Typical Time-To-Trip at 23℃ FRU135-30F 100 Time-to-trip (S) 10 1 0.1 0.01 0.001 0.1 1 10 Fault current (A) NOTE : Specification subject to change without notice. 100 2/3 NO. FUZETEC TECHNOLOGY CO., LTD. Product Specification and Approval Sheet Version PQ02-104E 5 Page 3/3 7. Material Specification Lead material: Tin plated copper, 24 AWG. Soldering characteristics: MIL-STD-202, Method 208E. Insulating coating:Flame retardant epoxy, meets UL-94V-0 requirement. 8. Part Numbering and Marking System Part Numbering System Part Marking System FRU □ □ □ ─ □ □ F RoHS Compliant / Lead Free Voltage Rating Current Rating F RU135F 31AB F RU □ □ □ F Example □ □ □ □ Fuzetec Logo RoHS Compliant / Lead Free Part Identification Product Family Date Code/Lot Number Note: Font on Marking may look slightly different due to fine turnings of each Marking printer. Warning: -Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame. -PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated. - Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance. NOTE : Specification subject to change without notice.
