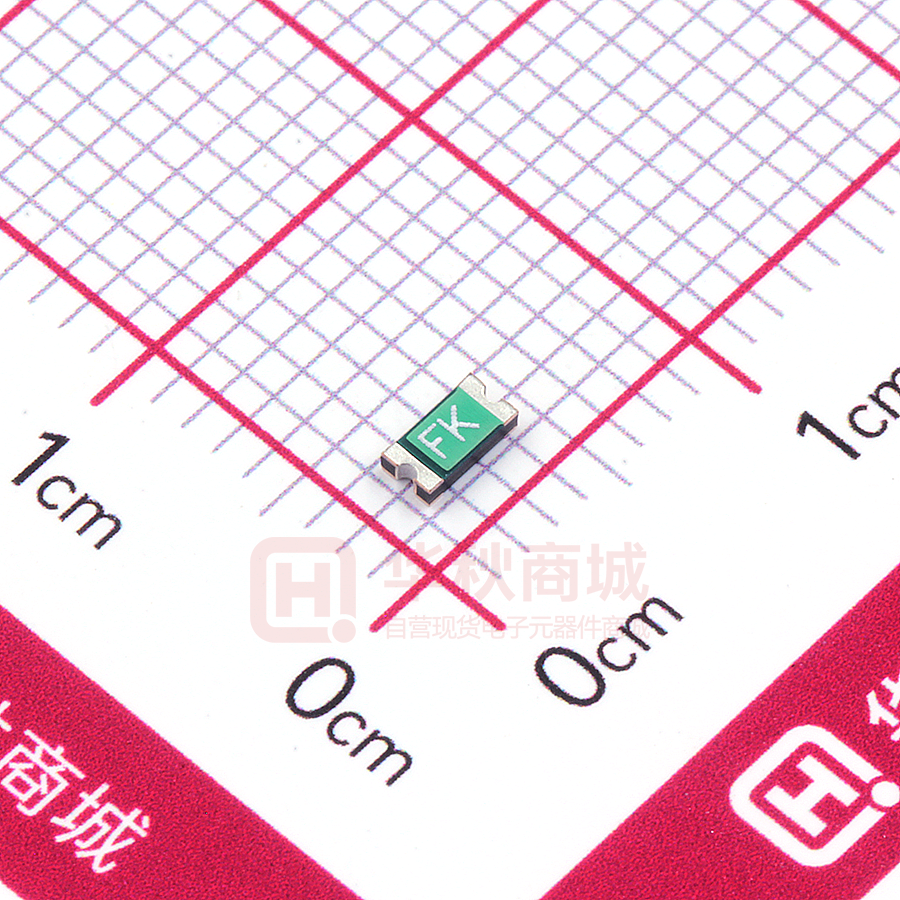

FSMD016-1206-R

NO. FUZETEC TECHNOLOGY CO., LTD. PQ18-22E Product Specification and Approval Sheet Version 3 Page 1/4 Surface Mountable PTC Resettable Fuse: FSMD016-1206-R 1. Summary (a) RoHS Compliant & Halogen Free (b) Applications: All high-density boards (c) Product Features: Small surface mountable, Solid state, Faster time to trip than standard SMD devices, Lower resistance than standard SMD devices (d) Operation Current: 160mA (e) Maximum Voltage: 48V (f) Temperature Range : -40℃ ℃ to 85℃ ℃ 2. Agency Recognition UL : File No. E211981 C-UL: File No. E211981 TÜV: File No. R50090556 3. Electrical Characteristics (23℃ ℃) Part Number FSMD016-1206-R Hold Trip Rated Max Typical Current Current Voltage Current Power Current Time RMIN R1MAX IH, A IT, A VMAX, VDC IMAX, A Pd, W Amp Sec Ohms Ohms 0.16 0.45 48 100 0.6 1.00 0.30 1.10 5.00 ℃ ℃ Max Time to Trip Resistance IH=Hold current-maximum current at which the device will not trip at 23 still air. IT=Trip current-minimum current at which the device will always trip at 23 still air. V MAX=Maximum voltage device can withstand without damage at it rated current.(I MAX) I MAX= Maximum fault current device can withstand without damage at rated voltage (V MAX). Pd=Typical power dissipated-type amount of power dissipated by the device when in the tripped state in 23 still air environment. RMIN=Minimum device resistance at 23 prior to tripping. R1MAX=Maximum device resistance at 23 measured 1 hour after tripping or reflow soldering of 260 for 20 seconds. Termination pad characteristics Termination pad materials: Pure Tin ℃ ℃ ℃ ℃ 4. FSMD Product Dimensions (Millimeters) Part Number FSMD016-1206-R A B C D E Min Max Min Max Min Max Min Max Min Max 3.00 3.50 1.50 1.80 0.45 0.75 0.10 0.75 0.10 0.45 NOTE : Specification subject to change without notice. NO. FUZETEC TECHNOLOGY CO., LTD. PQ18-22E Product Specification and Approval Sheet Version 3 Page 5. Thermal Derating Curve FSMD016-1206-R Percent of Rated Hold and Trip Current 200% 150% 100% 50% 0% -40 -20 0 20 40 60 80 Ambient Temperature (C) 6. Typical Time-To-Trip at 23℃ ℃ FSMD016-1206-R 100 Time-to-Trip (s) 10 1 0.1 0.01 0.1 1 10 Fault current (A) NOTE : Specification subject to change without notice. 100 2/4 NO. FUZETEC TECHNOLOGY CO., LTD. Product Specification and Approval Sheet Version PQ18-22E 3 Page 3/4 7. Material Specification Terminal pad material: Pure Tin Soldering characteristics: Meets EIA specification RS 186-9E, ANSI/J-std-002 Category 3 8. Part Numbering and Marking System Part Numbering System FSMD Part Marking System □ □ □ – 1206 – R F FK □ Current Rating Part Identification Fuzetec Logo Example 9. Pad Layouts、 、Solder Reflow and Rework Recommendations The dimension in the table below provide the recommended pad layout for each FSMD1206 device Pad dimensions (millimeters) A Device Nominal FSMD016-1206-R 2.00 B Nominal 1.00 C Nominal 1.90 Solder reflow ※ Profile Feature Pb-Free Assembly Average Ramp-Up Rate (Tsmax to Tp) 3 /second max. Preheat : Temperature Min (Tsmin) 150 Temperature Max (Tsmax) 200 Time (tsmin to tsmax) 60-180 seconds Time maintained above: Temperature(TL) 217 Time (tL) 60-150 seconds Peak/Classification Temperature(Tp) : 260 Time within 5 of actual Peak : 20-40 seconds Temperature (tp) Ramp-Down Rate : 6 /second max. 8 minutes max. Time 25 to Peak Temperature : ℃ ℃ ℃ ℃ ℃ ℃ ℃ ℃ Note 1: All temperatures refer to of the package, measured on the package body surface. NOTE : Specification subject to change without notice. Due to “Lead Free” nature, Temperature and Dwelling time for the soldering zone is higher than those for Regular. This may cause damage to other components. 1. Recommended max past thickness > 0.25mm. 2. Devices can be cleaned using standard methods and aqueous solvent. 3. Rework use standard industry practices. 4. Storage Envorinment : < 30 ℃ / 60%RH Caution: 1. If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. 2. Devices are not designed to be wave soldered to the bottom side of the board. FUZETEC TECHNOLOGY CO., LTD. NO. Product Specification and Approval Sheet Version PQ18-22E 3 Page 4/4 Reflow Profile Warning: -Operation beyond the specified maximum ratings or improper use may result in damage and possible 甲、 electrical arcing and/or flame. -PPTC device are intended for occasional overcurrent protection. Application for repeated overcurrent condition and/or prolonged trip are not anticipated. -Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance. NOTE : Specification subject to change without notice.
