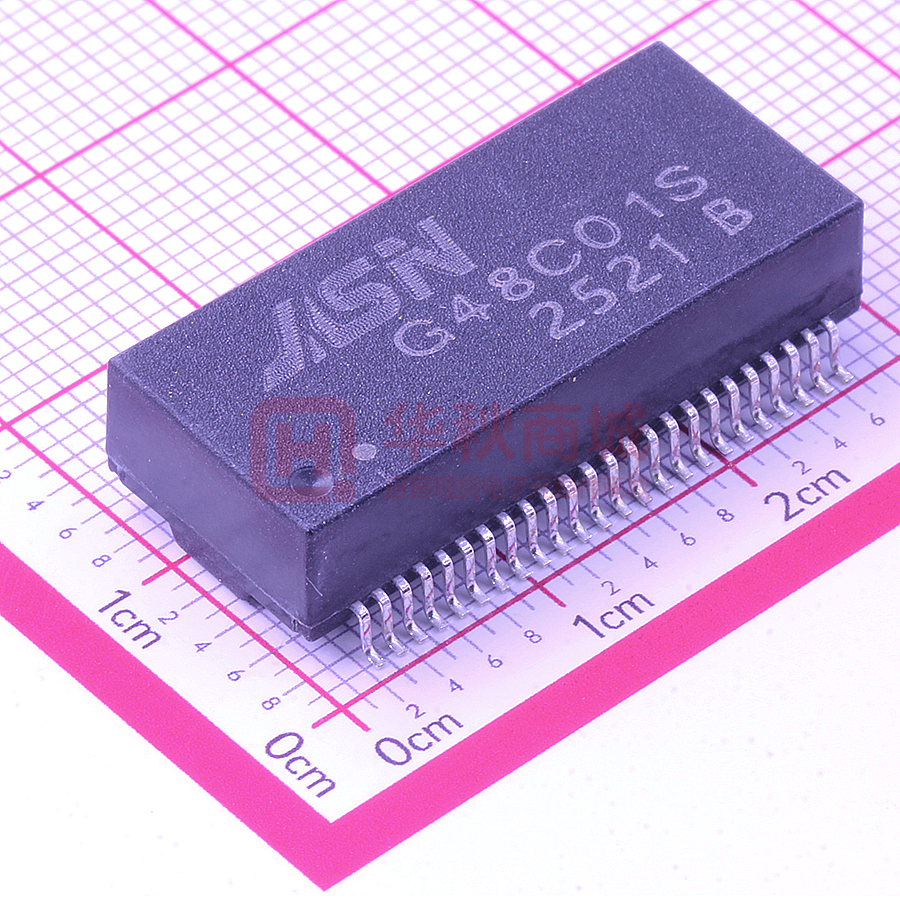

G48C01S

100/1000 BASE-T DUAL PORT MAGNETICS MODULE P/N: G48C01S DATA SHEET Page : 1/1 Feature Compliant with IEEE 802.3 standard. Comply with ROHS requirements. Operating temperature range: 0℃ to +70℃. Storage temperature range: -25℃ to +125℃. Electrical Specifications @ 25℃ OCL: 350uH Min. @100KHz/0.1V with 8mA DC Bias Hi-POT : 1500Vrms Turn Ratio: 1:1±3% LK: 0.5uH Max @100KHz/0.2V Cw/w 35PF Max @100KHz/0.2V D.C.R: 1.2 ohm Max Insertion Loss: 1-100MHz: -1.0dB Max Cross Talk : 1-100MHz: -30dB Min Return Loss: 1-30MHz 40MHz -18dB Min -14.4dB Min Schematic -13.1dB Min 60-80MHZ 80-100MHZ -12dB Min -10dB Min Mechanical 1 48 2 47 3 46 4 45 5 44 6 43 7 42 8 41 9 40 10 39 11 38 12 37 13 36 14 35 15 34 16 33 17 32 18 31 19 30 20 29 21 28 22 27 23 26 24 25 Http://www.jansum.cn 50MHz E-mail:sales@jansum.cn Unless otherwise specified, all tolerances are ±0.25 Tel:+86-769-86299641 Fax:+86-769-86299645
