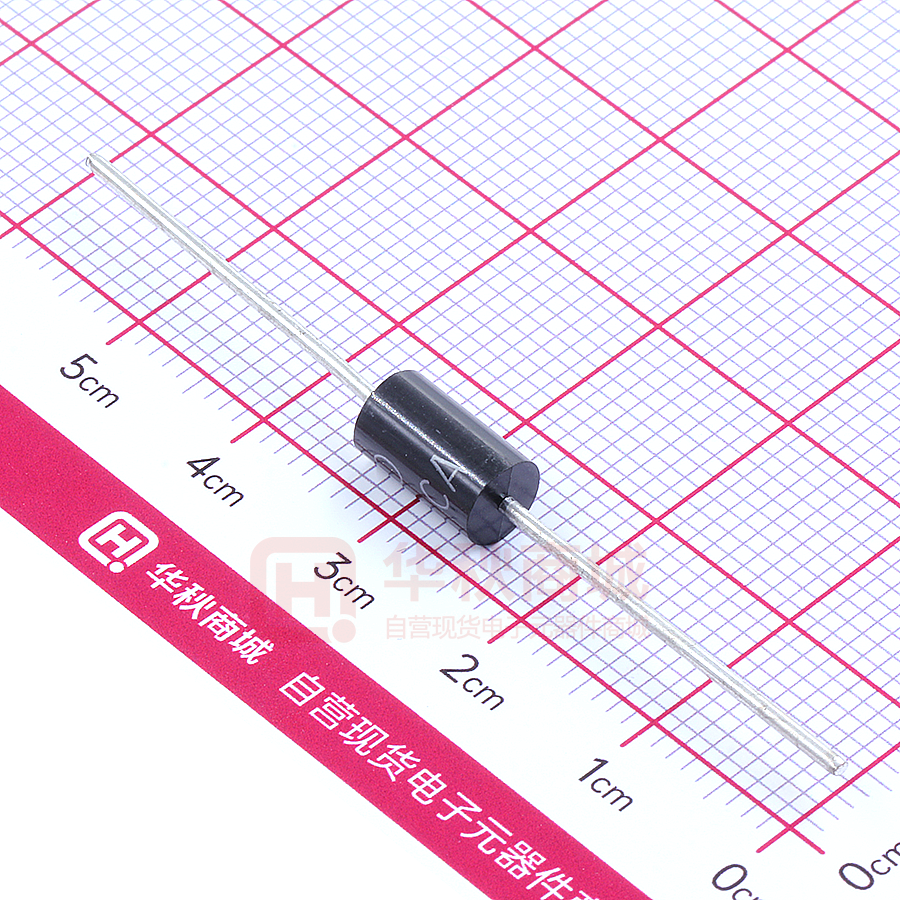

1.5KE62CA

1.5KE Series 东沃电子 1.5KE Series DOWOSEMI Breakdown Voltage: 6.8 to 600 V Peak Pulse Power: 1500 W Axial Lead Transient Voltage Suppressors Features ϥ ϥ ϥ ϥ ϥ ϥ ϥ DO-201 Glass passivated chip 1500 W peak pulse power capability with a 10/1000 ȝs waveform, repetitive rate (duty cycle):0.01 % Low leakage Uni and Bidirectional unit Excellent clamping capability Very fast response time RoHS compliant 1.000 [25.40] MIN [ ] ϥ ϥ DIA. 0.209 5.30 0.189 4.79 [ ] 1.000 [25.40] MIN Dimensions : inch [ mm ] DO ϥ Case: Molded plastic Epoxy: UL 94V-0 rate flame retardant Lead: Solderable per MIL-STD-202, method 208 guranteed Polarity: Color band denotes cathode end except Bipolar Mounting position: Any WO ϥ [ ] 0.375 9.53 0.285 7.24 Mechanical Data ϥ DIA. 0.042 1.07 0.038 0.97 Maximum Ratings(TA=25к unless otherwise noted) Parameter Peak power dissipation with a 10/1000ȝs waveform(1) Peak pulse current wih a 10/1000ȝs waveform(1) Power dissipation on infinite heatsink at TL = 75 °C Peak forward surge current, 8.3 ms single half sinewave unidirectional only(2) Maximum instantaneous forward voltage at 100 A for unidirectional only(3) Operating junction and storage temperature range Value Symbol PPP 1500 IPP See Next Table PD 6.5 UNIT W A W IFSM 200 A VF 3.5/5.0 V TJ, TSTG –55 to +150 °C Note: (1)Non-repetitive current pulse per Fig.5 and derated above TA= 25 °C per Fig.1 (2)Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum (3)VF
