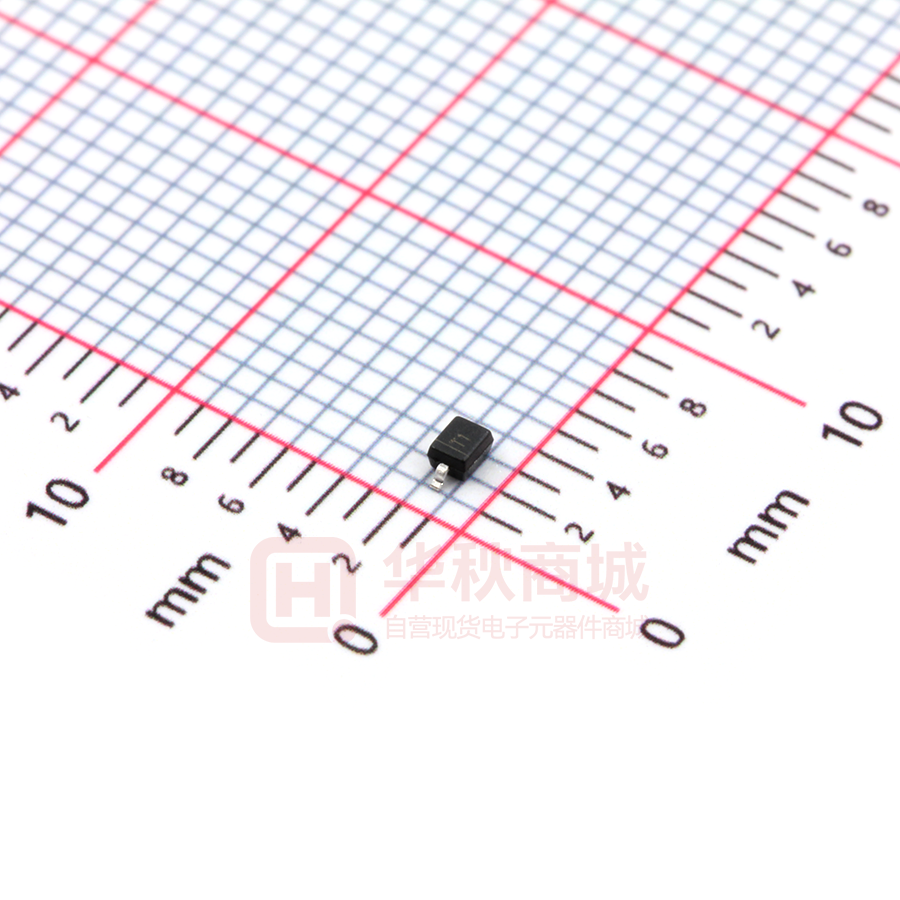

1N4001WS

1N4001WS-1N4007WS SOD-323 Surface Mount Glass Passivated Standard Rectifier Reverse Voltage -50~1000 V Forward Current - 1.0A Pinning 1.Cathode FEATURES 1  Low Forward Voltage Drop  Guard Ring Construction for Transient Protection  Negligible Reverse Recovery Time  Low Capacitance 2.Anode 2 SOD-323  Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA  Case: SOD-323  Terminals: Solderable per MIL-STD-750, Method 2026  Approx. Weight: 5.48mg / 0.00019oz Marking Code 1N4001WS 1A 1N4002WS 2A 1N4003WS 3A 1N4004WS 4A 1N4005WS 5A 1N4006WS 6A 1N4007WS 7A Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Paramet er Symbols 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 WS WS WS WS WS WS WS Units Peak Repetitive Reverse Voltage VRRM 50 100 200 400 600 800 1000 V RMS reverse voltage VRMS 35 70 140 280 420 560 700 V Working Peak Reverse Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current IF(AV) 1 A Peak Forward Surge Current, 8.3ms Single Half Sine-wave Superimposed On Rated Load IFSM 15 A Maximum Instantaneous Forward Voltage 1A VF 1.1 v IR 5 50 uA RθJA 55 °C/W Trr 1.8 uS Cj 5 pF Tj, Tstg -55 ~ +150 °C Maximum DC Reverse Current Ta=25 °C at Rated DC Blocking Voltage Ta=125 °C Typical Thermal Resistance (1) Typical reverse recovery time Typical junction capacitance (2) (3) Operating and Storage Temperature Range （1）P.C.B. mounted with 0.2" X 0.2" (5 X 5 mm) copper pad areas. （2）Measured with IF=0.5A,IR =1A, Irr= 0.25A （3）Measured at 1 MHz and applied reverse voltage of 4 V D.C www.yfwdiode.com 1/3 Dongguan YFW Electronics Co, Ltd. 1N4001WS-1N4007WS SOD-323 Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μ A) Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 75 50 100 125 150 175 100 T J =150°C 10 T J =125°C T J =100°C 1.0 T J =75°C 0.1 T J =25°C 0.01 0 Junction Capacitance ( pF) TJ = 2 5° C 00 =1 TJ =1 25 °C °C 0.5 TJ Instaneous Forward Current (A) 1.0 0.8 0.9 600 800 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.2 0.1 0.6 400 200 Instaneous Reverse Voltage (V) Case Temperature (°C) 100 T J =25°C 10 1 0.7 1.0 1.1 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 20 15 10 5 8.3 ms Single Half Sine Wave (JEDEC Method) 00 1 10 100 Number of Cycles www.yfwdiode.com 2/3 Dongguan YFW Electronics Co, Ltd. 1N4001WS-1N4007WS SOD-323 SOD-323 Package Outline Plastic surface mounted package; 2 leads E E D b A C A1 ∠ALL ROUND L1 E1 A C D E E1 b L1 A1 max 1.1 0.15 1.4 1.8 2.75 0.4 0.45 0.2 min 0.8 0.08 1.2 1.4 2.55 0.25 0.2 max 43 5.9 55 70 108 16 16 min 32 3.1 47 63 100 9.8 7.9 UNIT ∠ mm 9° 8 mil The recommended mounting pad size 1.4 (55) 1.2 (47) 1.2 (47) 1.2 (47) Unit： mm (mil) Summary of Packing Options Package SOD-323 www.yfwdiode.com Packing Description Packing Quantity Industry Standard Tape/Reel,7”reel 3000 EIA-481-1 3/3 Dongguan YFW Electronics Co, Ltd.
