规格承认书
SPECIFICATION FOR APPROVAL
品
名
固态铝电解电容器
PARTS
产品型号
MODEL NO
PC
编 制
PREPARED BY
审 核
CHECKED BY
批 准
APPROVED BY
平磊
宋小根
路康平
承认栏 APPROVAL
文件内容修改历史记录
RECORD OF REVISION
生效版本
REV. NO.
变更原因
REASON
修改内容
CONTENTS
承 认 时 间
DATE OF
拟
制
CHECKED
1
客户要求
新项目送样
2021-8-23
平磊
2
3
备
注
REMARKS
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Parts list &Characteristics 物料清单及特性
Part NO.
SPECIFICATION
Size
Cap.
Tanδ
Lu(μA)
ESR(mΩ)
料号
规格
(mm)
Tol
损耗
漏电流
D*L 尺寸
1026R30612R00
4726R31015R00
2216R30507R00
±(%)
Ripple Current
LEAD STYLE
25℃
纹波电流(mA)
引脚形式/印字
100KHz
105℃ 100KHz
6.3V1000UF
6.3*12
20
0.08
1260
13
4500
散料长脚/红字
6.3V4700UF
10*15
20
0.08
5922
13
5900
散料长脚/红字
6.3V220UF
5*7
20
0.08
277.2
30
3800
散料长脚/红字
2210100508R00
6810100612R00
1020160812R00
1220161012R00
4710160612R00
6810160812R00
1010250607R00
2210250609R00
3310250812R00

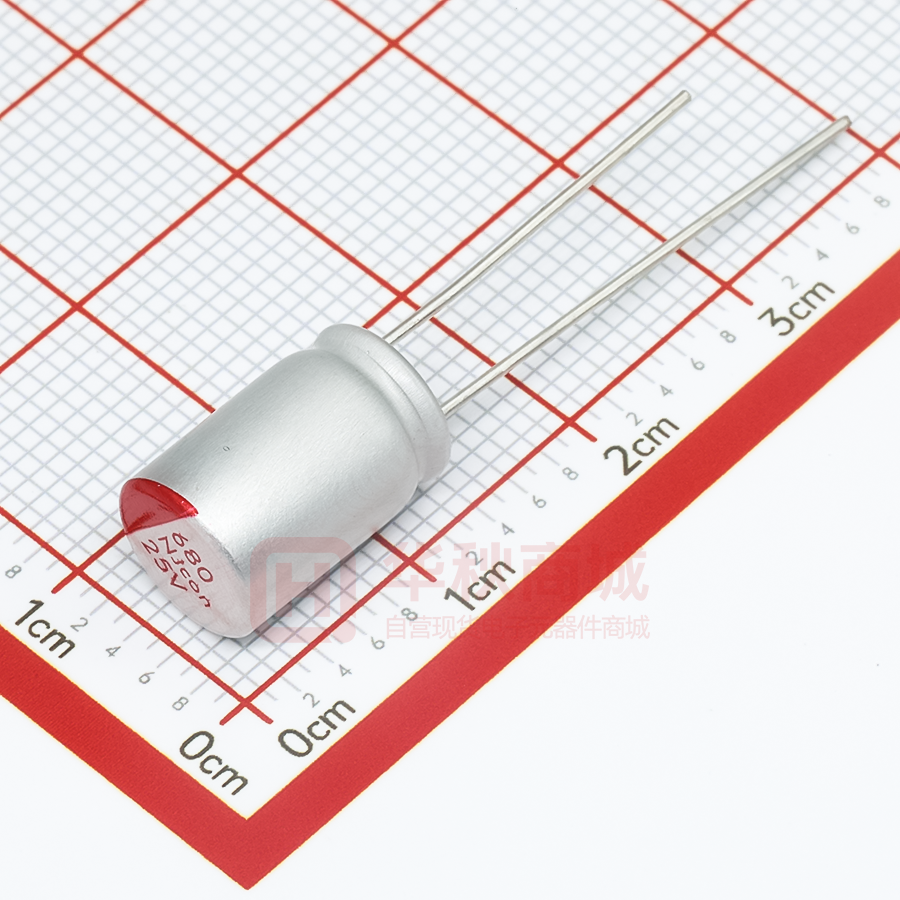

6810250812R00
8210250814R00
1020250816R00
4710250812R00
8210161010R40
8210160612R00
1010160507R00
2210160509R00
2210160608R00
10V220UF
5*8
20
0.08
440
30
3800
散料长脚/红字
10V680UF
6.3*12
20
0.10
1360
15
5000
散料长脚/红字
16V1000UF
8*12
20
0.10
3200
15
5000
散料长脚/红字
16V1200UF
10*12
20
0.10
3840
15
5500
散料长脚/红字
16V470UF
6.3*12
20
0.10
1504
15
4500
散料长脚/红字
16V680UF
8*12
20
0.10
2176
15
5000
散料长脚/红字
25V100UF
6.3*7
20
0.12
500
50
3000
散料长脚/红字
25V220UF
6.3*9
20
0.12
550
35
3000
散料长脚/红字
25V330UF
8*12
20
0.12
825
35
4400
散料长脚/红字
25V680UF
8*12
20
0.12
1700
35
4400
散料长脚/红字
25V820UF
8*14
20
0.12
2050
35
4400
散料长脚/红字
25V1000UF
8*16
20
0.12
2500
35
4400
散料长脚/红字
25V470UF
8*12
20
0.12
599
35
4400
散料长脚/红字
16V820UF
10*10
20
0.10
2624
15
5000
散料长脚/红字
16V820UF
6*16
20
0.10
2624
15
5000
散料长脚/红字
16V100UF
5*7
20
0.08
320
50
2600
散料长脚/红字
16V220UF
5*9
20
0.08
704
50
2600
散料长脚/红字
16V220UF
6.3*8
20
0.08
704
15
3800
散料长脚/红字
6.3V820UF
6.3*9
20
0.08
1033.2
13
4500
散料长脚/红字
6.3V270UF
5*7
20
0.08
340.2
25
2800
散料长脚/红字
6.3V470UF
6.3*8
20
0.08
592.2
13
4500
散料长脚/红字
6.3V560UF
6.3*8
20
0.08
705.6
13
4500
散料长脚/红字
6.3V2200UF
10*12
20
0.10
2772
13
5500
散料长脚/红字
10V470UF
6.3*8
20
0.10
940
15
4800
散料长脚/红字
8216R30609R00
2716R30507R00
4716R30608R00
5616R30608R00
2226R31012R00
4710100608R00
2210100608R00
1520101012R35
3310160608R00
6810160612R00
一、概述
10V220UF
6.3*8
20
0.08
440
15
4800
散料长脚/红字
10V1500UF
10*12
20
0.10
3000
15
5900
散料长脚/红字
16V330UF
6.3*8
20
0.08
1056
15
3800
散料长脚/红字
16V680UF
6.3*12
20
0.10
2176
15
3800
散料长脚/红字
SCOPE
本产品规格书适用于南京永立电子有限公司 PC 型固态铝电解电容器产品。
The product specification is adapted to series PC Conductive Polymer Aluminum Electrolytic Capacitorsof
NANJING WINNER ELECTRONICS CO.,LTD
二、外形图及尺寸表
Case size table
5
2.0
0.5
ΦD
F(±0.5)
d(±0.05)
6.3
2.5
0.6
8
3.5
0.6
10
5.0
0.6
三、技术性能 Specifications
1
PC 系列(PC
系列号(SERIES)
SERIES)
额定电压
2
工作温度范围
3
2.5V~25V
(rated voltage)
Operating
temperature
range operating
工作温度范围是指电容器在额定电压下能持续工作的所允许外部环境的温度范围
operating temperature range is the range of ambient temperature at which the
capacitor can be operated
continuously at rated voltage
SPEC:-55~+105℃
测量温度 20℃
measuring temperature
测量频率 120HZ
measuring frequency
测量电压 0.5Vrms
measuring voltage
标称电容量允许偏差:-20+20% MAX
Nominal Capacitance Tolerance:-20+20% MAX
电容容量
4
capacitance
损耗角正切的测量应要和测量电容容量一样的条件下进行
Measurement should be made under the same conditions as those given for the measurement
损耗角正切
5
tangent of the
loss angle
of capacitance
SPEC:
損耗角
UR (V)
2.5
4
6.3
10
16
20
25
正切
(tgδ)
tgδ
参考目录规格
将额定电压加在电容和 1000±100Ω的保护电阻上。在充电 2 分钟后,按下列等式计算漏电流
the rated voltage shall be applied across the capacitor and its protective resistor which shall be
1000±100Ω.The leakage current shall be then measured after an electrifications period of (A)min.
漏电流
6
leakage current
The leakage current shall be calculated by the following equation
在加上额定电压一定时间后, 应满足下列要求:I≤0.2CV or 200μA Which is greater(取较大者)
(20℃,2 分钟)
SPEC: The following specifications shall be satisfied when the rated voltage is applied for the
required time.
等效串联阻抗
Equivalent
Series
7
测量温度 20℃
measuring temperature
测量频率 100KHZ
measuring frequency
测量电压 0.5Vrms
measuring voltage
Resistance
(ESR)
在规定的某一频率下的最大交流电流,在该电流下电容器连续工作。即使在测过耐久性后,此要求
仍要满足。在此,DC 电压加上最大纹波电压小于等于额定电压。
允许最大纹波电
流
8
The maximum sinusoidal alternating current of a frequency specified below, at which the
capacitor can be operated continuously. This requirement shall be satisfied even after the
Maximum
measurement electrical endurance Where(DC voltage +peak ripple voltage)≤rated voltage
permissible
ripple current
四、试验方法及要求 Tests
在规定温度下,循环测试 1000 次,每次充电 30±5 秒,再放电大约 5 分 30 秒。在标准温度条件下存放使
其稳定,然后测试。
The capacitor shall
of a charge period
capacitor shall be
measurements shall
be subjected to 1000cycles at a temperature specified below, each consisting
of 30±5sec, followed by a discharge period of approx. 5min30sec. And the
stored under standard conditions thermal to obtain stability,after which
be made.
measurement circuit(测试电路图)
浪涌测试
1
Surge test
VZ:浪涌电压
V1:直流电压
Surge voltage
DC voltmeter
R1:保护电阻(1KΩ)
R2:放电电阻器
Protective series
Discharge resistor
resistor
CX:测试电容
S:开关
Test capacitor
Switch
SPEC: 1) 电容量变化 Change in capacitance: ±10%初始值以内 Within±10% of the initial value
2)损耗角正切 tangent of the loss angle: 小于等于初始规定值 The initial specified value or less
3)ESR(equivalent series resistance)
:小于等于初始规定值 The initial specified value or less
4)
漏电流 leakage current:小于等于初始规定值 The initial specified value or less
电压设定
RATED VOLTAGE(VDC)
2.5
4
6.3
10
16
20
25
SURGE VOLTAGE(VDC)
2.8
4.6
7.2
11.5
18.4
23
27.5
1) 拉力(tensile)
端子强度
2
d(mm)
[N]
0.3
