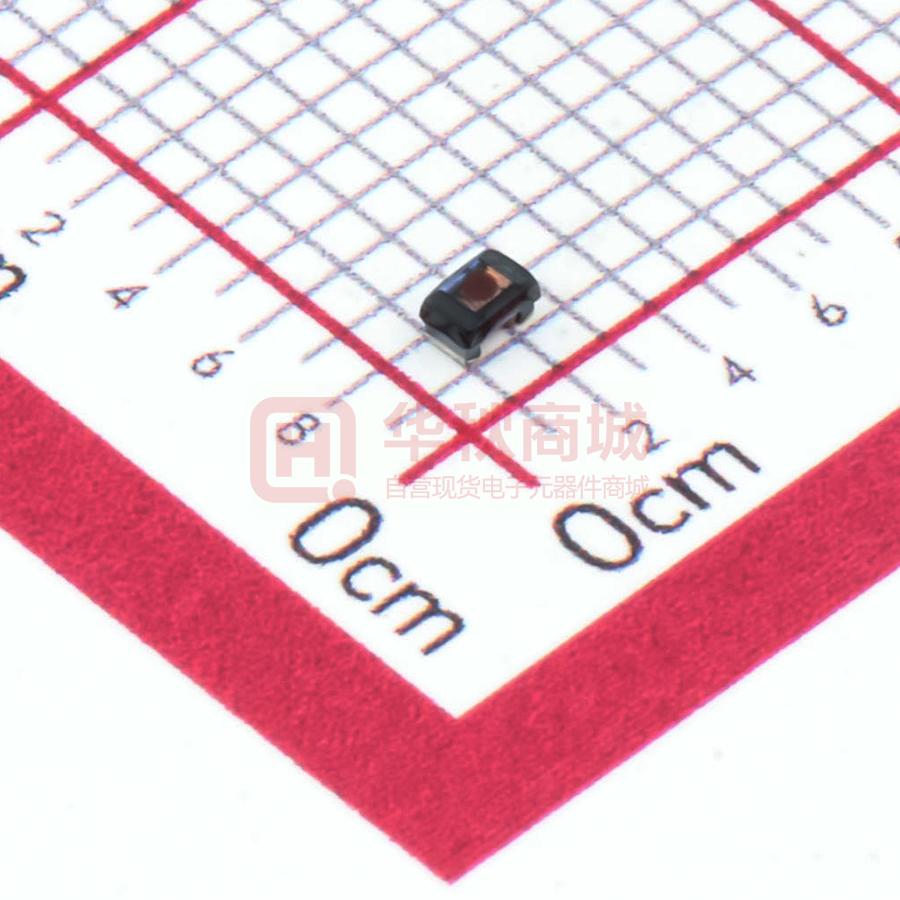

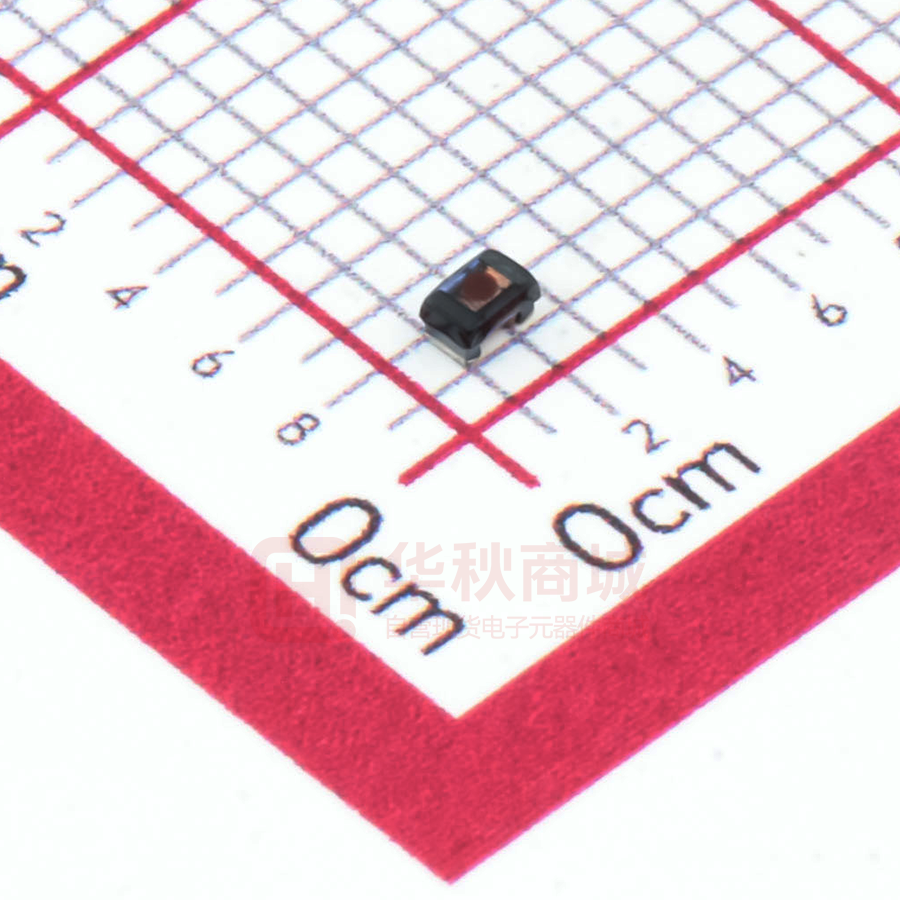

FTW1608FE100KT

1. Scope T of Wire Wound Chip Ferrite Inductor. This specification applies to the FTW1608FE 2. Product Description and Identification (Part Number) 1) Description Wire Wound Chip Ferrite Inductor, 1608, XXX μH± XX% @XXXMHz, XXXΩ, XXX mA 2) Product Identification (Part Number) 3) FTW 1608 F E ① ② ③ ④ T ⑤ ⑥ ⑦ ① Type FTW ② External Dimensions [L X W] (mm) Wire Wound Chip Radio Frequency 1608 1.6 X 0.8 Inductor ③ Material Code ④ Internal Code F E Ferrite ⑤ Nominal Inductance (μH) Internal Code ⑥ Inductance Tolerance Example Nominal Value K ±10% 2R2 2.2 M ±20% 100 10 ⑦ Packing 3. B Bulk Package T Tape & Reel Electrical Characteristics Please refer to Item 5. 4. 1) Operating and storage temperature range (individual chip without packing, self-temperature rise is not included): -40℃ to +85℃ 2) Storage temperature range (packaging conditions): -10℃~+40℃ and RH 70% (Max.) Shape and Dimensions 1) Dimensions: See the following. Unit：mm 2) A Max. B Max. C Max. D Typ. E Ref. H Ref. I Ref. J Ref. 1.80 1.20 1.00 0.92 0.30 1.15 0.64 0.64 Electrode Coplanarity:0.1mm Max. Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW 3) 5. Structure: See the following. No. Components Material A Coating Ultraviolet epoxy resin B Core Ferrite C Wire Polyurethane system enameled copper wire D Electrodes Ag/Ag-Pd with Ni and Sn plating Electrical Characteristics I.FTW1608FE T Series Part Number Inductance Tolerance Q L/Q Test DC Factor Freq. Resistance Typ. Typ. Typ. Saturation Rated Self-resonant Current Current Frequency Units μH - - MHz Ω mA mA MHz Symbol L - Q Freq. DCR IDC Irms SRF FTW1608FE2R2□T 2.2 K,M 16 7.9 0.56±30% 600 580 103 FTW1608FE4R7□T 4.7 K,M 16 7.9 0.79±30% 400 420 51 FTW1608FE6R8□T 6.8 K,M 16 7.9 1.50±30% 340 340 43 FTW1608FE100 □T 10 K,M 14 2.5 1.85±30% 280 280 36 FTW1608FE150 □T 15 K,M 14 2.5 2.60±30% 240 240 29 FTW1608FE220 □T 22 K,M 14 2.5 2.80±30% 200 200 24 FTW1608FE470 □T 47 K,M 11 2.5 6.65±30% 100 100 14 Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW 6. Test and Measurement Procedures 6.1 Test Conditions Unless otherwise specified, the standard atmospheric conditions for measurement/test as: a. Ambient Temperature: 20±15℃ b. Relative Humidity: 65%±20% c. Air Pressure: 86 KPa to 106 KPa If any doubt on the results, measurements/tests should be made within the following limits: a. Ambient Temperature: 20±2℃ b. Relative Humidity: 65%±5% c. Air Pressure: 86KPa to 106 KPa 6.2 Visual Examination a. Inspection Equipment: 30X magnifier 6.3 Electrical Test 6.3.1 DC Resistance (DCR) a. Refer to Item 5. b. Test equipment: HIOKI3540 or equivalent. 6.3.2 Inductance (L) a. Refer to Item 5. b. Test equipment: Agilent4287A+Agilent16197A or equivalent. c. Test signal: -13dBm or 10mA d. Test frequency refers to Item 3. 6.3.3 Q Factor (Q) a. Refer to Item 5. b. Test equipment: Agilent4287A+Agilent16197A or equivalent. c. Test signal: -13dBm or 10mA d. Test frequency refers to Item 5. 6.3.4 Self-Resonant Frequency (SRF) a. Refer to Item 5. b. Test equipment: Agilent4991B+Agilent16197A and HP 8753E or equivalent. c. Test signal: -20dBm or 50mV 6.3.5 Saturation Current (IDC) a. Refer to Item 5. b. Test equipment : Electric Power, Electric current meter, Agilent4991A+Agilent16197A or equivalent. c. Measurement method : 1. d. Set test current to be 0 mA. 2. Measure initial chip inductance. 3. Gradually increase voltage and measure chip inductance for corresponding current. Definition of Saturation Current (IDC): IDC is direct electric current as chip inductance drop just 10% from its value without current. 6.3.6 Rated Current (Irms) e. Refer to Item 5. f. Test equipment (see Fig.6.3.4-1): Electric Power, Electric current meter, Thermometer. g. Measurement method (see Fig. 6.3.4-1): 1. h. Set test current to be 0 mA. 2. Measure initial temperature of chip surface. 3. Gradually increase voltage and measure chip temperature for corresponding current. Definition of Rated Current (Irms): Irms is direct electric current as chip surface temperature rose just 15℃ against chip initial surface temperature (Ta) (see Fig. 6.3.4-2). Ta+15 Ta 0 Rated current Fig. 6.3.4-1 Irms (mA) Fig. 6.3.4-2 Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW 6.4 Reliability Test Items 6.4.1 Terminal Strength 6.4.2 Requirements Test Methods and Remarks No removal or split of the termination or other defects ① Solder the inductor to the testing jig (glass epoxy board) using eutectic solder. Then apply a force shall occur. in the direction of the arrow. ② 5N force. ③ Keep time: 10±1s ④ Speed: 1.0 mm/s. ① No visible mechanical damage. Resistance to Solder the inductor to the test jig. Using a eutectic solder. Then apply a force in the direction shown as 20 Flexure left. Unit: mm 10 R10 45 45 6.4.3 ① No visible mechanical damage. Vibration ② Inductance change: within ±5% ② Flexure: 2mm ③ Pressurizing Speed: 0.5mm/sec. ④ Keep time: 5sec. Flexure ① Solder the inductor to the testing jig (glass epoxy board )using eutectic solder. ② The inductor shall be subjected to a simple harmonic motion having total amplitude of 1.5mm, the frequency Cu pad Solder mask being varied uniformly between the approximate limits of 10 and 55 Hz. ③ The frequency range from 10 to 55 Hz and return to 10 Hz shall be traversed in approximately 1 minute. This motion shall be applied for a period of 2 hours in each 3 mutually perpendicular directions (total of 6 hours) Glass Epoxy Board 6.4.4 ① No visible mechanical damage. Drop chip inductor 10 times on a concrete floor from a Dropping ② Inductance change: within ±5% height of 100 cm. 6.4.5 Inductance change: within ±5% Temperature ① Between -40℃ and +85℃ ② With a reference value of +20℃ coefficient 6.4.6 90% or more of electrode area shall be Solderability Coated by new solder. ① Electrode of the coil shall be immersed in flux for 5 to 10 Seconds. ② The coil shall be immersed in solder bath at a temperature of 240±5℃, Duration for 3±0.5 seconds. ③ Solder: Sn/3.0Ag/0.5Cu ④ Flux: 25% Resin and 75% ethanol in weight. Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW 6.4.7 ① No visible mechanical damage. Resistance to ② Inductance change: within ±5% Re-flowing Profile: Soldering Max: 260℃/10sec 260℃ Heat 200℃ 240℃ 20~40sec. 190℃ 150℃ 6.4.8 ③ No visible mechanical damage. Thermal Shock ④ Inductance change: within ±5% +85℃ 30 min. Gradual Cooling 90±30sec. ① Temperature, Time: ② Transforming interval: 20s (max.) ③ Tested cycle: 100 cycles ④ The chip shall be stabilized at normal condition for 1~2 -40℃ for 30±3 min→+85℃ for 30±3min hours before measuring. 30 min. Ambient Temperature -40℃ 30 min. 20s (max.) 6.4.9 ① No visible mechanical damage. ① Temperature: -40±2℃ Resistance to ② Inductance change: within ±5% ② Duration: 1000 ③ The chip shall be stabilized at normal condition for 1~2 Low hours hours before measuring. Temperature 6.4.10 ① No mechanical damage. ① Temperature: 85±2℃ Resistance to ② Inductance change: within ±5% ② Duration: 1000 ③ The chip shall be stabilized at normal condition for 1~2 High Temperature +24 hours hours before measuring. 6.4.11 ① No mechanical damage. ① Temperature: 60±2℃, Humidity: 90% to 95% RH Damp Heat ② Inductance change: within ±5% ② Duration: 1000 ③ The chip shall be stabilized at normal condition for 1~2 (Steady +24 hours hours before measuring. States) 7. +24 Packaging and Storage 7.1 Packaging There is one type of packaging for the chip inductors. Please specify the packing code when ordering. Tape Carrier Packaging: Packaging code: T i. Tape carrier packaging are specified in attached figure Fig.7.1-1~4 ii. Tape carrier packaging quantity please see the following table: Type 1608 Tape Punched Tape Quantity 3K Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW (1) Taping Drawings (Unit: mm) Punched Tape Top Tape Paper Tape Sprocket Hole Chip Cavity Fig. 7.1-1 Remark: The sprocket holes are to the right as the tape is pulled toward the user. B A T 8.0±0.1 2.0±0.1 4.0±0.1 3.5±0.1 Φ1.5(+0.1/-0) 1.75±0.1 (2) Taping Dimensions (Unit: mm) P K Fig. 7.1-2 Type A B P K T 1608 1.30±0.10 1.90±0.10 4.0±0.05 1.08±0.10 1.12±0.10 (3)Leader and blank portion Fig. 7.1-3 (4)Reel Dimensions (Unit: mm) 10±1.5 178±2 5.0±0.1 58±2 4.0±0.1 13.5±0.2 2.45±0.2 3.0±0.1 Fig. 7.1-4 Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW (5) Peeling off force: 10gf to 70gf in the direction show below. Top tape or cover tape 1650~ 1800 Fig. 7.1-5 Base tape 7.2 Storage a. The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to high humidity. Package must be stored at 40℃ or less and 70% RH or less. b. The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to dust of harmful gas (e.g. HCl, sulfurous gas of H2S) c. d. Packaging material may be deformed if package are stored where they are exposed to heat of direct sunlight. Minimum packages, such as polyvinyl heat-seal packages shall not be opened until they are used. If opened, use the reels as soon as possible. e. 8. Solderability shall be guaranteed for 12 months from the date of delivery on condition that they are stored at the environment specified in specification. .For those parts, which passed more than 12months shall be checked solder-ability before use. Warning and Attentions 8.1 Precautions on Use a. Always wear static control bands to protect against ESD. b. Any devices used (soldering iron, measuring instruments) should be properly grounded. c. Use non-magnetic tweezers when handing the chips. d. Pre-heating when soldering, and refer to the recommended condition specified in specification. e. Don’t apply current in excess of the rated current value. It may cause damage to components due to over-current. f. Keep clear of anything that may generate magnetic fields such as speakers, coils. g. When soldering, the electrical characteristics may be varied due to hot energy and mechanical stress. h. When coating products with resin, the relatively high resin curing stress may change the electrical characteristics. For exterior coating, select resin carefully so that electrical and mechanical performance of the product is not affected. Before using, please evaluate reliability with the product mounted in your application set. i. When mount chips with adhesive in preliminary assembly, do appropriate check before the soldering stage, i.e., the size of land j. Mounting density: Add special attention to radiating heat of products when mounting other components nearby. The excessive heat by k. Since some products are constructed like an open magnetic circuit, narrow spacing between components may cause magnetic l. Please do not give the product any excessive mechanical shocks in transportation. m. Please do not touch wires by sharp terminals such as tweezers to avoid causing any damage to wires. n. Please do not add any shock and power to the soldered product to avoid causing any damage to chip body. pattern, type of adhesive, amount applied, hardening of the adhesive on proper usage and amounts of adhesive to use. other products may cause deterioration at joint of this product with substrate. coupling. o. Please do not touch the electrodes by naked hand as the solderability of the external electrodes may deteriorate by grease or oil on the skin. 8.2 PCB Bending Design The following shall be considered when designing and laying out PCB’s. a. PCB shall be designed so that products are not subjected to the mechanical stress from board warp or deflection. Products shall be located in the sideways direction to the (Poor example) b. (Good example) mechanical stress. Products location on PCB separation. C Separation B Product shall be located carefully because they may be subjected to the mechanical stress in order of A>C=B>D. A D Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW c. When splitting the PCB board, or insert (remove) connector, or fasten thread after mounting components, care is required so as not to give any stress of deflection or twisting to the board. Because mechanical force may cause deterioration of the bonding strength of electrode and solder, even crack of product body. Board separation should not be done manually, but by using appropriate devices. 8.3 Recommended PCB Design for SMT Land-Patterns When chips are mounted on a PCB, the amount of solder used (size of fillet) and the size of PCB Land-Patterns can directly affect chip performance (such as Q). And they can also cause other soldering question (such as offset and side lap). Therefore, the following items must be carefully considered in the design of solder land patterns. a. Please use the PCB pad and solder paste we recommend, and contact us in advance if they need to be changed. b. Please use flux contained with resin since the highly acidic (Chlorine content more than 0.2 wt%) or water-soluble one could damage c. The amount of solder applied can affect the ability of chips to withstand mechanical stresses which may lead to breaking or cracking. the insulation film of wires, then causing short circuit of parts. Therefore, when designing land-patterns it is necessary to consider the appropriate size and configuration of the solder pads which in turn determines the amount of solder necessary to form the fillets. d. When more than one part is jointly soldered onto the same land or pad, the pad must be designed that each component’s soldering point is separated by solder-resist. Recommended land dimensions please refer to product specification. 9. Recommended Soldering Technologies This product is only for reflow soldering and iron soldering. Peak 260℃max 260℃ 9.1 Re-flowing Profile △ Preheat condition: 150~200℃/60~120sec. △ Allowed time above 217C: 60~90sec. △ Max temp: 260℃ △ Max time at max temp: 10sec. △ Solder paste: Sn/3.0Ag/0.5Cu 200℃ △ Allowed Reflow time: 2 times max. 150℃ 217℃ Max Ramp Up Rate=3℃/sec. Max Ramp Down Rate =6℃/sec. 60～90sec. 60～120sec. 25℃ Time 25℃ to Peak= 8 min Max [Note: The reflow profile in the above table is only for qualification and is not meant to specify board assembly profiles. Actual board assembly profiles must be based on the customer's specific board design, solder paste and process, and should not exceed the parameters as the Reflow profile shows.] 9.2 Iron Soldering Profile 3sec. Max. △ Iron soldering power: 30W Max. △ Preheat condition: 150℃/60sec. △ Soldering tip temperature: 350℃ Max. Soldering Iron Power： △ Soldering time: 3sec. Max. Max.30W △ Solder paste: Sn/3.0Ag/0.5Cu △ Iron Soldering time: 1 time max. 350℃ Diameter of Soldering： Iron 1.0mm max. Tc ℃ [Note: Take care not to apply the tip of the soldering iron to the terminal electrodes.] 9.3 Maintenance of heat gun (for your reference) △ Power output: 30W △ Temperature: 350℃ Max △ Heat time: More than 5 seconds heating may cause short circuit of parts. 10. Solder Volume Solder shall be used not to exceed as shown below. Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW a. Accordingly increasing the solder volume, the mechanical stress to chip is also increased.Exceeding solder volume may cause the failure of mechanical or electrical performance. b. Before soldering, please ensure that the solder should not adhere to the wire part of chip. c. Please pay particular attention to whether there is flux remaining on surface of the wire part of chip after subjected to reflow soldering since this may causing short circuit of parts. 11. Cleaning Products shall be cleaned on the following conditions: a. b. Cleaning temperature shall be limited to 60℃ Max. (40℃ Max. for fluoride and alcohol type cleaner.) Ultrasonic cleaning shall comply with the following conditions, avoiding the resonance phenomenon at the mounted products and PCB. Power: 20W/l Max. Frequency: 28 KHz to 40 KHz Time: 5 minutes Max c. Cleaner i. Alternative cleaner z Isopropyl alcohol (IPA) z HCFC-225 ii. Aqueous agent z Surface Active Agent Type (Clean through-750H) z Hydrocarbon Type (Techno Cleaner-335) z Higher Alcohol Type (Pine Alpha ST-100S) z Alkali saponifier Type (※ Aqua Cleaner 240) ※ Alkali saponification shall be diluted to 20% volume with de-ionized water. ※ Please contact our technical service department before using other cleaner. d. There shall be no residual flux and residual cleaner after cleaning. In the case of using aqueous agent, product shall be dried completely after rinse with de-ionized water in order to remove the cleaner. e. Some products may become slightly whitened. However, product performance or usage is not affected. f. Please take care of winding part while cleaning. g. After cleaning, parts could be subjected to the next reflow soldering till the solvent remaining on surface of parts being volatilized. 12. Others a. We will not inform you of the improvement on specification of parts in advance. b. We will not inform you of the change on specification of parts during design in advance. c. Please contact us for the date to realize mass production of parts being designed. Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW Appendix : Appearance standard File No: Applied to Wire Wound Ceramic Inductor Series Effective date: No. Defect Item Graphic Rejection identification Item Schematic Drawing Criteria Wire off/ 1 Welding Spot Off 2 Solder misplace The solder joint Welding Spot of wire break away from electrodes, or over the electrodes. Solder joints are not at electrode side but at the coating side or flank. Coating at flank 3 Coating misplace Coating at electrodes side Specifications subject to change without notice. Please check our website for latest informations. WWW.CJIANG. TW
