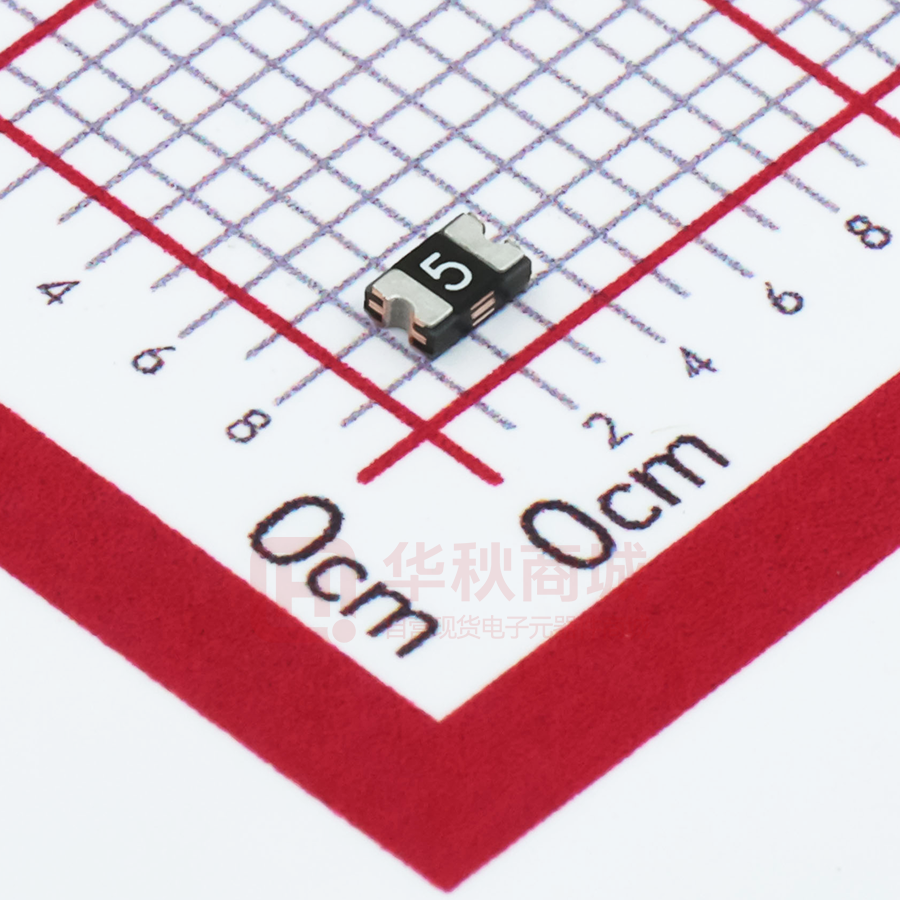

BSMD0805-050-12V

BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝  Features       Size 0.08*0.05 inch /2.0*1.2 mm RoHS compliant, lead-free and halogen-free Fast response to fault current Low resistance Low-profile Compatible with high temperature solders  Applications  Computer, Mobile phones, Multimedia  Automotive, Industrial controls, Telephony and broadband  Game machines, Portable electronics, Battery  Electrical Characteristics（25℃） Ihold (A) Itrip (A) Vmax (V) Imax (A) Pd (W) Time to trip (A) (S) Rmin (Ω) R1max (Ω) BSMD0805-002-60V 0.02 0.06 60 40 0.5 0.1 1.50 12.00 70.00 BSMD0805-005-15V 0.05 0.15 15 40 0.5 0.5 1.50 1.500 20.00 BSMD0805-005-24V 0.05 0.15 24 40 0.5 0.5 1.50 1.500 20.00 BSMD0805-005-33V 0.05 0.15 33 40 0.5 0.5 1.50 1.500 20.00 BSMD0805-005-60V 0.05 0.15 60 40 0.5 0.5 1.50 1.500 20.00 BSMD0805-010-12V 0.10 0.30 12 40 0.5 0.5 1.50 0.750 6.000 BSMD0805-010-15V 0.10 0.30 15 40 0.5 0.5 1.50 0.750 6.000 BSMD0805-010-24V 0.10 0.30 24 40 0.5 0.5 1.50 0.750 6.000 BSMD0805-010-33V 0.10 0.30 33 40 0.5 0.5 1.50 0.750 6.000 BSMD0805-020-9V 0.20 0.50 9 40 0.5 8 0.02 0.500 3.500 BSMD0805-020-15V 0.20 0.50 15 40 0.5 8 0.02 0.500 3.500 BSMD0805-020-24V 0.20 0.50 24 40 0.5 8 0.02 0.500 3.500 BSMD0805-020-30V 0.20 0.50 30 40 0.5 8 0.02 0.500 3.500 BSMD0805-035-6V 0.35 0.75 6 40 0.5 8 0.10 0.200 1.200 BSMD0805-035-12V 0.35 0.75 12 40 0.5 8 0.10 0.200 1.200 BSMD0805-035-16V 0.35 0.75 16 40 0.5 8 0.10 0.200 1.200 BSMD0805-035-24V 0.35 0.75 24 40 0.5 8 0.10 0.200 1.200 BSMD0805-050-6V 0.50 1.00 6 40 0.5 8 0.10 0.100 0.850 BSMD0805-050-12V 0.50 1.00 12 40 0.5 8 0.10 0.100 0.850 BSMD0805-050-15V 0.50 1.00 15 40 0.5 8 0.10 0.100 0.850 BSMD0805-050-24V 0.50 1.00 24 40 0.5 8 0.10 0.100 0.850 Part Number Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 1/6 BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝 Part Number Ihold (A) Itrip (A) Vmax (V) Imax (A) Pd (W) Time to trip (A) (S) Rmin (Ω) R1max (Ω) BSMD0805-075-6V 0.75 1.50 6 40 0.5 8 0.20 0.070 0.385 BSMD0805-075-12V 0.75 1.50 12 40 0.5 8 0.20 0.070 0.385 BSMD0805-075-16V 0.75 1.50 16 40 0.5 8 0.20 0.070 0.385 BSMD0805-100-6V 1.00 2.00 6 40 0.5 8 0.30 0.040 0.270 BSMD0805-100-12V 1.00 2.00 12 40 0.5 8 0.30 0.040 0.270 BSMD0805-110-6V 1.10 2.20 6 40 0.5 8 0.30 0.035 0.230 BSMD0805-110-12V 1.10 2.20 12 40 0.5 8 0.30 0.035 0.230 BSMD0805-125-6V 1.25 2.50 6 40 1.0 8 1.00 0.007 0.060 Ihold = Hold current: maximum current device will pass without tripping in 25℃ still air. Itrip = Trip current: minimum current at which the device will trip in 25℃ still air. Vmax = Maximum voltage device can withstand without damage at rated current (Imax) Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax) Pd typ. = Typical power dissipated from device when in the tripped state at 25℃ still air. Rmin = Minimum resistance of device in initial (un-soldered) state. R1max = Maximum resistance of device at 25℃ measured one hour after tripping or reflow soldering of 260℃ for 20 sec. Caution：Operation beyond the specified ratings may result in damage and possible arcing and flame.  WARNING  Users shall independently assess the suitability of these devices for each of their applications.  Operation of these devices beyond the stated maximum ratings could result in damage to the devices and lead to electrical arcing and/or fire.  These devices are intended to protect against the effects of temporary over-current or over-temperature conditions and are not intended to perform as protective devices where such conditions are expected to be repetitive or prolonged in duration.  Exposure to silicon-based oils, solvents, electrolytes, acids, and similar materials can adversely affect the performance of these PPTC devices.  These devices undergo thermal expansion under fault conditions, and thus shall be provided with adequate space and be protected against mechanical stresses.  Circuits with inductance may generate a voltage (L di/dt) above the rated voltage of the PPTC device. Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 2/6 BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝  Thermal Derating Curve  Typical Time-to-Trip At 25℃  Thermal Derating Chart Part Number Ambient operating temperature hold current(Ihold) -40℃ -20℃ 0℃ 25℃ 40℃ 50℃ 60℃ 70℃ 85℃ BSMD0805-002 0.030 0.027 0.024 0.020 0.017 0.016 0.014 0.012 0.010 BSMD0805-005 0.070 0.060 0.055 0.050 0.040 0.035 0.030 0.025 0.015 BSMD0805-010 0.14 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03 BSMD0805-020 0.28 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 BSMD0805-035 0.47 0.44 0.39 0.35 0.30 0.27 0.24 0.20 0.14 BSMD0805-050 0.68 0.62 0.55 0.50 0.40 0.37 0.33 0.29 0.23 BSMD0805-075 1.00 0.90 0.79 0.75 0.63 0.57 0.53 0.41 0.34 BSMD0805-100 1.35 1.25 1.15 1.00 0.82 0.74 0.65 0.55 0.42 BSMD0805-110 1.45 1.35 1.20 1.10 0.92 0.84 0.75 0.65 0.52 BSMD0805-125 1.65 1.53 1.36 1.25 1.05 0.95 0.85 0.74 0.59 Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 3/6 BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝  Soldering Parameters Profile Feature Pb-Free Assembly Average Ramp-Up Rate(Tsmax to Tp) 3℃/second max Preheat -Temperature Min(Tsmin) -Temperature Max(Tsmax) -Time(Tsmin to Tsmax) 150℃ 200℃ 60~180 seconds Time maintained above: -Temperature(TL) -Time(tL) 217℃ 60~150 seconds Peak Temperature(Tp) 260℃ Ramp-Down Rate 6℃/second max Time 25℃ to Peak Temperature 8 minutes max Storage Condition 0℃~30℃,30%-60%RH  Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free.  Recommended maximum paste thickness is 0.25mm.  Devices can be cleaned using standard industry methods and solvents. Note 1: All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements.  Environmental Specifications Test Conditions Resistance change Passive aging +85°C, 1000 hrs. ±5% typical Humidity aging +85°C, 85% R.H. , 168 hours ±5% typical Thermal shock +85°C to -40°C, 20 times ±33% typical Resistance to solvent MIL-STD-202,Method 215 No change Vibration MIL-STD-202,Method 201 No change Ambient operating conditions : - 40 °C to +85 °C Maximum surface temperature of the device in the tripped state is 125 °C Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 4/6 BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝  Physical Dimensions & Recommended Pad Layout (mm) A 1.0 D 1.5 7 B 1.0 1.20 E Part Number Marking Quantity BSMD0805-002-60V Y BSMD0805-005-15V C A B C D E Min Max Min Max Min Max Min Min 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-005-24V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-005-33V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-005-60V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-010-12V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-010-15V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-010-24V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-010-33V 1 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-020-9V 2 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-020-15V 2 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-020-24V 2 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-020-30V 2 5000 2.00 2.20 1.20 1.50 0.40 0.90 0.20 0.10 BSMD0805-035-6V 3 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-035-12V 3 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-035-16V 3 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-035-24V 3 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-050-6V 5 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-050-12V 5 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-050-15V 5 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-050-24V 5 5000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-075-6V 7 4000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-075-12V 7 4000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-075-16V 7 4000 2.00 2.20 1.20 1.50 0.50 1.10 0.20 0.10 BSMD0805-100-6V 0 4000 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10 BSMD0805-100-12V 0 4000 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10 BSMD0805-110-6V 0 4000 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10 BSMD0805-110-12V 0 4000 2.00 2.20 1.20 1.50 0.70 1.20 0.20 0.10 4000 2.00 2.20 1.20 1.50 1.00 1.50 0.20 0.10 BSMD0805-125-6V Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 5/6 BHFUSE BSMD0805 Series Surface Mount PTC Device 佰宏保险丝  Tape And Reel Specifications (mm) Governing Specifications BSMD0805-005-33V~ BSMD0805-020-33V BSMD0805-035-33V~ BSMD0805-075-12V BSMD0805-100-12V~ BSMD0805-150-6V W 8.0 ± 0.3 8.0 ± 0.3 8.0 ± 0.3 F 3.5 ± 0.05 3.5 ± 0.05 3.5 ± 0.05 E1 1.75 ± 0.1 1.75 ± 0.1 1.75 ± 0.1 D0 1.55 ± 0.05 1.55 ± 0.05 1.55 ± 0.05 D1 1.0 ± 0.1 1.0 ± 0.1 1.0 ± 0.1 P0 4.0 ± 0.1 4.0 ± 0.1 4.0 ± 0.1 P1 4.0 ± 0.1 4.0 ± 0.1 4.0 ± 0.1 P2 2.0 ± 0.05 2.0 ± 0.05 2.0 ± 0.05 A0 1.6 ± 0.1 1.6 ± 0.1 1.6 ± 0.1 B0 2.3 ± 0.1 2.3 ± 0.1 2.3 ± 0.1 T 0.2 ± 0.1 0.2 ± 0.1 0.2 ± 0.1 K0 0.74 ± 0.1 1.04 ± 0.1 1. 35± 0.1 Leader min 390 390 390 Trailer min 160 160 160 Reel Dimensions  C φ178 ± 1.0 D φ60.2 ± 0.5 H 11.0 ± 0.5 W 9.0 ± 1.5 Contact information SHENZHEN BHFUSE INDUSTRIAL CO., LTD TEL: 0755-85259917 FAX: 0755-28704432 E-MAIL: sales@bhfuse.com Specifications are subject to change without notice Revision 2017 Polymer PTC Thermistor www.bhfuse.com 6/6
