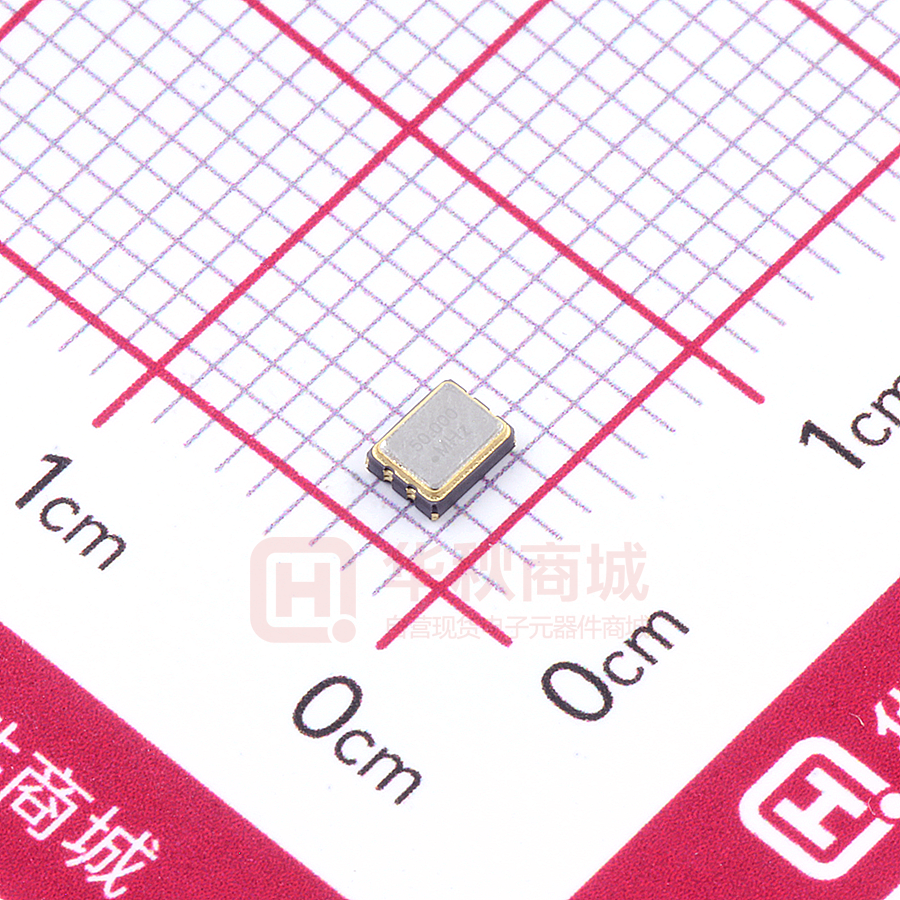

TFOM50M4RHKCNT2T

雅晶鑫電子 Shenzhen Yajingxin Electron Co.,Ltd Customer Production Name SMD OCSECSC4R Customer P/N SEAM 3.2*2.5 N/A P/N TFOM50M4RHKCNT2T Revision A Print Date 2018-12-15 Drawn Checked Approved RoHS Compliant Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Electrical Specifications 1.Model No 3225 OSC 2.Nominal Frequency 50.000MHz 3.Mode of Oscillation Fundamental 4.Operating Temperature Range -40℃ to 85 ℃ 5.Storage Temperature Range -55℃ to +125℃ 6.Frequency Stability ±50ppm 7.Power Supply Voltage 1.8V-5V±10% 8.Input Current 5mA Max. ：50.000MHz 9.Output Voltage Logic High(Voh) Logic Low(Vol) 90%Vdd Min 10%Vdd Max 10.Output Load 15pF max CMOS Load 11.Semmetry (at 50%VDD) 40-60%Normal 12.Rise & Fall Time 8ns Max. 13.E/D or N/C. Tri-state 14.Output Disable Time 100nsec 15.Output Enable Time(start-up time) 10msec 16.Aging ±3ppm/year max 17.Unit Weight 2 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Dimensions 3 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Marking Line 1: 客户指定印字 CANDOR Line 2： 50.000MHz ■ Measurement Circuit Output Wave Form 4 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Input Output Condition ■ Reflow Profile 5 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Reliability Specifications No Test Item Test Methods Device are dropped from a height of 75 cm onto 3 mm 1 DROP TEST thickness stainless plate executing 3 times of random drops. Device are shocked to half sine wave (1000 G) three 2 MECHANICAL SHOCK 3 High Temp and Humidity Test 85℃/RH 85%, 4 High temp storage test 125℃+/-2℃ 5 Low temp storage test -40℃ 6 Thermal shock test -40℃~+85℃ 7 Aging test 85℃ 500Hrs 8 9 Resistance to solder VIBRATION heat mutually perpendicular axes each 3 times. 500Hrs 500Hrs 500Hrs 260℃ DWEL 60' 100cycles 10S Frequency range Amplitude Sweep Sweep Time Test Time 10-2000 Hz 1.5 mm 20 minute 2 hours MIL - STD - 20E Method 208C Temperature 10 SOLDERABILITY Material 245°C±5°C H63A (Silver 2-3 %) Immersion depth 0.5 mm minimum Immersion time 3 ± 0.5 seconds Flux Rosin resin methyl 6 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 ■ Packing 7 ********************************************************************* Shenzhen Yajingxin Electron Co.,Ltd Tel:+86-755-83657231/83657232 移动：138-0255-9153 8 *********************************************************************
