8132S-40.000NQ33FTL

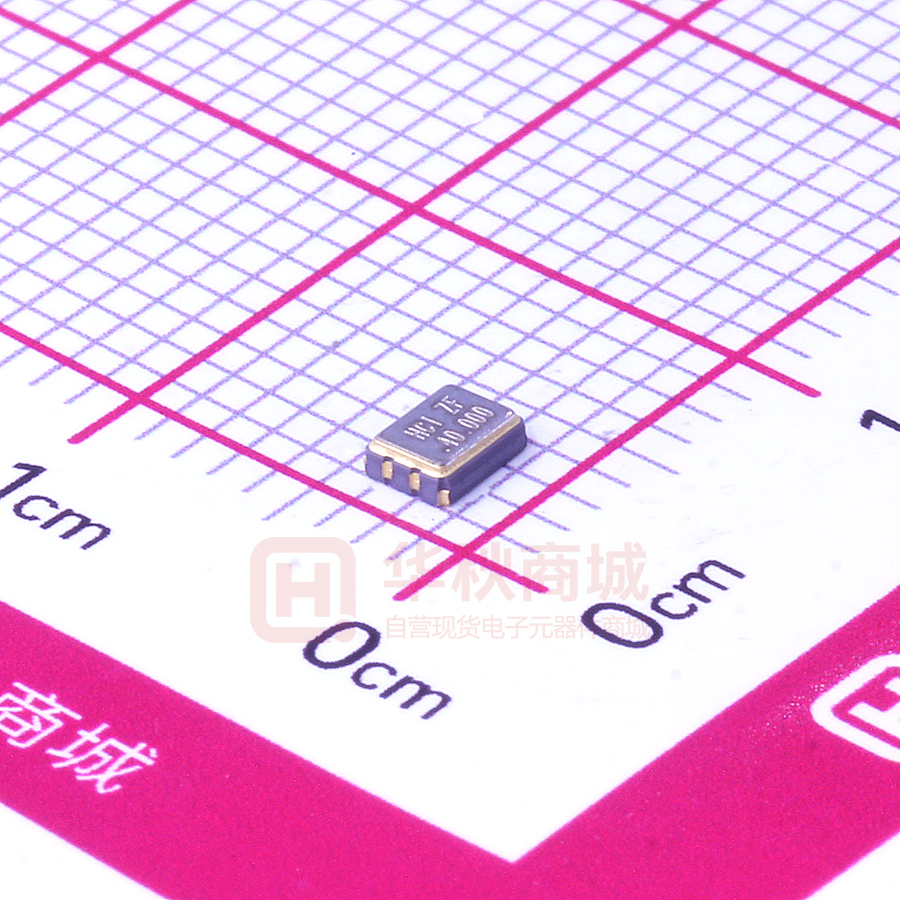

TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR 8132S TCXO UNIT WITH CLIPPED SINE WAVE OUTPUT IN SMD 3.2X2.5MM CERAMIC SEAM SEAL PACKAGE. PRODUCT FEATURES PRODUCT PHOTO (NOT IN SCALE)  Small dimensions 3.2x2.5x0.9 with 4 solder pads.  Tight stabilities over temperature range.  RoHS compliant, LEAD-FREE, HALOGEN-FREE and REACH compliant. APPLICATIONS  WiMAX / WLAN / Ethernet  Telecommunication  Mobil applications PRODUCT SPECIFICATIONS PARAMETER 1.8V SUPPLY VOLTAGE 2.5V 2.8/ 3.0/ 3.3V Frequency range 10 ~ 52MHz REMARKS —- Frequency tolerance ±2.0ppm Initial tol. @+25°C Frequency stability ±0.5ppm; ±1.0ppm; 1.5ppm; ±2.0ppm; ±2.5ppm See note below table Operating temperature range –20 to +70°C / –30 to +85°C / –40 to +85°C In combination to above stabilities. Aging per year @+25°C ±1.0ppm Output waveform Clipped Sine Wave —- 10kΩ/10pF —- Output load Output voltage level 0.8Vp-p Phase noise (example 19.2MHz) -115dBc/Hz / -135dBc/Hz / -148dBc/Hz Phase jitter RMS Minimum 26MHz) Note: Frequency stability is the frequency deviation over temperature range in reference to +25°C PACKAGE OUTLINE / DIMENSIONS PACKAGING INFORMATION  Tape & Reel compliant to EIA-481.  Embossed carrier width 8mm.  Component pitch in carrier 4mm.  Reel diameter 180mm.  QTY per reel: 3,000pcs RECOMMENDED REFLOW PROFILE Suzhou HangJing Elec&Tech Co., Ltd. ◆ Http://www.hci.com.hk Telephone:+86 (0)512 6591 6689 ◆ ◆ No.1,First Qunxing Rd,Suzhou Industrial Park,Jiangsu,China Mobile phone:+86 (0)13819495058 ◆ e-mail: tony@hci.com.hk
