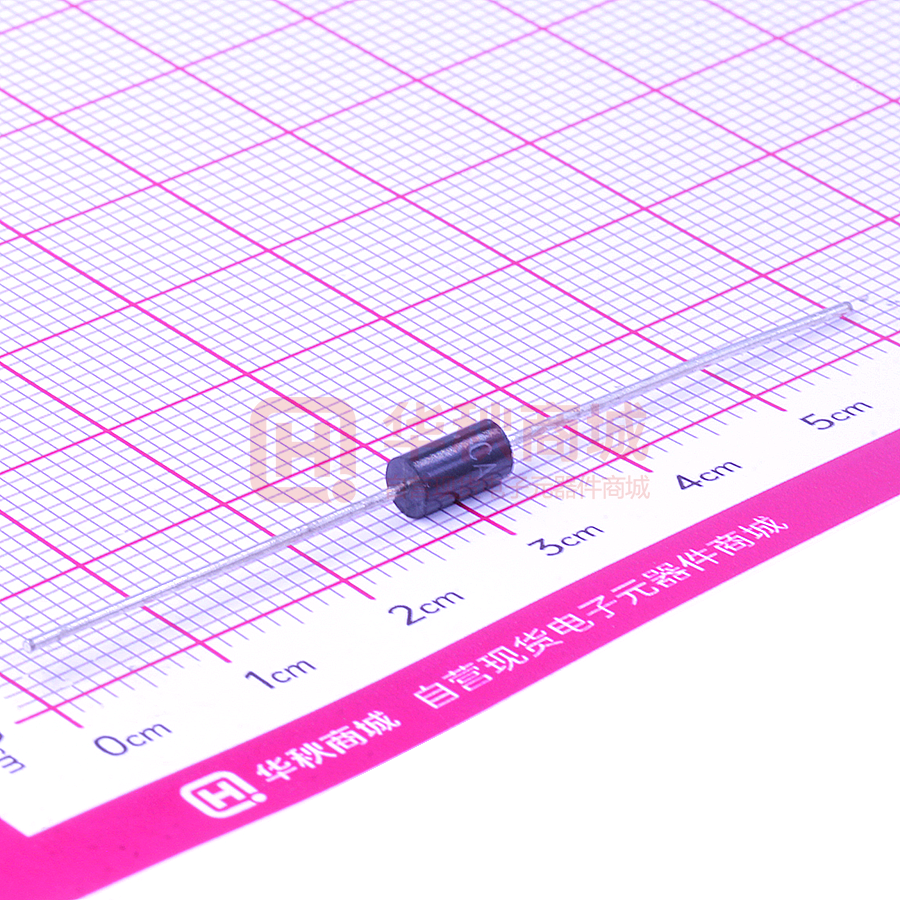

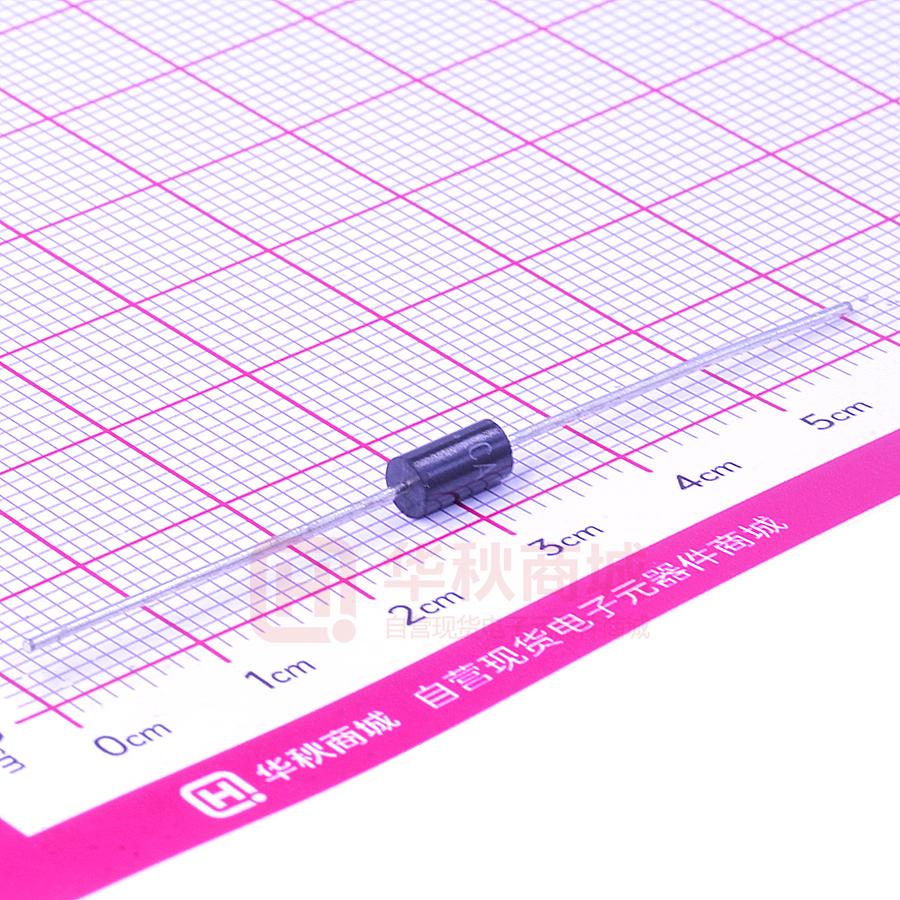

P6KE9.1CA

P6KE Series CREATEK Microelectronics Power TVS in DO-15 Features ■ 600Watts peak pulse power (10/1000μs) ■ Class passivated junction ■ High accuracy, 5% tolerance ■ Uni and Bidirectional unit ■ Low clamping voltage ■ Low Leakage current ■ Very fast response time Applications Mechanical Data ■ ■ ■ Case: DO-15 (plastic package). Lead free; RoHS compliant ■ Computers Molding Compound Flammability Rating: UL 94 V-0 ■ Industrial equipments Terminals: High temperature soldering guaranteed: 260 °C/10 sec. at terminals ■ Other VCC bus and I/O interfaces ■ Telecom systems ■ Consumer electronic applications Absolute Maximum Ratings Ratings at 25 °C, ambient temperature unless otherwise specified Parameter Peak power dissipation with a 10/1000us waveform (1) (Fig. 1) Peak pulse current with a 10/1000us waveform (1) Steady state power dissipation at TL =75℃, lead lengths 0.375" (9.5mm)(2) Peak forward surge current 8.3ms single half sine-wave (3) Maximum instantaneous forward voltage @ 50A for (4) unidirectional only Typical thermal resistance junction-to-lead Typical thermal resistance junction-to-ambient Symbols PPPM Value 600 Unit W IPPM See Next Table A PM(AV) 5.0 W IFSM 100 A VF 3.5/5.0 V RθJL 20 ℃/W RθJA 75 ℃/W Operating junction and storage temperature range -55 to +150 TJ ,TSTG Notes:1.Non-repetitive current pulse, per Fig.3 and derated above TA=25℃ per Fig. 2 ℃ 2. Mounted on copper pad area of 1.6 x 1.6” (40 x 40mm) per Fig. 5 3.. Meas ed on 8.3ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum 4.. F=3.5 V for devices of V(BR) < 220V, and VF=5.0 Volt max. for devices of V(BR)>220V Rev. 1.0, 23-May-2012 www.crea-tek.com 1 P6KE Series CREATEK Microelectronics Electrical Characteristics (TA=25℃, Unless otherwise specified.) Part Number Direction Breakdown voltage (1) V (BR) (Volts) Test current at IT (mA) Stand-off voltage VWM (Volts) Maximum reverse leakage at VWM (3) ID (uA) Maximum peak pulse current (2) IPPM (A) Maximum clamping voltage at IPPM VC (Volts) Maximum temperature coefficient of VBR (% /℃) Min. Max. Uni-Dir 6.45 7.14 10 5.80 1000 57.1 10.5 0.057 P6KE6.8CA Bi-Dir 6.45 7.14 10 5.80 1000 57.1 10.5 0.057 P6KE7.5A Uni-Dir 7.13 7.88 10 6.40 500 53.1 11.3 0.061 P6KE7.5CA Bi-Dir 7.13 7.88 10 6.40 500 53.1 11.3 0.061 P6KE6.8A P6KE8.2A Uni-Dir 7.79 8.61 10 7.02 200 49.6 12.1 0.065 P6KE8.2CA Bi-Dir 7.79 8.61 10 7.02 200 49.6 12.1 0.065 P6KE9.1A Uni-Dir 8.65 9.55 1.0 7.78 50 44.8 13.4 0.068 P6KE9.1CA Bi-Dir 8.65 9.55 1.0 7.78 50 44.8 13.4 0.068 P6KE10A Uni-Dir 9.50 10.5 1.0 8.55 10 41.4 14.5 0.073 P6KE10CA Bi-Dir 9.50 10.5 1.0 8.55 10 41.4 14.5 0.073 P6KE11A Uni-Dir 10.5 11.6 1.0 9.40 5.0 38.5 15.6 0.075 P6KE11CA Bi-Dir 10.5 11.6 1.0 9.40 5.0 38.5 15.6 0.075 P6KE12A Uni-Dir 11.4 12.6 1.0 10.2 5.0 35.9 16.7 0.078 P6KE12CA Bi-Dir 11.4 12.6 1.0 10.2 5.0 35.9 16.7 0.078 P6KE13A Uni-Dir 12.4 13.7 1.0 11.1 5.0 33.0 18.2 0.081 P6KE13CA Bi-Dir 12.4 13.7 1.0 11.1 5.0 33.0 18.2 0.081 P6KE15A Uni-Dir 14.3 15.8 1.0 12.8 1.0 28.3 21.2 0.084 P6KE15CA Bi-Dir 14.3 15.8 1.0 12.8 1.0 28.3 21.2 0.084 P6KE16A Uni-Dir 15.2 16.8 1.0 13.6 1.0 26.7 22.5 0.086 P6KE16CA Bi-Dir 15.2 16.8 1.0 13.6 1.0 26.7 22.5 0.086 P6KE18A Uni-Dir 17.1 18.9 1.0 15.3 1.0 23.8 25.2 0.088 P6KE18CA Bi-Dir 17.1 18.9 1.0 15.3 1.0 23.8 25.2 0.088 P6KE20A Uni-Dir 19.0 21.0 1.0 17.1 1.0 21.7 27.7 0.090 P6KE20CA Bi-Dir 19.0 21.0 1.0 17.1 1.0 21.7 27.7 0.090 P6KE22A Uni-Dir 20.9 23.1 1.0 18.8 1.0 19.6 30.6 0.092 P6KE22CA Bi-Dir 20.9 23.1 1.0 18.8 1.0 19.6 30.6 0.092 P6KE24A Uni-Dir 22.8 25.2 1.0 20.5 1.0 18.1 33.2 0.094 P6KE24CA Bi-Dir 22.8 25.2 1.0 20.5 1.0 18.1 33.2 0.094 P6KE27A Uni-Dir 25.7 28.4 1.0 23.1 1.0 16.0 37.5 0.096 P6KE27CA Bi-Dir 25.7 28.4 1.0 23.1 1.0 16.0 37.5 0.096 P6KE30A Uni-Dir 28.5 31.5 1.0 25.6 1.0 14.5 41.4 0.097 P6KE30CA Bi-Dir 28.5 31.5 1.0 25.6 1.0 14.5 41.4 0.097 P6KE33A Uni-Dir 31.4 34.7 1.0 28.2 1.0 13.1 45.7 0.098 P6KE33CA Bi-Dir 31.4 34.7 1.0 28.2 1.0 13.1 45.7 0.098 P6KE36A Uni-Dir 34.2 37.8 1.0 30.8 1.0 12.0 49.9 0.099 P6KE36CA Bi-Dir 34.2 37.8 1.0 30.8 1.0 12.0 49.9 0.099 P6KE39A Uni-Dir 37.1 41.0 1.0 33.3 1.0 11.1 53.9 0.100 P6KE39CA Bi-Dir 37.1 41.0 1.0 33.3 1.0 11.1 53.9 0.100 P6KE43A Uni-Dir 40.9 45.2 1.0 36.8 1.0 10.1 59.3 0.101 P6KE43CA Bi-Dir 40.9 45.2 1.0 36.8 1.0 10.1 59.3 0.101 P6KE47A Uni-Dir 44.7 49.4 1.0 40.2 1.0 9.3 64.8 0.101 Rev. 1.0, 23-May-2012 www.crea-tek.com 2 P6KE Series CREATEK Microelectronics Part Number Direction Breakdown voltage (1) V (BR) (Volts) Min. Max. Test current at IT (mA) Stand-off voltage VWM (Volts) Maximum reverse leakage at VWM (3) ID (uA) Maximum peak pulse current (2) IPPM (A) Maximum clamping voltage at IPPM VC (Volts) Maximum temperature coefficient of VBR (% /℃) P6KE47CA Bi-Dir 44.7 49.4 1.0 40.2 1.0 9.3 64.8 0.101 P6KE51A Uni-Dir 48.5 53.6 1.0 43.6 1.0 8.6 70.1 0.102 P6KE51CA Bi-Dir 48.5 53.6 1.0 43.6 1.0 8.6 70.1 0.102 P6KE56A Uni-Dir 53.2 58.8 1.0 47.8 1.0 7.8 77.0 0.103 P6KE56CA Bi-Dir 53.2 58.8 1.0 47.8 1.0 7.8 77.0 0.103 P6KE62A Uni-Dir 58.9 65.1 1.0 53.0 1.0 7.1 85.0 0.104 P6KE62CA Bi-Dir 58.9 65.1 1.0 53.0 1.0 7.1 85.0 0.104 P6KE68A Uni-Dir 64.6 71.4 1.0 58.1 1.0 6.5 92.0 0.104 P6KE68CA Bi-Dir 64.6 71.4 1.0 58.1 1.0 6.5 92.0 0.104 P6KE75A Uni-Dir 71.3 78.8 1.0 64.1 1.0 5.8 103 0.105 P6KE75CA Bi-Dir 71.3 78.8 1.0 64.1 1.0 5.8 103 0.105 P6KE82A Uni-Dir 77.9 86.1 1.0 70.1 1.0 5.3 113 0.105 P6KE82CA Bi-Dir 77.9 86.1 1.0 70.1 1.0 5.3 113 0.105 P6KE91A Uni-Dir 86.5 95.5 1.0 77.8 1.0 4.8 125 0.106 P6KE91CA Bi-Dir 86.5 95.5 1.0 77.8 1.0 4.8 125 0.106 P6KE100A Uni-Dir 95.0 105 1.0 85.5 1.0 4.4 137 0.106 P6KE100CA Bi-Dir 95.0 105 1.0 85.5 1.0 4.4 137 0.106 P6KE110A Uni-Dir 105 116 1.0 94.0 1.0 3.9 152 0.107 P6KE110CA Bi-Dir 105 116 1.0 94.0 1.0 3.9 152 0.107 P6KE120A Uni-Dir 114 126 1.0 102 1.0 3.6 165 0.107 P6KE120CA Bi-Dir 114 126 1.0 102 1.0 3.6 165 0.107 P6KE130A Uni-Dir 124 137 1.0 111 1.0 3.4 179 0.107 P6KE130CA Bi-Dir 124 137 1.0 111 1.0 3.4 179 0.107 P6KE150A Uni-Dir 143 158 1.0 128 1.0 2.9 207 0.108 P6KE150CA Bi-Dir 143 158 1.0 128 1.0 2.9 207 0.108 P6KE160A Uni-Dir 152 168 1.0 136 1.0 2.7 219 0.108 P6KE160CA Bi-Dir 152 168 1.0 136 1.0 2.7 219 0.108 P6KE170A Uni-Dir 162 179 1.0 145 1.0 2.6 234 0.108 P6KE170CA Bi-Dir 162 179 1.0 145 1.0 2.6 234 0.108 P6KE180A Uni-Dir 171 189 1.0 154 1.0 2.4 246 0.108 P6KE180CA Bi-Dir 171 189 1.0 154 1.0 2.4 246 0.108 P6KE200A Uni-Dir 190 210 1.0 171 1.0 2.2 274 0.108 P6KE200CA Bi-Dir 190 210 1.0 171 1.0 2.2 274 0.108 P6KE220A Uni-Dir 209 231 1.0 185 1.0 1.8 328 0.108 P6KE220CA Bi-Dir 209 231 1.0 185 1.0 1.8 328 0.108 P6KE250A Uni-Dir 237 263 1.0 214 1.0 1.7 344 0.110 P6KE250CA Bi-Dir 237 263 1.0 214 1.0 1.7 344 0.110 P6KE300A Uni-Dir 285 315 1.0 256 1.0 1.4 414 0.110 P6KE300CA Bi-Dir 285 315 1.0 256 1.0 1.4 414 0.110 P6KE350A Uni-Dir 333 368 1.0 300 1.0 1.2 482 0.110 P6KE350CA Bi-Dir 333 368 1.0 300 1.0 1.2 482 0.110 P6KE400A Uni-Dir 380 420 1.0 342 1.0 1.1 548 0.110 P6KE400CA Bi-Dir 380 420 1.0 342 1.0 1.1 548 0.110 P6KE440A Uni-Dir 418 462 1.0 376 1.0 1.0 602 0.110 P6KE440CA Bi-Dir 418 462 1.0 376 1.0 1.0 602 0.110 Rev. 1.0, 23-May-2012 www.crea-tek.com 3 P6KE Series CREATEK Microelectronics Part Number Direction Breakdown voltage (1) V (BR) (Volts) Min. Max. Test current at IT (mA) Stand-off voltage VWM (Volts) Maximum reverse leakage at VWM (3) ID (uA) Maximum peak pulse current (2) IPPM (A) Maximum clamping voltage at IPPM VC (Volts) Maximum temperature coefficient of VBR (% /℃) P6KE480A Uni-Dir 456 504 1.0 408 1.0 0.9 658 0.110 P6KE480CA Bi-Dir 456 504 1.0 408 1.0 0.9 658 0.110 P6KE510A Uni-Dir 485 535 1.0 434 1.0 0.9 698 0.110 P6KE510CA Bi-Dir 485 535 1.0 434 1.0 0.9 698 0.110 P6KE530A Uni-Dir 503.5 556.5 1.0 450 1.0 0.8 725 0.110 P6KE530CA Bi-Dir 503.5 556.5 1.0 450 1.0 0.8 725 0.110 P6KE540A Uni-Dir 513 567 1.0 459 1.0 0.8 740 0.110 P6KE540CA Bi-Dir 513 567 1.0 459 1.0 0.8 740 0.110 P6KE550A Uni-Dir 522.5 577.5 1.0 467 1.0 0.8 760 0.110 P6KE550CA Bi-Dir 522.5 577.5 1.0 467 1.0 0.8 760 0.110 Notes:1. V(BR) measured after IT applied for 300us, IT=square wave pulse or equivalent 2. Surge current waveform per Fig. 3 and derate per Fig. 2 3. For bidirectional types with VWM of 10 volts and less, the ID limit is doubled 4. All terms and symbols are consistent with ANSI/IEEE C62.35 5. For parts without A, the VBR is±10% Typical Characteristics (Tamb = 25 °C unless otherwise specified) Fig.2 Maximum Non-Repetitive Surge Current 100 Non-repetitive pulse waveform shown in Fig.3 TA=25℃ 10 Peak Pulse Power(PPP) or Current(IPPM) Derating in Percentage,% PPPM-Peak Pulse Power (kW) Fig.1 Peak Pulse Power Rating Curve 100 75 50 1.0 25 0.10.1us 1.0us 10us 100us Td- Pulse Width (sec) Rev. 1.0, 23-May-2012 1.0ms 10ms 0 0 25 50 75 100 125 150 175 200 T A-Ambient Temperature(℃) www.crea-tek.com 4 P6KE Series CREATEK Microelectronics Fig.3 Typical Forward Characteristics TJ=25℃ Pulse Width（td） Is defined as the point Where the peak current Peak Value Decays to 50% of IPPM IPPM IPPM-Peak Pulse Current, % IRSM tr =10μs 100 Half Value IPPM(IPPM/2) 10/1000μs Waveform as defined by R.E.A 50 td 0 6000 CJ-Junction Capacitance (pF) 150 Fig.4 Typ. Junction Capacitance Uni-Directional TJ=25℃ F=1.0MHz Vsig=50mVp-p Measured at Zero Bias 1000 100 Measured at Stand-off Voltage.VWM 10 0 1.0 2.0 3.0 4.0 1.0 100 10 Td-Time(ms) 200 VBR-Breakdown Voltage (V) Fig.6 Max. Non-Repetitive Forward Surge Fig.5 Steady State Power Derating Curve Currer Uni-Directional Only 200 5.0 IFSM—Peak Forward Surge Current (A) PM(AV) Steady State Power Dissipation(W)） 60HZ Resistive or Inductive Load 3.75 1.6×1.6×0.40” (40×40×1mm) Copper Heat Sinks 2.5 L = 0.375” (9.5mm) 1.25 Lead Lengths 0 Uni-Directional Only 100 TJ=TJmax 8.3ms Single Half Sine-Wave (JEDEC Method) 50 10 0 25 50 75 100 125 150 175 200 1 5 TL-Lead Temperature(℃) 100 Fig.8 Typ. Transient Thermal Impedance 100 100 Transient Thermal Impedance (℃W) 1000 ID-Instantaneous Reverse Leakage Current(uA) 50 Number of Cycles at 60HZ Fig.7 Typical Reverse Leakage Characteristics Measured at Devices Stand-off Voltage.VWM 10 10 TA=25℃ 1 0.1 0.01 1 0.1 0.001 0 10 100 200 300 V(BR)-Breakdown Voltage(V) Rev. 1.0, 23-May-2012 400 500 0 0.001 0..001 00 0.0 10 1 0 tp- Pulse Duration(sec) www.crea-tek.com 5 P6KE Series CREATEK Microelectronics Package Dimensions D C A A B C D A B Dimensions Milimeters Min Max 25.4 5.8 7.6 0.7 0.9 2.6 3.1 Part number system P6KE XXX C A 5% Voltage tolerance (without A, 5% Voltage tolerance) Bi-direction (without C, Uni-direction) Voltage Product Series Ordering information Order code Package Packaging option Base quantity Packaging specification P6KExxA(CA) DO-15 Tape and BOX 3000pcs EIA STD RS-481 Revision history Date Revision 23-May-2012 1.0 Rev. 1.0, 23-May-2012 Changes Initial release www.crea-tek.com 6 P6KE Series CAUTION / WARNING Information in this document is believed to be accurate and reliable. However, CREATEK does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Users should independently evaluate the suitability of and test each product selected for their own applications, and CREATEK assumes no liability whatsoever relating to the choice, selection or use of the CREATEK products and services described herein. CREATEK reserves the right to change or update, without notice, any information contained in this publication; to change, without notice, the design, construction, processing, or specification of any product; and to discontinue or limit production or distribution of any product. Information in this document supersedes and replaces all information previously supplied. Products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of an CREATEK product can reasonably be expected to result in personal injury, death or severe property or environmental damage. CREATEK accepts no liability for inclusion and/or use of CREATEK products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk. This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from national authorities. Resale of CREATEK products with provisions different from the statements and/or technical features set forth in this document shall immediately void any warranty granted by CREATEK for the CREATEK product or service described herein and shall not create or extend in any manner whatsoever, any liability of CREATEK. CREATEK expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose. CREATEK only obligations are those in the CREATEK Standard Terms and Conditions of Sale and in no case will CREATEK be liable for any incidental, indirect, or consequential damages arising from the sale, resale, use, or misuse of its products. Specifications are subject to change without notice t © Copyright 2009,CREATEK Microelectronics ® is a registered trademark of CREATEK Microelectronics All rights reserved Rev. 1.0, 23-May-2012 www.crea-tek.com 7
