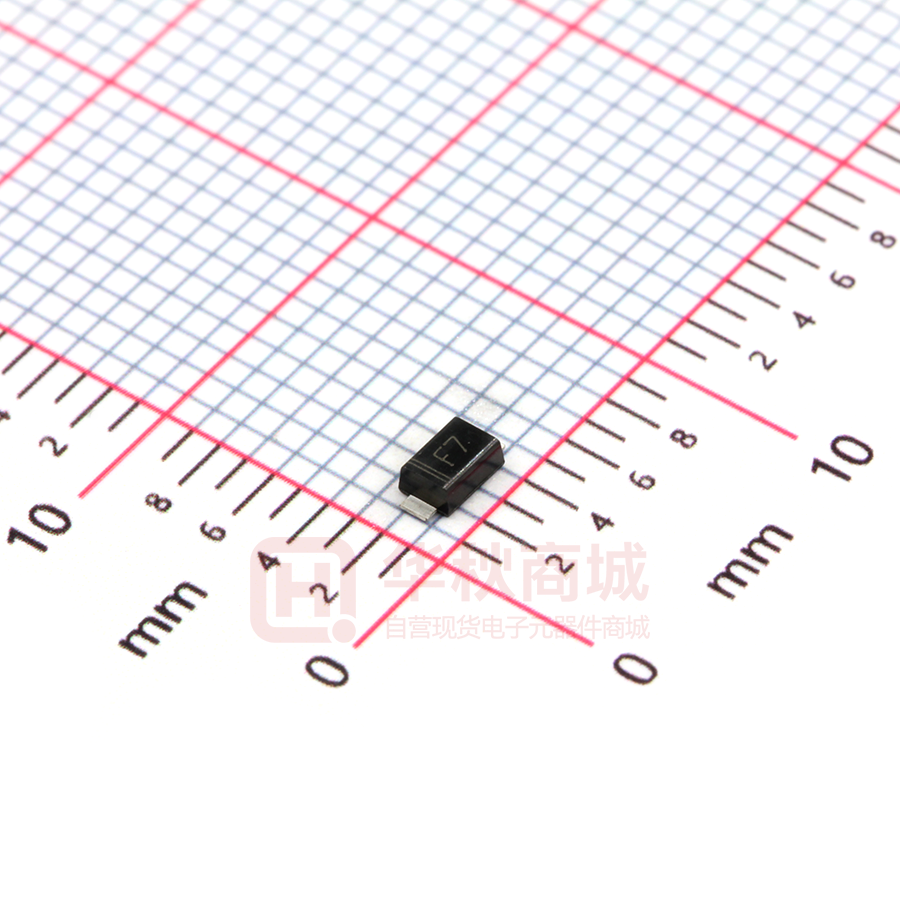

FR107

FR101 THRU FR107 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT FAST RECOVERY RECTIFIER Features PINNING PIN     DESCRIPTION 1 Cathode 2 Anode Glass passivated device Ideal for surface mouted applications Low reverse leakage Metallurgically bonded construction  High temperature soldering guaranteed: SOD-123FL 250°C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 2 1 Mechanical Data      Case : JEDEC 6OD-123FL molded plastic body Terminals : Solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.007 ounce, 0.02 grams Unipolar Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) VRRM VRMS VDC FR101 FR102 FR103 FR104 FR105 FR106 FR107 F1 F2 F3 F4 F5 F6 F7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 UNITS V V V I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25 A Maximum instantaneous forward voltage at 1.0A VF V Maximum DC reverse current rated DCblocking voltage IR 1.3 5 50 uA 4 pF TA=25℃ at TA=125℃ Typical junction capacitance (NOTE 1) Maximum Reverse Recovery Time CJ trr 150 250 500 ns Typical thermal resistance (NOTE 2) RJA 180.0 Operating junction temperature range TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Storage temperature range Note: 1.Averaged over any 20ms period. 2.Measured with IF=0.5A, IR=1A, Irr=0.25A. 3.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 4.Thermal resistance junction to ambient, 6.0 mm2 coppeer pads to each terminal. www.tw-gmc.com 1 ℃/W FR101 THRU FR107 Reverse Voltage - 50 to 1000 Volts Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 30 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 100 Number of Cycles www.tw-gmc.com 100 120 140 T J =25°C 10 1.0 10 Reverse Voltage (V) 35 1 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 00 60 1 0.5 Instaneous Forward Voltage (V) 05 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 0.01 0.0 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 10 Forward Current - 1.0 Ampere 2 100 FR101 THRU FR107 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND HE VM g g pad e E A pad D E A Top View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm mil Bottom View 7° The recommended mounting pad size 1.2 (47) 2.0 (79) 1.2 (47) 1.2 (47) Unit： mm (mil) www.tw-gmc.com ∠ 3
