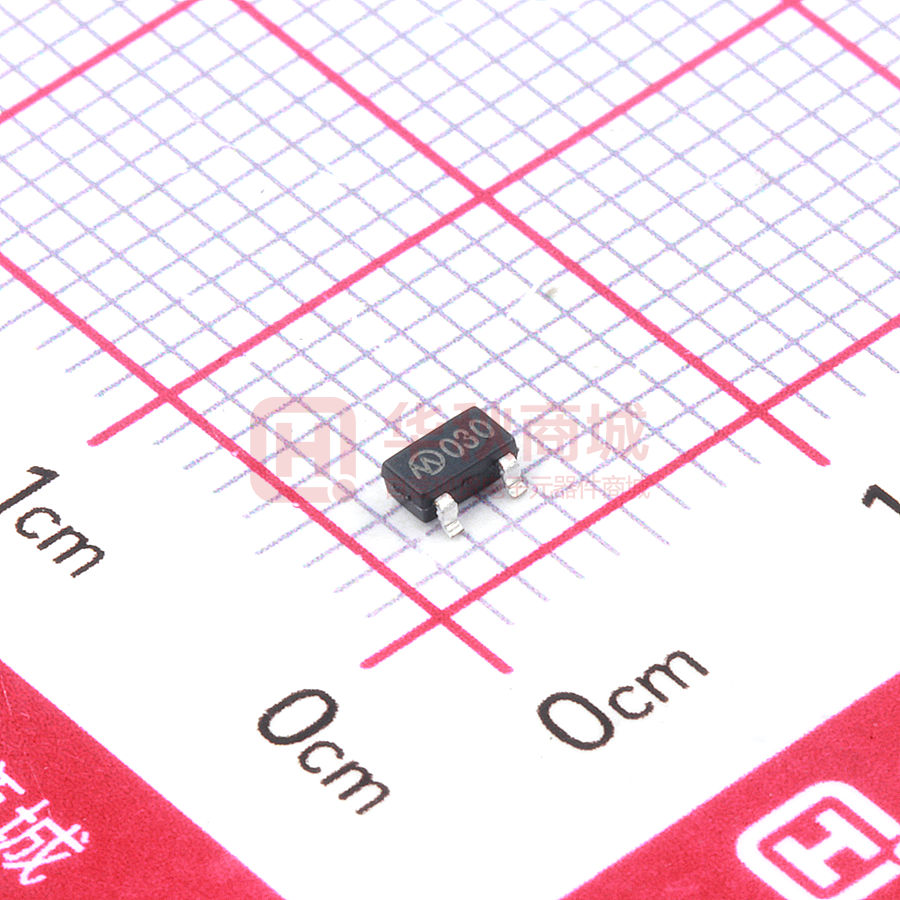

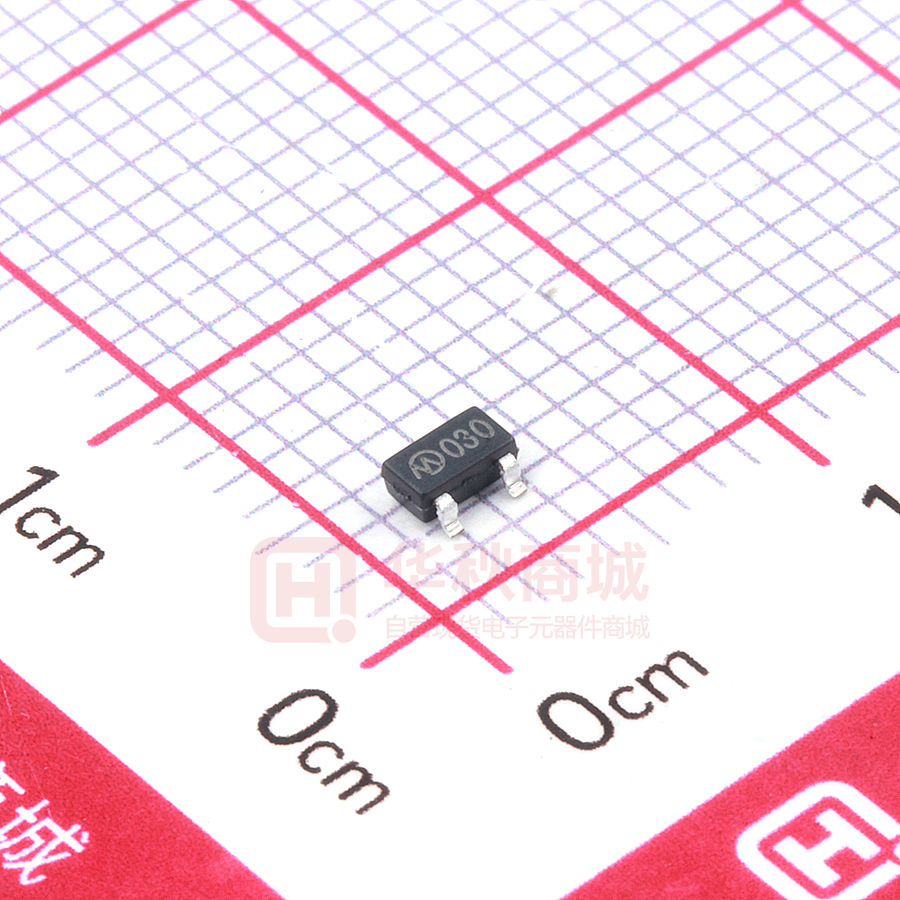

MD7030

Low Voltage Detector MD70XX SERIES (NMOS/CMOS) General Description The MD70XX series is a set of three-terminal low power voltage detectors implemented in CMOS technology. Each voltage detector in the series detects a particular fixed voltage ranging from 1.2V to 7V. The voltage detectors consist of a high-precision and low power consumption standard voltage source, a comparator, hysteresis circuit, and an output driver. CMOS technology ensures low power consumption. Although designed primarily as fixed voltage detectors, these devices can be used with external components to detect user specified threshold voltages Features Applications ·Low power consumption ·Low temperature coefficient ·Built-in high-stability reference source ·Open drain types: NMOS: MD70XX CMOS: 70XXC ·Built-in hysteresis characteristic ·TO-92 package ·SOT-89 package ·SOT-23-3/5 package ·SSOT-24 package ·Battery checkers ·Level selectors ·Power failure detectors ·Microcomputer reset ·Battery memory backup ·Non-volatile RAM signal storage protectors · SSOT-24 packageRatings Absolute Maximum Supply Voltage.................... ............. -0.3V to 18V Output Voltage ..................VSS-0.3V to VDD+0.3V Storage Temperature.......................-50℃to 125℃ Operating Temperature..............-40℃to 85℃ Output Current......................... 10mA Power Consumption: SOT89-3 500mW TO-92 300mW SOT23-/5 250mW Note: These are stress ratings only. Stresses exceeding the range specified under _Absolute Maximum Ratings_ may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability. 1 Low Voltage Detector MD70XX SERIES (NMOS/CMOS) Selection Table Part No. Detectable Voltage Hysteresis Width Tolerance MD7015 MD7019 MD7020 MD7021 MD7022 MD7023 MD7024 MD7027 MD7030 MD7033 MD7035 MD7036 MD7039 MD7042 MD7043 MD7044 MD7047 MD7050 1.5V 1.9V 2.0V 2.1V 2.2V 2.3V 2.4V 2.7V 3.0V 3.3V 3.5V 3.6V 3.9V 4.2V 4.3V 4.4V 4.7V 5.0V 0.075V 0.095V 0.100V 0.105V 0.110V 0.115V 0.120V 0.135V 0.150V 0.165V 0.175V 0.180V 0.195V 0.210V 0.215V 0.220V 0.235V 0.250V ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% ±3% MD7070 7.0V 0.350V ±3% MD7025C MD7027C MD7030C MD7033C 2.5V 2.7V 3.0V 3.3V 0.125V 0.135V 0.150V 0.165V ±3% ±3% ±3% ±3% Marking TO92/SOT89-3 SOT23-3/5 70XX 0XX NMOS Drain output 70XXC CMOS output 70XXC For example: The MD7044 is a 4.4V, NMOS open drain active low output For semi-custom parts,selectable regulated voltage range is from 1.2V to 12V in 0.1V increment. For semi-custom parts,selectable output type CMOS . 2 Low Voltage Detector MD70XX SERIES (NMOS/CMOS) Block Diagram N channel open drain output (normal open; active low) CMOS output (normal high; active low) 3 Low Voltage Detector MD70XX SERIES (NMOS/CMOS) Logical Characteristic(NMOS/CMOS TYPE) (1) Solid Line ......VIN from Hi→Lo (2) Dash Line ......VIN from Lo→Hi Pin Assignment TO-92L SOT 89-3L SOT 23-3L NC SOT23-5 NC VDD VOUT VDD GND VOUT VOUT VDD GND 4 GND VOUT VDD GND Low Voltage Detector MD70XX SERIES (NMOS/CMOS) Electrical Characteristic MD7015 Symbol Parameter Test Conditions VDD Conditions VDET VHYS Hi→Lo Detectable Voltage Hysteresis Width --- --- IDD VDD IOL △V DET △T A Operating Current Operating Voltage Output Sink Current Temperature Coefficient 2.5 -1.4 -- No load -VOUT=0.2V 0℃
