BAV99

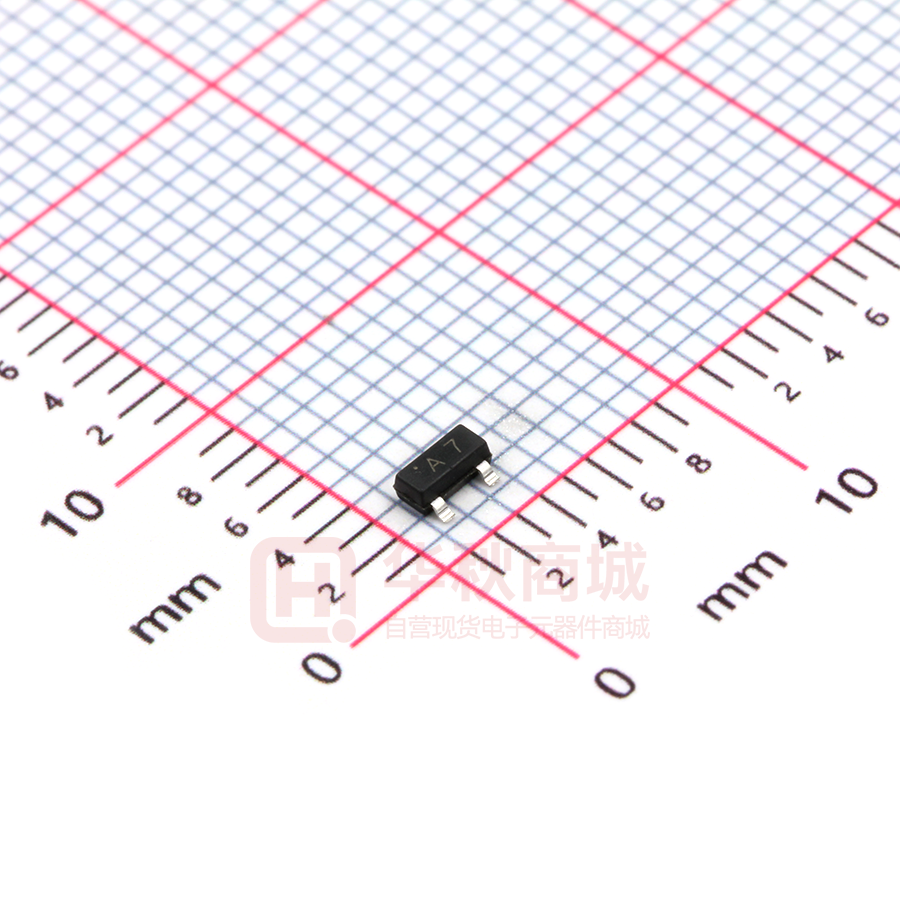

BAW56/BAV70/BAV99 BAW56 Marking: A1 BAV70 Marking: A4 BAV99 Marking: A7 Maximum Ratings @TA=25℃ Parameter Symbol Limits Unit Reverse voltage VR 70 V Forward Current IF 200 mA IFM(surge) 500 mA PD 225 mW RθJA 556 ℃/W TJ 150 ℃ TSTG -55-150 ℃ Peak Forward Surge Current Power Dissipation Thermal Resistance Junction to Ambient Air Junction temperature Storage temperature range Electrical Characteristics @TA=25℃ Parameter Reverse Breakdown Voltage Symbol Min. VR 70 Typ. Max. Unit Conditions V IR=100μA VF1 0.715 V IF=1mA VF2 0.855 V IF=10mA VF3 1 V IF=50mA VF4 1.25 V IF=150mA Reverse current IR 2.5 μA VR=70V Capacitance between terminals CT 1.5 pF Reverse recovery time t rr 6 ns Forward voltage www.yongyutai.com VR=0,f=1MHz IF = IR = 10mA, Irr= 0.1 x IR, RL = 100Ω PAGE 1 BAW56/BAV70/BAV99 Typical Characteristics www.yongyutai.com PAGE 2
